Qwiketz intake elbow thread including pics and dyno charts
Hi guys. Many of you guys know that I have been in the process of coming up with another intake elbow. I've come far enough at this point to at least warrant an update. It's not done but I'm close.
A little background about my elbow. It's out of stainless steel with a 1/2" bung welded on. My intention is to connect the 1/2" hose to the stock 90* elbow off the cam cover. I will also be trying to find a replacement fitting that will work. I tried two today but they're not quite right.
I will be using reinforced silicone couplers and t bolt clamps.
I'm going to test fit it tomorrow after work and I'm hoping to get it on the dyno either Saturday or early next week. I will be doing runs with:
-stock, no alky
-intake tube, no alky
-intake tube, 375 jet
-intake tube 625 jet
Below are some pics of my prototype. I probably will be doing a run of these shortly once I get the dyno results and test fit with the stock air box (mine doesn't have it). If all turns out good then I'll talk to my fab shop that did the work on this one and track down the other components.

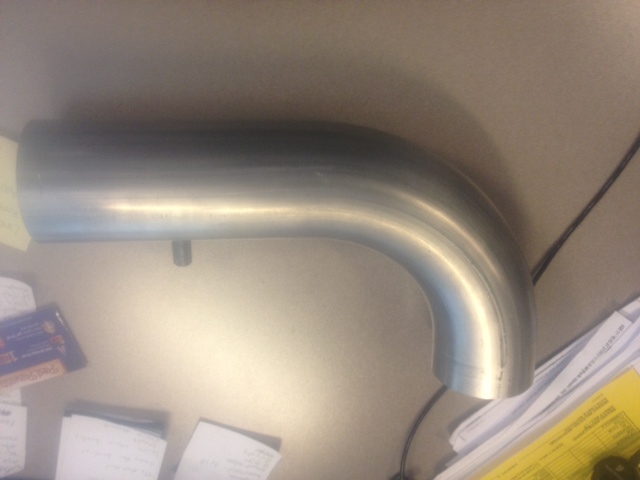

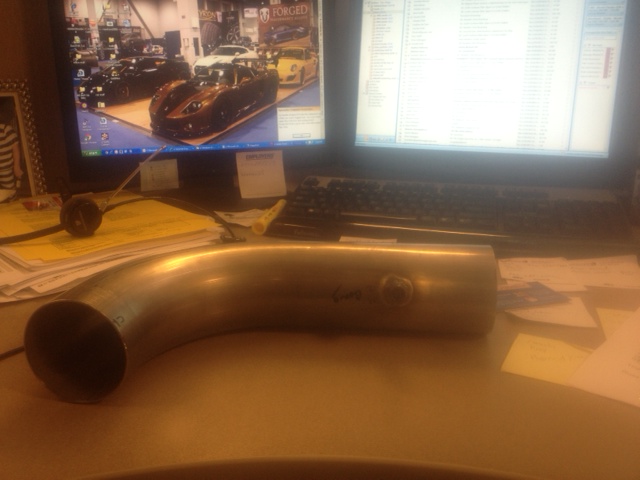

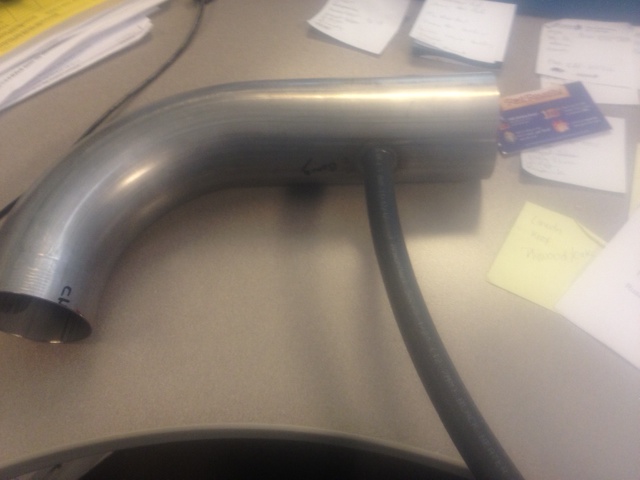

Here's some pics of the tube itself....
A little background about my elbow. It's out of stainless steel with a 1/2" bung welded on. My intention is to connect the 1/2" hose to the stock 90* elbow off the cam cover. I will also be trying to find a replacement fitting that will work. I tried two today but they're not quite right.
I will be using reinforced silicone couplers and t bolt clamps.
I'm going to test fit it tomorrow after work and I'm hoping to get it on the dyno either Saturday or early next week. I will be doing runs with:
-stock, no alky
-intake tube, no alky
-intake tube, 375 jet
-intake tube 625 jet
Below are some pics of my prototype. I probably will be doing a run of these shortly once I get the dyno results and test fit with the stock air box (mine doesn't have it). If all turns out good then I'll talk to my fab shop that did the work on this one and track down the other components.
Here's some pics of the tube itself....
#4
more mock up photos.....
You'll notice that I left the elbow a little shorter than the stock part. This is mostly due to the fact that I'll be using 3" long silicone elbows. The t bolt clamps only really take about 3/4" on each side, so there's a little bit of wiggle room.
You'll notice that I left the elbow a little shorter than the stock part. This is mostly due to the fact that I'll be using 3" long silicone elbows. The t bolt clamps only really take about 3/4" on each side, so there's a little bit of wiggle room.
#7
Totally. I was calling around to setup dyno time so I'll have some updates soon. Also, it looks like I'll retain the stock breather fitting which is a nice feature.
Trending Topics
#8
Okay guys. I have the dyno booked at GRC Performance in Mission Viejo next Friday. If anyone is in so cal and wants to see what this thing will do on their car, I'll cover the cost of the dyno runs for a stock versus modified run as long as I can post the dyno results on my thread here. I'd like to see what it'll do on a stock car and I'll post what it'll do on a modified car. PM me if interested.
#11
Okay guys. I have the dyno booked at GRC Performance in Mission Viejo next Friday. If anyone is in so cal and wants to see what this thing will do on their car, I'll cover the cost of the dyno runs for a stock versus modified run as long as I can post the dyno results on my thread here. I'd like to see what it'll do on a stock car and I'll post what it'll do on a modified car. PM me if interested.
#12
I'm a bit confused about what I'm looking at?
I haven't followed your other threads on this.
What's the perceived advantage of this piece if you have an otherwise stock car?
What's the perceived advantage of this piece if you have an otherwise stock car?
Hi guys. Many of you guys know that I have been in the process of coming up with another intake elbow. I've come far enough at this point to at least warrant an update. It's not done but I'm close.
A little background about my elbow. It's out of stainless steel with a 1/2" bung welded on. My intention is to connect the 1/2" hose to the stock 90* elbow off the cam cover. I will also be trying to find a replacement fitting that will work. I tried two today but they're not quite right.
I will be using reinforced silicone couplers and t bolt clamps.
I'm going to test fit it tomorrow after work and I'm hoping to get it on the dyno either Saturday or early next week. I will be doing runs with:
-stock, no alky
-intake tube, no alky
-intake tube, 375 jet
-intake tube 625 jet
Below are some pics of my prototype. I probably will be doing a run of these shortly once I get the dyno results and test fit with the stock air box (mine doesn't have it). If all turns out good then I'll talk to my fab shop that did the work on this one and track down the other components.
Here's some pics of the tube itself....
A little background about my elbow. It's out of stainless steel with a 1/2" bung welded on. My intention is to connect the 1/2" hose to the stock 90* elbow off the cam cover. I will also be trying to find a replacement fitting that will work. I tried two today but they're not quite right.
I will be using reinforced silicone couplers and t bolt clamps.
I'm going to test fit it tomorrow after work and I'm hoping to get it on the dyno either Saturday or early next week. I will be doing runs with:
-stock, no alky
-intake tube, no alky
-intake tube, 375 jet
-intake tube 625 jet
Below are some pics of my prototype. I probably will be doing a run of these shortly once I get the dyno results and test fit with the stock air box (mine doesn't have it). If all turns out good then I'll talk to my fab shop that did the work on this one and track down the other components.
Here's some pics of the tube itself....
#14
Wouldn't getting a reading with the new intake on a stock engine provide baseline info on what the intake will gain ??
Then other readings (before and after) with a modded engine would provide what the intake will do for these engines.
IMHO only...
#15
Join Date: Oct 2009
Location: Perth Ontario Canada
Posts: 11,058
Received 2,255 Likes
on
1,840 Posts
The stock intake is a cold air type- the proposed mod is not. That's a step backwards to me.
#17
Join Date: Oct 2009
Location: Perth Ontario Canada
Posts: 11,058
Received 2,255 Likes
on
1,840 Posts
Ah, OK, I was looking at the K&N filter set up in the pics above. Thanks.
#18
the piece is being designed as a stock replacement, so you will be able to retain the stock air box. My car didn't have one when I have it so I'm working with what I got since finding a replacement is hard to do and is expensive.
On a different note about the closed off element versus open filter in the compartment; we were worried about this on our supercharged corvette bracket setups because the filter was above the header(even worse). What we found was that once the car was moving at all, enough air was going through the engine compartment that the temps on the guage quickly went back to ambient. On my setup I still have the ram air type setup directing air to where the air filter is. I'm guessing (I havent tested yet) that once the car is moving, the air temp the engine is sucking in is close to ambient. That's just my opinion based on what I've seen in other applications. I'll test it at some point but I'm pretty much going to make due with that setup since the last air box I saw for sale was $200 which was about triple what I wanted to pay.
With that being said, back to the thread....
With this pipe on there, there will be more supercharge whine while in boost since it doesn't have the silencers of the stock piece. That is a big part of the hp gain. The air flows straight through without as much turbulence.
On a different note about the closed off element versus open filter in the compartment; we were worried about this on our supercharged corvette bracket setups because the filter was above the header(even worse). What we found was that once the car was moving at all, enough air was going through the engine compartment that the temps on the guage quickly went back to ambient. On my setup I still have the ram air type setup directing air to where the air filter is. I'm guessing (I havent tested yet) that once the car is moving, the air temp the engine is sucking in is close to ambient. That's just my opinion based on what I've seen in other applications. I'll test it at some point but I'm pretty much going to make due with that setup since the last air box I saw for sale was $200 which was about triple what I wanted to pay.
With that being said, back to the thread....
With this pipe on there, there will be more supercharge whine while in boost since it doesn't have the silencers of the stock piece. That is a big part of the hp gain. The air flows straight through without as much turbulence.
The following users liked this post:
bfsgross (03-31-2012)
#20
If you look at the pics above, you can see that the part is a direct replacement. The only real differences are that there will be silicone couplers on each side of the tube. I didn't have them in the photo but I'll have them in future pictures.
One thing I haven't determined is how to finish the part. It's stainless, so you could polish it but polishing stainless is a pain due to it being much harder than aluminum. I could get it painted by a shop I work with but once again, it's stainless. What do you guys think?
