Default Swap is Complete -- Lincoln LS Engine in My X-type Jag.

First off - My 2002 Jaguar X-Type is a Original 2.5L car...Now has a 3.0L Lincoln LS Engine.......Runs Great ! Lots of Power! ..Low miles toooooo...Sweet!

The Swap:

2004 Lincoln LS 3.0L with 28K miles (super low miles)
Payed $100 for a complete block!! minus trans.

Keep your old engine until your completely done with the swap because you will need a few items from it.

Items Needed from old engine:

keep your old wire harness
Oil Pan
Oil Pick-up
the camshaft that controls the water pump
water pump
oil filter mount
a/c braket
Left Head Valve cover
fly wheel
Exhaust Manifolds
Harmonic Balancer
intake
fuel rail
front timing cover
Center Block water outlets/Inlets

thats about it.


Helpful info:
all four Camshafts on the Lincoln engine had same part #'s Stamped on it as my Jaguar engine.

Sensors( Crank, Cams ) are a Match in #'s

VVT the same

The Lincoln LS 3.0L is a total match with just a few parts thats different , just keep in mind that the Lincoln engine was not mounted sidewards as in the Jaguar.


.................................................. ...............................................

Removal of old engine:

If you want to drop the whole frontend its totally up to you, but i think that is a hard way of doing things and risk getting seriously hurt as you have to jack the front way way up.

I went from the top, just moved wire harness to the side, removed trans bolts and torque converter bolts, front engine mount, exhaust and lift away! its tight so go SSSLLLOOWW..

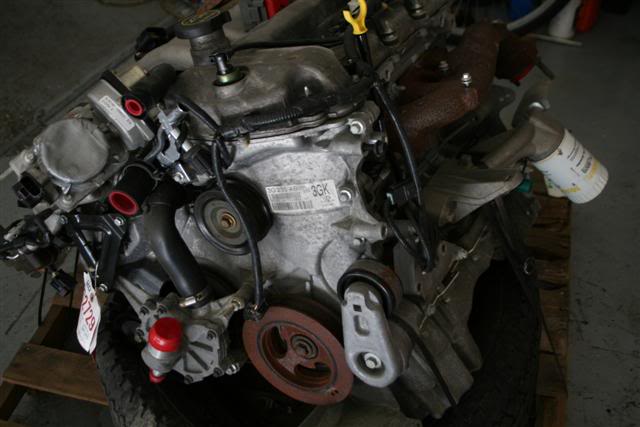

Here is the pictures of the lincoln LS engine before the tear down:
Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Left Head Difference on the Water pump cam, the lincoln engine has its water pump on the front timing cover. ( you will need to swap your camshaft, or if you want a challenge & know how to get that pressed end shaft off you could just swap that )

Click the image to open in full size.

Old & New
Click the image to open in full size.

Same Part Number's
Click the image to open in full size.

Front Timing VVT Lincoln engine ( total Match, everything is the same down to the count of teeth on the Chain )
Click the image to open in full size.

Click the image to open in full size.

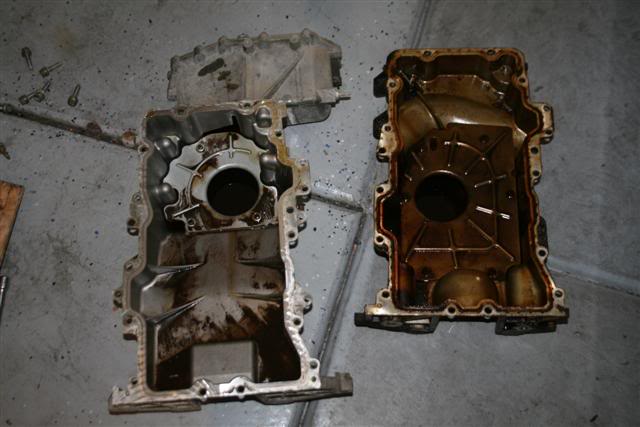

Oil Pan Difference ( left pan is from the lincoln and NO its not dirty i used it for a drain pan earlier since im going to trash it anyway)
Click the image to open in full size.

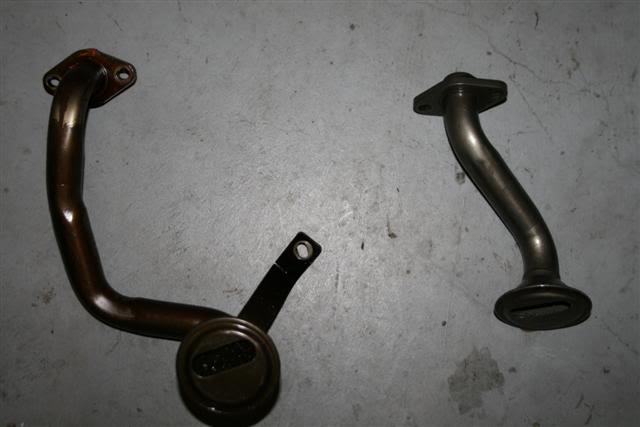

oil Pick-up's , you need to swap these.
Click the image to open in full size.

after all the swapping of parts, the engine gets put in!( yes i removed everything on the front as i thought i was going to drop the frontend , BUT my GUT told me its easier & safety to go from the top)
Click the image to open in full size.

Click the image to open in full size.

I do have more pictures, that i will post later.. I also took some time to polish my valve covers......So sweet lookin

the total swap took me a few days, just take it slow. what did i gain? a sweet low miles 3.0L say good bye 2.5L !

Oh you do not need to replace your ECU..

anyone has Q's just PM me!

Last edited by willy-k; 03-07-2010 at 03:08 AM.
Reply With Quote
The Following 4 Users Say Thank You to willy-k For This Useful Post:
micki88 (06-17-2014), Panthro (09-11-2013), Patterson (05-04-2012), xplicitwhips (08-27-2012)
  #2
Old 03-07-2010, 09:08 AM
Brutal's Avatar
Photobucket

Join Date: Sep 2008
Location: Sugar Land /Houston, Texas
Posts: 5,781
Thanked 1,058 Times in 752 Posts
BILL BRUTON
Default

good job *****
__________________
Working for those that do not every day
Reply With Quote
  #3
Old 03-07-2010, 01:08 PM
Photobucket

Join Date: Dec 2008
Location: SoCal
Posts: 253
Thanked 11 Times in 11 Posts
Default

looks good the,i know that the auto gearbox on the x type have 2 variants to withstand the extra torque,i would hold onto that ls pan might be able to sell it to a tranny shop they tend to snap the lower tabs off when replacing gearboxes. you can recoup some of your cost.
__________________
Jaguar master Tech
Reply With Quote
  #4
Old 03-07-2010, 11:13 PM
Junior Member

Join Date: Feb 2010
Posts: 26
Thanks: 0
Thanked 4 Times in 1 Post
Default

More Pictures:



Covers of shine!!!!
Click the image to open in full size.

LS & Jag Intake
Click the image to open in full size.

even this semi round things on the intakes are the same with matching part #'s.
Click the image to open in full size.

anyone needs LS parts??

I have wire harness
Front cover
pulleys
water pump
fuel rail
exhaust
intake with throttle body
oil pan
valve covers

I was thinking about eb@ying everything i have left, maybe i could make my $100 back..
Reply With Quote
  #5
Old 03-31-2010, 02:46 PM
Member

Join Date: Mar 2010
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
Default

awesome job!
Reply With Quote
  #6
Old 03-31-2010, 06:50 PM
H20boy's Avatar
Veteran member


Join Date: Mar 2007
Location: Ft Worth, TX
Posts: 11,030
Thanked 805 Times in 612 Posts
Default

seriously, good project! thanks for sharing.
__________________
Matt | 2003 XK8 CvTbl | 2005 SuperV8
My Jag Galleries



Go Texas Tech!


Reply With Quote
  #7
Old 03-31-2010, 08:10 PM
Junior Member

Join Date: Feb 2010
Posts: 26
Thanks: 0
Thanked 4 Times in 1 Post
Default

Quote:
Originally Posted by h20boy View Post
seriously, good project! thanks for sharing.

Thanks h20boy, hope it helps anyone out there wanting to do this swap, this was really easy if you have some time and the tools.

BTW the car runs great! Ive been driving it every day since the swap no problems at all..

my last thing i did on my car was taking a plastic razor and took that 2.5L logo off my trunk
Reply With Quote
  #8
Old 04-01-2010, 12:54 AM
Translator's Avatar
Photobucket


Join Date: Jul 2009
Location: Brittany France
Posts: 12,723
Thanked 1,018 Times in 689 Posts
Default

Nice one Willy, very informative.

Cheers,
__________________
Cheers,
Richard

Need a Manual, a TSB, or General Info' about your Jag? Check out our >> DOWNLOAD AREA <<

accuratespelling.com
website spell check service
Reply With Quote
  #9
Old 04-01-2010, 06:03 AM
Cadillac's Avatar
Veteran Member

Join Date: Mar 2007
Location: Planetarium
Posts: 10,840
Thanked 445 Times in 339 Posts
Default

That's a mammoth job and you made it superbly ,well done
__________________

NITROUS OXIDE
Tutte Le Strade Portano A Roma
CHRONOMETRIC PRECISION

If You Drive A Porsche Boxter in Red, You're Unpleasant -Henry Cole
Reply With Quote
  #10
Old 04-25-2010, 04:47 PM
Member

Join Date: Apr 2010
Location: *1-block away from the Moon*
Posts: 74
Thanks: 0
Thanked 0 Times in 0 Posts
Default

wow! I would never had thought the Lincoln Engine would be the same. NICE JOB! 2 Thumbs Up for You !
Reply With Quote
  #11
Old 04-26-2010, 10:53 AM
ShadyJC's Avatar
Senior Member

Join Date: Mar 2010
Location: SoCal
Posts: 176
Thanked 11 Times in 8 Posts
Default

Ok, seriously you need to buy this bumper sticker.

Click the image to open in full size.
__________________
Jonathan

2013 Lexus RX450h
2012 Jaguar XKR Convertible
2007 Infiniti QX56
Reply With Quote
The Following User Says Thank You to ShadyJC For This Useful Post:
BillAdama (08-27-2012)
  #12
Old 04-27-2010, 11:18 AM
Junior Member

Join Date: Apr 2010
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
Default

This by no means is an easy job. Don't try this at home folks.
Reply With Quote
  #13
Old 04-27-2010, 01:19 PM
ud

Join Date: Feb 2010
Location: USA
Posts: 1,596
Thanks: 0
Thanked 91 Times in 63 Posts
Default

Quote:
Originally Posted by *****-k View Post
First off - My 2002 Jaguar X-Type is a Original 2.5L car...Now has a 3.0L Lincoln LS Engine.......Runs Great ! Lots of Power! ..Low miles toooooo...Sweet!

The Swap:

2004 Lincoln LS 3.0L with 28K miles (super low miles)
Payed $100 for a complete block!! minus trans.

Keep your old engine until your completely done with the swap because you will need a few items from it.

Items Needed from old engine:

keep your old wire harness
Oil Pan
Oil Pick-up
the camshaft that controls the water pump
water pump
oil filter mount
a/c braket
Left Head Valve cover
fly wheel
Exhaust Manifolds
Harmonic Balancer
intake
fuel rail
front timing cover
Center Block water outlets/Inlets

thats about it.


Helpful info:
all four Camshafts on the Lincoln engine had same part #'s Stamped on it as my Jaguar engine.

Sensors( Crank, Cams ) are a Match in #'s

VVT the same

The Lincoln LS 3.0L is a total match with just a few parts thats different , just keep in mind that the Lincoln engine was not mounted sidewards as in the Jaguar.


.................................................. ...............................................

Removal of old engine:

If you want to drop the whole frontend its totally up to you, but i think that is a hard way of doing things and risk getting seriously hurt as you have to jack the front way way up.

I went from the top, just moved wire harness to the side, removed trans bolts and torque converter bolts, front engine mount, exhaust and lift away! its tight so go SSSLLLOOWW..

Here is the pictures of the lincoln LS engine before the tear down:
Click the image to open in full size.

Click the image to open in full size.


Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Left Head Difference on the Water pump cam, the lincoln engine has its water pump on the front timing cover. ( you will need to swap your camshaft, or if you want a challenge & know how to get that pressed end shaft off you could just swap that )

Click the image to open in full size.

Old & New
Click the image to open in full size.

Same Part Number's
Click the image to open in full size.

Front Timing VVT Lincoln engine ( total Match, everything is the same down to the count of teeth on the Chain )
Click the image to open in full size.

Click the image to open in full size.

Oil Pan Difference ( left pan is from the lincoln and NO its not dirty i used it for a drain pan earlier since im going to trash it anyway)
Click the image to open in full size.

oil Pick-up's , you need to swap these.
Click the image to open in full size.

after all the swapping of parts, the engine gets put in!( yes i removed everything on the front as i thought i was going to drop the frontend , BUT my GUT told me its easier & safety to go from the top)
Click the image to open in full size.

Click the image to open in full size.

I do have more pictures, that i will post later.. I also took some time to polish my valve covers......So sweet lookin

the total swap took me a few days, just take it slow. what did i gain? a sweet low miles 3.0L say good bye 2.5L !

Oh you do not need to replace your ECU..

anyone has Q's just PM me!
This is a brave project! My hat is off to you!
Reply With Quote
  #14
Old 06-12-2010, 08:43 PM
truckdiesel73
Guest

Posts: n/a
Default

If you still have the Lincoln items for sale I would be interested.
Reply With Quote
  #15
Old 06-15-2010, 10:07 PM
Reverend Sam's Avatar
Veteran Member


Join Date: May 2010
Location: North Carolina
Posts: 3,685
Thanked 583 Times in 339 Posts
Default

Wow... looks like that took some work! What's the difference in horsepower between the 2.5 liter and the 3.0 liter?
__________________
2003 Jaguar XK8

That's not a decal. It's a real bird! Lucky timing.

Click RIGHT HERE to be taken to my YouTube channel. I have lots of videos which show how to repair and modify your XK8
Reply With Quote
  #16
Old 06-16-2010, 08:04 AM
Junior Member

Join Date: May 2010
Location: augusta ga
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Default xj8 switch

Shouldn't that engine fit in a xj8 also. Has anyone ever replaced one.
Just wondering in case mine goes out.
Reply With Quote
  #17
Old 10-01-2010, 09:24 PM
Junior Member

Join Date: Jun 2010
Location: Missouri
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Having the lincoln ls parts to be swapped there is kinda interesting. I think that learning these kinds of steps would be very interesting to know and to learn. Hope that all is well after the swap.
Reply With Quote
  #18
Old 10-03-2010, 01:55 AM
Junior Member

Join Date: Oct 2010
Location: Pasadena
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Nice!
Reply With Quote
  #19
Old 11-09-2010, 03:32 PM
tom1961
Guest

Posts: n/a
Default lincoln swap

did you have to take the head off to get the water block out? thanks
Reply With Quote
  #20
Old 11-10-2010, 07:39 AM
Senior Member

Join Date: Feb 2010
Location: Leeds, UK.
Posts: 976
Thanks: 0
Thanked 50 Times in 45 Posts
Default

Congrats. Willy K, looks like a job well done -- and very satisfying as you drive along since you know it's by your own efforts. AND, the bigger the engine, the more cars seem to be fetching when sale time comes.
Cheers, Leedsman.
