Home Made XJS V12 Hood/Bonnet Strut Lock
Although I've replaced the hood/bonnet struts (on more than one occasion!)
I've always lived in fear, that the bonnet might decide to slam shut without any warning, which can happen even in a gentle breeze.
This could be a disaster if you have left almost anything, sitting on top of the engine, which I'm sure that some of us may have done at some time.
So I've always laid a cushion or something soft on top to catch the fall just in case.
The only problem being that this can get in the way of what you are doing, so I made up a DIY bonnet strut lock, which seems to work very well.
All I needed was a small piece of channel, just wide enough to go around the Piston of the Strut and a Hose Clip with a Pinch Bolt.
A couple of cuts in the channel with a hacksaw, was all that I needed to put a spike on the end, which I then bent into a hook using long nose pliers.
Next I put the hose clip round the bottom half of the strut, without any need to remove the strut beforehand.
Then simply hooked the channel (cut to the right length beforehand) onto the 'pinch bolt' of the hose clip.
So now when I open the bonnet, I lift the piece of channel up so it wraps around the piston of the Strut, where the weight of the bonnet keeps it in place, until I want to unlock it.
After some experimentation, the best position on my car, was to have the piece of channel hinge out towards the engine, so there was a bit of friction to prevent it slipping out on its own.
If you decide to make something similar, be extremely careful where the piece of channel is going to lay when you close the bonnet as you don't want to foul or graunch anything or even dent the bonnet in the process.
And always keep an eye on it, while you very carefully and slowly close the bonnet.
Please let me know what you think!

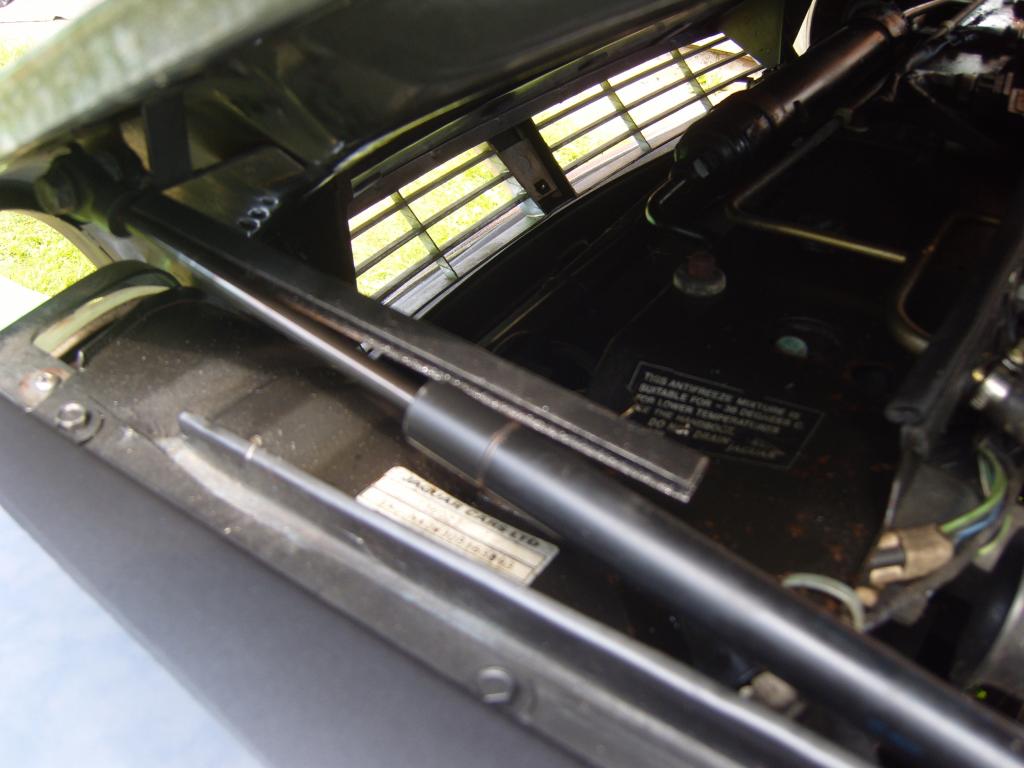

The (assembly photo was taken using an old strut) There was no need to remove the Strut beforehand.

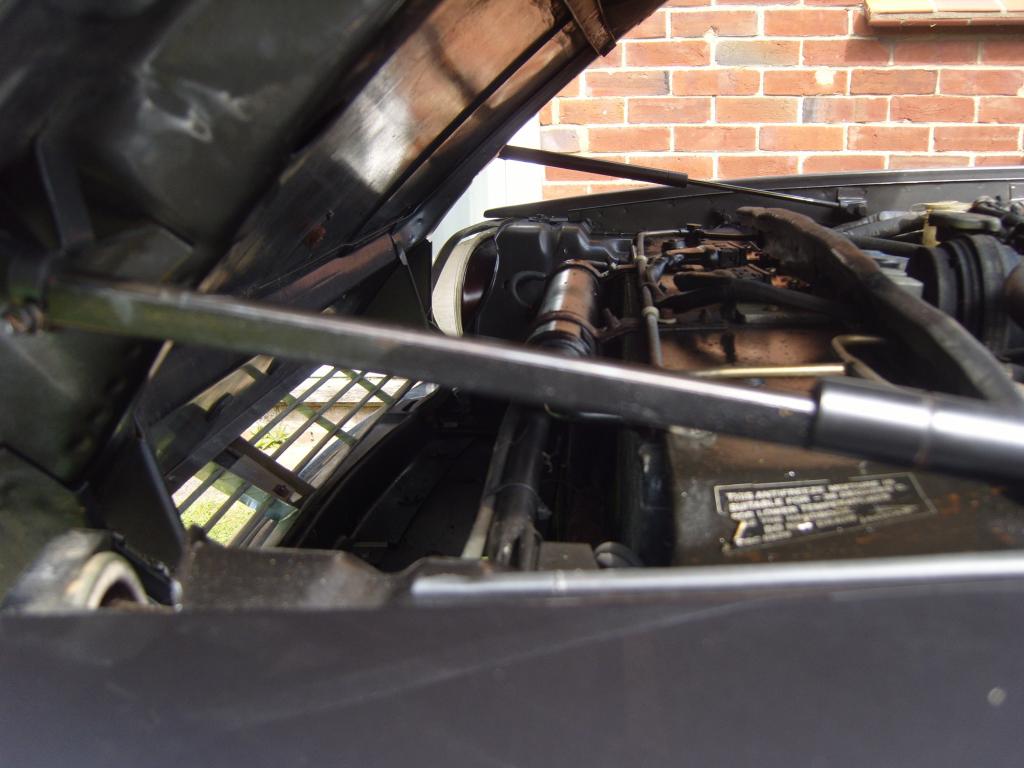

Before I took the photo of the bonnet strut lock in place I twisted it round so that it is laying on top of the piston, which was just to show you what it looks like.
The ideal position on my car was to have the Strut lock on the Engine side, hinging out towards the engine when you unlock it.
http://
http://
http://
http://
http://
