Rear passenger tail lights not working
#1
Rear passenger tail lights not working
Hi Guys, Im a new member (sorry cant find new member area)...I live in north wales UK...I have a 1998 XK8.
My problem is, my passenger rear tail lights do not work....all other rear lights work, on both sides, Checked all fuses, bulbs ,etc, etc , Found rear lamp module had blown...burnt inside....Changed this,....still no joy.
Put car into Jaguar dealer...they could not fix problem.
Had auto electrian out...he could not fix problem....but put a wire from rear fuse box to rear light, now rear tail lights work..????.
I changed my rear lights about 6 months ago too the newer Jewel type,
been working great.
Jaguar dealer says im not getting power from fuse box too lamp module ????
When I check I am getting power, and all other lights work.
Really stuck now....I would be gratefull for any ideas...Thanks...Tom.
My problem is, my passenger rear tail lights do not work....all other rear lights work, on both sides, Checked all fuses, bulbs ,etc, etc , Found rear lamp module had blown...burnt inside....Changed this,....still no joy.
Put car into Jaguar dealer...they could not fix problem.
Had auto electrian out...he could not fix problem....but put a wire from rear fuse box to rear light, now rear tail lights work..????.
I changed my rear lights about 6 months ago too the newer Jewel type,
been working great.
Jaguar dealer says im not getting power from fuse box too lamp module ????
When I check I am getting power, and all other lights work.
Really stuck now....I would be gratefull for any ideas...Thanks...Tom.
#2
Welcome to the forum Tom,
When you get this issue resolved, please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some info about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
When you get this issue resolved, please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some info about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
The following users liked this post:
lordtom (05-21-2015)
#5
There are several posts on here about this issue if you search. The weak link is the earth wire that can often burn out. The solution is to run a new earth tag direct from the metal threaded post that secures the tail light assembly to the bulb holder circuit board earth track. The "smart" way is to use a pop rivet but I soldered mine. I did this as one of the preventative maintenance jobs although I'd never had any actual issues with the lights.
Steve
Steve
The following users liked this post:
lordtom (05-21-2015)
#6
Hi Steve, Thanks for that...ive read all posts on here and about earthing, but ive fitted the newer Jewel lights...and the back circuit board is different from those pictures ive seen on here....I have just got back from another auto electric guy..and hes fitted another relay and fuses and split the two side lamps apart...they all work now but im no better off now than I was before, than when I had a single extra wire from fuse box across to pass side lamp....just a bit more out of pocket.....Tom.
#7
Join Date: Apr 2014
Location: Jersey, Channel Islands
Posts: 4,077
Received 2,291 Likes
on
1,503 Posts
Hey Tom,
+1 on worrasf's post re earthing
This can be a pain...
The circuit for the tail lights is as follows:
From tail lamp relay via fuses #19 out on BT12-10 RK and #21 BT10-4 RY in to LCM BT18-17 and BT18-16 respectively.

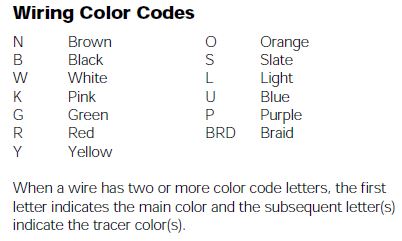

Out from LCM on BT18-22 RG and BT18-21 RO to Tail lamp units L and R. If you're handy with a multimeter you should be able to follow the trail. I've attached a snip of the relevant part of JTIS that should make the above clearer.
A couple of observations: - if the original lamp control module burnt out on your watch I'd check that the tail lamp bulbs are rated at 5W and not 21W, as that could be the original cause. If that's the case, then the replacement LCM could have gone the same way - have you taken a look inside?
Although you don't mention it, I'd expect to see 'Bulb Fail Rear' messages on the dash, unless the original tail lamp relay has been removed or routed around with the various attempts to correct the problem.
Hope this helps,
Mike
P.S. What colour is yours?
+1 on worrasf's post re earthing
This can be a pain...
The circuit for the tail lights is as follows:
From tail lamp relay via fuses #19 out on BT12-10 RK and #21 BT10-4 RY in to LCM BT18-17 and BT18-16 respectively.
Out from LCM on BT18-22 RG and BT18-21 RO to Tail lamp units L and R. If you're handy with a multimeter you should be able to follow the trail. I've attached a snip of the relevant part of JTIS that should make the above clearer.
A couple of observations: - if the original lamp control module burnt out on your watch I'd check that the tail lamp bulbs are rated at 5W and not 21W, as that could be the original cause. If that's the case, then the replacement LCM could have gone the same way - have you taken a look inside?
Although you don't mention it, I'd expect to see 'Bulb Fail Rear' messages on the dash, unless the original tail lamp relay has been removed or routed around with the various attempts to correct the problem.
Hope this helps,
Mike
P.S. What colour is yours?
The following users liked this post:
lordtom (05-21-2015)
Trending Topics
#8
Hi Mike, Thanks for that, and attachments. But Im useless at electrics, Since having another auto guy look at the electrics and fitting a relay and fuses to my system, Im now getting a reading...Bulb failure....he says il need to have a resister fitted as well, if I wont to get rid of this.
I thought id just get a new loom, but these are no longer available from Jaguar, So I think il just have to stick with what ive got....as all lights are working and hope nothing else goes wrong...ummmmm Tom. P.S....I have checked lamp module and bulbs again....all seem ok.
I thought id just get a new loom, but these are no longer available from Jaguar, So I think il just have to stick with what ive got....as all lights are working and hope nothing else goes wrong...ummmmm Tom. P.S....I have checked lamp module and bulbs again....all seem ok.
#10
Steve
The following users liked this post:
lordtom (05-21-2015)
#13
Join Date: Apr 2014
Location: Jersey, Channel Islands
Posts: 4,077
Received 2,291 Likes
on
1,503 Posts
Hi Tom,
I'm surprised that no-one can resolve the wiring issue. Electronics aside, there's no rocket science here and I'd expect any auto electrician worth his salt to be able to trace a break in a wire somewhere. IMHO you're being poorly served judging by what you've said about the 'fixes' to date.
Now, to specifics:
You don't say whether you have replaced the brake lamps with LEDs. If you have, then unless they are proper CAN bulbs (with an integral resistor) that is likely to trigger a message when you press the pedal: they aren't drawing enough current which the LCM will interpret as a dud bulb.
If not, I'm with with worrasf on checking for bad earthing - you may also see the other bulbs in the lamp cluster lighting up at the same time if this is the case.
Gut feel is that there could be a residual issue with the replacement LCM, but you've made other changes that could be obscuring the real culprit. Break the problem down into smaller steps:
Get to a known good state by undoing the jury-rig jumped connections, fitting known good ordinary incandescent bulbs of the correct wattage and having the original wiring properly repaired (including any suspect earthing and connectors). The electrician can treat the LCM as a 'black box'; if there's power going in and coming out on the appropriate connector pins, then the continuity break is elsewhere. If not, there's a possible culprit.
Afterwards, if you still have dash error messages then deal with them as a separate task.
Good luck,
Mike
I'm surprised that no-one can resolve the wiring issue. Electronics aside, there's no rocket science here and I'd expect any auto electrician worth his salt to be able to trace a break in a wire somewhere. IMHO you're being poorly served judging by what you've said about the 'fixes' to date.
Now, to specifics:
You don't say whether you have replaced the brake lamps with LEDs. If you have, then unless they are proper CAN bulbs (with an integral resistor) that is likely to trigger a message when you press the pedal: they aren't drawing enough current which the LCM will interpret as a dud bulb.
If not, I'm with with worrasf on checking for bad earthing - you may also see the other bulbs in the lamp cluster lighting up at the same time if this is the case.
Gut feel is that there could be a residual issue with the replacement LCM, but you've made other changes that could be obscuring the real culprit. Break the problem down into smaller steps:
Get to a known good state by undoing the jury-rig jumped connections, fitting known good ordinary incandescent bulbs of the correct wattage and having the original wiring properly repaired (including any suspect earthing and connectors). The electrician can treat the LCM as a 'black box'; if there's power going in and coming out on the appropriate connector pins, then the continuity break is elsewhere. If not, there's a possible culprit.
Afterwards, if you still have dash error messages then deal with them as a separate task.
Good luck,
Mike
Last edited by michaelh; 05-21-2015 at 03:56 PM.
