good night in shop
https://cimg5.ibsrv.net/gimg/www.jag...63200795f7.jpg

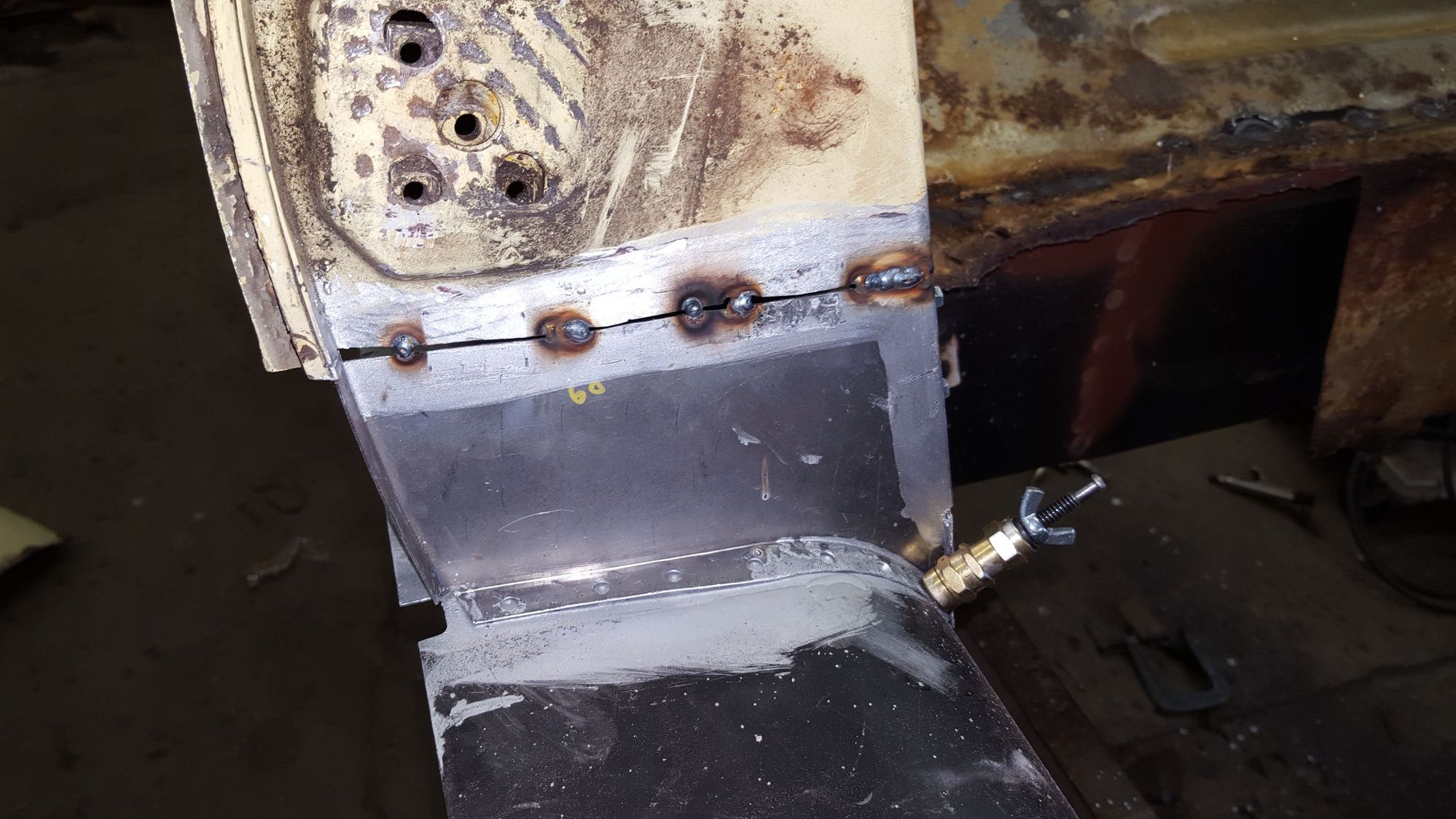

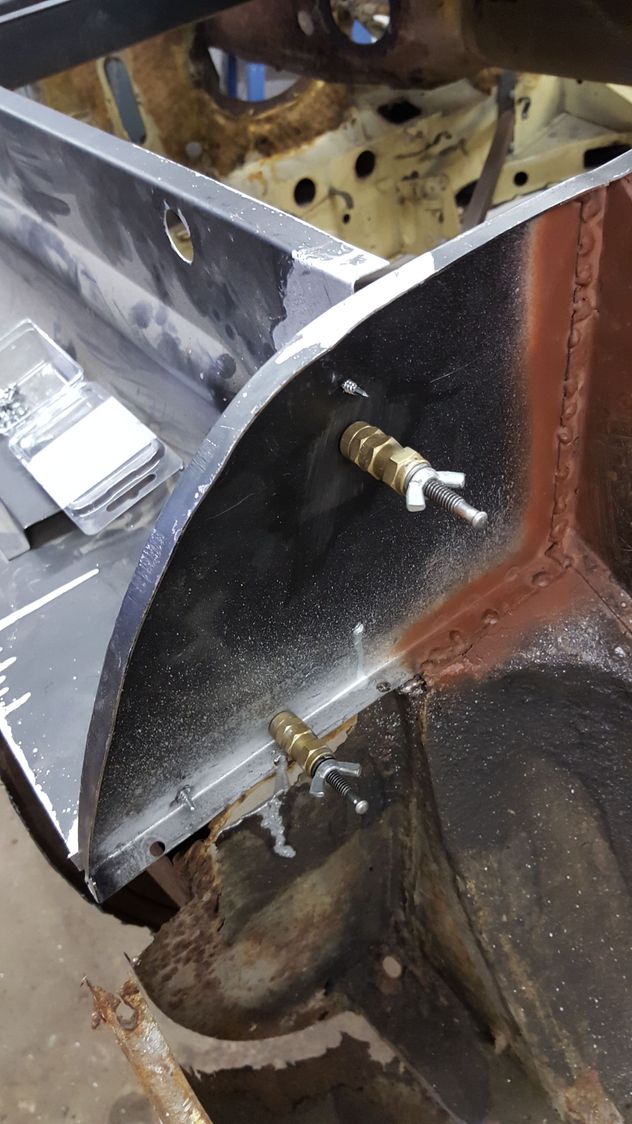

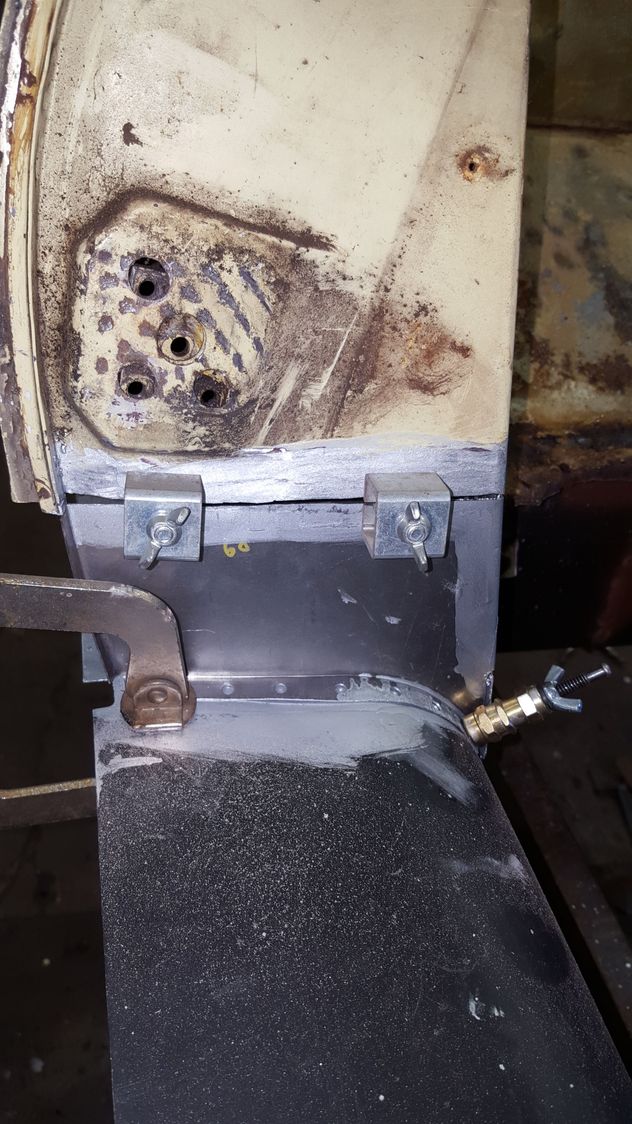

https://cimg3.ibsrv.net/gimg/www.jag...643735ab8a.jpg https://cimg4.ibsrv.net/gimg/www.jag...c8df71df9b.jpg https://cimg5.ibsrv.net/gimg/www.jag...fcd50f0c6f.jpg https://cimg6.ibsrv.net/gimg/www.jag...7aabda8c51.jpg These are great strong style of clecos. 3/16" hole and with wingnut will draw panels together with a great deal of force. Are designed for custom one off work vs. Standard cleco fasteners https://cimg7.ibsrv.net/gimg/www.jag...5e3e133a9f.jpg |
There's some serious carnage going on there. Looks like you're equipped for the task, though.
Happy Trails.... |
https://cimg9.ibsrv.net/gimg/www.jag...4540512d9c.png

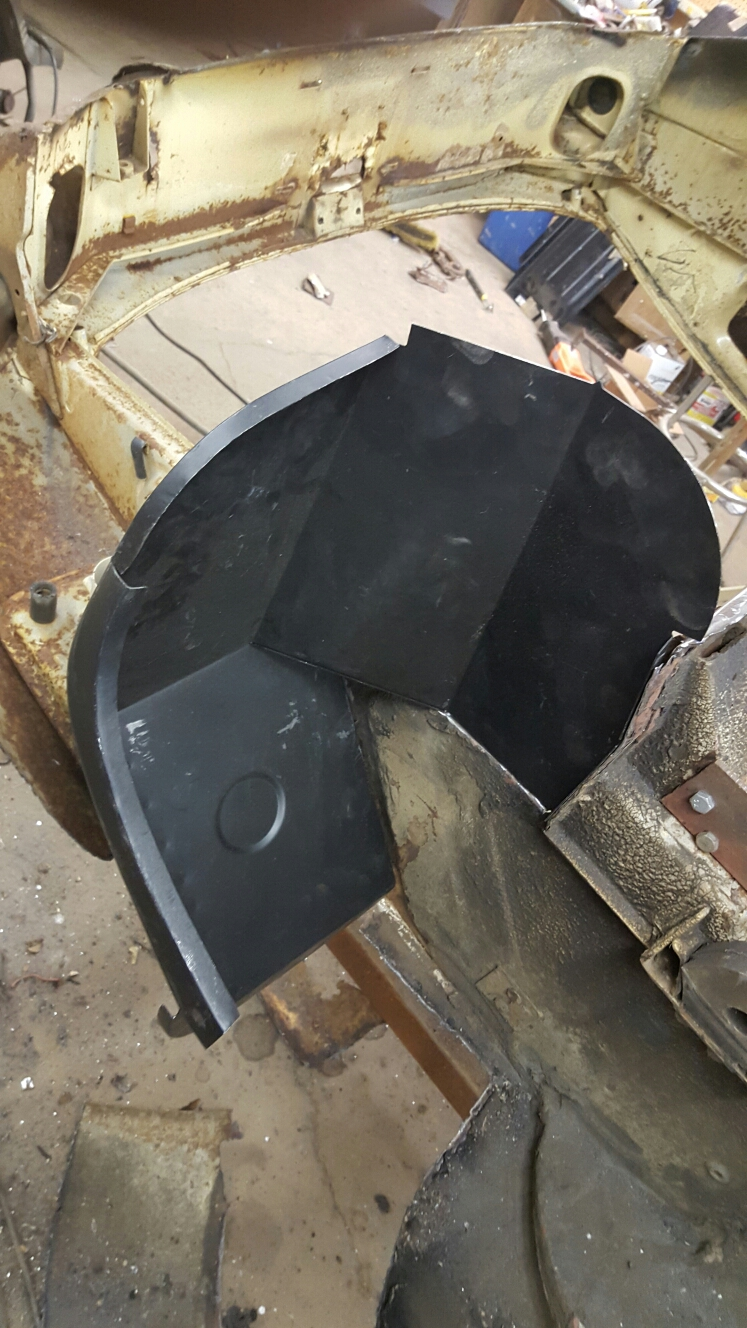

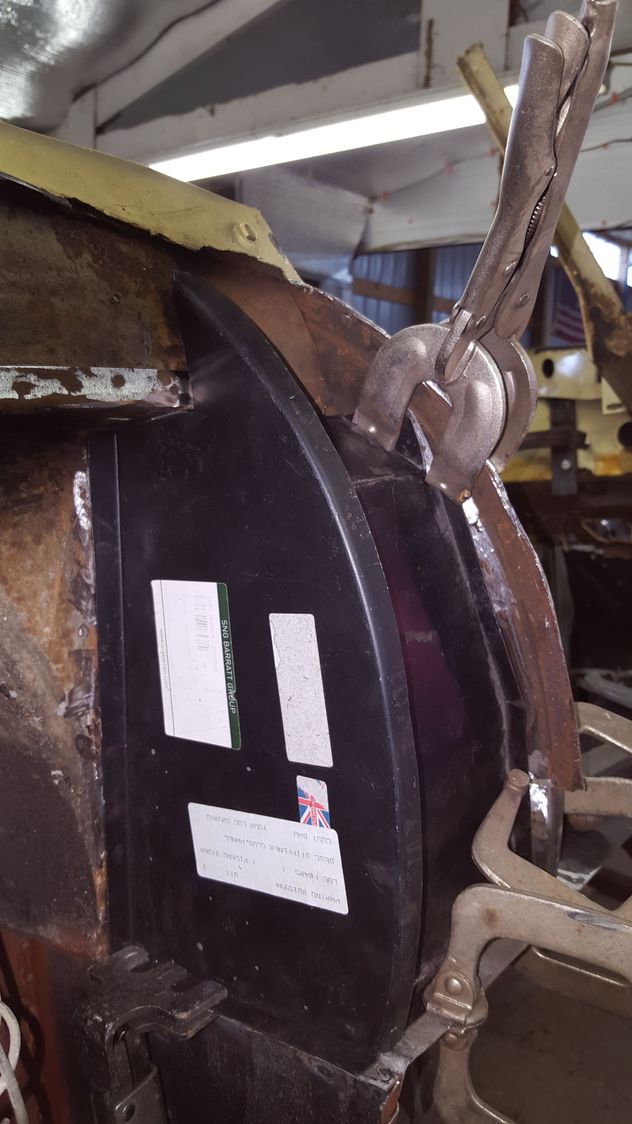

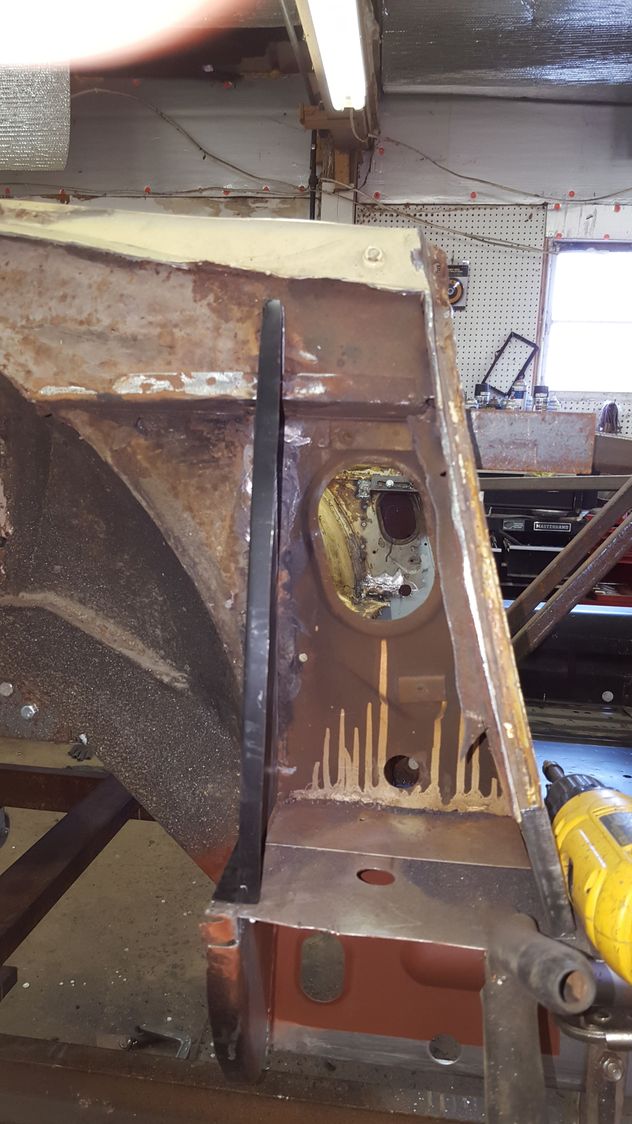

Fitting rear inner wheel well https://cimg1.ibsrv.net/gimg/www.jag...e4a3c0d149.png Good fit |
Holy crap moment
https://cimg9.ibsrv.net/gimg/www.jag...389beb16bb.jpg

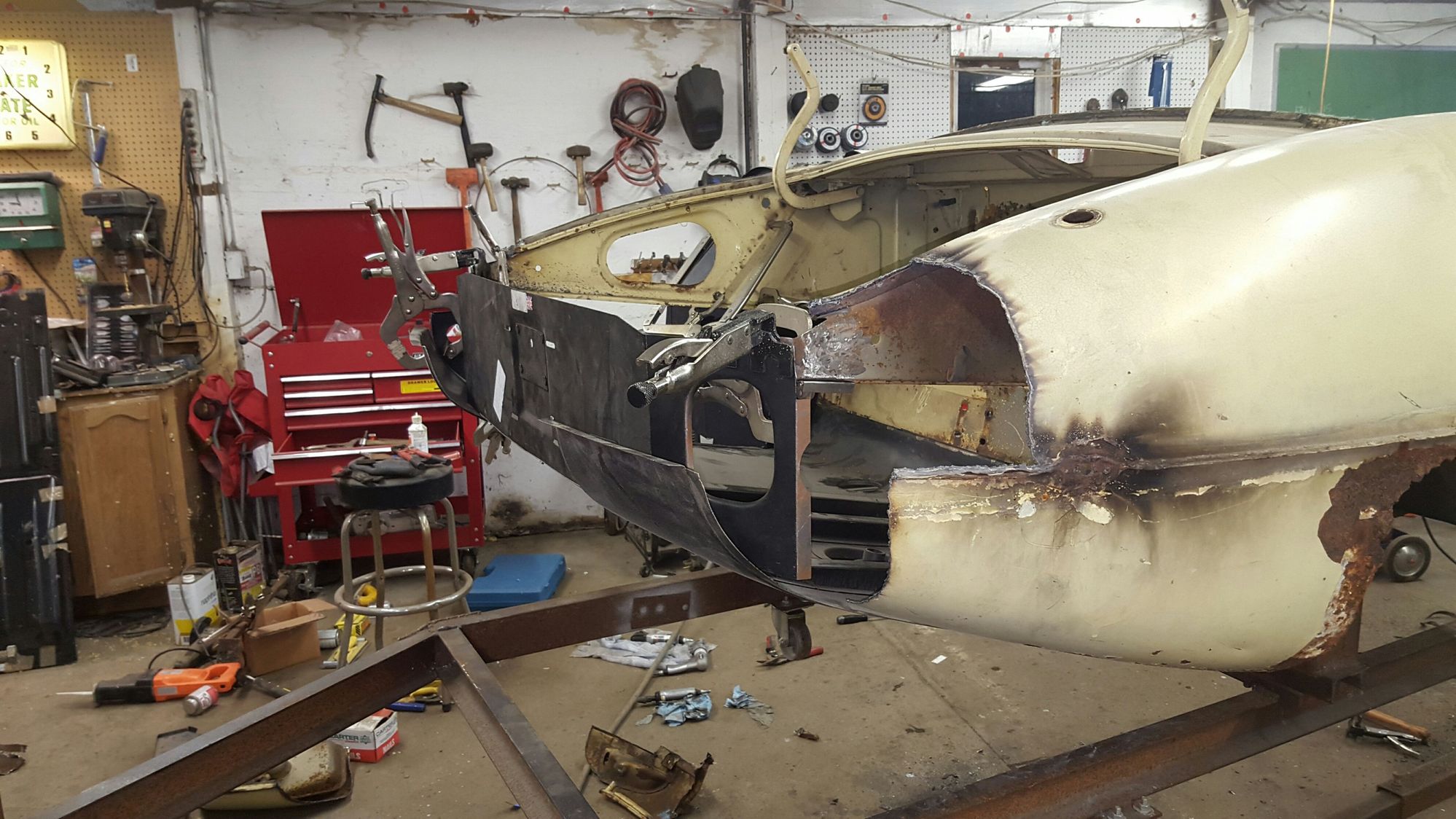

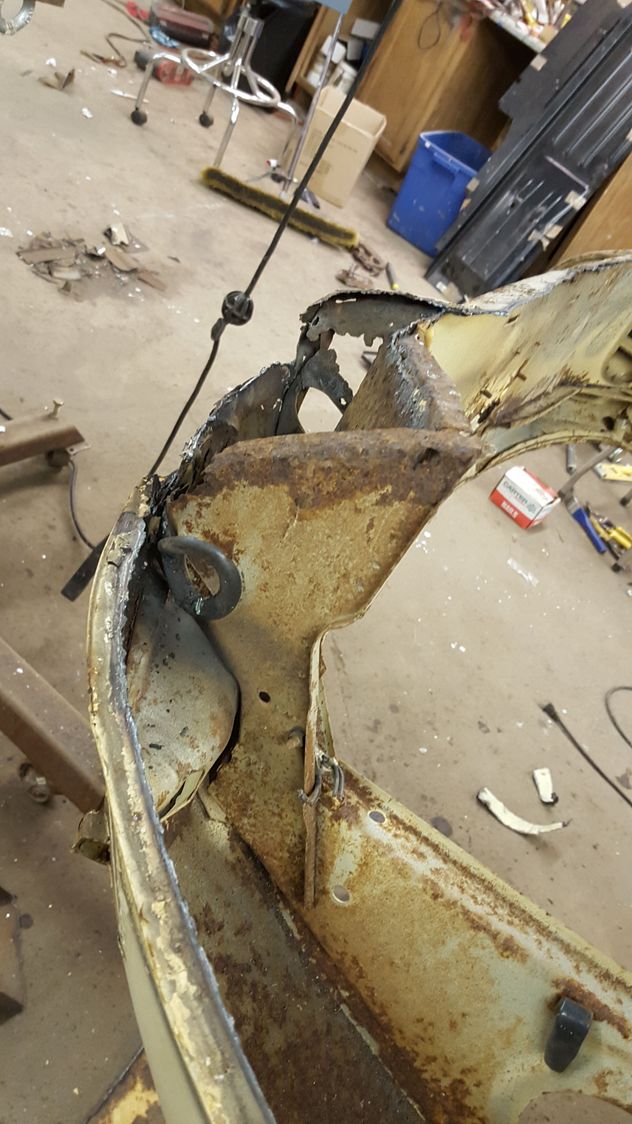

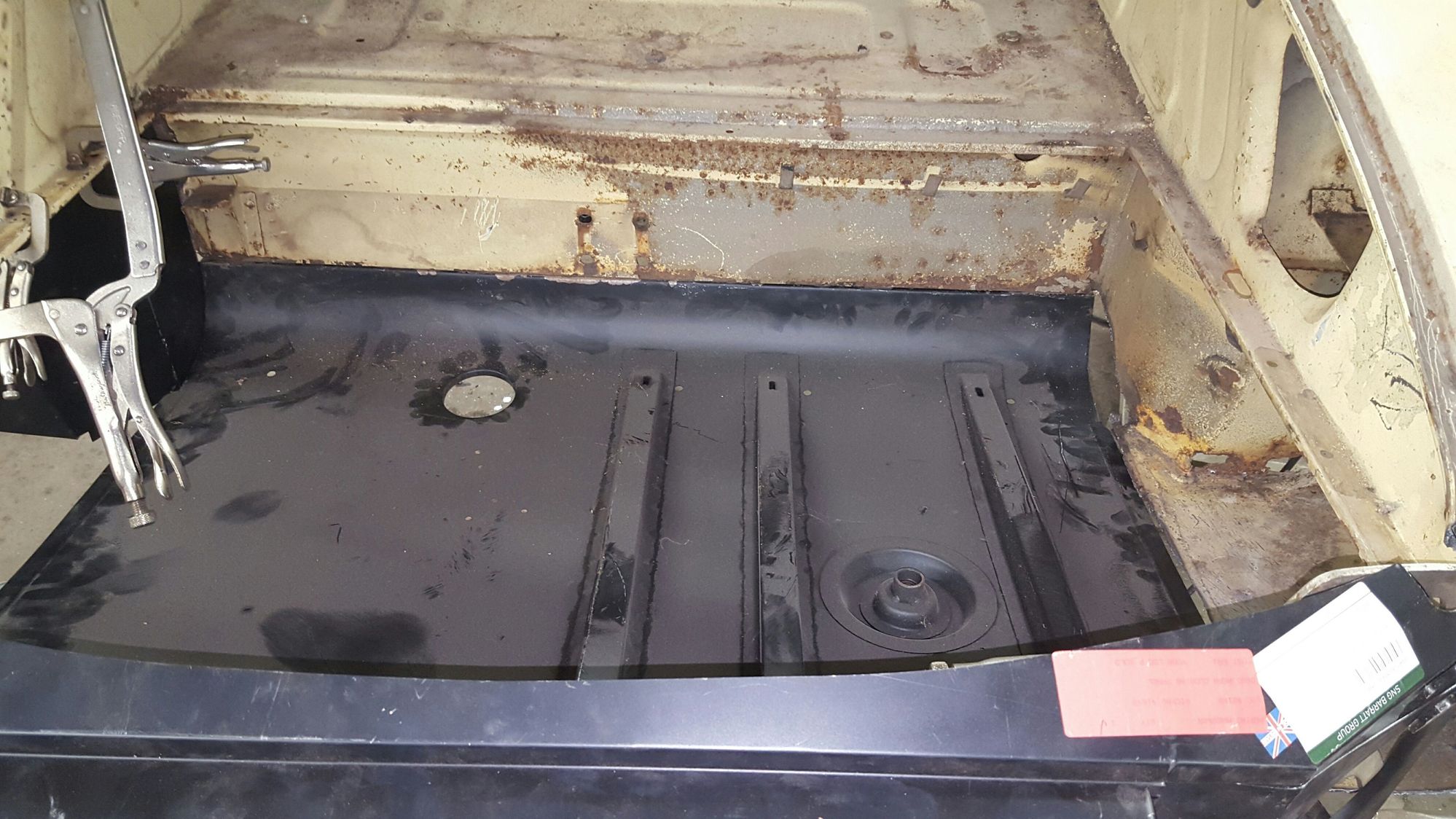

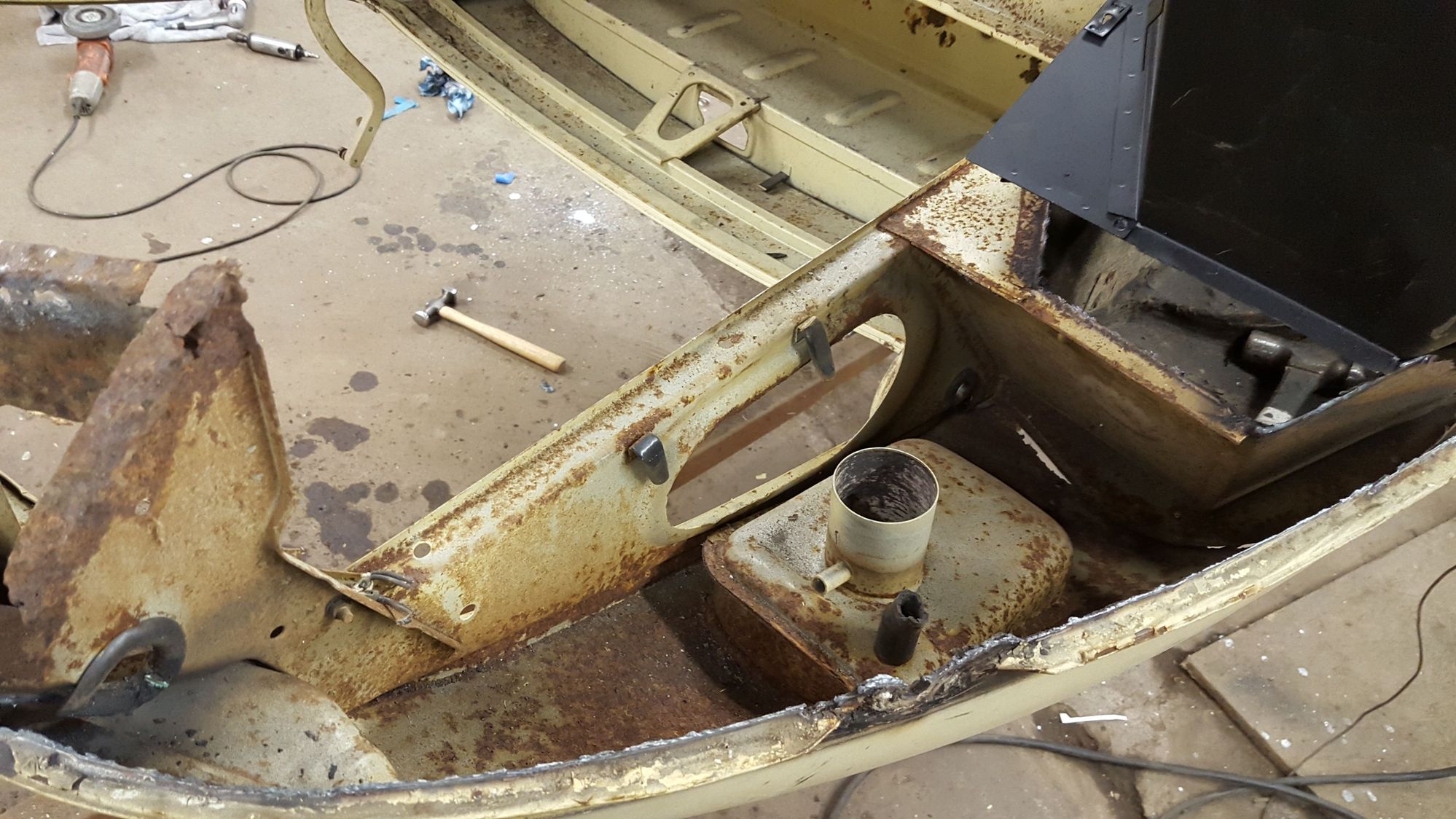

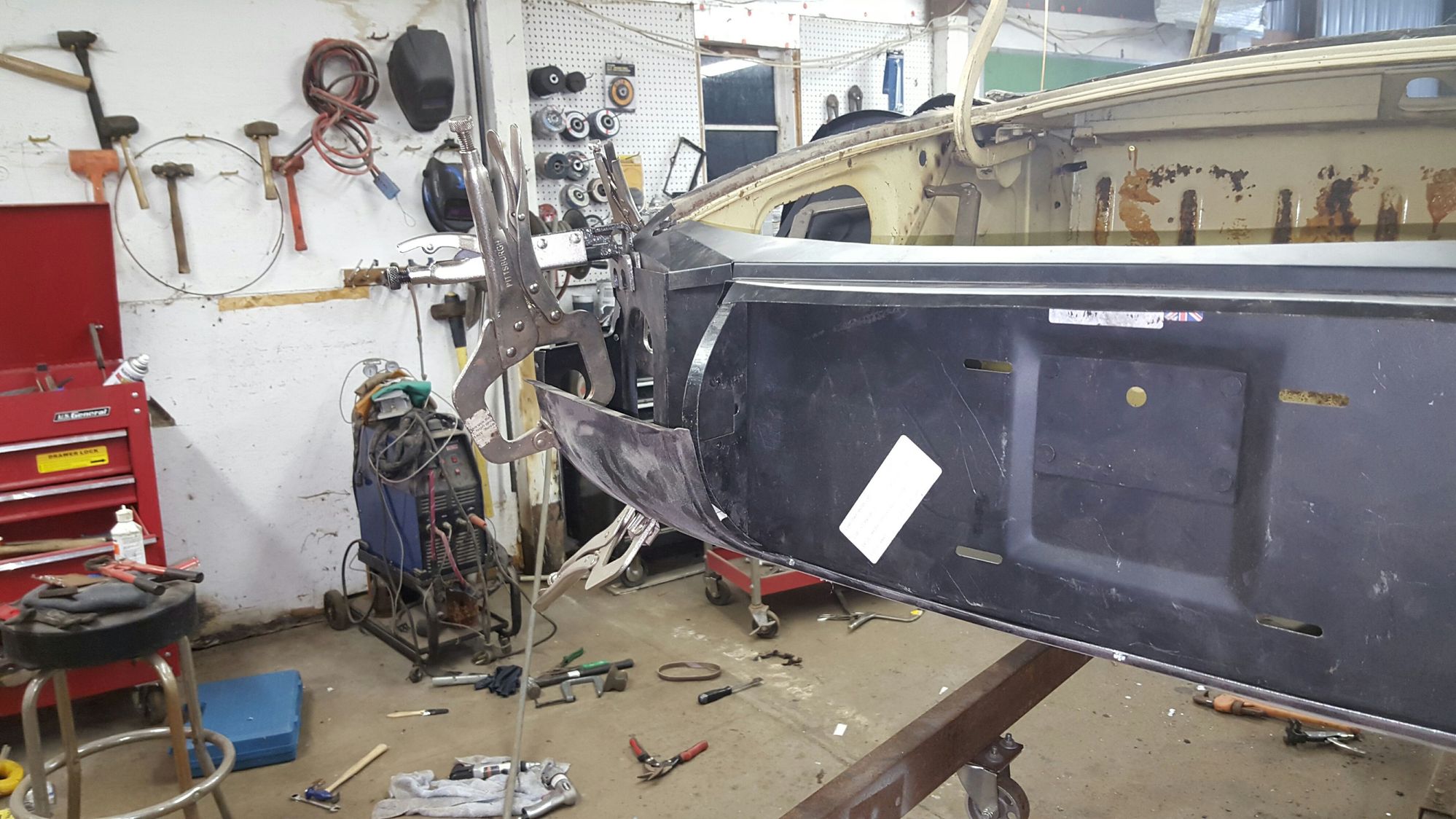

looks better now but when I had cut off the entire back end of the car and all that was there were the two little side braces I had a moment of panic, but replacment panel fit well and some straightening of the original braces and I trial fit the boot floor and it actually looks/fits well. Just need to order the RH brace (hopefully wont take too long--of course a special order item. Cutting the floor out tonight I hope! https://cimg2.ibsrv.net/gimg/www.jag...e16b499c4f.jpg https://cimg7.ibsrv.net/gimg/www.jag...dab04e0cab.jpg https://cimg8.ibsrv.net/gimg/www.jag...3e7e4d502e.jpg |
Wow Rick. That looks like a 'Do not try this at home' but you're breaking that rule badly! Certainly not at my home. If you ever want to drive a few hours south to see what one looks like whole - and seek a little R&R - come on! Very impressive stuff.
|
FLOORS

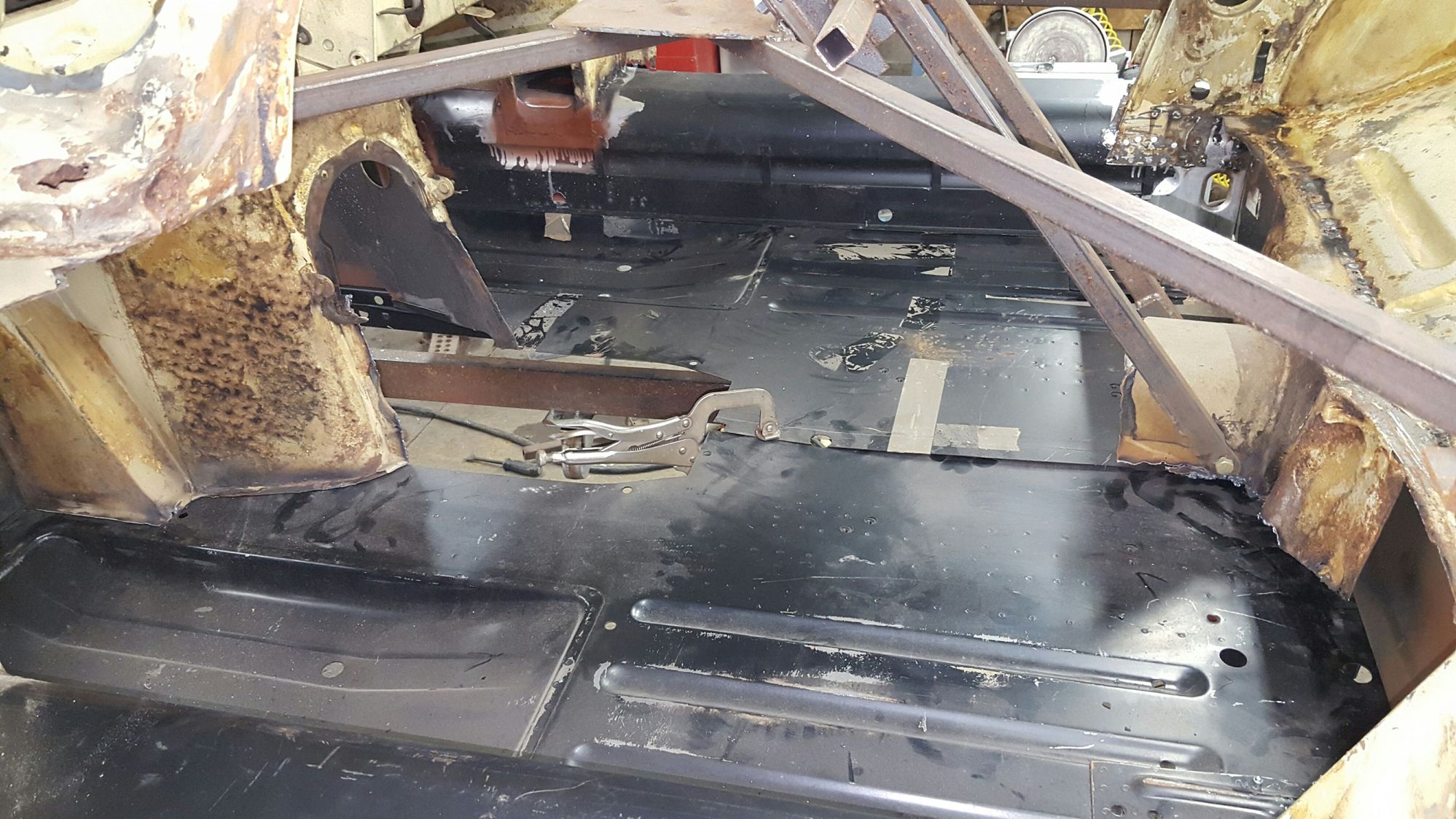

Plasma cutter is the best-got the old floors out and mocked in the new ones
|
https://cimg1.ibsrv.net/gimg/www.jag...2f6b7271c9.jpg

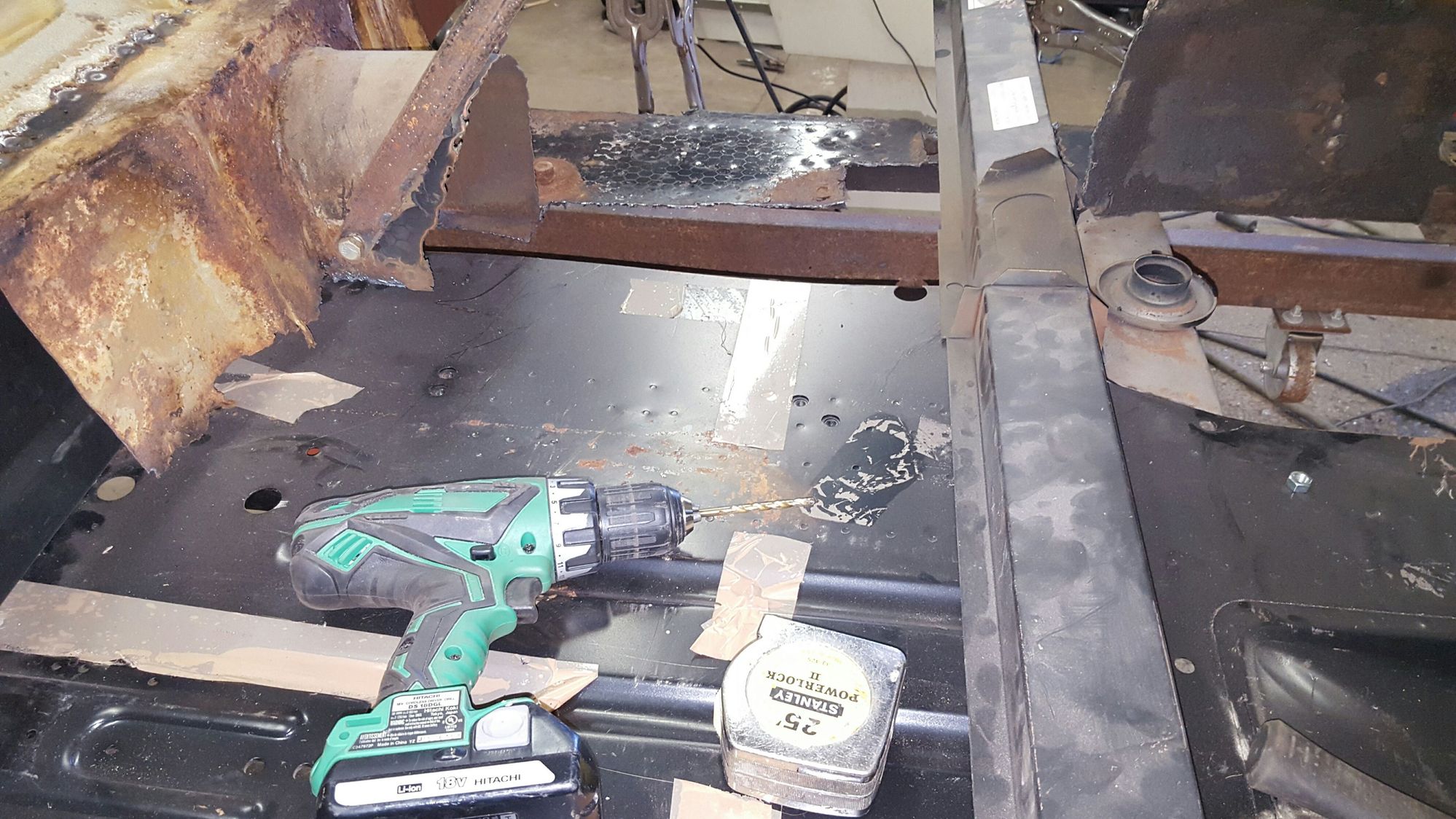

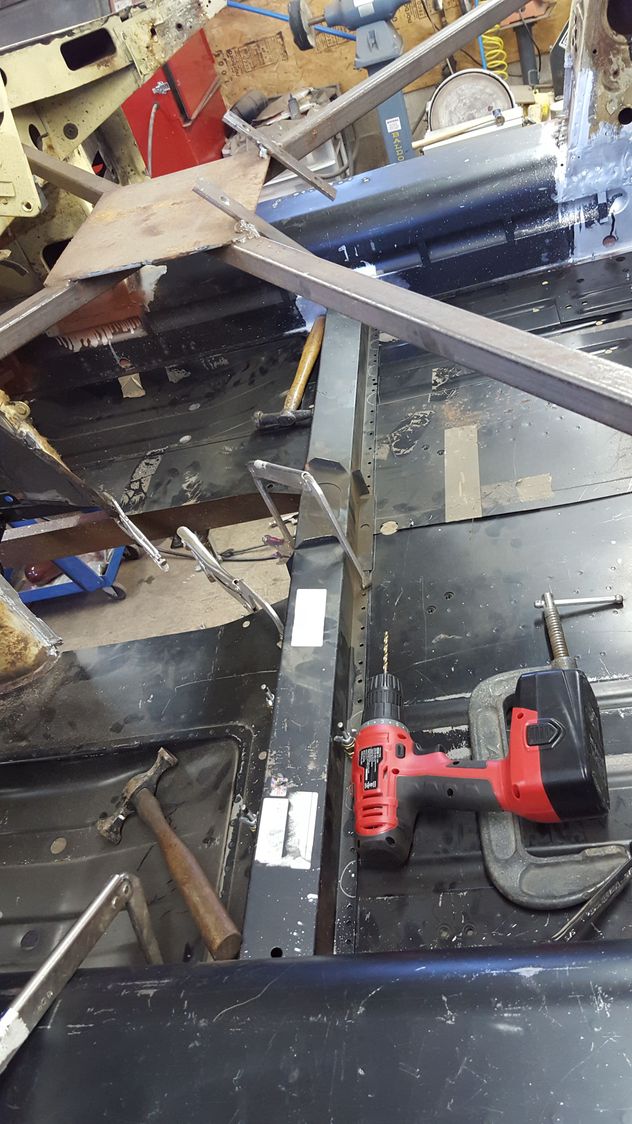

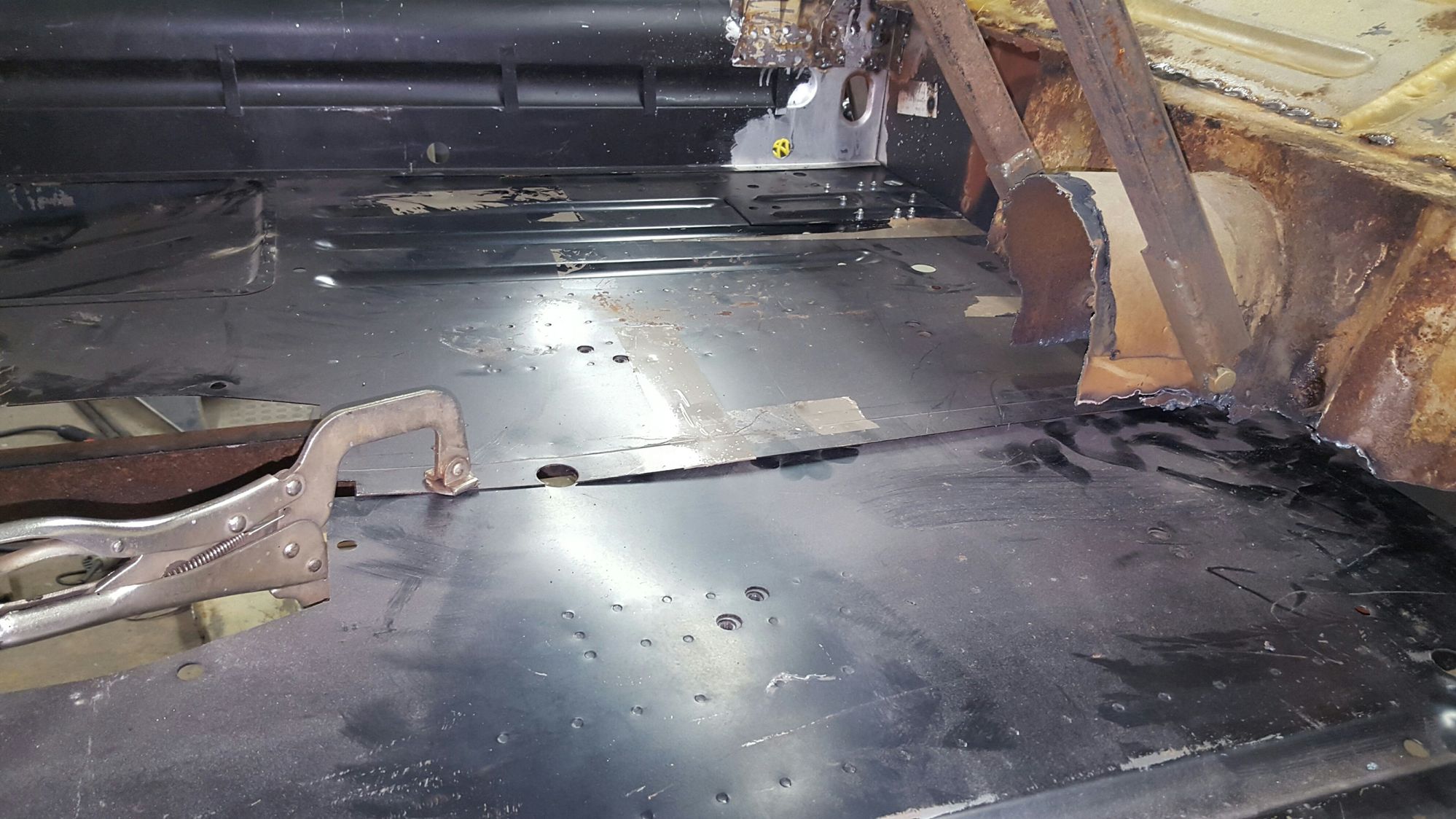

Center brace mocked in for positioning of transmission mount as a guide https://cimg3.ibsrv.net/gimg/www.jag...7f093cabb0.jpg TRIAL FIT LOOKS GOOD https://cimg4.ibsrv.net/gimg/www.jag...85ce5d5e9f.jpg Good fit rear https://cimg5.ibsrv.net/gimg/www.jag...161122240a.jpg Awaiting transmission tunnel pieces--hopefully not too much of a delay in shipping https://cimg6.ibsrv.net/gimg/www.jag...11bca79729.jpg Good fit front https://cimg8.ibsrv.net/gimg/www.jag...cb63080280.jpg Tools of the trade |

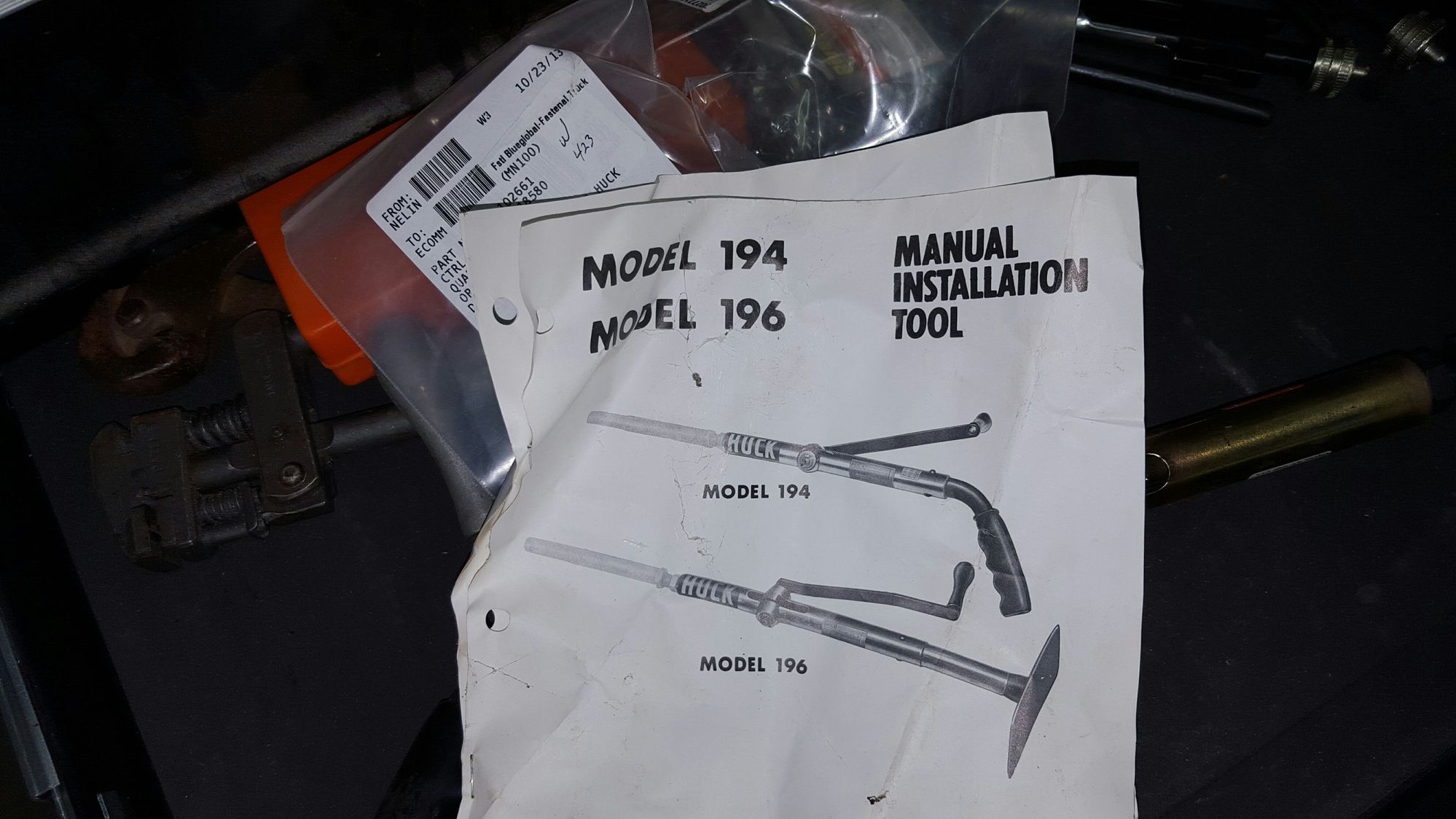

Huck riveter to attach cups the right eay

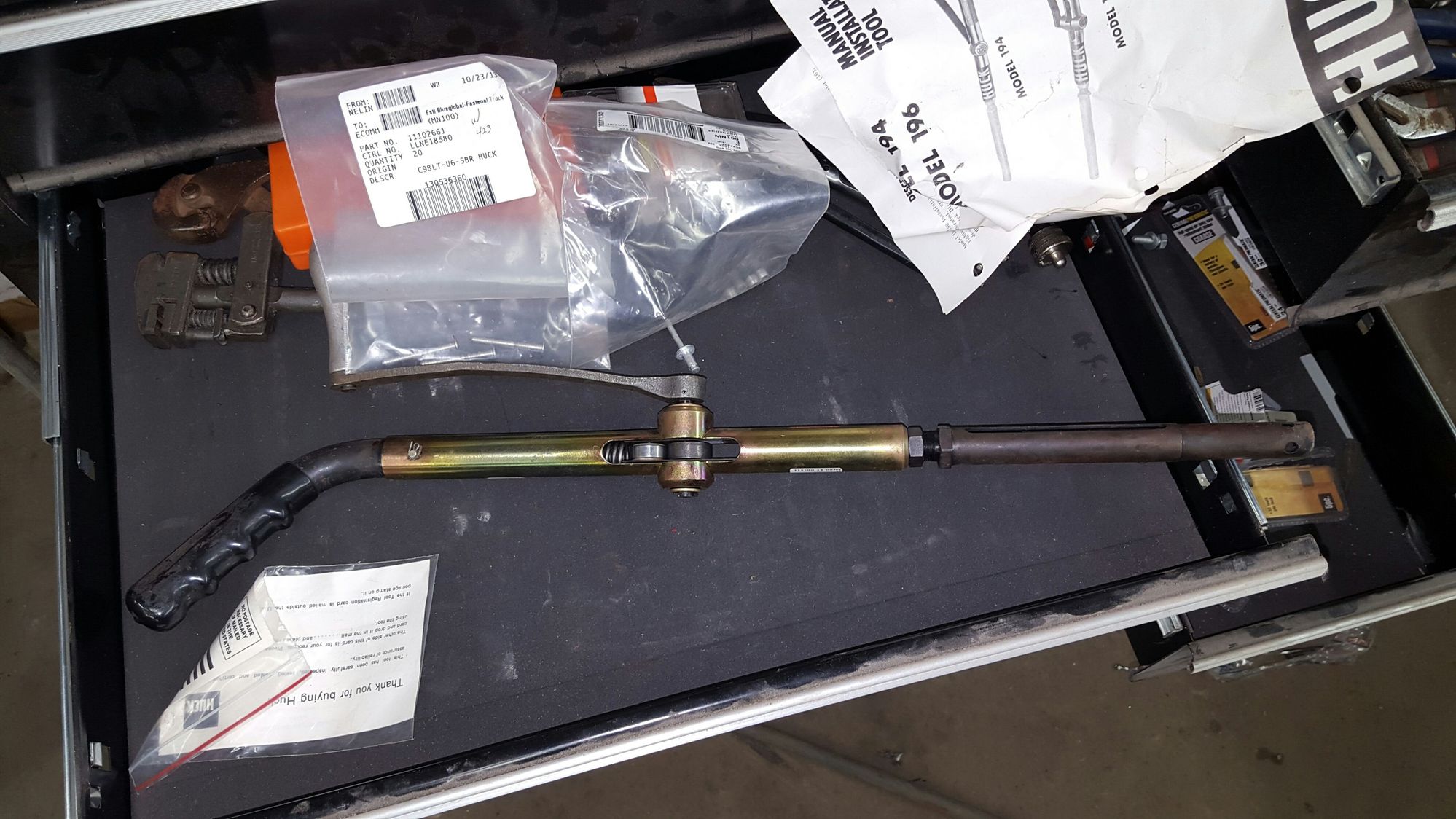

https://cimg4.ibsrv.net/gimg/www.jag...57f7f177cf.jpg Huck model 194 https://cimg5.ibsrv.net/gimg/www.jag...f76b18f8fb.jpg https://cimg6.ibsrv.net/gimg/www.jag...0c59d38ee1.jpg rivets and huck bolts |
This gets more impressive with every post. You couldn't get a more ambitious xke restoration, and you've saved an e-type roadster that would otherwise have certainly been relegated to the salvage yard. Kudos!
Glad it's not me ...at this point I'd be opening the rear wheel arches for wider tyres, building in cupholders etc... |

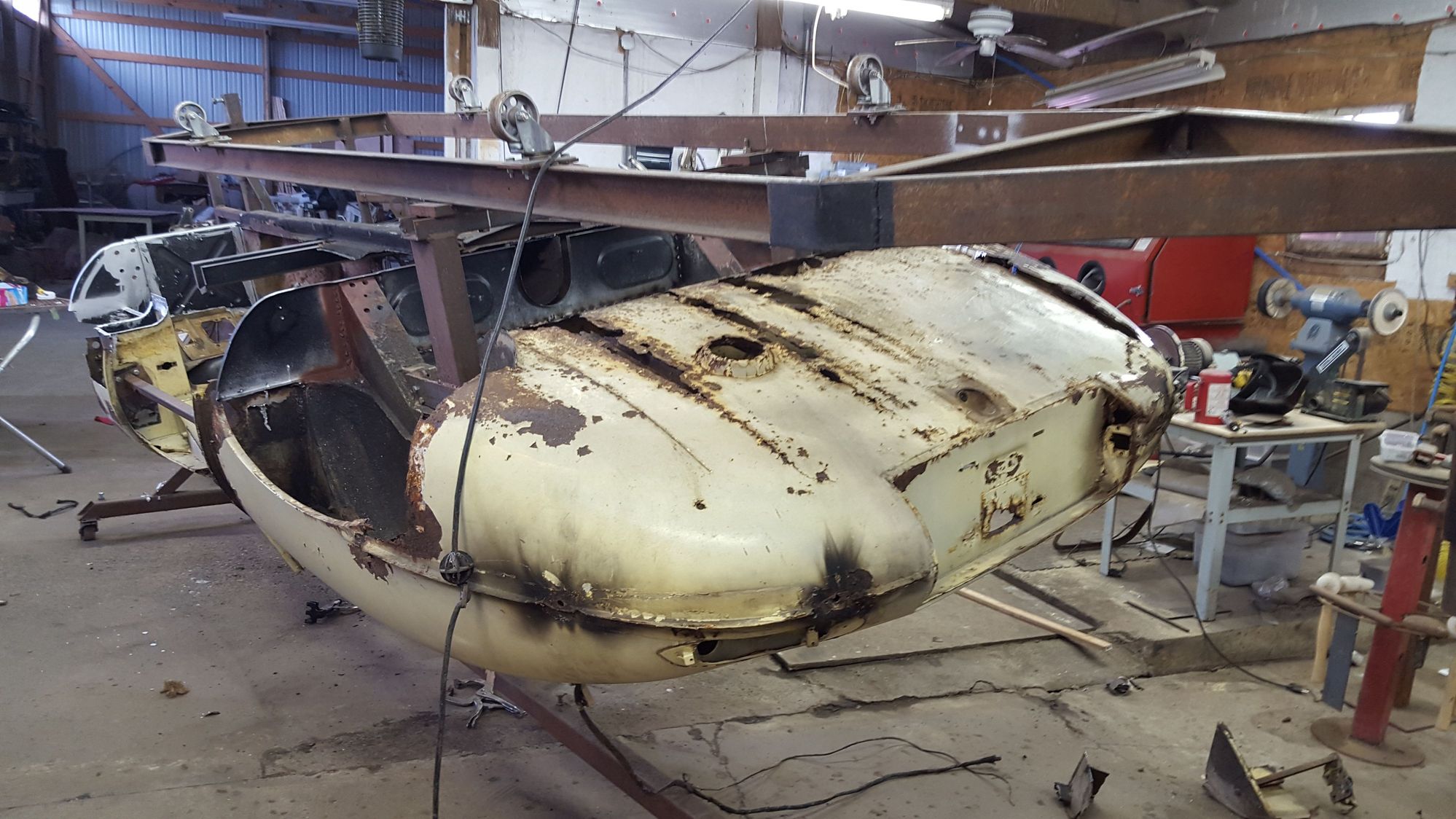

There are definitely times I feel in over my head, but just work through the problem. I do curse an unnamed worker on the coventry assembly line for his overexuberent use of his spot welder--crickey he must of got paid per weld rather than hour, and the the next shift worker would only place 1 or 2 welds in a critical point that needed more. Oh well these cars were not meant to last this long yet did. Hopefully will be getting engine back next month even though I wont need it for a while. While waiting for panels will start of the '58 frog eye sprite restoration by making a purpose designed rotisserie for it as it is a monocoque design as well, just can't pull front frame rails as on the e-type.

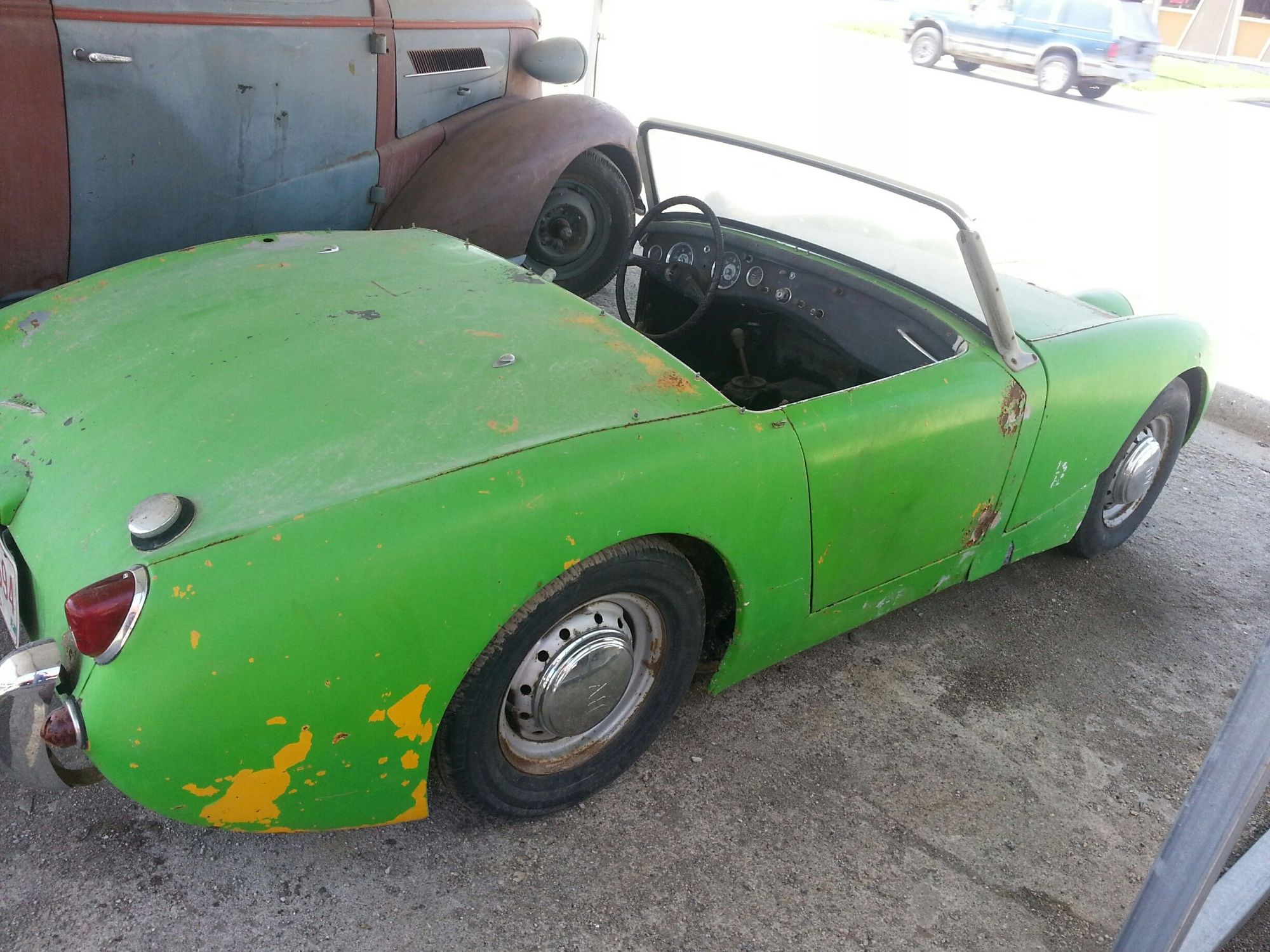

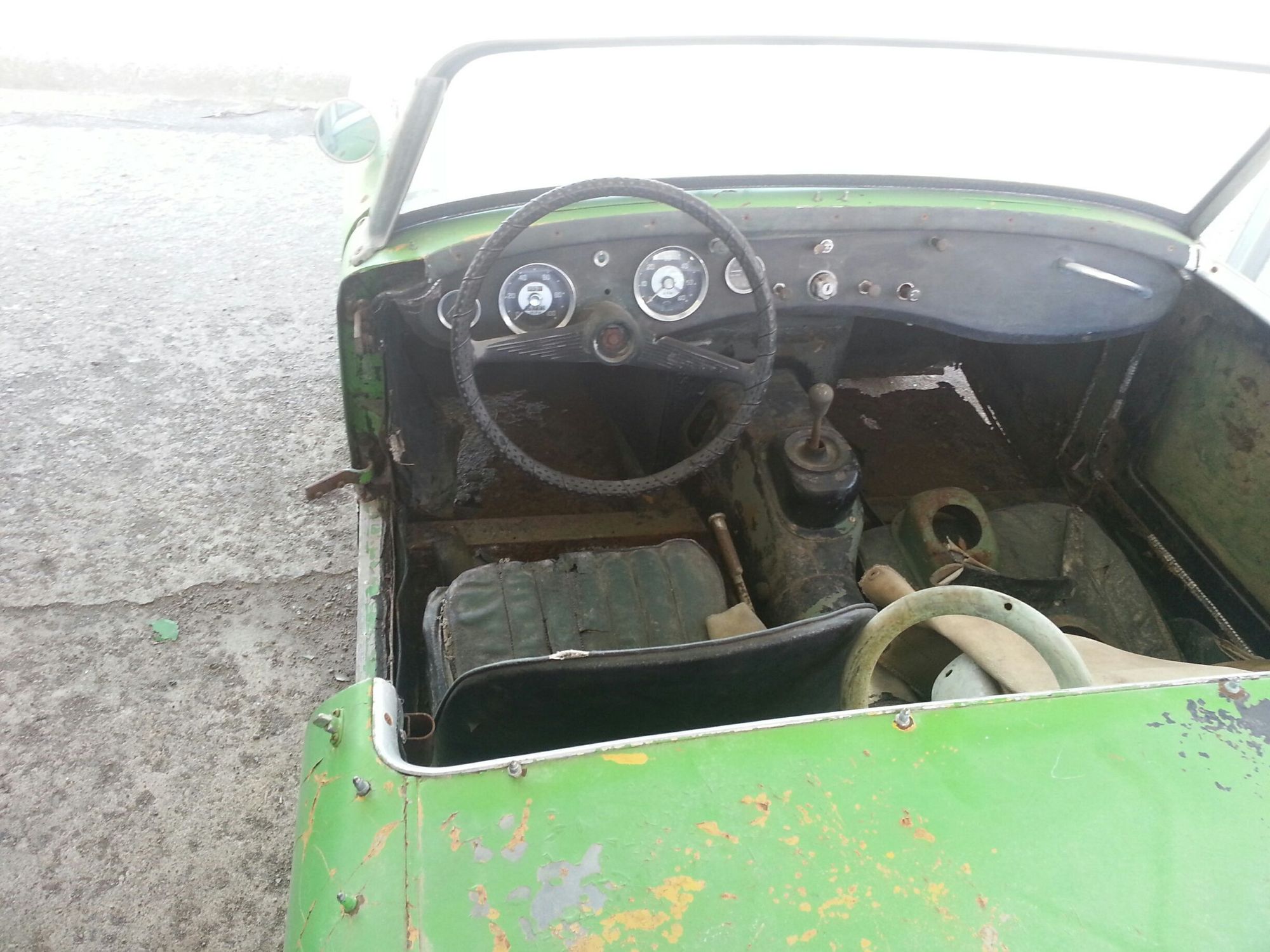

https://cimg9.ibsrv.net/gimg/www.jag...7748030c9b.jpg Looks better than it is but not as bad as the other one! https://cimg4.ibsrv.net/gimg/www.jag...39534a811b.jpg the 58 that needs rotisserie ( i do have the door at least https://cimg1.ibsrv.net/gimg/www.jag...82422d8dc5.jpg https://cimg2.ibsrv.net/gimg/www.jag...c13ca4448a.jpg ROugh but all original https://cimg3.ibsrv.net/gimg/www.jag...840314a31f.jpg Lots of character: brits call this a Frogeye sprite vs. bugeye here in US |
And then there is this beast--don't know when/if I will ever get to this--but would be fun

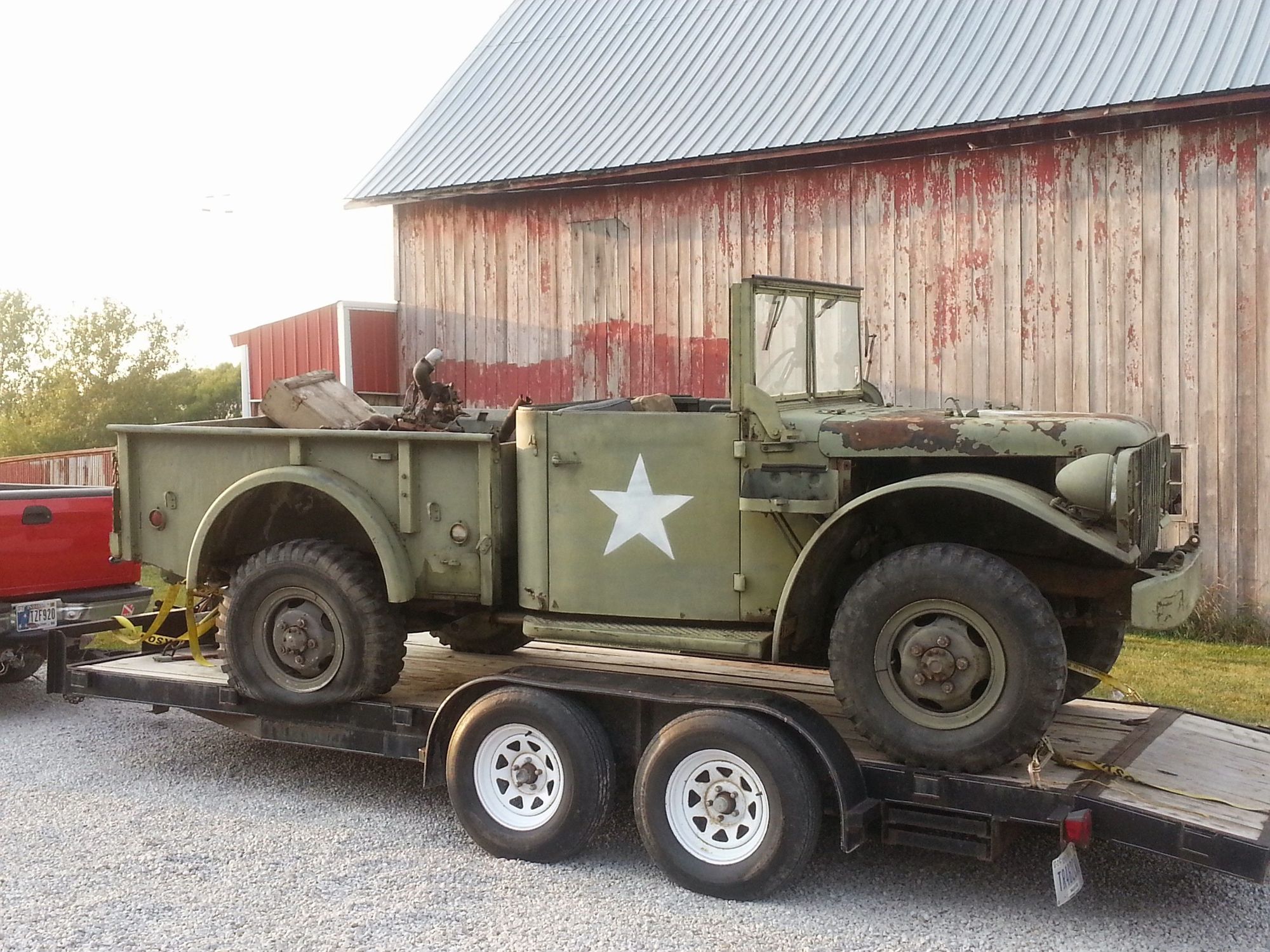

https://cimg9.ibsrv.net/gimg/www.jag...2ce96d8f49.jpg M37 Dodge power wagon '52 |
That's the kind rust I faced when restoring my mustang. Yes, the Plasma Cutter is the "boss" tool to have in your war chest.
|
|
https://cimg0.ibsrv.net/gimg/www.jag...c88c67bf03.jpg

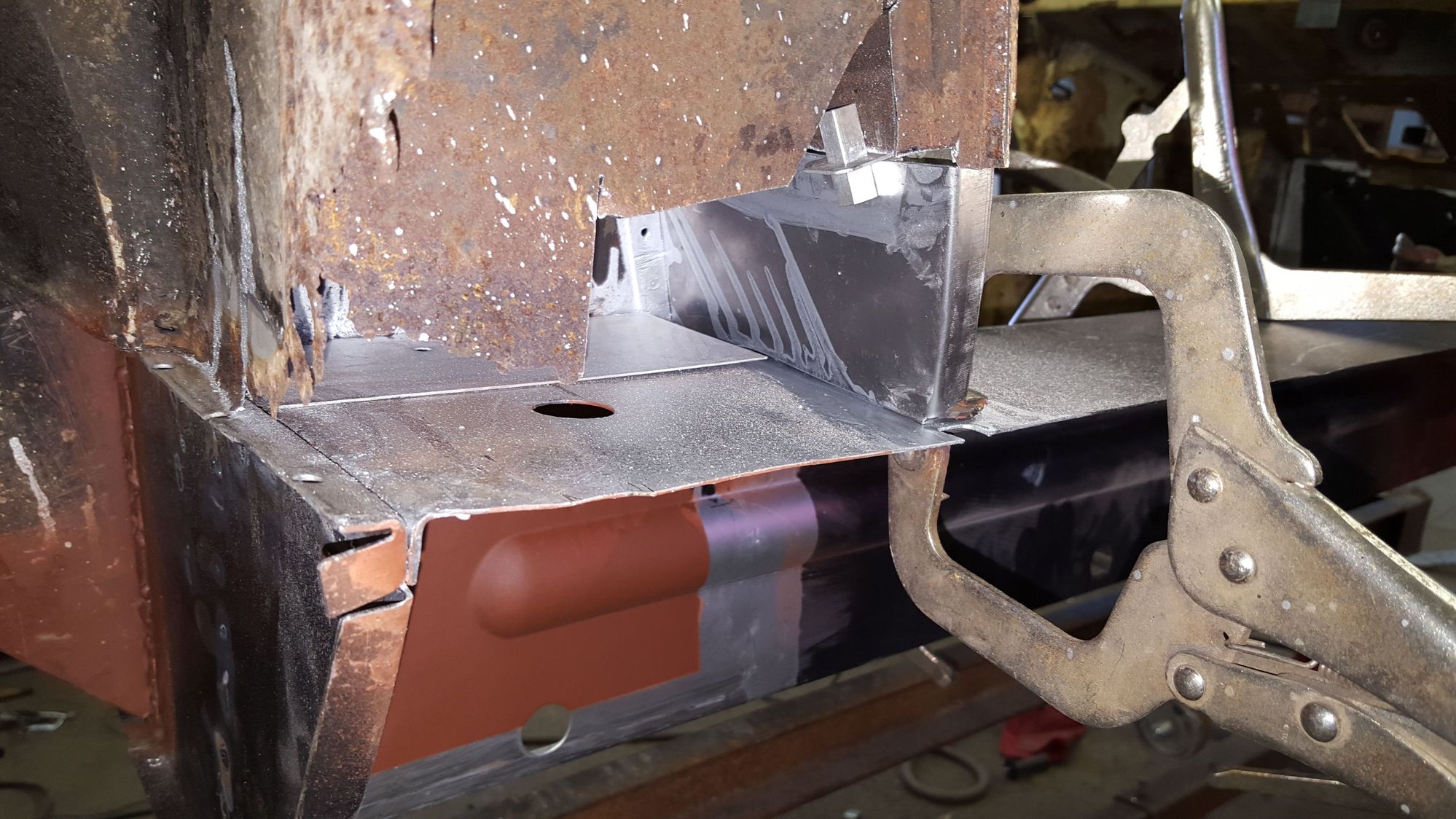

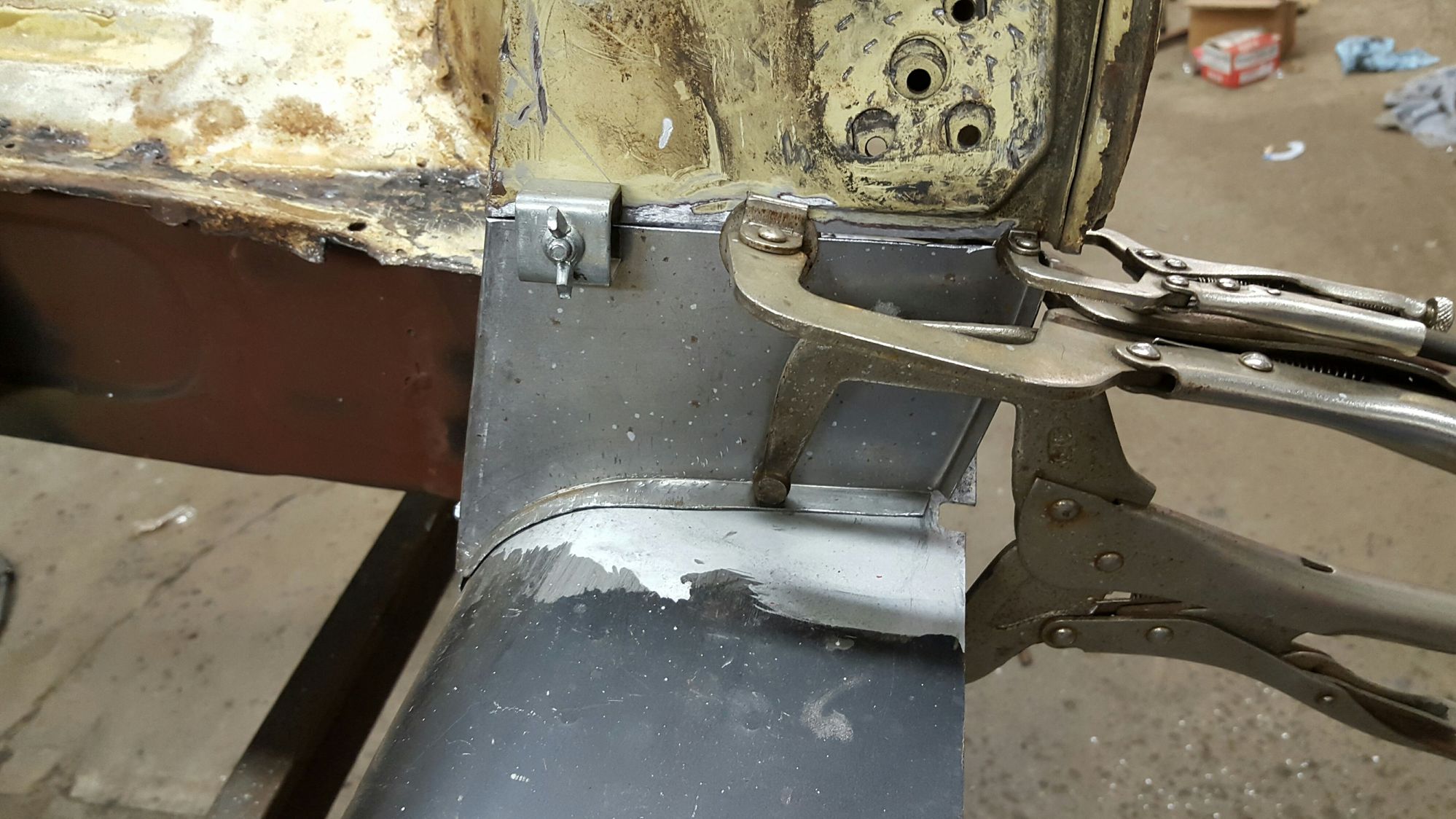

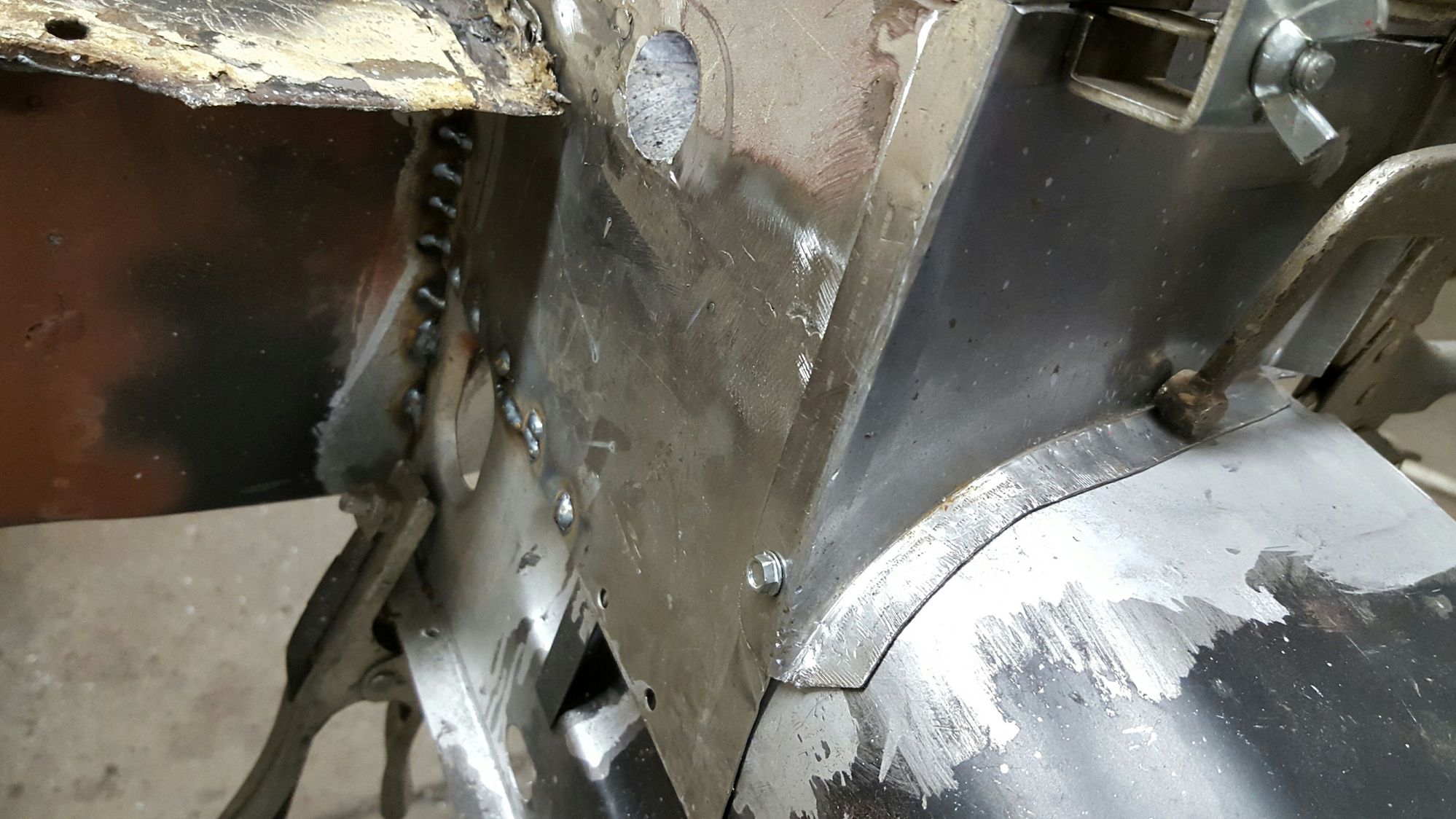

Inner B post repair panel before final finish https://cimg6.ibsrv.net/gimg/www.jag...6e4ae7c039.jpg Trial fit of lower patch panel (Thanks Chuck at Monocoque metalworks!) https://cimg7.ibsrv.net/gimg/www.jag...fe68a7e4aa.jpg |
https://cimg1.ibsrv.net/gimg/www.jag...dc558a8ef4.jpg

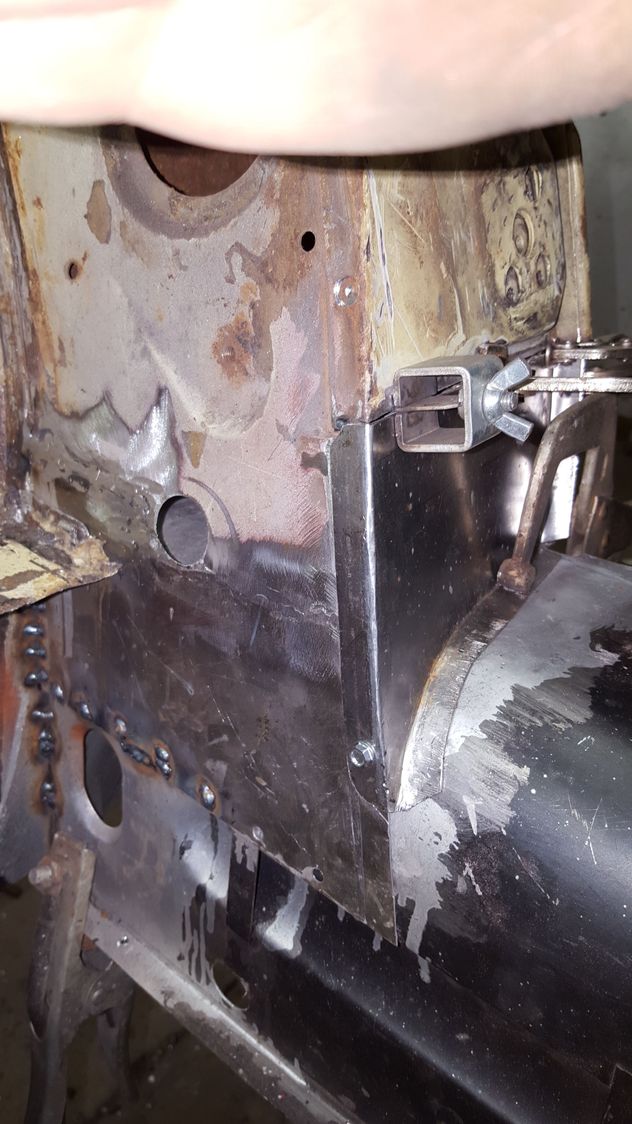

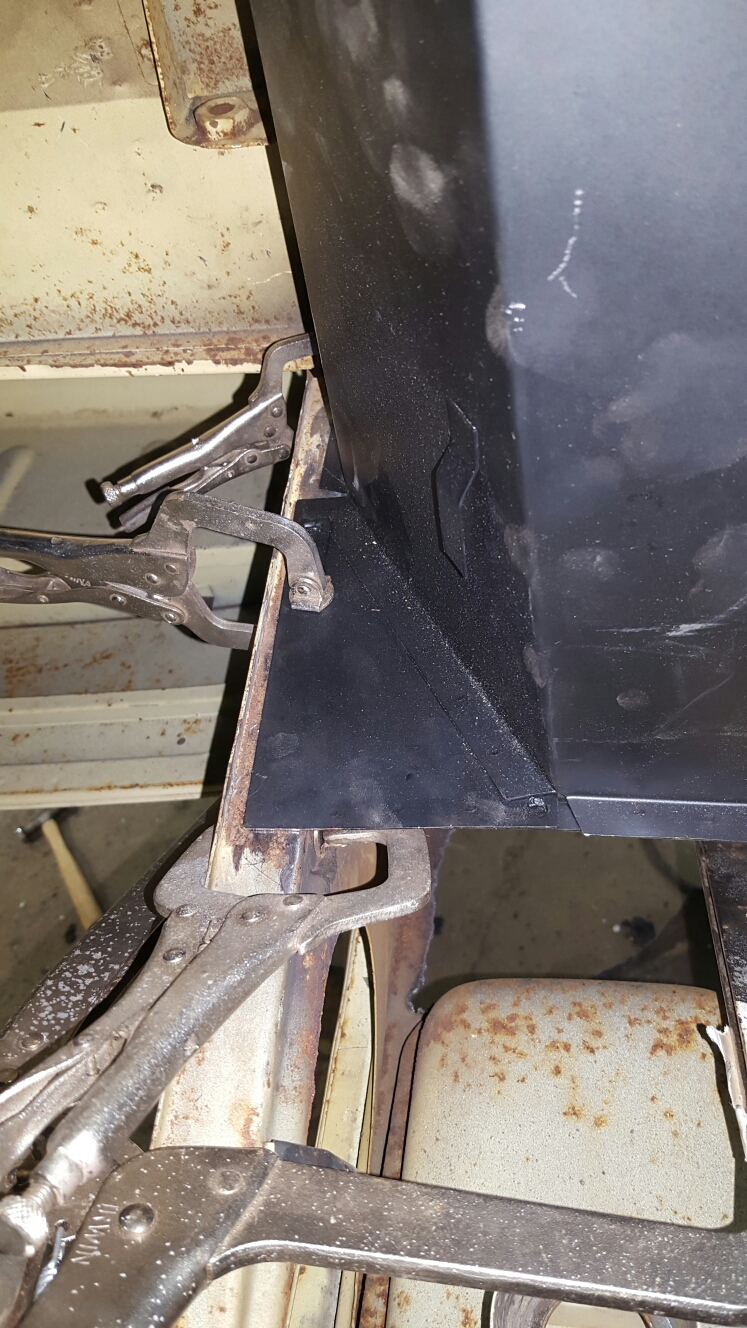

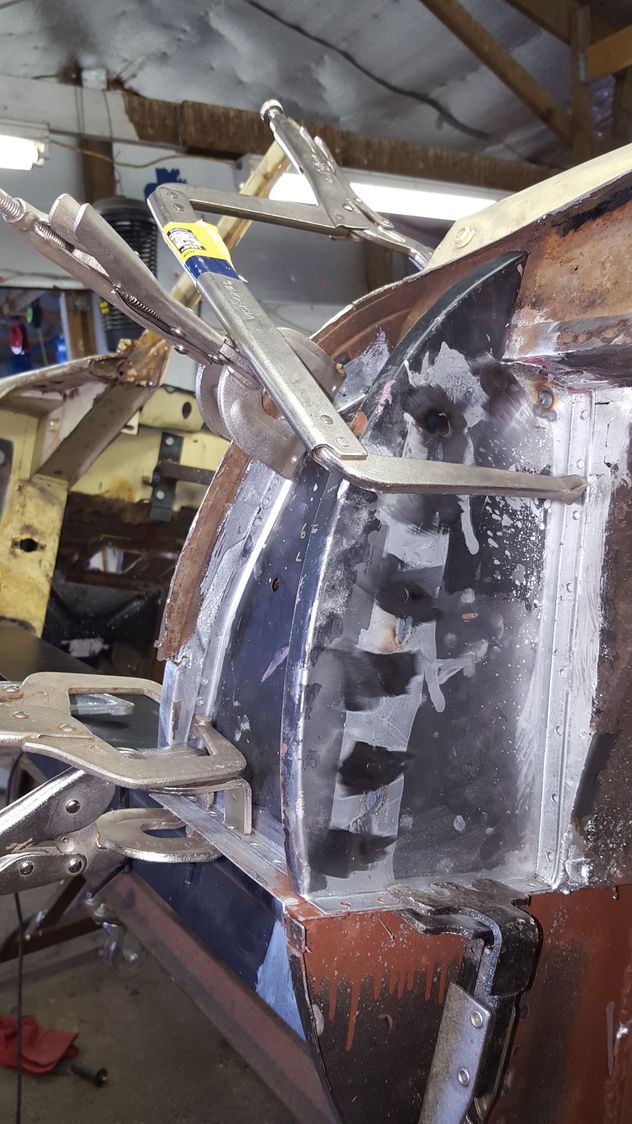

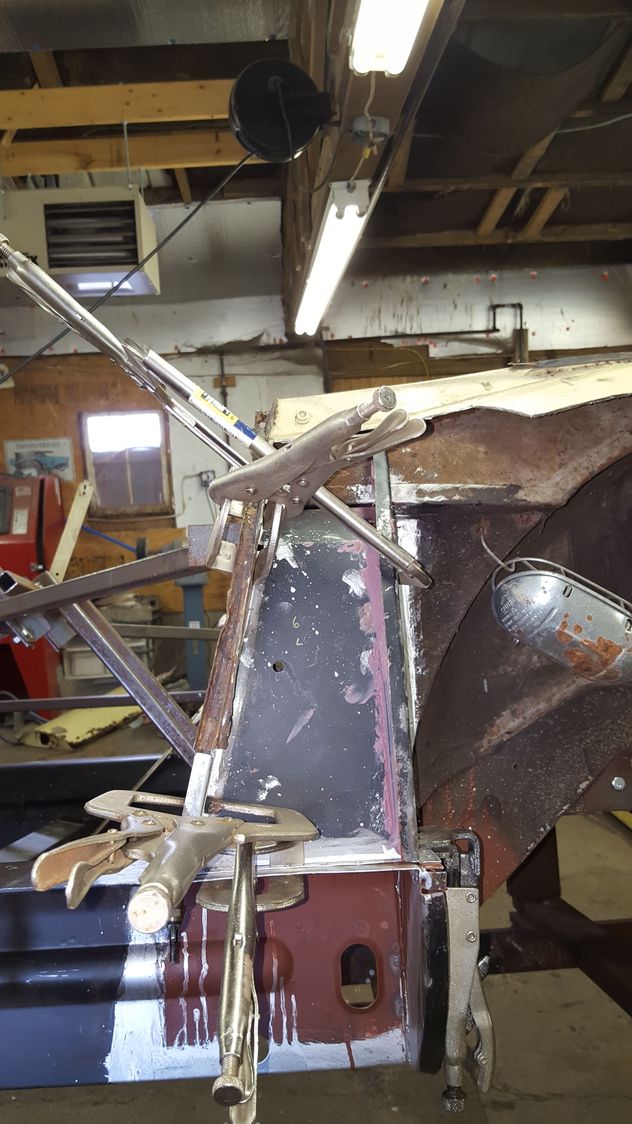

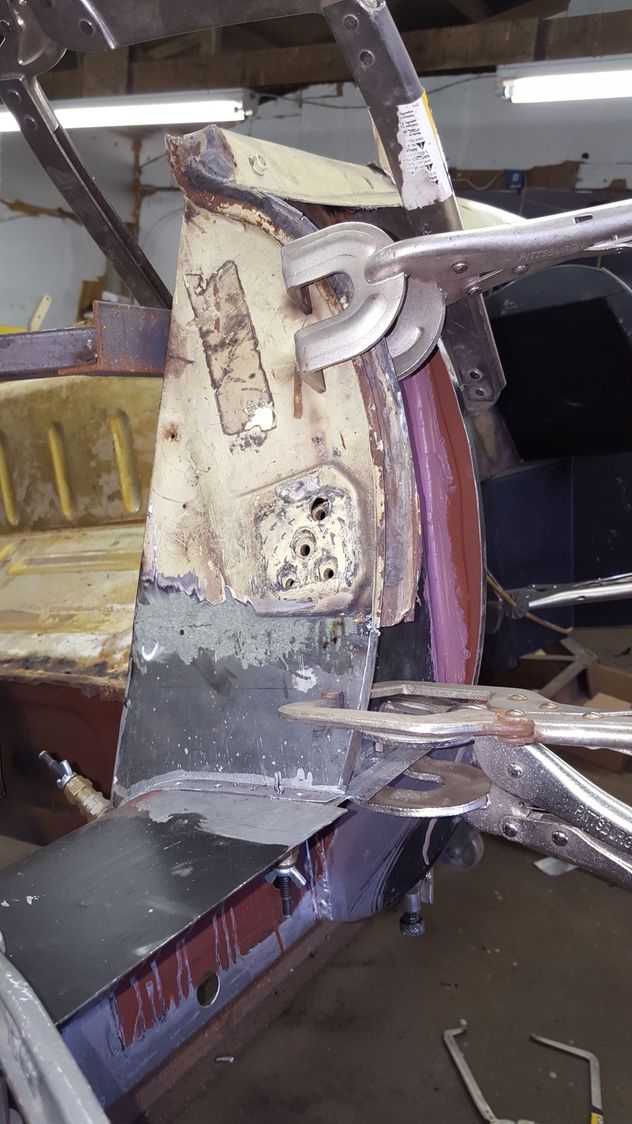

Fitting box support for B post https://cimg3.ibsrv.net/gimg/www.jag...012ec894fa.jpg Fitting box support for B post https://cimg5.ibsrv.net/gimg/www.jag...17e86916af.jpg Fitting box support for B post. Patch panel for shut face welded in https://cimg6.ibsrv.net/gimg/www.jag...e3de56f2f9.jpg Box support for B post welded and seam sealer applied<br/> https://cimg8.ibsrv.net/gimg/www.jag...4d4dd6150e.jpg Box support for B post welded and seam sealer applied https://cimg2.ibsrv.net/gimg/www.jag...f77f06463e.jpg red oxide primer |
https://cimg0.ibsrv.net/gimg/www.jag...3846e7a15d.jpg

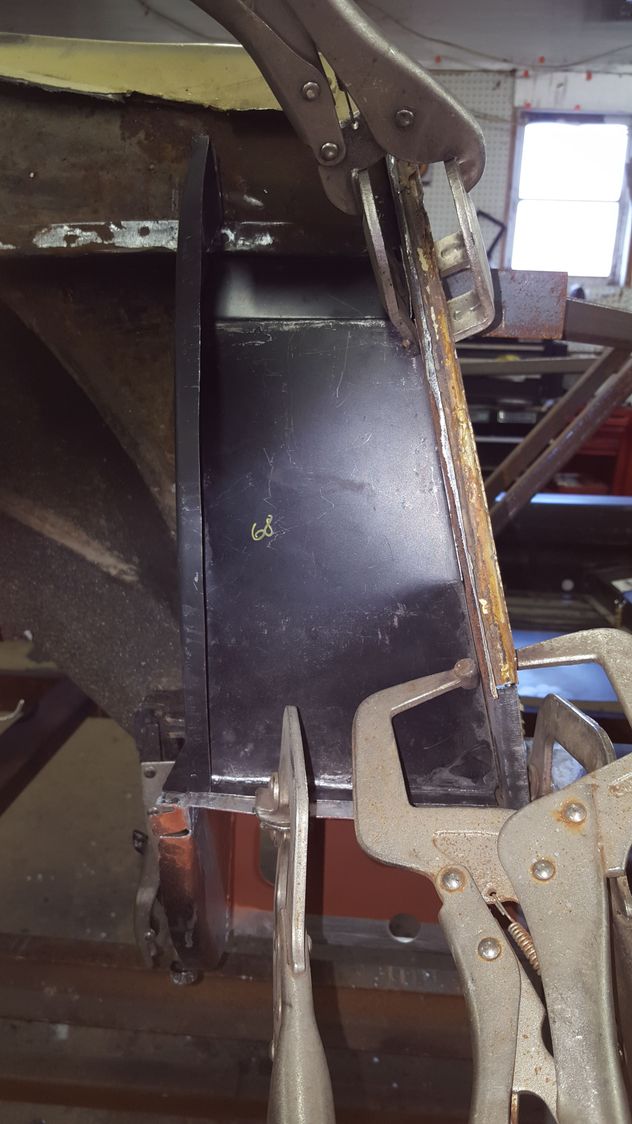

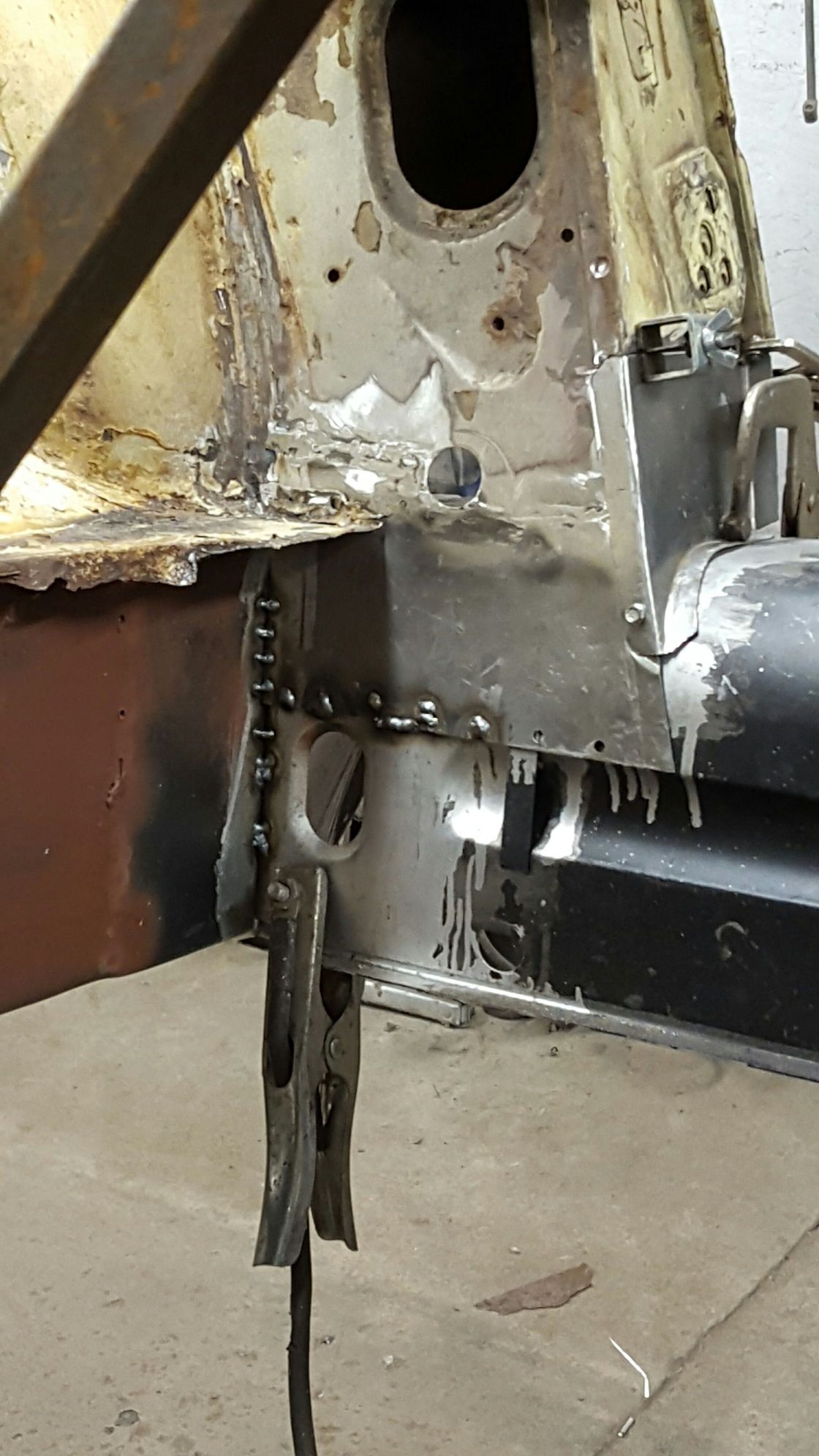

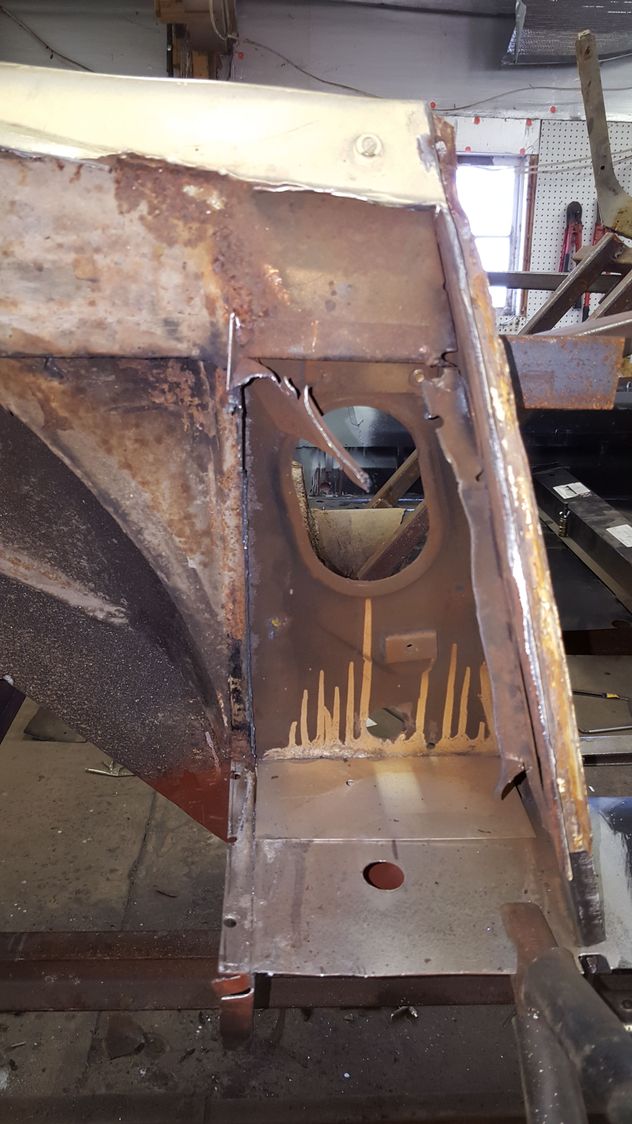

Fitting off side shut face patch panel https://cimg7.ibsrv.net/gimg/www.jag...59831e15fa.jpg https://cimg0.ibsrv.net/gimg/www.jag...2b1b5eb2d1.jpg RUST!! who knew--ha ha https://cimg2.ibsrv.net/gimg/www.jag...cf284f2a53.jpg https://cimg5.ibsrv.net/gimg/www.jag...74d0952074.jpg bare metal inside no wonder it rusted https://cimg6.ibsrv.net/gimg/www.jag...99069b5a6b.jpg fitting panels https://cimg9.ibsrv.net/gimg/www.jag...e4f1f76f67.jpg fitting panels- very fiddly, unlike today's cars and engineering, a lot of time spent fitting with dolly and hammer https://cimg0.ibsrv.net/gimg/www.jag...7cd8898a3d.jpg should do it |
you are doing a great job "knitting" together a new Jag! 35 years ago I was doing a similar thing with my XK150, but MIGs and TIGs and plasma cutters, and reproduction panels were not available. I had to use nibbler, arc welder and a lot of brazing. Maybe that's why it took me 8 years!
|
|
More time panel beating g

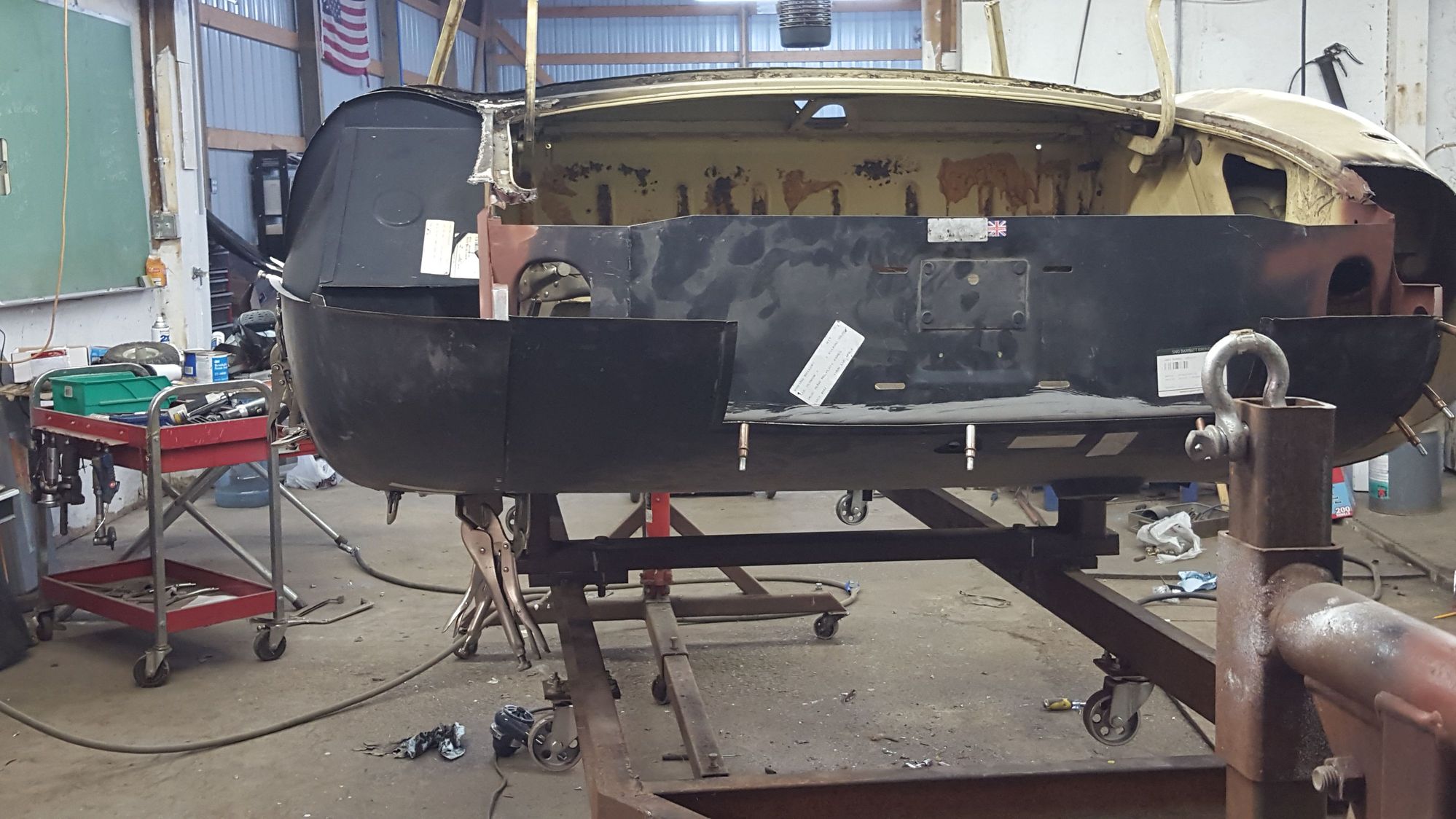

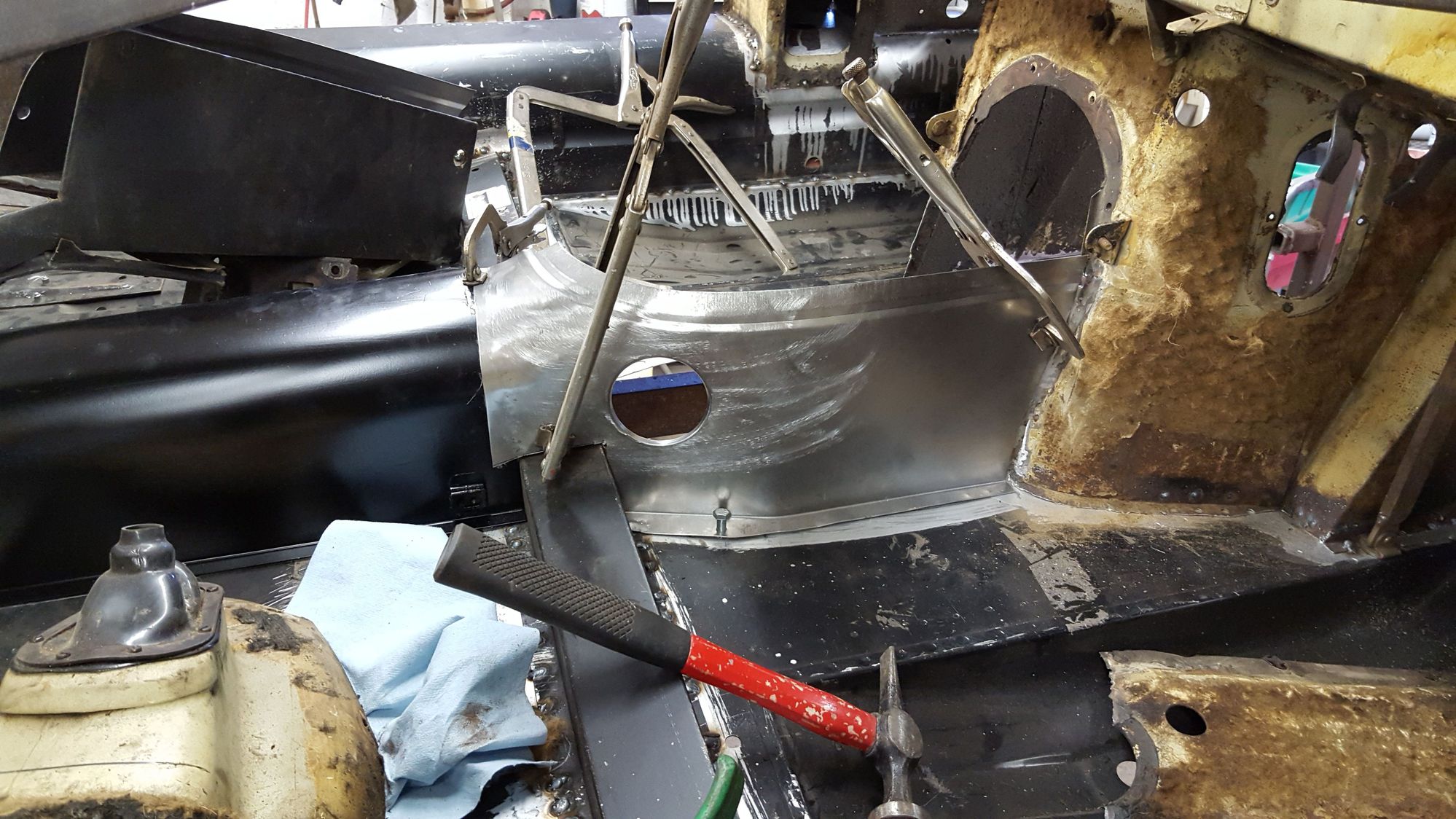

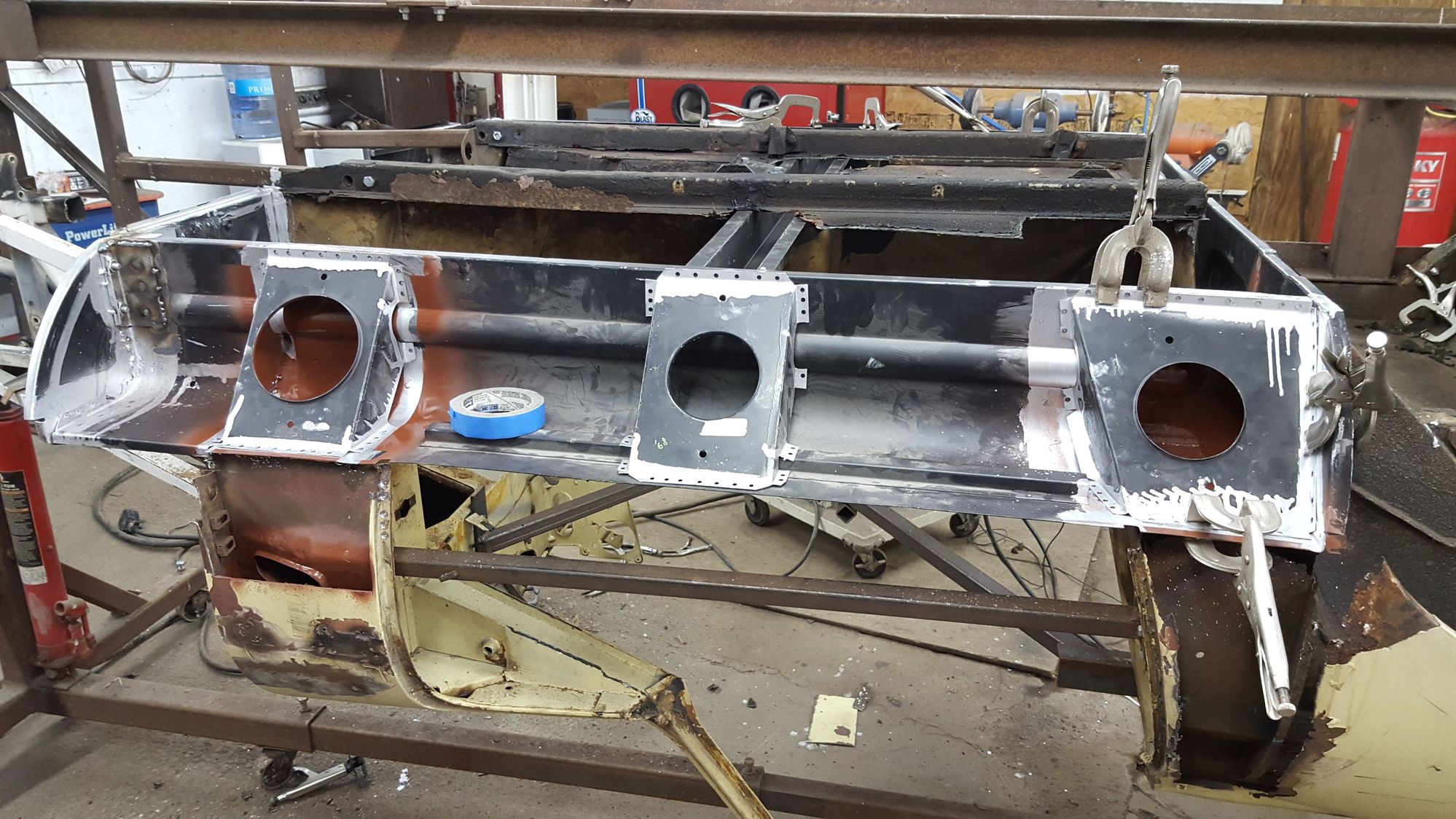

https://cimg0.ibsrv.net/gimg/www.jag...6e07cc112a.jpg Fitting right side of tunnel https://cimg1.ibsrv.net/gimg/www.jag...7cfbe7d57a.jpg Rebuildong rear clip https://cimg4.ibsrv.net/gimg/www.jag...61d450f648.jpg Happy with fit for the most part but will need to change zome of the bends to better fit https://cimg5.ibsrv.net/gimg/www.jag...907bb4a304.jpg |
Will dress down plug welds to make them more cosmetic. Panels here were from monocoque metalworks and fit was excellent as always. Chuck is a generous source of information and unique panels for the e-type.

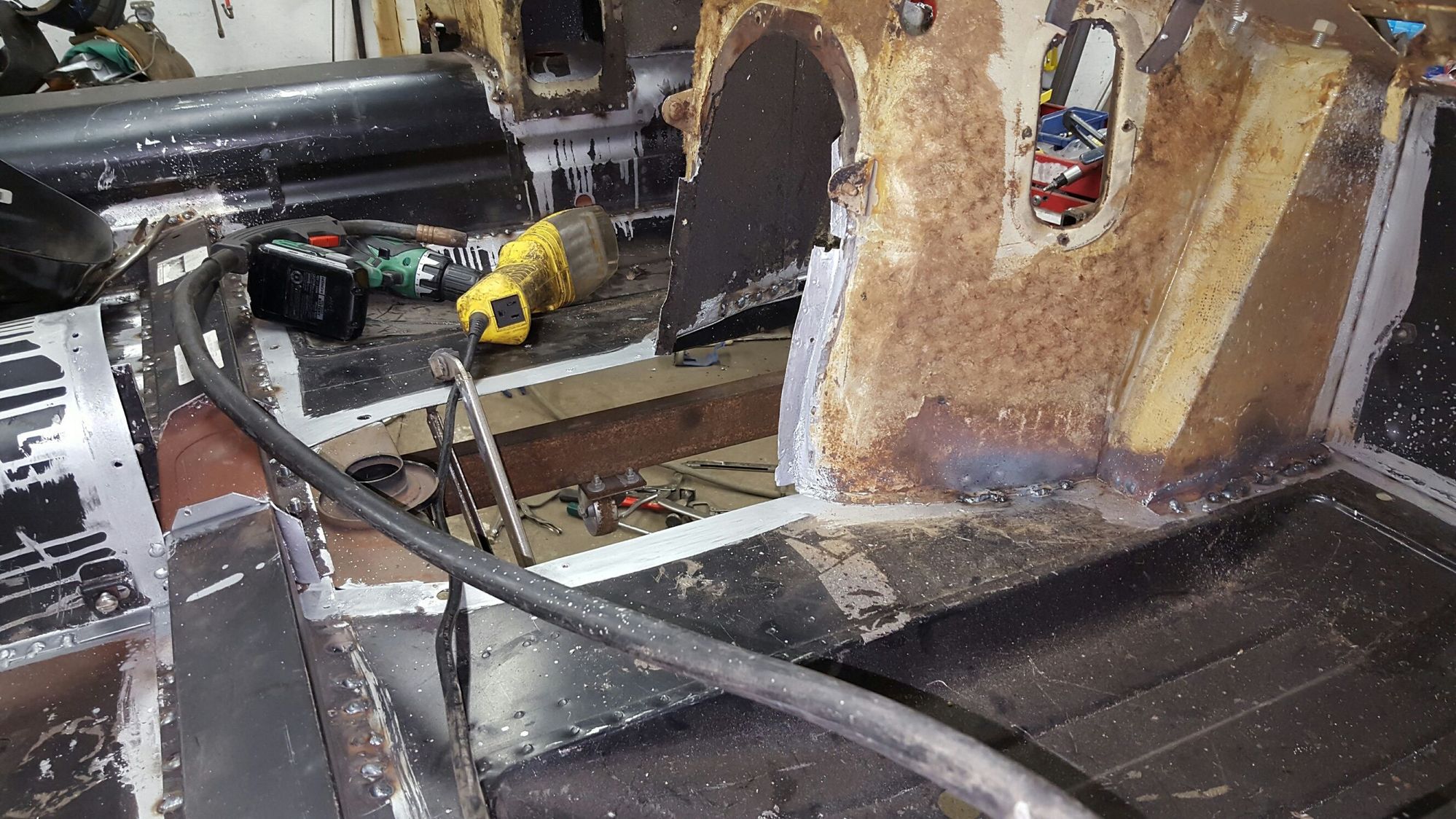

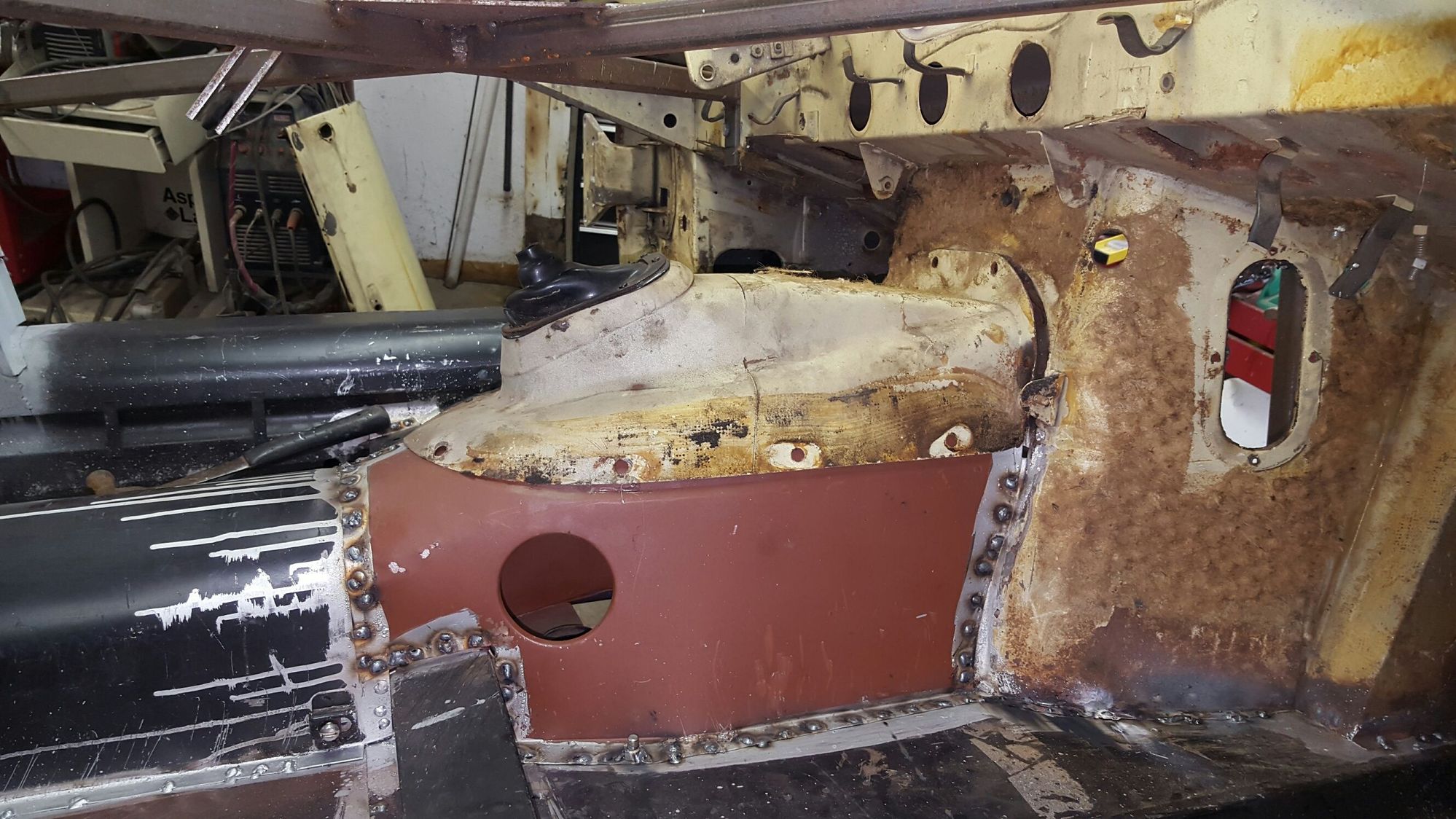

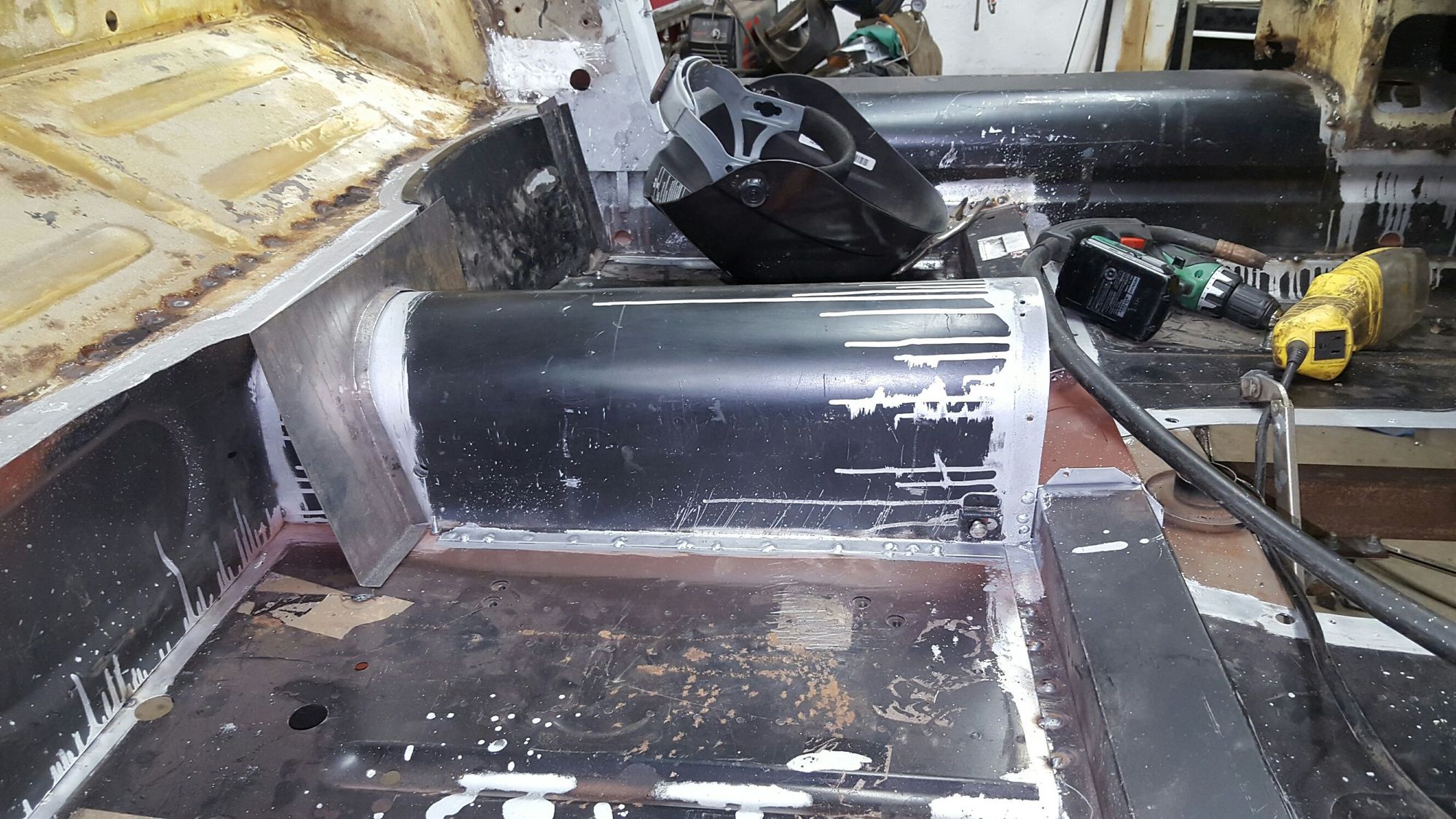

Eventually will use my dustless blasting system (no panel warpage, neat system) to take exposed shell to bare metal and prime with 2-pak urethane or epoxy. https://cimg8.ibsrv.net/gimg/www.jag...d233753a5f.jpg Transmission tunnel welded in. Lots of weld through primer and seam sealer used under it on seam in floor joint https://cimg9.ibsrv.net/gimg/www.jag...3a2e1a85c1.jpg prepped for forward part of tunnel https://cimg0.ibsrv.net/gimg/www.jag...2e5702be94.jpg Tunnel panels were massaged and fitted 4-6 times before final welding https://cimg1.ibsrv.net/gimg/www.jag...127eb38f8a.jpg Side in last. Excellent fit with shifter cover. Will move to inner back bulkhead in the next few days now. |
