Forward alert radar wiring
Thread Starter
|
Senior Member
Joined: Dec 2013
Posts: 978
Likes: 275
From: Kansas
Forward alert radar wiring
Can anybody help me by supplying the wiring diagram to the forward alert radar that is used in conjunction with the adaptive cruise control. I cannot find any information on it in the main electrical wiring diagram document. Thanks.
Thread Starter
|
Senior Member
Joined: Dec 2013
Posts: 978
Likes: 275
From: Kansas
Do you see the radar device shown in that document anywhere ?
Thread Starter
|
Senior Member
Joined: Dec 2013
Posts: 978
Likes: 275
From: Kansas

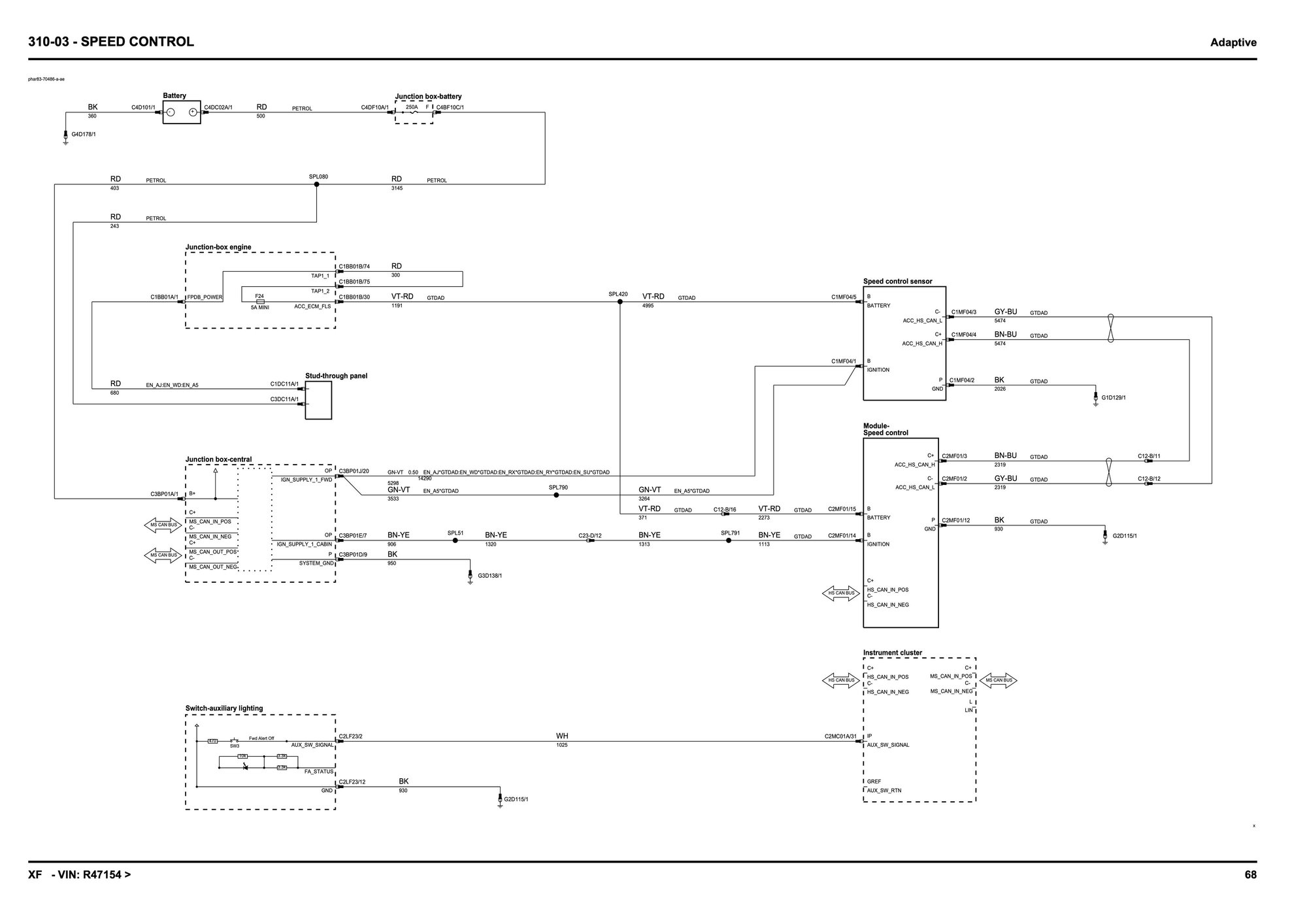

@prolepsis That's brilliant, thank you. I was looking at the 2012 version and it doesn't show it on the adaptive speed control in that document. So I need to get the correct one I guess.
Last edited by kansanbrit; Jul 23, 2025 at 04:16 PM.
Thread Starter
|
Senior Member
Joined: Dec 2013
Posts: 978
Likes: 275
From: Kansas
Thanks to the circuit diagram, I was able to find out that there was no permanent 12 volt supply on the radar sensor - due to a broken wire I guess - so I piggybacked it onto the ignition 12 volts supply wire and now all is working.😁
Last edited by kansanbrit; Jul 25, 2025 at 12:13 PM.
Senior Member
Joined: Jan 2013
Posts: 174
Likes: 12
From: At Home
Happy days!
