Trunk battery cover turnbuckle female receivers, part number or dimensions?

XJ40 ( XJ81 ) 1986 - 1994

Trunk battery cover turnbuckle female receivers, part number or dimensions?


  #1
Old 06-17-2018, 11:48 AM
al_roethlisberger's Avatar
Veteran Member
Thread Starter
Join Date: Mar 2014
Location: Sanford, NC
Posts: 3,735
Received 616 Likes on 467 Posts
Question Trunk battery cover turnbuckle female receivers, part number or dimensions?

Both of the female battery cover turnbuckle receivers in my XJ12 are missing.

Jaguar has used a number of these throughout their vehicles for years to hold various panels in place, and some are metal, some are plastic, and they can vary in size.

Does anyone know the part number or dimensions for the female receiver used in the XJ40 battery cover?

Here is the trunk linings diagram and part listings for the XJ40, but it doesn't call out the turnbuckle receiver, even in the "unillustrated parts" listing.

https://www.jaguarclassicparts.com/u...and-insulation

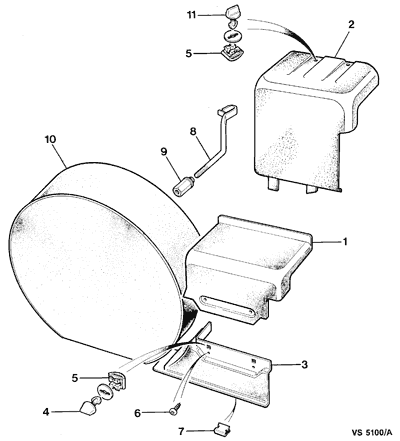

The XJS parts diagram does show a similar (the same?) turnbuckle receiver, and is item 5 in the diagram below:

https://www.jaguarclassicparts.com/u...re-wheel-cover

Attached Thumbnails Trunk battery cover turnbuckle female receivers, part number or dimensions?-xjs-trunk.png   Trunk battery cover turnbuckle female receivers, part number or dimensions?-xj40trunk.png
  #2
Old 06-17-2018, 04:03 PM
al_roethlisberger's Avatar
Veteran Member
Thread Starter
Join Date: Mar 2014
Location: Sanford, NC
Posts: 3,735
Received 616 Likes on 467 Posts
Default

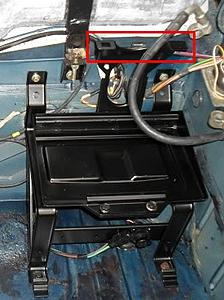

Here's a photo that highlights where the two turnbuckle stud receivers clip into, note the two empty rectangular holes in the black metal bracket:

Attached Thumbnails Trunk battery cover turnbuckle female receivers, part number or dimensions?-xj40-battery-tray-turnbuckle-receiver.jpg
  #3
Old 06-18-2018, 11:04 AM
Join Date: Feb 2014
Location: The Beautiful Mid-South, U.S.A.
Posts: 16,701
Received 7,759 Likes on 4,334 Posts
Default

Hi Al,

I thought part 14 in this diagram might be the turnbuckle receptical clip you're looking for but the description says it's the "battery positive terminal post cover":



I found this in the Battery/Starter/Alternator section:

https://www.jaguarclassicparts.com/u...ry-and-fixings

Part number was DBC12286 which was superseded to XR811245.

You'd have to think that dealerships had to replace those clips from time to time so there must be a part number!

Cheers,

Don


Last edited by Don B; 06-18-2018 at 11:08 AM.
The following users liked this post:
93SB (06-22-2018)
  #4
Old 06-18-2018, 11:41 AM
Veteran Member
Join Date: Sep 2012
Location: Victoria BC Canada
Posts: 1,909
Received 1,238 Likes on 773 Posts
Default

I'm not sure about this, but do the footwell fuse box covers use similar stud receivers?


Larry

The following 3 users liked this post by Lawrence:
93SB (06-22-2018), al_roethlisberger (06-18-2018), Don B (06-18-2018)
  #5
Old 06-18-2018, 06:14 PM
al_roethlisberger's Avatar
Veteran Member
Thread Starter
Join Date: Mar 2014
Location: Sanford, NC
Posts: 3,735
Received 616 Likes on 467 Posts
Default

Originally Posted by Lawrence View Post
I'm not sure about this, but do the footwell fuse box covers use similar stud receivers?


Larry

Not sure, but will go look and let you know. Jaguar used several different sizes and materials (plastic and steel) versions of these receivers throughout the car and across models.

.
