So Im on a trip from Louisiana to Philadelphia.
1200 something miles / 18hrs driving

I've developed a small coolant leak near it's hose clamp and I'm unsure of what hose it is.

My car is an 09 xf supercharged. 4.2l.
It's an roughly a 3/4" - 1" diameter hose
It runs left to right behind what I believe is an idler pulley or possibly the water pump pulley.

Does any one have a coolant hose diagram. Or know what hose this is? I'm going to try cutting
The bad section out and reclamping. But I want to also get a new hose ordered

Any help is appreciated
Rain

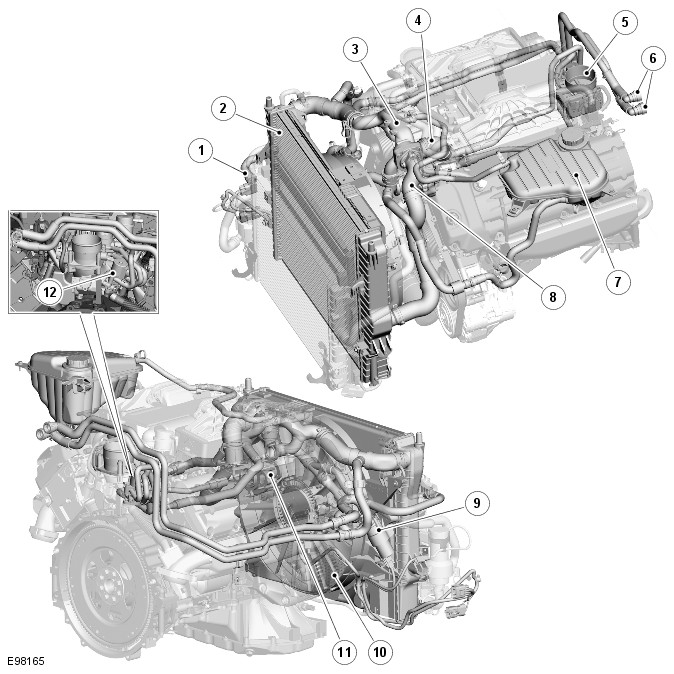

Is it in either of these pictures?











ItemDescription1Expansion hose connection to intercooler radiator
2Radiator
3Outlet assembly
4Inlet duct
5Throttle body
6Heater core supply and return connections
7Expansion tank
8Thermostat cover
9Auxiliary coolant pump
10Cooling fan
11Coolant pump
12EGR valve

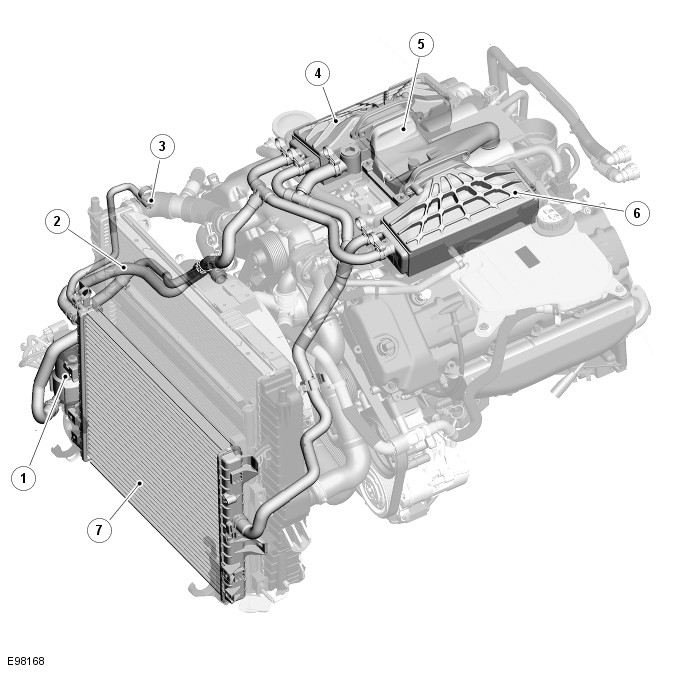

The one below is for the Supercharge system.
