bullittandy August 15, 2022

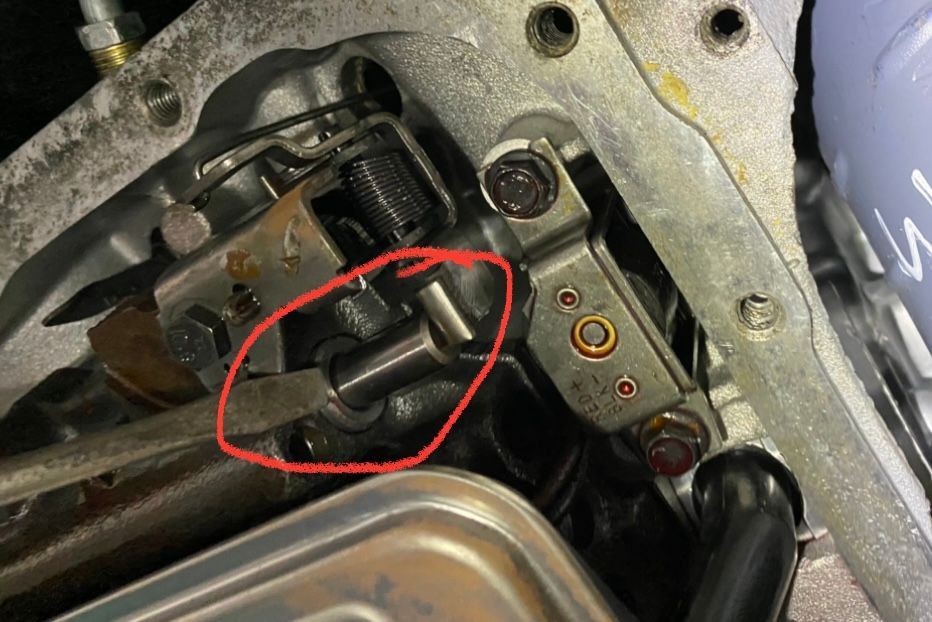

This is the throttle valve (round shaft in red circle) , viewed with the transmission pan off. This is at the idle position, the lever is putting a small amount of pressure on the throttle valve and depressing it slightly. At full throttle, the throttle valve is fully depressed and becomes invisible.
