jrnsr December 12, 2022

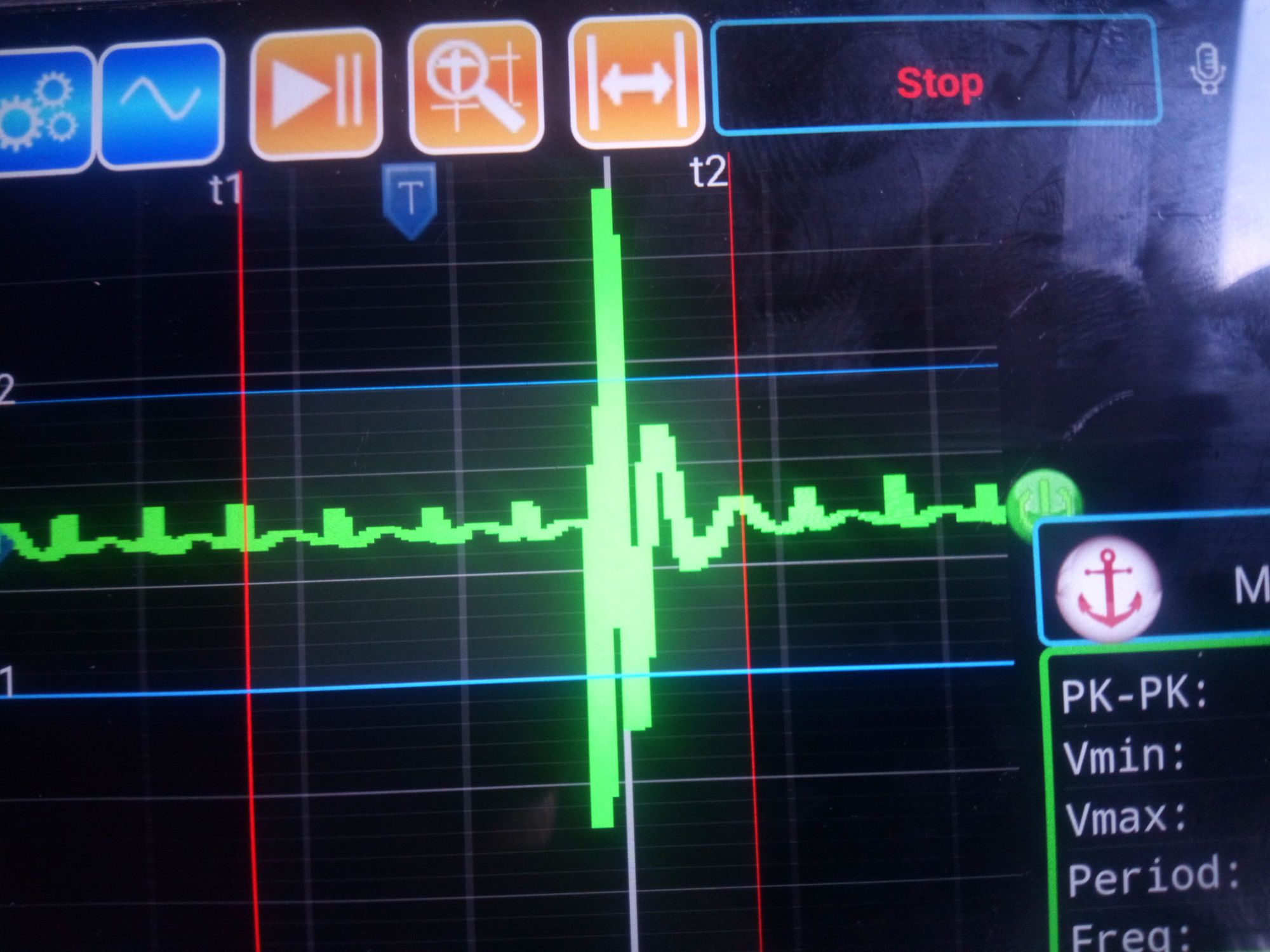

I seem to recall this was the single spike to a coil from the ECM commanding that coil module to fire. The small blips were noise generated by the ECM ordering the other 7 coils to do their thing. This is not measured in split seconds or even milliseconds, but microseconds, millionths of a second. At 650 rpm, this occurs a little over 5 times per second.
