DarrenA November 22, 2025

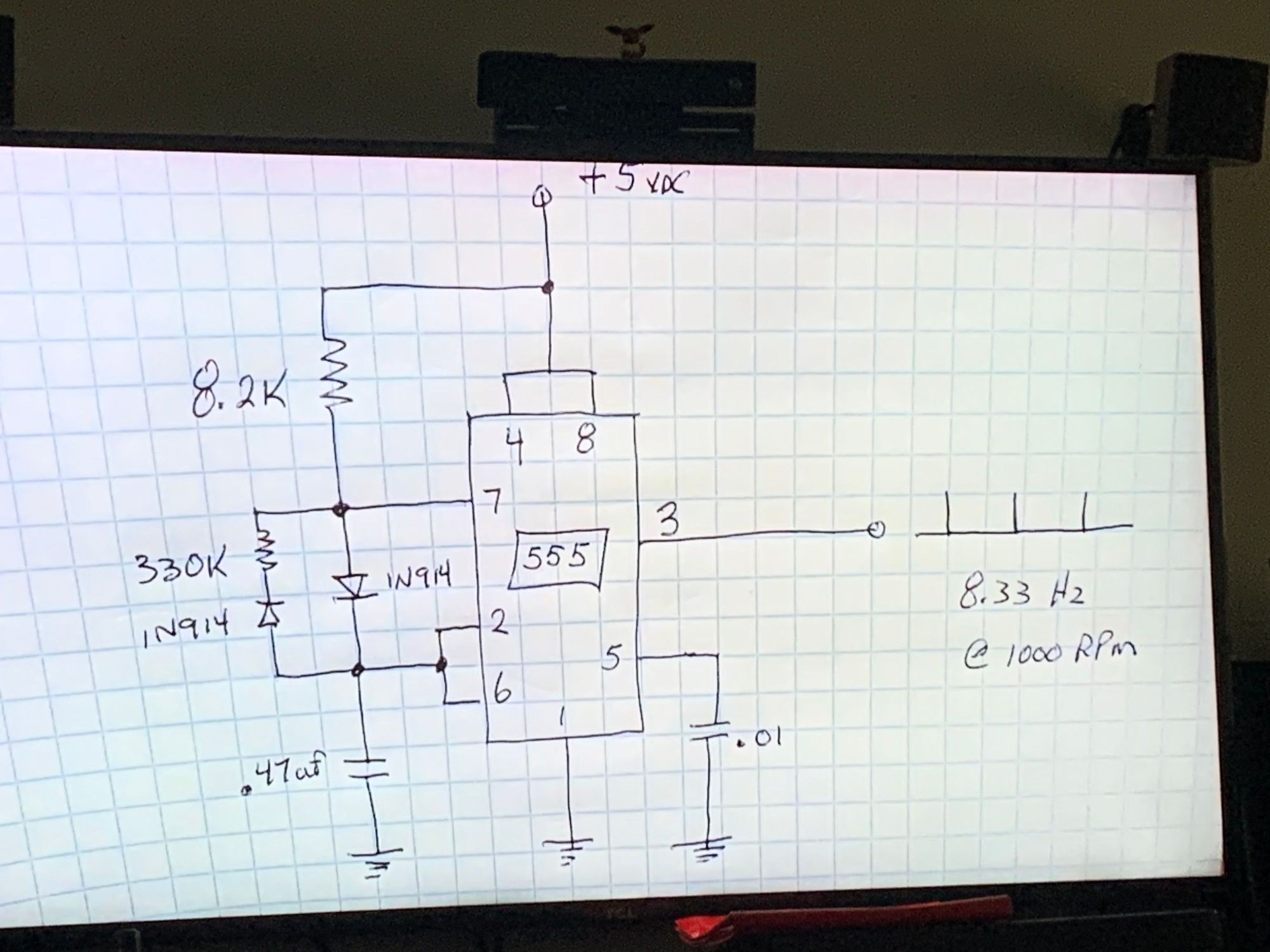

This is basically the triggering circuit used to pulse the coil. I didn’t exactly have the correct resistors so I’m gonna guess It’s as close as I could make it.
