10 XF Premium September 18, 2015

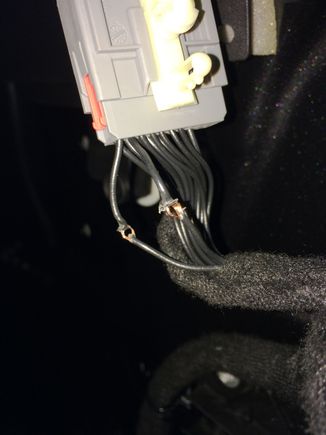

Here is the door side of the mirror harness connector. Pin #12 ground and #13 power as before. Notice how I cut the insulation only leaving the conductors in tact and then using a small pick, make a hole to insert the new wires through and then rapped them, soldered them and re-insulated.
