Hot Air Extraction From The Engine Compartment
#21
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,231 Likes
on
939 Posts
Good points, and of course that brings us full circle back to perhaps the best 'mod', in adding electric fans that create your own airflow...
Also wondered about doing this?
https://www.jaguarforums.com/forum/a...64241483_n.jpg
https://www.jaguarforums.com/forum/a...06731883_n.jpg
The original thread here: Does a great job on his bonnet!
https://www.jaguarforums.com/forum/x...6/#post1393946
Also wondered about doing this?
https://www.jaguarforums.com/forum/a...64241483_n.jpg
https://www.jaguarforums.com/forum/a...06731883_n.jpg
The original thread here: Does a great job on his bonnet!
https://www.jaguarforums.com/forum/x...6/#post1393946
nice work see no reason it should not work for air out.
when come in after a 1 hour ride, i have immediatly measured the engine head temps, usually around 180F,, now let car set for about 10-15 minutes temps read arounf 195/200F.
it is heat soak upward from the hot oil in sump that is usually hotter than engine coolant(a normal situation).
becomes a serious problem with the V12, like dropped valve seats.
especially after an hour or so on a hot Texas day,100F ambient.
seems most V12 seats loosen after the engine has been shut down, from this condition
TWR racing did not want to stop engine when in for tires etc.
caused some DNFs, or disqualify.
The following users liked this post:
orangeblossom (04-14-2016)
#22
Air exiting under the car will cause a high pressure area under the car (unless a rear under tray is added) where the 2 air streams meet, reducing down force.
The best place to add vents is at the front of the bonnet, just behind the radiator, this is a low pressure area. Adding vents at the rear of the bonnet will not necessarily increase flow through the bay. Look at a picture of a Lancer rally car, it has the vent very close to the front and angled so the flow stays parallel to the bonnet.
The best place to add vents is at the front of the bonnet, just behind the radiator, this is a low pressure area. Adding vents at the rear of the bonnet will not necessarily increase flow through the bay. Look at a picture of a Lancer rally car, it has the vent very close to the front and angled so the flow stays parallel to the bonnet.
The following 2 users liked this post by warrjon:
Greg in France (04-15-2016),
ronbros (04-16-2016)
#23
At speed, say above 40 mph plus, a definite build up of high pressure starts under the XJS bonnet. The racing XJS, as confirmed by Allan Scott the TWR engine genius, in his recent book on the ETCC winning XJS. In the case of this car, TWR released the pressure and substantially aided under bonnet temps, under bonnet airflow, and therefore cooling effectiveness because of better airflow flow, by fixing the bonnet by pins which held the rear a couple of inches proud of the normal bulkhead shutline.
As Grant has also explained to us, airflow out of the bottom of the engine bay is poor, and in his vast experience the best non-bodywork mod you can do is to remove the foam rubber covering the gearbox. This allows far better airflow by allowing it out of the back of the engine bay.
The regulations of the ETCC prohibited bodywork changes, otherwise louvres would have solved the problem. The pressure build up at higher speeds was such that, even with the bonnet held open and secured by pins, on one occasion the pin fixings ripped out of their fixing points on the bulkhead!
The airflow out of the back of the bonnet is substantial. A few bits of wool taped along the bulkhead shutline (which is how Malcolm Sayer actually tested his shapes, on the back of a motorbike watching alongside the car as it was driven) will demonstrate that there IS substantial airflow out of the rear of the bonnet on the move when above 40 MPH. Fix the bonnet open a bit somehow and try it. On my car I have found that if I remove the rear bulkhead seal and switch on the electric rad fans (car stationary) a gale blows out of this shutline, bonnet properly closed. Replace the seal, nothing comes out. I deduce from this that there is a natural path for radiator air that it prefers to take from the rear of the bonnet.
There is a guy who runs UK firm called sportcar metalworks Bonnet Louvres | Sports Car Metal Works
I have spoken to him on the phone, not met him, and he will put louvres into the XJS for about 180 UKP. There is an XJS pic on his site. As soon as I think I can get this past the management, I am going for it. This is the only easy and definitely the most effective way to reduce underbonnet heat, in my honest opinion.
Greg
As Grant has also explained to us, airflow out of the bottom of the engine bay is poor, and in his vast experience the best non-bodywork mod you can do is to remove the foam rubber covering the gearbox. This allows far better airflow by allowing it out of the back of the engine bay.
The regulations of the ETCC prohibited bodywork changes, otherwise louvres would have solved the problem. The pressure build up at higher speeds was such that, even with the bonnet held open and secured by pins, on one occasion the pin fixings ripped out of their fixing points on the bulkhead!
The airflow out of the back of the bonnet is substantial. A few bits of wool taped along the bulkhead shutline (which is how Malcolm Sayer actually tested his shapes, on the back of a motorbike watching alongside the car as it was driven) will demonstrate that there IS substantial airflow out of the rear of the bonnet on the move when above 40 MPH. Fix the bonnet open a bit somehow and try it. On my car I have found that if I remove the rear bulkhead seal and switch on the electric rad fans (car stationary) a gale blows out of this shutline, bonnet properly closed. Replace the seal, nothing comes out. I deduce from this that there is a natural path for radiator air that it prefers to take from the rear of the bonnet.
There is a guy who runs UK firm called sportcar metalworks Bonnet Louvres | Sports Car Metal Works
I have spoken to him on the phone, not met him, and he will put louvres into the XJS for about 180 UKP. There is an XJS pic on his site. As soon as I think I can get this past the management, I am going for it. This is the only easy and definitely the most effective way to reduce underbonnet heat, in my honest opinion.
Greg
The following 2 users liked this post by Greg in France:
orangeblossom (04-15-2016),
ronbros (04-16-2016)
#24
#25
As BB said, if you have a leaky engine when you park and hot air can seep out into the wiper grille area, engine oil fumes may permeate the cabin - not on my car of course! If this happens to you, then before switching off the engine just turn off the aircon (RH knob to 6 o clock) and this will shut the blowers' air flaps into the grille well.
Greg
The following users liked this post:
orangeblossom (04-15-2016)
#26
Alan, It looks a bit like the bootlid shutting seal. It runs across the seam just in front of the wiper grille and the bonnet shuts against it and hides it when shut. I left the outer 6 inches each side, which the bonnet then shuts against, and cut off and removed the bit in between.
As BB said, if you have a leaky engine when you park and hot air can seep out into the wiper grille area, engine oil fumes may permeate the cabin - not on my car of course! If this happens to you, then before switching off the engine just turn off the aircon (RH knob to 6 o clock) and this will shut the blowers' air flaps into the grille well.
Greg
As BB said, if you have a leaky engine when you park and hot air can seep out into the wiper grille area, engine oil fumes may permeate the cabin - not on my car of course! If this happens to you, then before switching off the engine just turn off the aircon (RH knob to 6 o clock) and this will shut the blowers' air flaps into the grille well.
Greg
Got that, Thanks!
#27
At speed, say above 40 mph plus, a definite build up of high pressure starts under the XJS bonnet. The racing XJS, as confirmed by Allan Scott the TWR engine genius, in his recent book on the ETCC winning XJS. In the case of this car, TWR released the pressure and substantially aided under bonnet temps, under bonnet airflow, and therefore cooling effectiveness because of better airflow flow, by fixing the bonnet by pins which held the rear a couple of inches proud of the normal bulkhead shutline.
As Grant has also explained to us, airflow out of the bottom of the engine bay is poor, and in his vast experience the best non-bodywork mod you can do is to remove the foam rubber covering the gearbox. This allows far better airflow by allowing it out of the back of the engine bay.
The regulations of the ETCC prohibited bodywork changes, otherwise louvres would have solved the problem. The pressure build up at higher speeds was such that, even with the bonnet held open and secured by pins, on one occasion the pin fixings ripped out of their fixing points on the bulkhead!
The airflow out of the back of the bonnet is substantial. A few bits of wool taped along the bulkhead shutline (which is how Malcolm Sayer actually tested his shapes, on the back of a motorbike watching alongside the car as it was driven) will demonstrate that there IS substantial airflow out of the rear of the bonnet on the move when above 40 MPH. Fix the bonnet open a bit somehow and try it. On my car I have found that if I remove the rear bulkhead seal and switch on the electric rad fans (car stationary) a gale blows out of this shutline, bonnet properly closed. Replace the seal, nothing comes out. I deduce from this that there is a natural path for radiator air that it prefers to take from the rear of the bonnet.
There is a guy who runs UK firm called sportcar metalworks Bonnet Louvres | Sports Car Metal Works
I have spoken to him on the phone, not met him, and he will put louvres into the XJS for about 180 UKP. There is an XJS pic on his site. As soon as I think I can get this past the management, I am going for it. This is the only easy and definitely the most effective way to reduce underbonnet heat, in my honest opinion.
Greg
As Grant has also explained to us, airflow out of the bottom of the engine bay is poor, and in his vast experience the best non-bodywork mod you can do is to remove the foam rubber covering the gearbox. This allows far better airflow by allowing it out of the back of the engine bay.
The regulations of the ETCC prohibited bodywork changes, otherwise louvres would have solved the problem. The pressure build up at higher speeds was such that, even with the bonnet held open and secured by pins, on one occasion the pin fixings ripped out of their fixing points on the bulkhead!
The airflow out of the back of the bonnet is substantial. A few bits of wool taped along the bulkhead shutline (which is how Malcolm Sayer actually tested his shapes, on the back of a motorbike watching alongside the car as it was driven) will demonstrate that there IS substantial airflow out of the rear of the bonnet on the move when above 40 MPH. Fix the bonnet open a bit somehow and try it. On my car I have found that if I remove the rear bulkhead seal and switch on the electric rad fans (car stationary) a gale blows out of this shutline, bonnet properly closed. Replace the seal, nothing comes out. I deduce from this that there is a natural path for radiator air that it prefers to take from the rear of the bonnet.
There is a guy who runs UK firm called sportcar metalworks Bonnet Louvres | Sports Car Metal Works
I have spoken to him on the phone, not met him, and he will put louvres into the XJS for about 180 UKP. There is an XJS pic on his site. As soon as I think I can get this past the management, I am going for it. This is the only easy and definitely the most effective way to reduce underbonnet heat, in my honest opinion.
Greg
That looks a bit of a 'Bargain!'
#28
The following 2 users liked this post by Hep320:
Greg in France (04-15-2016),
orangeblossom (04-28-2016)
#29
The airflow out of the back of the bonnet is substantial. A few bits of wool taped along the bulkhead shutline (which is how Malcolm Sayer actually tested his shapes, on the back of a motorbike watching alongside the car as it was driven) will demonstrate that there IS substantial airflow out of the rear of the bonnet on the move when above 40 MPH.
The following users liked this post:
orangeblossom (04-16-2016)
#30
Just an observation.
The following 2 users liked this post by baxtor:
Greg in France (04-17-2016),
orangeblossom (04-16-2016)
#31
Warren, bonnet shut, there might be. Bonnet on the safety catch (or pins as per TWR) as Baxtor mentions, plenty of air exiting above 40.
Greg
The following users liked this post:
orangeblossom (04-16-2016)
#32
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,231 Likes
on
939 Posts

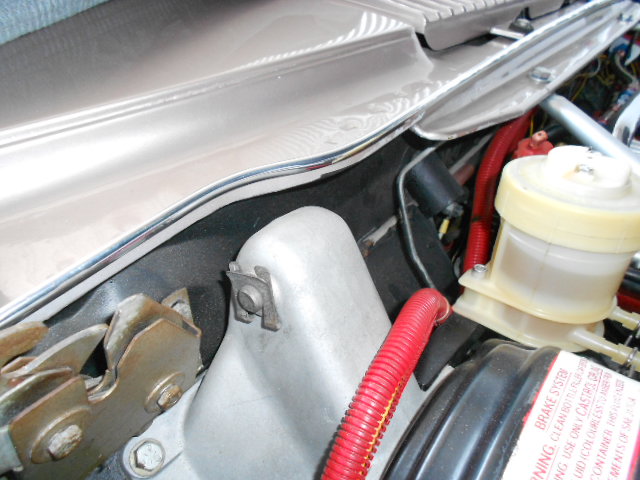

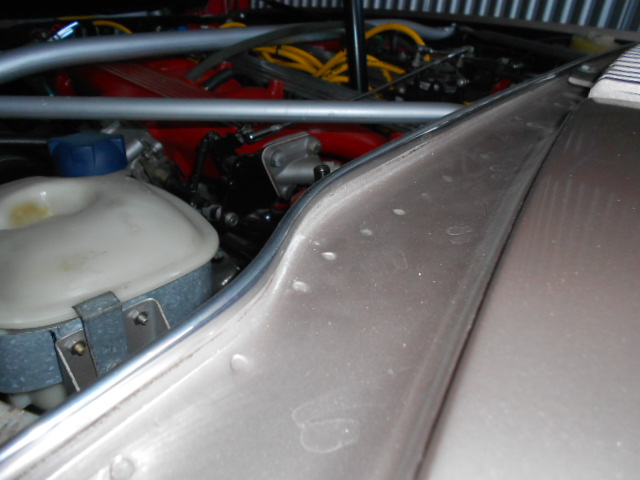

OB something like this, pic of mine, added chrome for visual effect!
it has about a 1/2" clearance between hood and chrome rail.
seems most effective in traffic and idling(tick over).
quite a bit of heat exits at gap,by feel, with electric fans on.
altho at hiway speed i dont notice any heat problems!
The following 2 users liked this post by ronbros:
Greg in France (04-17-2016),
orangeblossom (04-17-2016)
#33
OB something like this, pic of mine, added chrome for visual effect!
it has about a 1/2" clearance between hood and chrome rail.
seems most effective in traffic and idling(tick over).
quite a bit of heat exits at gap,by feel, with electric fans on.
altho at hiway speed i dont notice any heat problems!
it has about a 1/2" clearance between hood and chrome rail.
seems most effective in traffic and idling(tick over).
quite a bit of heat exits at gap,by feel, with electric fans on.
altho at hiway speed i dont notice any heat problems!
But its always hard to look at your Car, without me wanting to buy it.
Maybe if I win the Lottery on 'Roll over week' Lol.
The following users liked this post:
ronbros (04-17-2016)
#34
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,231 Likes
on
939 Posts
OB its just an old junk XJS that was given to for nothing(no money or anything) other than to get it off the property!
buy it started to posses me an 30K later,the ghost of christmas's passed came to life again!
of course the learning experience was worth more than anything else, money is paper, knowledge is forever!
The following users liked this post:
orangeblossom (04-17-2016)
#35
OB its just an old junk XJS that was given to for nothing(no money or anything) other than to get it off the property!
buy it started to posses me an 30K later,the ghost of christmas's passed came to life again!
of course the learning experience was worth more than anything else, money is paper, knowledge is forever!
buy it started to posses me an 30K later,the ghost of christmas's passed came to life again!
of course the learning experience was worth more than anything else, money is paper, knowledge is forever!
I better start Saving up then!
#36
I installed Run Cool Louvers in my XJS and it worked out great. It releases a tremendous amount of heat from the motor and I love them. Similar to the E Type but a bit longer. and they fit perfect down the two lower channels on hood. It made a huge difference for me. I followed the instructions and went to work. After the hood was painted, I was happy. The hardest move was making the first scratch with cutting grinder on hood.
The following 2 users liked this post by chriskindbooks:
Greg in France (04-28-2016),
orangeblossom (04-28-2016)
#37

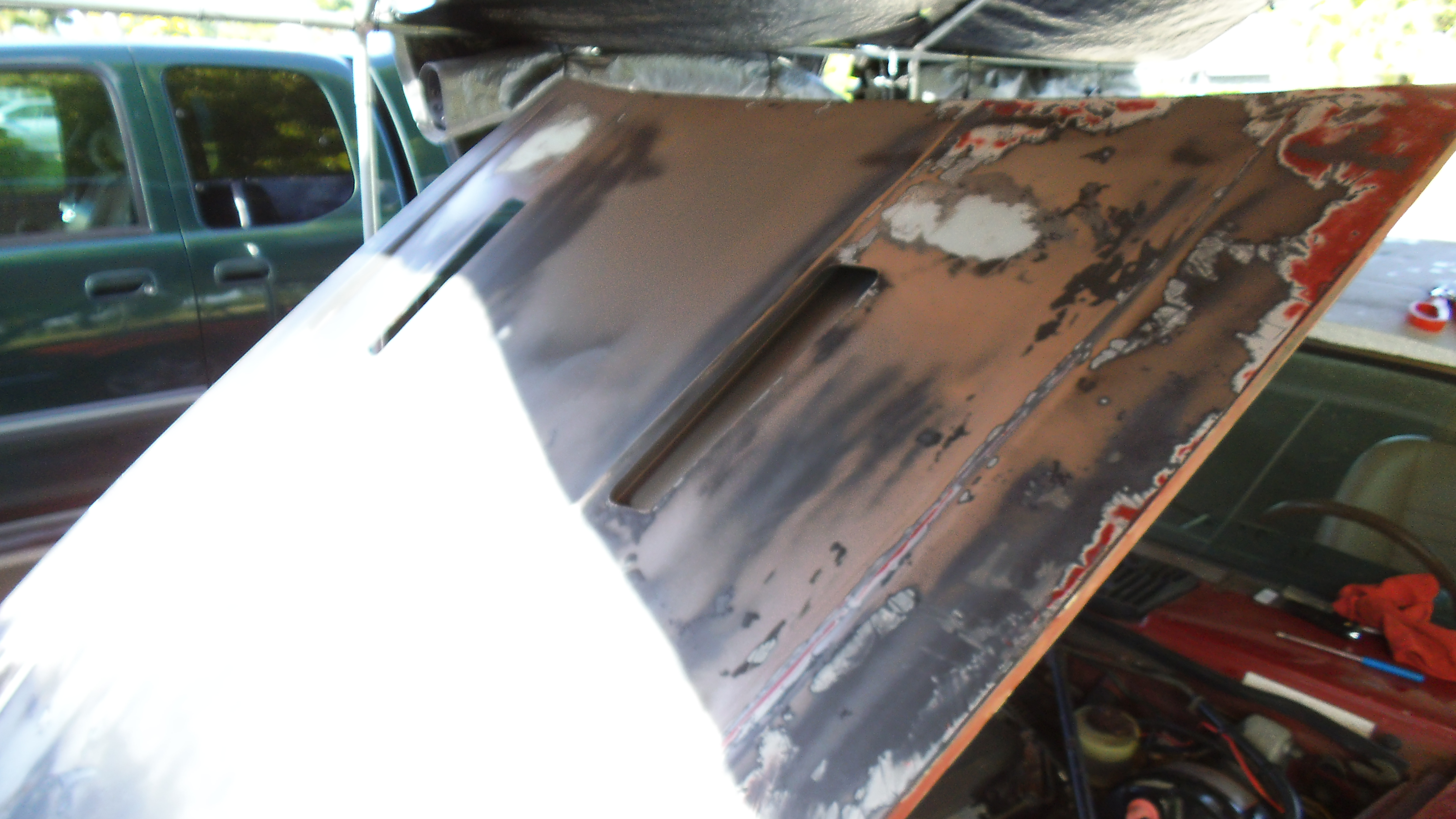

Louvers..
this works out great! pix.
most vehicles develop a high pressure area at the windshield base(as mentioned), as speed increases , it can slow air out and some times build enough pressure to stop air flow and build underhood stagnation!
thats why Nascar use a nice large ducted air inlet around the carburator(EFI nowadays), as pressure builds it forces COOL air in the ducting area! ( mini supercharging).
also why old muscle cars had the reversed hood inlet, Cowl induction!
car pictured moved them forward out of hi/press. area.
just old fashioned yankee hotrodder stuff!
most vehicles develop a high pressure area at the windshield base(as mentioned), as speed increases , it can slow air out and some times build enough pressure to stop air flow and build underhood stagnation!
thats why Nascar use a nice large ducted air inlet around the carburator(EFI nowadays), as pressure builds it forces COOL air in the ducting area! ( mini supercharging).
also why old muscle cars had the reversed hood inlet, Cowl induction!
car pictured moved them forward out of hi/press. area.
just old fashioned yankee hotrodder stuff!
Regards
Bob
