Billet Front Brake Calipers - Disc Alignment
I've run into a problem fitting new aluminium billet calipers to my S1 E-Type original front brakes. Problem is that the caliper does not centre on the disc so that outside pad is rubbing on the disc face. Original Dunlop calipers were designed to require shimming to centre the caliper but the billet calipers are supposed to fit without shimming. I won't name the supplier as it seems they are not the only one who expect the caliper to just bolt on without any provision for adjustment. Anyone else had this problem and able to offer a solution?
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
My E-type experience is limited so there may be specifics about the brake design I'm not aware of.
But.....
How severe is the rubbing? A sight rubbing or drag is typical with disc brakes.
Is the inboard pad not contacting the disc at all? That would be of greater concern, IMO
Others will chime in
Cheers
DD
But.....
How severe is the rubbing? A sight rubbing or drag is typical with disc brakes.
Is the inboard pad not contacting the disc at all? That would be of greater concern, IMO
Others will chime in
Cheers
DD
The following users liked this post:
bazjag (01-29-2017)
#3

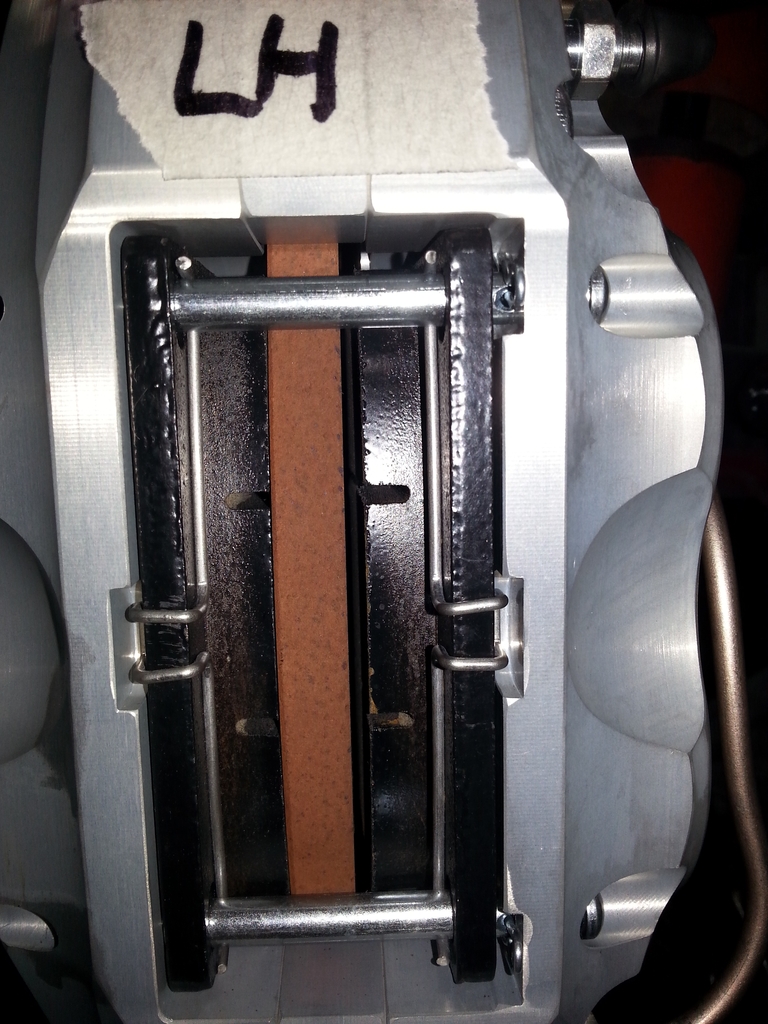

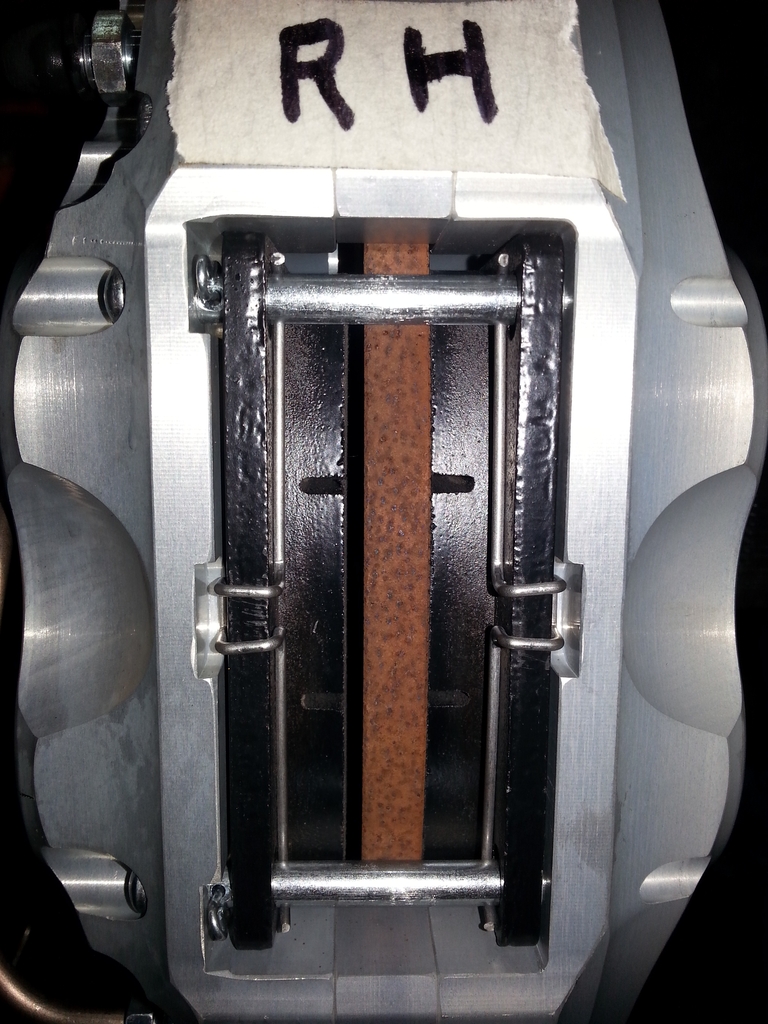

To clarify, when the brake pistons are fully retracted the outside pad of the right hand caliper still rubs against the disc. The left hand outside pad just clears. See photos. Of course the piston movements will compensate when the brakes are first used but it is not good practice to have off-centre calipers. Uneven pad wear initially is one consequence.
Last edited by bazjag; 01-29-2017 at 10:54 PM.
#5
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
Heavy rubbing would not be good under any circumstances, obviously.
Light rubbing would be OK if it returned to 'light' when the brakes are applied and then released
The left hand outside pad just clears. See photos.
When the brakes are applied and released do the pistons fully retract, allowing the clearance to return? Or do they remain partially extended so as to take-up the clearance?
Of course the piston movements will compensate when the brakes are first used but it is not good practice to have off-centre calipers.
However......
Actual operation needs to be considered. Apply and release the brakes and check the pads. If both pads are now just *slightly* rubbing the disc, and stay that way as long as the brake is not applied, that's as good as it gets. The pads should wear evenly.
If releasing the brakes means that one pad rubs a bit and the other doesn't rub at all, that's obviously a problem. Uneven pad wear, plus long pedal......as that clearance must be taken up every time the pedal is pressed.
What's more important to even pad wear is that the caliper be parallel to the disc. From your pics it 'looks' OK....but that's obviously not a precise conclusion.
To centralize the caliper over the disc, if you deem it absolutely necessary, I'd say that you have to mill some material off of the mounting surfaces so as to move the caliper position well to the opposite side and then use shims to bring it back to center.
Cheers
DD
