TH400 transmission linkage part
WantedDrivetrain
Oct 20, 2019, 08:30 AM | Replies: 1 | Views: 825
Veteran Member
Join Date: Oct 2019
Posts: 1,318
-
Price
Any Price
- Location Quinte West, ON, K8V0C6, Canada
- Condition New or Used
- Compatibility
| Make | Model | Year |
|---|---|---|
| Jaguar | XJS | 1975 - 1996 |
Description:

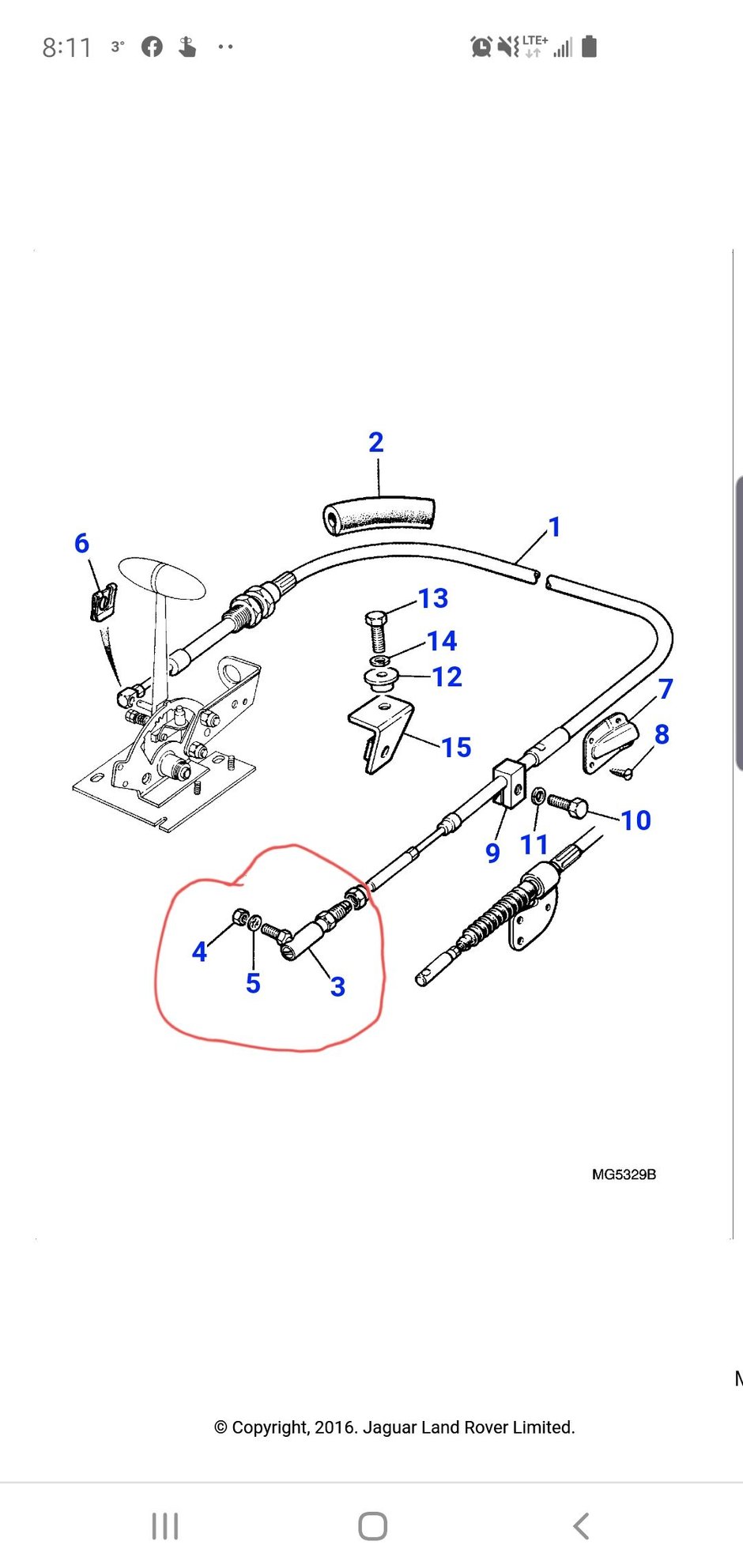

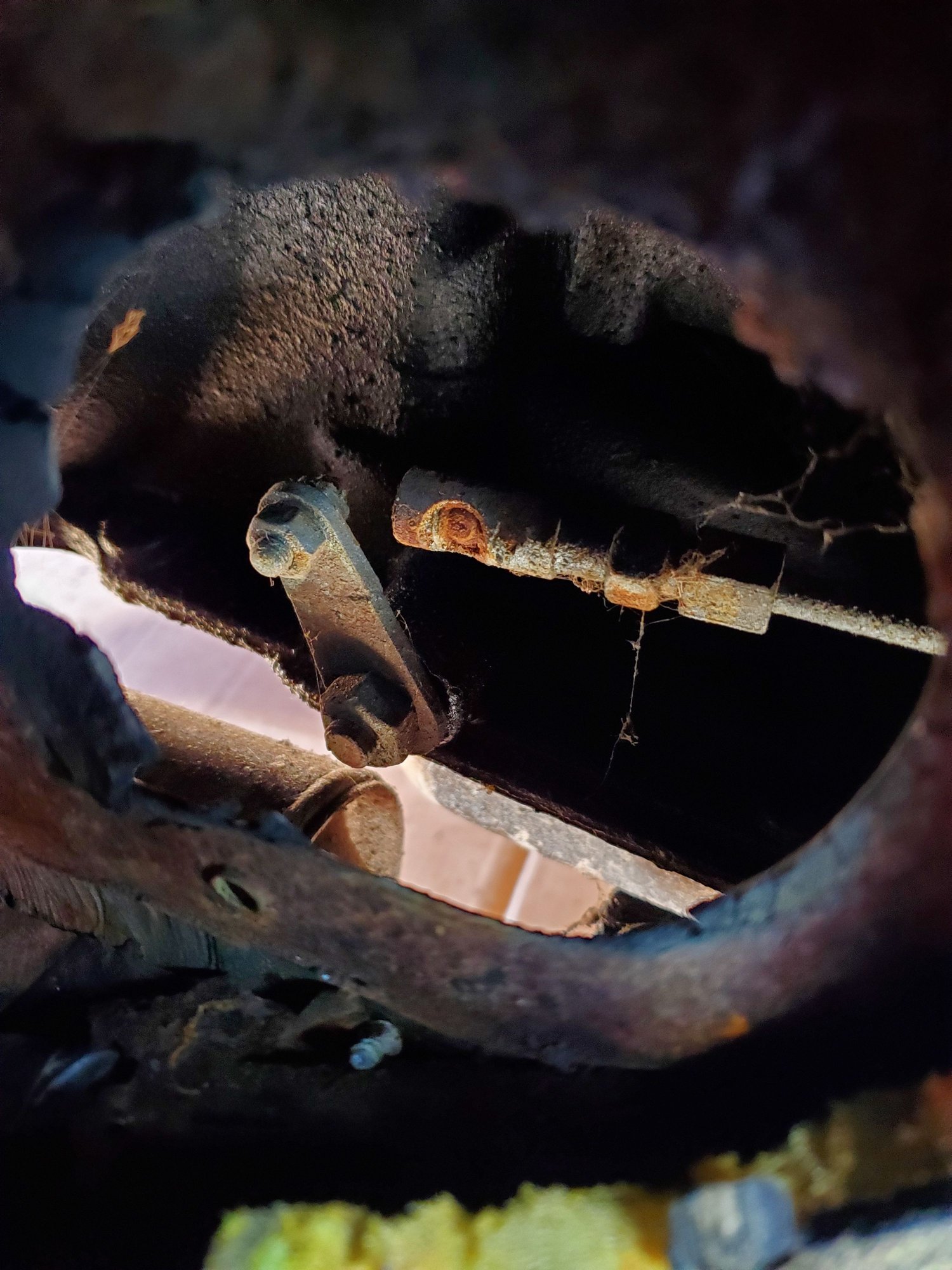

Looking for the parts in the picture circled. 88 XJS TH400 Transmission shift cable linkage. As u can see in 2nd photo mines rusted off. I don't need the actual cable just the end piece that connects the cable to the transmission selector lever.
Senior Member
Joined: Jan 2012
Posts: 552
Likes: 187
From: Ontario Canada
Hi. I should have the part, and am close in St Catharines. But, I've had success repairing those.
If the ball and socket are too loose to work, discard the ball part, drill clear through the socket part, and replace with a bolt. Put a nut on first to squeeze the the bolt to the socket part, then make it fit the transmission lever.
Good luck
Rob 905-932-0284
If the ball and socket are too loose to work, discard the ball part, drill clear through the socket part, and replace with a bolt. Put a nut on first to squeeze the the bolt to the socket part, then make it fit the transmission lever.
