wheel spinner (hub nut) identification
#21
Great photos and a very late 68 could have had both flat hubs and Federal hub nuts as both parts had come into the inventory at that point. Prior to then the parts were simply not in the inventory. Also covered several times in bulletins was the guidance for switching cars from curly wheels to flat wheels. Many it seems did that.
#22
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
Rob, I have found that Jaguar Bulletins are nowhere near the accuracy claimed. Under the control of the parsimonious Lyons they simply did not have enough staff to maintain that level of accuracy between wishful bulletins & the shop floor. Everybody was ludicrously busy. I mean the tiny staff that Bill Heynes had under his control (basically the 3 of them that included himself, Walter Hassan and Claude Baily) battled to keep up with daily affairs, much less documenting them accurately and observing goings on in the plant. I get my Bulletins from Terry's Jaguar because they are generally well preserved & some are none other than wishful thinking or future intention that never happened..
Quote "In the late 1950s and early 1960s, Jaguar’s design engineering was carried out by a very small number of people – a ridiculously small number, by modern standards – and as a result they were constantly busy." unquote
Credit
Taylor et al & the official Jaguar/Landrover historians.
.
Quote "In the late 1950s and early 1960s, Jaguar’s design engineering was carried out by a very small number of people – a ridiculously small number, by modern standards – and as a result they were constantly busy." unquote
Credit
Taylor et al & the official Jaguar/Landrover historians.
.
Last edited by Glyn M Ruck; 05-17-2022 at 08:28 AM.
#23
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
Last edited by Glyn M Ruck; 05-17-2022 at 09:17 AM.
#24
I thought the door gap feature ran from the early cars, a consequence of the Pressed Steel Company's lack of quality control.
I believe the choice of centre nut was a matter of what was available and what the local regulating authority would accept. Many of the latter can be deliberately obstructive of imports regardless of rules and legislation.
Lots of photos of lovely cars. At least mine is a fine example of everything that corrodes or wears out.
I believe the choice of centre nut was a matter of what was available and what the local regulating authority would accept. Many of the latter can be deliberately obstructive of imports regardless of rules and legislation.
Lots of photos of lovely cars. At least mine is a fine example of everything that corrodes or wears out.
#25
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
My SA build does not suffer the gap issue. I thought the decision of curly hub vs easyclean was by customer choice after the hubs became billet machined 66/67. The original Dunlop splined hubs were stamped.

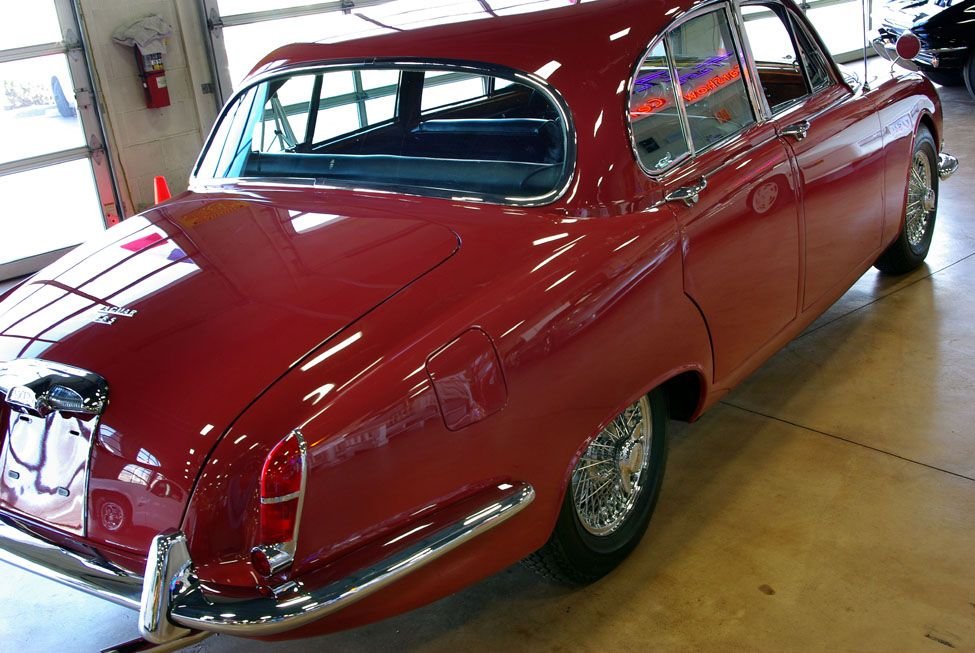

Imagine what it took to achieve this standard of fit. This German restored car is now in Japan which is strange as Japan is a RHD country. I think it was bought on it's high standard of restoration by a collector. Origin obviously US. But that's the Germans for you.
Imagine what it took to achieve this standard of fit. This German restored car is now in Japan which is strange as Japan is a RHD country. I think it was bought on it's high standard of restoration by a collector. Origin obviously US. But that's the Germans for you.
Last edited by Glyn M Ruck; 05-18-2022 at 07:21 AM.
#26
#28
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
So my comment "that it is model year influenced." is correct and offset changed with forged/billet hubs & their relative spokes. Something else that Taylor & the official in-house Jaguar Landrover historians got right.
We shall ignore rude comments posted by CF as it is more of a reflection on them than us & our discussions.
Forged hub wires both easyclean & curley hub were dispatched to South Africa in the final shipments of CKD cars with standard long ear spinners. So customers had a choice. So nothing was phased out.
We machined the correctly aged & stress relieved blank blocks & heads here & built up the engines from scratch on the latest state of the art equipment for the time to meet Lyons agreement with government on our local content programme that was by weight at that time for Mark2, S Type, 340, 420, & XJ6. This agreement went way back. Our engines were more accurate than those produced on aging/ancient equipment used at Browns Lane (some from the old Daimler purchase). Better balanced & finished etc.
We shall ignore rude comments posted by CF as it is more of a reflection on them than us & our discussions.
Forged hub wires both easyclean & curley hub were dispatched to South Africa in the final shipments of CKD cars with standard long ear spinners. So customers had a choice. So nothing was phased out.
We machined the correctly aged & stress relieved blank blocks & heads here & built up the engines from scratch on the latest state of the art equipment for the time to meet Lyons agreement with government on our local content programme that was by weight at that time for Mark2, S Type, 340, 420, & XJ6. This agreement went way back. Our engines were more accurate than those produced on aging/ancient equipment used at Browns Lane (some from the old Daimler purchase). Better balanced & finished etc.
Last edited by Glyn M Ruck; 05-18-2022 at 02:01 AM.
#29
Enough of the Cat calling here guys. Both are right but in there own way.
Although the bulletin states that the curley hubs were phased out and flat hubs introduced after chassis number 1b 8501 on the 3.4 RHD cars the bulletins are dated January 1968 and July 1968 which are way past the date that the 1b8501 was made. My 3.4s RHD car is P1b 8973 and the Heritage certificate states it was manufactured on the 4th December 1967 although I also have other papers relating to a September or October 1967 build date so 1b8501 must have been manufactured around May to July 1967.
Are these bulletins brought out at the time of the change or as an after thought some 6 months (Jan 1968) and over a year after in the case of the July 1968 bulletin to when the changes were made. Asking for a friend in case I get labeled a flat earther.
Although the bulletin states that the curley hubs were phased out and flat hubs introduced after chassis number 1b 8501 on the 3.4 RHD cars the bulletins are dated January 1968 and July 1968 which are way past the date that the 1b8501 was made. My 3.4s RHD car is P1b 8973 and the Heritage certificate states it was manufactured on the 4th December 1967 although I also have other papers relating to a September or October 1967 build date so 1b8501 must have been manufactured around May to July 1967.
Are these bulletins brought out at the time of the change or as an after thought some 6 months (Jan 1968) and over a year after in the case of the July 1968 bulletin to when the changes were made. Asking for a friend in case I get labeled a flat earther.
The following users liked this post:
Glyn M Ruck (05-17-2022)
#30
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
You have a friend as you well know ~ You are not a flat earther or Luddite Rob & neither am I. I can say without fear of contradiction that I have visited more countries in the execution of my global oilco job than anybody at the other party has, & multiple, multiple times. Some probably don't have passports. Try flying 230 days a year for decades & it gets old very quickly. Corporate jet or no Corporate jet. We have 7. Nothing beats observing in-country & talking to owners.
Your point regarding the Bulletins lag is taken. Bed time. 2:40 am here.
Your point regarding the Bulletins lag is taken. Bed time. 2:40 am here.
Last edited by Glyn M Ruck; 05-18-2022 at 05:29 AM.
#31
STOP THROWING HUB SPINNERS AT EACH OTHER
Differences of opinion are as inevitable as are build variations to suit different market regulations and inconsistencies introduced by previous owners as a result of restoration, improvement or upgrade. However, one thing that remains ABSOLUTELY CONSISTENT is the expected standards of posts by members.
If contributors cannot disagree without being offensive, I'll close the thread and take appropriate action against any individual, regardless of status, seniority or length of membership.
Graham
The following 2 users liked this post by GGG:
Glyn M Ruck (05-18-2022),
jerry_hoback (05-19-2022)
#32
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
#33
The following users liked this post:
Glyn M Ruck (05-18-2022)
#35
#36
The following 2 users liked this post by Jose:
Glyn M Ruck (05-19-2022),
jerry_hoback (05-20-2022)
#37
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
Jose ~ you are correct that re-chroming in the US is expensive & I've oftened wondered why? The process globally is identical. Yes there are some botch artists out there but I'm talking equivalent quality.
My Dallas friend has just been charged $5000 to re-chrome a Mercedes grill. He has now spent 2 million Euros to buy a 50% share in his Polish restorer's operation as he intends expanding it & they are working on 4 of his cars right now. (standard of workmanship superb) They have a state of the art new chroming plant & would charge a fraction of that price to properly & perfectly re-chrome a Merc grill.
Obviously staff earn more in the US but $5000 for 1 grill??? I just don't get it. It is not as though they do a better job.
My Dallas friend has just been charged $5000 to re-chrome a Mercedes grill. He has now spent 2 million Euros to buy a 50% share in his Polish restorer's operation as he intends expanding it & they are working on 4 of his cars right now. (standard of workmanship superb) They have a state of the art new chroming plant & would charge a fraction of that price to properly & perfectly re-chrome a Merc grill.
Obviously staff earn more in the US but $5000 for 1 grill??? I just don't get it. It is not as though they do a better job.
Last edited by Glyn M Ruck; 05-19-2022 at 04:57 PM.
#38
Glyn maybe the grill had dings and rust and had to be worked hard to bring it to perfection?
I know of a chromer in the east coast who is not that expensive, he did the two S type vent knobs that I used in my XJ-6 for $40. plus shipping. I told him I wanted them triple chromed. The original XJ-6 knobs are identical to the S type vent knobs but in black plastic.
I know of a chromer in the east coast who is not that expensive, he did the two S type vent knobs that I used in my XJ-6 for $40. plus shipping. I told him I wanted them triple chromed. The original XJ-6 knobs are identical to the S type vent knobs but in black plastic.
Last edited by Jose; 05-19-2022 at 11:42 AM.
The following users liked this post:
Glyn M Ruck (05-19-2022)
#40
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 5,139
Received 1,358 Likes
on
1,054 Posts
Glyn maybe the grill had dings and rust and had to be worked hard to bring it to perfection?
I know of a chromer in the east coast who is not that expensive, he did the two S type vent knobs that I used in my XJ-6 for $40. plus shipping. I told him I wanted them triple chromed. The original XJ-6 knobs are identical to the S type vent knobs but in black plastic.
I know of a chromer in the east coast who is not that expensive, he did the two S type vent knobs that I used in my XJ-6 for $40. plus shipping. I told him I wanted them triple chromed. The original XJ-6 knobs are identical to the S type vent knobs but in black plastic.
Last edited by Glyn M Ruck; 05-19-2022 at 06:27 PM.
