Default Heat shield placement

AS i keep saying car leaves monday to be painted, so one of the last things i was doing was emptying the trunk of all the pieces i have taken off the car, and i came across a heat shield that looks like it would mount above teh ac compressor somehow, i took it off during the head redo, and for some reason stuck it in the trunk instead of on the bench with all other engine parts, anyways... i have no clue how to mount the damned thing! no matter how i position it i see no way of bolting it up... anyone have a photo of what im speaking of??? maybe of it installed??

thanks in advance

  #2
Old 11-16-2014, 10:44 AM
Senior Member
Join Date: Mar 2013
Location: Aalborg, Denmark
Posts: 129
Received 35 Likes on 27 Posts
Default

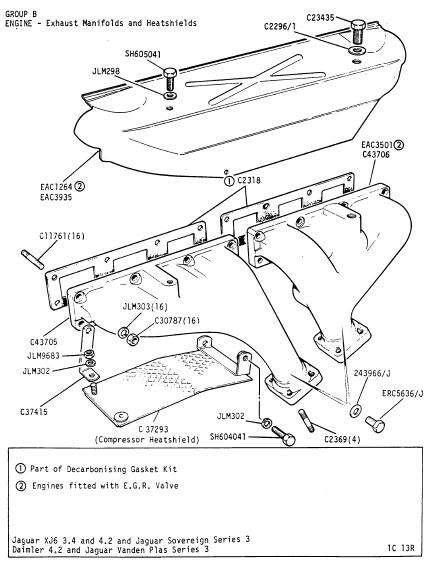

Is this what you are looking for?


Stig

Attached Thumbnails Heat shield placement-heatshield.jpg
The following users liked this post:
Darrenmb (11-16-2014)
  #3
Old 11-16-2014, 10:45 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 20,151
Received 6,559 Likes on 4,863 Posts
Default

Like this?

Welcome to Jag-lovers - Members Photo Viewing Page


One leg of the bracket goes to the forward exh manifold bolt. The other attachment is a small bolt to the bid manifold heat shield

Cheers
DD

The following users liked this post:
Darrenmb (11-16-2014)
  #4
Old 11-16-2014, 11:20 AM
Darrenmb's Avatar
Veteran Member
Thread Starter
Join Date: Oct 2010
Location: Orlando Florida
Posts: 1,715
Received 278 Likes on 182 Posts
Default

AWESOME!!!! just what i needed, Thank you guys!!

  #5
Old 11-16-2014, 01:37 PM
Senior Member
Join Date: Jan 2007
Location: North Carolina, USA
Posts: 641
Received 183 Likes on 99 Posts
Default

I was out taking one of these off for a client today, and remembered you needed the photos.. Maybe too little too late, but maybe it'll help someone else...

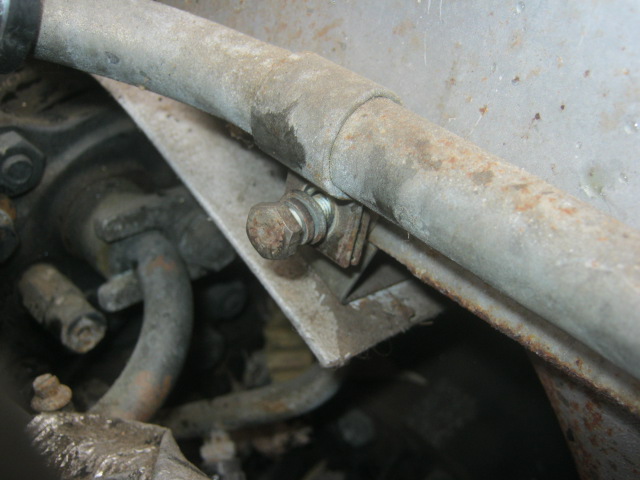

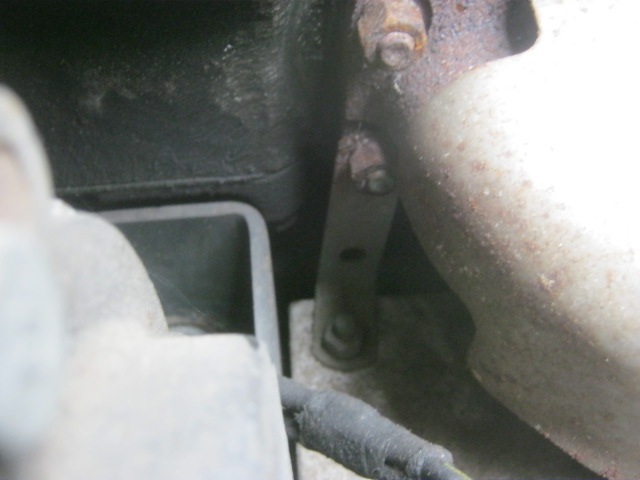

Shows the two mounting positions...

Cheers
David
EverydayXJ

Attached Thumbnails Heat shield placement-img_8899.jpg   Heat shield placement-img_8900.jpg
