Radio Line Fuse Location
#2
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
If, by chance, you can't find 'em by the vents panel as Jose describes.....look down in the area just forward of the LH ashtray. If found a few down there as well. ....as well as your power seat fuse. You might have to remove the ashtray and/or the ski slope panel.
(FWIW, I lengthened the wires and put the fuses under the cubby box on my '87 Ser III for easier access)
Cheers
DD
(FWIW, I lengthened the wires and put the fuses under the cubby box on my '87 Ser III for easier access)
Cheers
DD
The following users liked this post:
wildman (05-17-2015)
#4
Then I found 2 more under the drivers ash tray.
One of those 2 is a 2 amp and it took forever to get the holder apart.
The fuse is not good, however, I might have shaken it during removal.
There is absolutely not enough slack in the wire to put it back together without some type of special tool. I tried needle nose pliers and still did not get it.
I know when to give up and try later. I need someone with small, strong hands to reach thru the the ash try opening
They darn sure did not put that holder in a good area.
#5
If, by chance, you can't find 'em by the vents panel as Jose describes.....look down in the area just forward of the LH ashtray. If found a few down there as well. ....as well as your power seat fuse. You might have to remove the ashtray and/or the ski slope panel.
(FWIW, I lengthened the wires and put the fuses under the cubby box on my '87 Ser III for easier access)
Cheers
DD
(FWIW, I lengthened the wires and put the fuses under the cubby box on my '87 Ser III for easier access)
Cheers
DD
One of those 2 is a 2 amp and it took forever to get the holder apart.
The fuse is not good, however, I might have shaken it during removal.
There is absolutely not enough slack in the wire to put it back together without some type of special tool. I tried needle nose pliers and still did not get it.
I know when to give up and try later. I need someone with small, strong hands to reach thru the the ash try opening
They darn sure did not put that holder in a good area.
#6
#7
Trending Topics
#9
#10
#11
the wire might be pinched somewhere, trying to work from the ashtray opening is impossible, normally you remove the console complete panel with the ash trays attached.
first remove the center console lid complete with the chromed hinge (the hinge in the back of the lid), then remove the lid catch by prying it carefully, then remove the black plastic tray.
then you remove the shifter knob by unscrewing both halves in opposite directions of each other,
then you disconnect all the switches from the rear of the ski slope labeling them one by one, then you remove the one screw at the front top of the ski slope, then you can carefully lift the console panel.
first remove the center console lid complete with the chromed hinge (the hinge in the back of the lid), then remove the lid catch by prying it carefully, then remove the black plastic tray.
then you remove the shifter knob by unscrewing both halves in opposite directions of each other,
then you disconnect all the switches from the rear of the ski slope labeling them one by one, then you remove the one screw at the front top of the ski slope, then you can carefully lift the console panel.
#12
the wire might be pinched somewhere, trying to work from the ashtray opening is impossible, normally you remove the console complete panel with the ash trays attached.
first remove the center console lid complete with the chromed hinge (the hinge in the back of the lid), then remove the lid catch by prying it carefully, then remove the black plastic tray.
then you remove the shifter knob by unscrewing both halves in opposite directions of each other,
then you disconnect all the switches from the rear of the ski slope labeling them one by one, then you remove the one screw at the front top of the ski slope, then you can carefully lift the console panel.
first remove the center console lid complete with the chromed hinge (the hinge in the back of the lid), then remove the lid catch by prying it carefully, then remove the black plastic tray.
then you remove the shifter knob by unscrewing both halves in opposite directions of each other,
then you disconnect all the switches from the rear of the ski slope labeling them one by one, then you remove the one screw at the front top of the ski slope, then you can carefully lift the console panel.
I got that off without a problem
Then I tried to remove the console tray. It feels like something is holding it
I have removed all screws including the one in the face.
The back part is loose but there is a lot of resistance at the front of the tray
Any ideas ?
#13
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
#14
yes, you need to pry off the lid catch before the tray can be removed, a pita to remove.
I have used two very thin flat screwdrivers, pushing one under one side of the catch, then pushing another under the other side, 2 switchblades or kitchen knives work nicely. It is held in place by a "spring" tensioner, same principle as the fuel tank switch and the other three panel switches.
if you break it, go to any Maytag appliance store and get a Clothes Dryer catch, it is the same part except white, but maybe they have them in black.
I have used two very thin flat screwdrivers, pushing one under one side of the catch, then pushing another under the other side, 2 switchblades or kitchen knives work nicely. It is held in place by a "spring" tensioner, same principle as the fuel tank switch and the other three panel switches.
if you break it, go to any Maytag appliance store and get a Clothes Dryer catch, it is the same part except white, but maybe they have them in black.
Last edited by Jose; 05-18-2015 at 08:21 AM.
The following users liked this post:
level 1 (04-30-2018)
#15
#17
I just do not think the radio fuse would be located under the ashtray in a 1985 which was most likely built in 1984.
is your car a Vanden Plas? if yes, the red wire is for the rear seat's cigar lighter, not for the radio.
you said that when you turn the radio ON the antenna goes UP, then you do have power to the radio. The secondary radio wire is for radio memory.

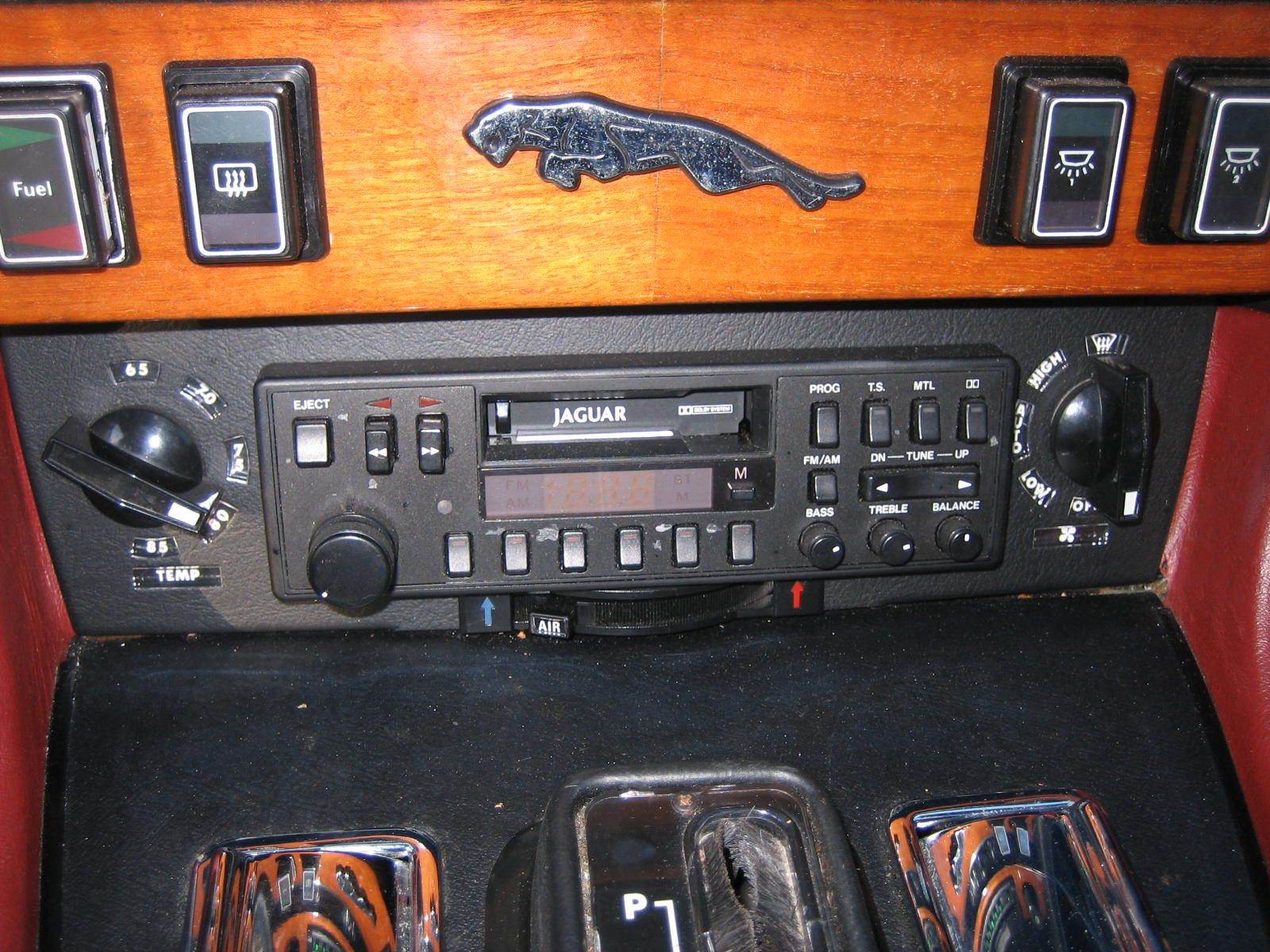

can you post a picture of your radio?
is your car a Vanden Plas? if yes, the red wire is for the rear seat's cigar lighter, not for the radio.
you said that when you turn the radio ON the antenna goes UP, then you do have power to the radio. The secondary radio wire is for radio memory.
can you post a picture of your radio?
#18
In my '87, the fuse for the radio is in fact under the console just ahead and left of the shifter. It was a two-amp fuse on a red wire. I read somewhere that newer radios do better with a 10-amp, so when I installed my Blaupunkt, that is what I replaced it with.
Most modern radios have a 10-amp blade fuse in the back of the radio unit itself. I'm sure you've checked it already, but thought I'd mention it
Andrew.
Most modern radios have a 10-amp blade fuse in the back of the radio unit itself. I'm sure you've checked it already, but thought I'd mention it
Andrew.
#20
yes, that is a 1985 factory radio, same radio I have in my 1984, connects the same way as the 1983-1984 radios, (Andrew, there is no blade fuse in the back of this radio). The fuses are contained in two separate fuse holders, one for 12 volt power with ignition, one for constant 12 volt power for radio presets memory. Two plugs connect the radio, one plug for speakers, one for 12 v power and antenna. Then there is a Ground Strap connected by a phillips bolt to the rear of the radio, and last is the antenna plug inserted to the back of the radio.
wonderful car by the way.
at this point I would remove the console panel, a/c controls knobs and panel, and remove the radio for a closer inspection, then you can study and inspect the harness and folow the wires to and from.
try to not break the radio's outer edge plastic frame, it breaks easily. It is the first thing you need to remove before the a/c controls and panel.
wonderful car by the way.
at this point I would remove the console panel, a/c controls knobs and panel, and remove the radio for a closer inspection, then you can study and inspect the harness and folow the wires to and from.
try to not break the radio's outer edge plastic frame, it breaks easily. It is the first thing you need to remove before the a/c controls and panel.
Last edited by Jose; 05-19-2015 at 06:53 AM.
