Ser III XJ6 vacuum hoses USA spec

Thought pics of these emission labels might be helpful to someone, someday. These are from a 1985 car but would probably hold true for any USA spec Series III XJ6 with air injection

Cheers
DD

Attached Thumbnails

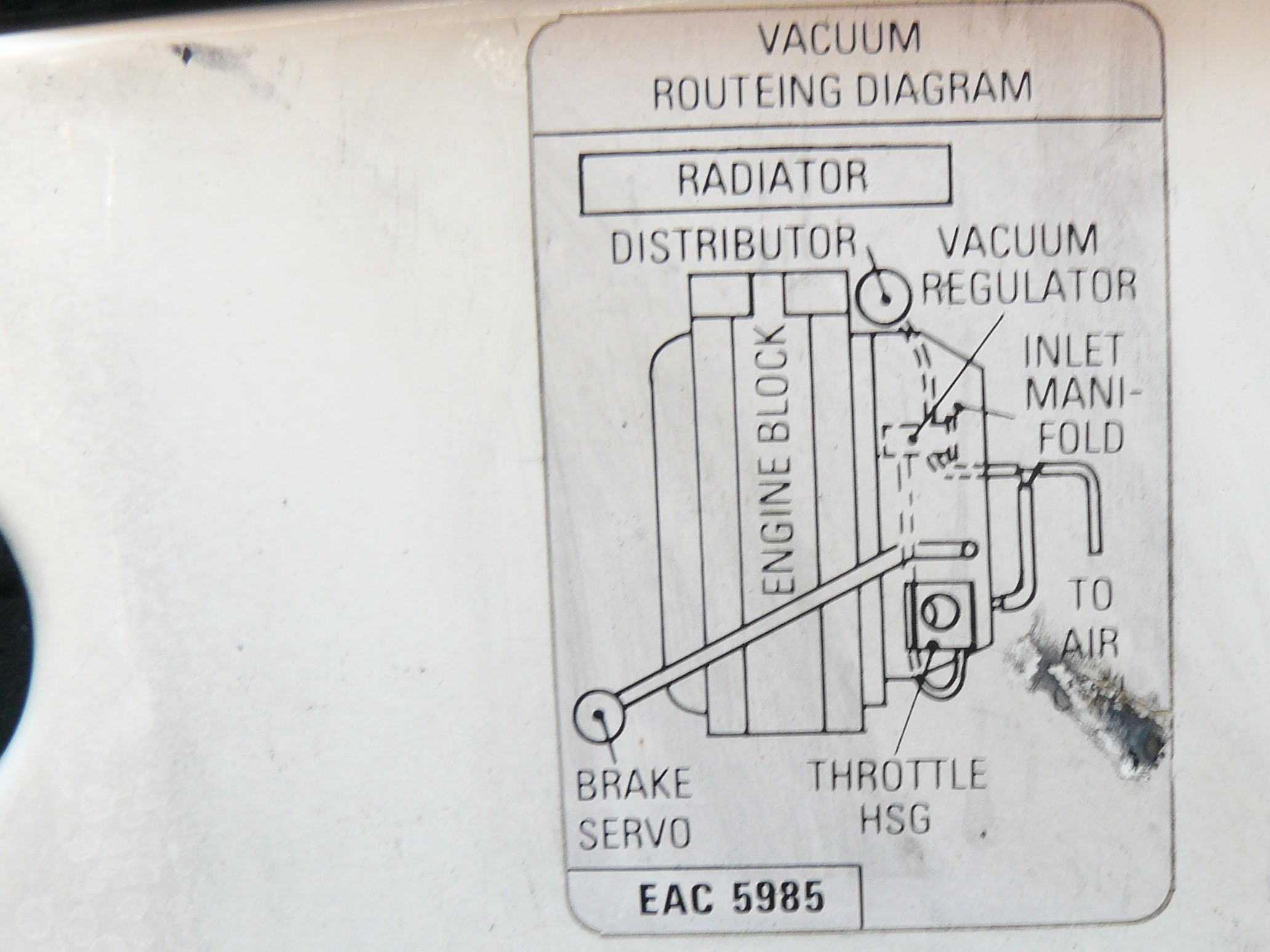

Ser III XJ6 vacuum hoses USA spec-vac1.jpg

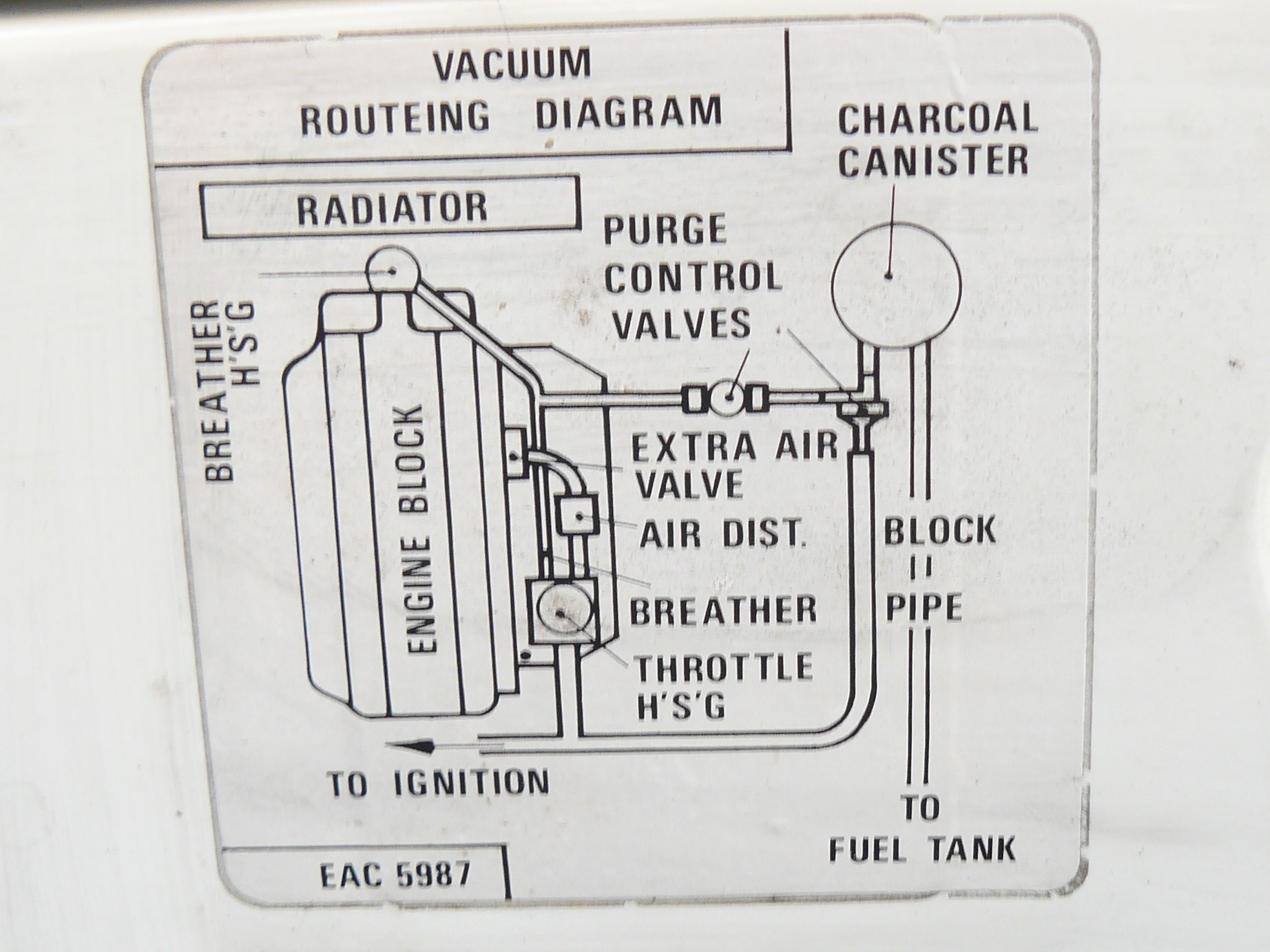

Ser III XJ6 vacuum hoses USA spec-vac2.jpg

Ser III XJ6 vacuum hoses USA spec-vac3.jpg

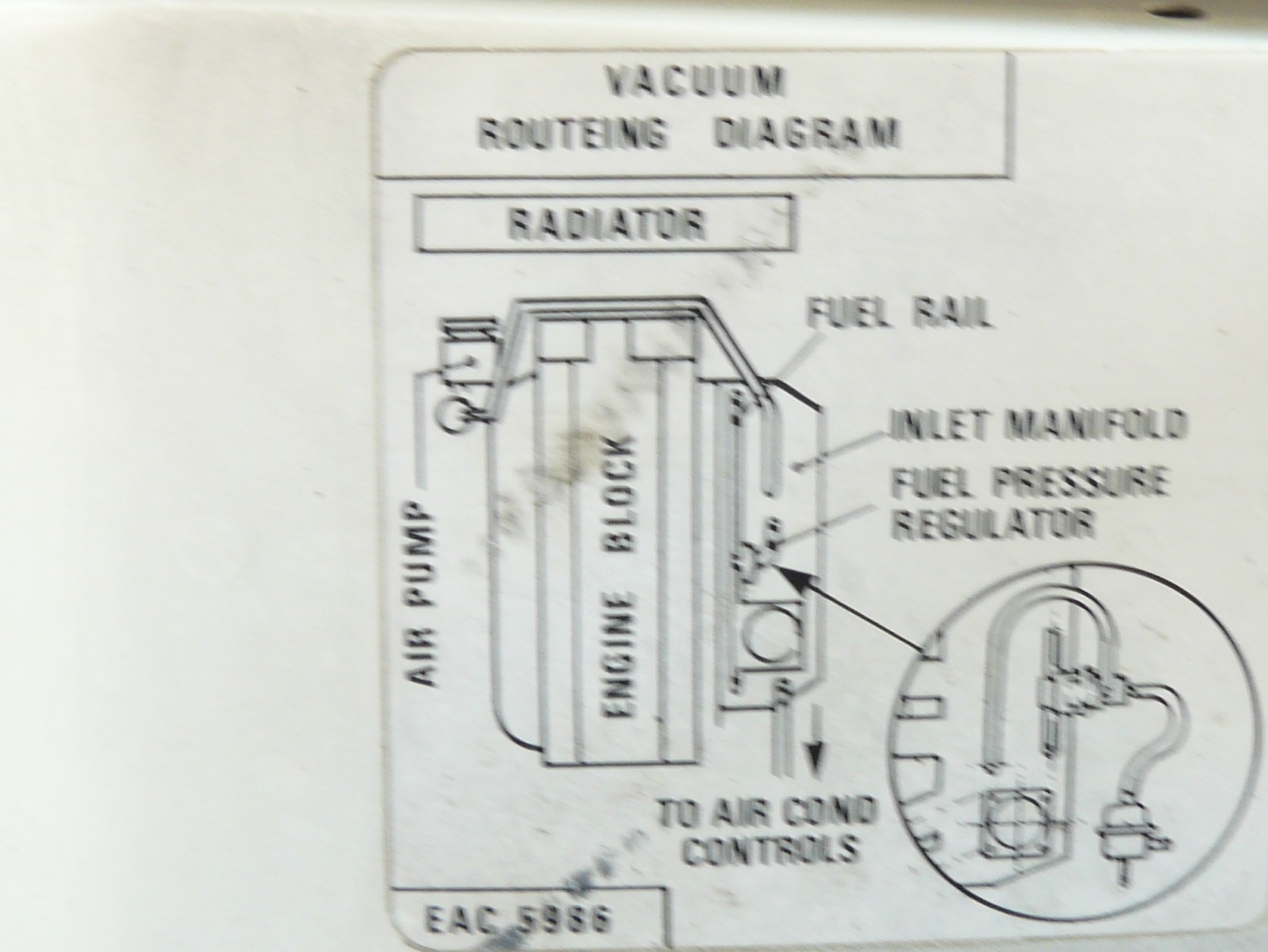

Ser III XJ6 vacuum hoses USA spec-vac4.jpg
