XK / XKR ( X150 ) 2006 - 2014

2007 XKR pedestrian system fault


  #41
Old 05-25-2018, 09:30 AM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

Originally Posted by milleniumaire View Post
.... Are there any videos or written instructions showing how/where to find these sensors and how to go about replacing them?
I assume after replacing, nothing needs to be reset? .....
The sensors bolted to the rear of the crossbeam

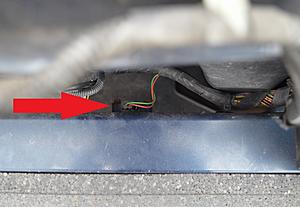

2007 XKR pedestrian system fault-ped1.jpg


2007 XKR pedestrian system fault-ped2.jpg

The Workshop Manual procedure is to remove the front bumper but, as others have posted, they can be changed from below after only removing the undertray.

Whichever way you choose to access them, it's then simply disconnect the harness plug and undo two hex bolts for each sensor.

I didn't need to reset anything after replacing the faulty sensor on mine. The warning message disappeared immediately and never came back.

Graham


Last edited by GGG; 05-25-2018 at 09:32 AM.
The following users liked this post:
Ter11 (Today)
  #42
Old 05-29-2018, 09:04 AM
Senior Member
Join Date: Jan 2011
Location: Wetherby, Leeds
Posts: 111
Likes: 0
Received 17 Likes on 8 Posts
Default

Thanks Graham, how easy is it to remove the front bumper as it looks like this would be the only way I could get access as I can't get under the vehicle?

A few years ago I purchased a replacement grill after a pigeon decided to shred itself on mine and made a mess of it, but despite attempting to undue a number of bolts, I couldn't see any way of releasing it!

I'm not much of a mechanic, but do lots of DIY around the home.

  #43
Old 05-30-2018, 05:34 PM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

Originally Posted by milleniumaire View Post
Thanks Graham, how easy is it to remove the front bumper as it looks like this would be the only way I could get access as I can't get under the vehicle? .....
It's tedious - there's a lot of fixings but nothing difficult about it. Here's the Workshop Manual procedure:

Front Bumper Cover 76.22.78.pdf

I didn't need to lift the front of the vehicle to access anything and it took me a couple of hours. It went back together a lot faster.

Graham

  #44
Old 06-20-2019, 02:17 PM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Hi all,

Since a couple of days I am also getting the pedestrian system failure message intermittently, in particular if car is parked in hot environment.

I have read about a TSB here above describing how the sensors need to be changed. Could someone here please point me to this TSB, if it is available here on the forum somewhere? Thanks!

For those who have fixed this diy: Any chance to access the 2 sensors from above only removing the upper radiator shroud on NA XK and get the updated sensors fitted there?

br
ter


Last edited by Ter11; 06-21-2019 at 04:14 AM.
  #45
Old 06-21-2019, 09:03 AM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

I haven't got the original TSB document but here is the text of the March 2008 version. This is a re-confguration procedure and not an instruction to replace sensors. It may have been superseded ........


TECHNICAL SERVICE BULLETIN
reissue No.JTB00091v2/2008
11 March 2008
Circulate to: Service Manager Parts Manager Warranty Administrator Service Reception Technicians

© Jaguar
All rights reserved.

This reissue replaces all previous versions. Please destroy all previous versions. Only refer to the electronic version of this TSB in GTR.

This bulletin supersedes TSB JTB00091/2008 dated 28 February 2008, which should either be destroyed or clearly marked to show it is no longer valid (e.g. with a line across the page). Only refer to the electronic version of this TSB in GTR.

Subject/Concern: 'Check Pedestrian System' Displayed in the IP
Model:
The New XK - All With Pedestrian Impact System
VIN Range: B00001 Onwards
Markets: All Except NAS
Section: 501-00
Summary
Customer reports permanent message 'Check Pedestrian System' displayed in the instrument pack (IP), with DTC U3000-66 or B1006-92 stored detailing the non-deployment memory in the pedestrian protection module has reached maximum stored events.

This version has been issued for a change in Section from 401 to 501.

Cause: Non-deployment events logging at low speeds and dealers unable to clear DTCs, resulting in module replacement. Suggested Customer Concern Code - S40.

Action: Should a customer express concern, configure the Impact classification system. Follow the Service Instruction outlined below.

Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

Labor Time
Operation Description Operation No. Time
Configure the Impact classification system 86.99.74 0.2 hours
Repair/Claim Coding
Causal Part: C2P 14924
ACES Condition Code: 42
Service Instruction

1. This procedure requires IDS DVD111 with Patch file 3 loaded or later.

Connect a Midtronic battery conditioner/power supply to the vehicle.

2. Connect IDS to the vehicle and begin a new diagnostic session, by entering the correct VIN for the current vehicle.

3. Follow the IDS prompts to read the vehicle configuration.

4. When prompted 'Do you wish to read diagnostic trouble codes?', select 'NO and then press 'tick' to continue.

5. When the 'Content Model' is displayed select 'Vehicle Configuration' tab.

6. Select 'Module Programming' from the 'Vehicle Configuration' menu.

7. Select from the menu 'Configure existing module'.

8. From the drop down menu select 'Impact classification system'. Press 'tick' to continue.

9. Follow all on-screen instructions to complete this task.

10. When the task is completed, exit the current session.

11. Disconnect IDS and the battery charger/power supply.


As you can see from my earlier post, I removed the front bumper but other members report managing to reach and change the sensors without doing this. Not sufficient space to get my big hands in there!

Graham

  #46
Old 06-21-2019, 10:14 AM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Thank you!!

  #47
Old 06-22-2019, 03:10 AM
Veteran Member
Join Date: Jan 2010
Location: New Zealand
Posts: 2,127
Received 818 Likes on 523 Posts
Default

Originally Posted by GGG View Post
It may have been superseded ........
It was

The following users liked this post:
GGG (06-22-2019)
  #48
Old 06-22-2019, 12:42 PM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Thanks again!

But this TSB on only refers to some kind of software reset if I get that right. It doesn’t speak about refitting revised sensors with newly drilled holes and respective instructions on how to go about this.

Br
ter

  #49
Old 06-22-2019, 04:51 PM
Veteran Member
Join Date: Jan 2010
Location: New Zealand
Posts: 2,127
Received 818 Likes on 523 Posts
Default

Originally Posted by Ter11 View Post
Thanks again!

But this TSB on only refers to some kind of software reset if I get that right. It doesn’t speak about refitting revised sensors with newly drilled holes and respective instructions on how to go about this.

Br
ter
Sorry, I didn't actually read the thread. I just looked for a newer version of the TSB quoted

You are referring to the one attached.

  #50
Old 06-22-2019, 05:19 PM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

Originally Posted by Ter11 View Post
.....But this TSB on only refers to some kind of software reset if I get that right. It doesn’t speak about refitting revised sensors with newly drilled holes and respective instructions on how to go about this.
Have you read this entire thread?

I followed the TSB and drilled a new hole for the revised sensor - another member simply fitted it at an angle with one bolt. Apparently this does work.

Graham

  #51
Old 06-23-2019, 01:22 AM
peterv8's Avatar
Senior Member
Join Date: Aug 2017
Location: Södra Sandby, Sweden
Posts: 519
Received 84 Likes on 74 Posts
Default

Originally Posted by GGG View Post
Have you read this entire thread?

I followed the TSB and drilled a new hole for the revised sensor - another member simply fitted it at an angle with one bolt. Apparently this does work.

Graham
I did and haven't had a problem since I mounted the new one's. Can't see anything wrong with fitting it in an angle as it's a FRONT impact sensor!:-)

  #52
Old 06-23-2019, 01:35 AM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

All

Thanks a lot! Now this is getting more clear to me. With the updated TSB I understand that Jag started to fit the new sensors as of model year 2009. This means my 2011 car should already have new style sensors. So replacing them should not require drilling of new hole. As my car is without supercharger, the accessibility of the sensors should be easier, ie. no bumper removal necessary according to this thread.

The only issue I am now not sure, is if I can exchange the sensors from top removing the radiator shroud or from below removing the underbelly plastic shield.

Br
ter

  #53
Old 07-04-2019, 02:43 PM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Today I got my new obd reader and I found the following error code which I guess refers to a faulty right side pps sensor failure


Translation of the green section above: Sensor for crash severity, frontal crash right.


so what does this mean? Probably replace the right side (driving direction) pps sensor?

bt
ter

  #54
Old 07-05-2019, 03:05 AM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

Short answer = YES.

Here's the extract from the Workshop Manual for code B100496:



The PPS component graphic (see item 8):



Graham

The following users liked this post:
Ter11 (07-05-2019)
  #55
Old 07-05-2019, 03:31 AM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Thanks Graham! very helpful!

Now I only need to find out how the right sensor is best accessed, ie. in my non supercharged Xk maybe from above. In case anybody has done this sensor replacement on a 5.0 NA car himself before (MY2011-> no drilling required?), would extremely appreciate a hint how to best access.

Br
ter

  #56
Old 07-07-2019, 02:35 PM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Anybody has a recommendation, where to best buy a new pedestrian crash impact sensors to replace my faulty one?

br
ter

  #57
Old 07-08-2019, 04:22 AM
GGG's Avatar
GGG
GGG is online now
Join Date: Dec 2011
Location: Durham, UK
Posts: 109,181
Received 10,349 Likes on 8,505 Posts
Default

Originally Posted by Ter11 View Post
Anybody has a recommendation, where to best buy a new pedestrian crash impact sensors to replace my faulty one?
As a guide, the cost from Jaguar is 85 UKP. None of the aftermarket parts specialists in the UK are offering a discount on this.

Given the unreliabilty of this sensor, I wouldn't trust a used one.

Graham

  #58
Old 07-08-2019, 08:08 AM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

Thank you Graham

I will check the prices here in Switzerland and in case there should be a huge difference, I will ask back here.

Bt
ter

  #59
Old Today, 03:59 AM
Senior Member
Join Date: Feb 2018
Posts: 271
Received 22 Likes on 17 Posts
Default

All

Oem pricing for these sensors is not quite similar here (cost almost the double of the UK price). Any alternative suggestions how to get a pair of these other than from the local dealer are welcome.

My right sensor btw is only failing if outside temperature is quite hot (above 26 centigrade, ie. 78F).

Just inspected the location of the sensors with an endoscope that I stuck through the main and lower radiator grills. After some fiddling around I found the lila colored new version style sensors on my MY 2011 looking up through the lower grill with the endoscope. So at least no drilling required.

Will get to this task next time the car will be on a lift to remove splash shield and radiator shroud from below as described in the workshop manual to exchange both of these sensors.

Br
ter


Last edited by Ter11; Today at 04:57 AM.
  #60
Old Today, 07:31 AM
Ngarara's Avatar
Veteran Member
Join Date: May 2013
Location: London, UK
Posts: 3,393
Received 1,087 Likes on 779 Posts
The following users liked this post:
Ter11 (Today)
