XK / XKR ( X150 ) 2006 - 2014

License Plate Lights No Power XKR


  #1
Old 12-17-2017, 02:23 PM
Junior Member
Thread Starter
Join Date: Nov 2017
Location: Lincoln
Posts: 17
Thanked 0 Times in 0 Posts
Default License Plate Lights No Power XKR

On My 2011 XKR Both my license plate lights have no power, all my other lights work fine I pulled the bulbs and no power, thought just a bulb issue, I have owner's manual and it does not show a fuse. Does anyone know what fuse or have run into this problem before?

  #2
Old 12-17-2017, 07:46 PM
JBzXJ40's Avatar
Senior Member
Join Date: Mar 2016
Location: Auckland NZ/ Houston, TX
Posts: 777
Thanked 265 Times in 212 Posts
Default

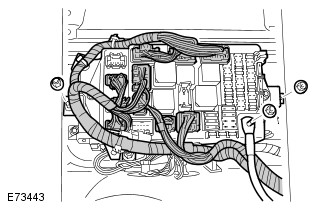

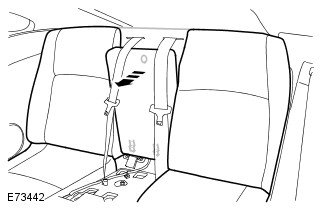

The Auxiliary junction box, which is located in rear seat, center seat back. I have seen some issues with this junction box for various reasons ( fuel pump issues, hazard light issues, etc. ).










Description: Junction box-Auxiliary CONNECTOR HOUSING NOT SERVICEABLE Location: Behind rear seat backrest Qualifier:
















Pin 13 on Connector CA023 is the wire that goes to License Plate Lamps - Should be a Blue wire. If you have power at the junction box/fuse box, then your problem lies between junction box and license plate lamps.


If the issue is inside the junction box, you may be able to take out, disassemble it ( make sure you mark all the fuses and relays before you do this ) you might be able to find fault inside and have it repaired.

  #3
Old 12-17-2017, 08:33 PM
Junior Member
Thread Starter
Join Date: Nov 2017
Location: Lincoln
Posts: 17
Thanked 0 Times in 0 Posts
Default

pulled backrest and found no CA023 connector but a C11 connector that had the same color wore leading out, turned on headlights and I have 12 volts, but at the license lights 0 volts, definitely a wire in the hatchback is the problem....THX JBzXJ40 for your help.

pic of rear seat fuse panel

  #4
Old 12-18-2017, 06:06 PM
pk4144's Avatar
Senior Member
Join Date: Mar 2015
Location: Los Angeles
Posts: 716
Thanked 129 Times in 82 Posts
Default

I'm not sure it's wiring. I had the exact same issue, also checked my bulbs, which were fine. I brought my car into my dealer, who's great, for servicing and my mechanic there (I have the same guy every time) told me that he'd seen it before-- it's a computer module or logic board or the like. They did a "reflash" and it fixed the problem. He said if it hadn't worked, the only other fix is to replace the computer module. And yeah, they wold have replaced the unit that's between the rear seats.


Last edited by pk4144; 12-18-2017 at 06:10 PM.
  #5
Old 12-18-2017, 08:30 PM
JBzXJ40's Avatar
Senior Member
Join Date: Mar 2016
Location: Auckland NZ/ Houston, TX
Posts: 777
Thanked 265 Times in 212 Posts
Default

The fuse boxes these days aren't just fuse boxes anymore - they double as control modules as well, not interchangeable either ( security purposes ). Yes sometimes a software update can fix things, even a battery hard reset.


There have been known issues in wiring in the boot/trunk lids due to the open and close motions. Being an XK, the hinge area where the wiring will go through isn't on the same angle as an XJ, but still worth checking into.


You're very welcome californiarobb - I hope you find the culprit soon.

  #6
Old 12-19-2017, 05:37 AM
Junior Member
Join Date: Aug 2017
Location: Oklahoma
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Default

I had the same problem on my 2011 XKR. Dealer resolved the issue by "updating flash drive". He said there are no fuses for the tag lights. Don't know if that's all years or not.

  #7
Old 01-04-2018, 07:07 PM
JBzXJ40's Avatar
Senior Member
Join Date: Mar 2016
Location: Auckland NZ/ Houston, TX
Posts: 777
Thanked 265 Times in 212 Posts
Default

The earlier XK's ( X100 ) were controlled through Security Lock Module, and you would get a bulb failure message if bulb was burned out. These had issues with bulb housing which was detachable from tail lamp housing ( ground issue ).


XK150's are controlled through Auxiliary Junction box, which also acts as a control module. I haven't seen the issue as described in this thread, but at least its an easy fix. I have seen some wiring issues with rear lighting on XK150's, but nothing major.

  #8
Old 01-04-2018, 07:24 PM
Junior Member
Join Date: Jan 2018
Location: Maryland
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default

Take the tag lamp bulbs out. Now check for power at the Aux junction box.
If you have power now, disconnect the battery , both terminals, and hold the connectors together for about 20 Sec.
Hook up the Pos, then hook up the Neg.
Replace the tag lamp bulbs.
Turn on the lights and they should work.
I've done it on three cars so far.
Hope it works for you.

The Following User Says Thank You to RedSky For This Useful Post:
davidblacklaw (09-22-2018)
  #9
Old 01-05-2018, 04:59 AM
Member
Join Date: Sep 2011
Location: Charleston SC
Posts: 44
Thanks: 0
Thanked 24 Times in 17 Posts
Default Lighting

I have commented on this before. There are no fuses in the exterior running lights (including LP lights). They use FETs (Field Effect Transistors) that will protect wiring by going open when they detect very low resistance (shorts). They can be fooled by heat or bulbs shorting internally, and sometimes moisture. Typically, just disconnecting battery will reset the junction box and FET crowbar condition. The previous posting with a reset procedure was very good. I have noticed some dampness creeping in at license Plate fixture and that probably was root cause.

  #10
Old 03-07-2018, 12:40 PM
Junior Member
Thread Starter
Join Date: Nov 2017
Location: Lincoln
Posts: 17
Thanked 0 Times in 0 Posts
Default

I had taken it to the local Dealership and it turned out to be the Auxiliary Junction Box, $3800 later my license plate lights work and I had noticed my rear fog lights were acting up... but all is well now.

  #11
Old 09-22-2018, 12:57 PM
Junior Member
Join Date: Sep 2018
Location: Houston
Posts: 7
Thanked 4 Times in 1 Post
Default Thanks, RedSky!!

Thanks for the tip! I just failed my state inspection this morning, found your solution and now I have my state inspection successfully completed.
It took me a little while to figure out what you meant by disconnecting both battery terminals, since there is only one battery feed in. I disconnected this one, shorted the junction box terminal (NOT the connector from the battery!) to ground for 20 sec and reconnected the battery cable to the junction box.
Now the lamps work fine.

Originally Posted by RedSky View Post
Take the tag lamp bulbs out. Now check for power at the Aux junction box.
If you have power now, disconnect the battery , both terminals, and hold the connectors together for about 20 Sec.
Hook up the Pos, then hook up the Neg.
Replace the tag lamp bulbs.
Turn on the lights and they should work.
I've done it on three cars so far.
Hope it works for you.

  #12
Old 12-17-2018, 12:39 PM
Junior Member
Join Date: Dec 2018
Location: Ashburn, VA
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Default which wires to fix License plate light not working

Originally Posted by davidblacklaw View Post
Thanks for the tip! I just failed my state inspection this morning, found your solution and now I have my state inspection successfully completed.
It took me a little while to figure out what you meant by disconnecting both battery terminals, since there is only one battery feed in. I disconnected this one, shorted the junction box terminal (NOT the connector from the battery!) to ground for 20 sec and reconnected the battery cable to the junction box.
Now the lamps work fine.
Hi DavidBlackLaw, could you please describe what wires you were talking about more specifically? The same thing happened to me today when I failed my state inspection.

Steve

  #13
Old 12-17-2018, 01:27 PM
Junior Member
Join Date: Sep 2018
Location: Houston
Posts: 7
Thanked 4 Times in 1 Post
Default License Plates Lamps power

Hi, in reply to your question:
- disconnect the power in to the rear junction box
- Tape up the power cable you just disconnected (just to ensure you don't accidentally touch something with it)
- With a separate wire, connect one end to ground (e.g. a convenient bolt) and the other to the terminal on the junction box that you just removed the power cable from. Hold this connection for 20sec or so. What you are doing here is ensuring that everything in the junction box is fully discharged.


Last edited by davidblacklaw; 12-17-2018 at 01:31 PM. Reason: pic appeared as pages of text. removed the pic to fix this
  #14
Old 12-17-2018, 01:50 PM
Junior Member
Join Date: Dec 2018
Location: Ashburn, VA
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Did you also remove the light bulbs too as was suggested in the earlier post?

Thanks

Steve

  #15
Old 12-17-2018, 02:56 PM
IanXF's Avatar
Senior Member
Join Date: Apr 2012
Location: FL
Posts: 175
Thanked 40 Times in 28 Posts
Default

Had that problem my fix was simple took battery terminals off waited 10 minutes touched cables together and put back on lights worked

  #16
Old 12-17-2018, 03:58 PM
Junior Member
Join Date: Dec 2018
Location: Ashburn, VA
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thank you all.

Took of the battery cables, touched them together and I am back in operation. The dealership wanted $194 to run a diagnostic and $200 to reprogram. Ugh!

Have any of you had to do it again once you fixed the problem?

Steve

  #17
Old 12-17-2018, 07:06 PM
Junior Member
Join Date: Jan 2018
Location: Maryland
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default

Yes, just remove both cables from Battery and touch them together.
No need to remove the positive feed to the module.
you don't have to remove the bulbs, that is part of the diagnostic procedure to see if the module has power when there is no complete circuit.


  #18
Old 12-20-2018, 08:18 PM
Junior Member
Join Date: Dec 2018
Location: Ashburn, VA
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Default Still have recurring problem

Hi everyone,

I followed the procedure well enough to get past my state inspection but later the same day the license plate lights went out again. I once again disconnected the battery cables held them together and put back on and viola I was back in business. For less than a day. They lights are dead again. Has anyone else had this problem?

Thank you.

  #19
Old 12-21-2018, 03:33 PM
95 Cat's Avatar
Member
Join Date: Aug 2016
Location: Granby CT
Posts: 94
Thanked 17 Times in 11 Posts
Default

My plate lights do not work either on my 2011 XKR. Dealer says it is a module. $1000.00 !!!!!! I am in the process of getting it fixed. RIDICULOUS !


Last edited by 95 Cat; 12-21-2018 at 03:35 PM. Reason: Lef out info.
  #20
Old 12-21-2018, 05:06 PM
Veteran Member
Join Date: Feb 2011
Location: Victoria, Canada
Posts: 1,600
Thanked 656 Times in 482 Posts
Default

Originally Posted by 95 Cat View Post
My plate lights do not work either on my 2011 XKR. Dealer says it is a module. $1000.00 !!!!!! I am in the process of getting it fixed. RIDICULOUS !
Did you not read the postings above? You disconnect the battery, touch the two leads together, and you are done...the cost for that is $0.00 and 5 minutes if you time.

No doubt after spending $10,000 to put in a new module (in which process the battery will be disconnected and the leads touched together) the problem will be solved.
