I am just missing it in my search, is there a part schematic for the whole car somewhere?
Tim



It's all electronic.

JEPC - Jaguar Electronic Parts Catalogue has the schematics and is available to dealers (and anyone else who is prepared to pay) through TOPIx.
https://topix.jaguar.jlrext.com/topi...cle/lookupForm



Offline versions of JEPC turn up on ebay from time to time. The latest I've found available is 2018.

Graham



Figured it to be proprietary and hard to find. Thank you as always.
Tim



Is it really? I have bought a few Topix subscriptions over the years but have never seen it on there.

I did find a Jaguar parts site on the net once though but you needed to be a dealer to log in. Perhaps they have added a link to that now?



My Jaguar Dealer Parts manager uses his TOPIx login to access JEPC on the JLR servers so my assumption was it's linked. Next time I visit the Dealer, I'll ask for more detail. That could be some time as we're in lockdown!

I use one of the "unofficial" offline versions which is a snapshot from late 2018. These come as an ISO and open to around 2GB.

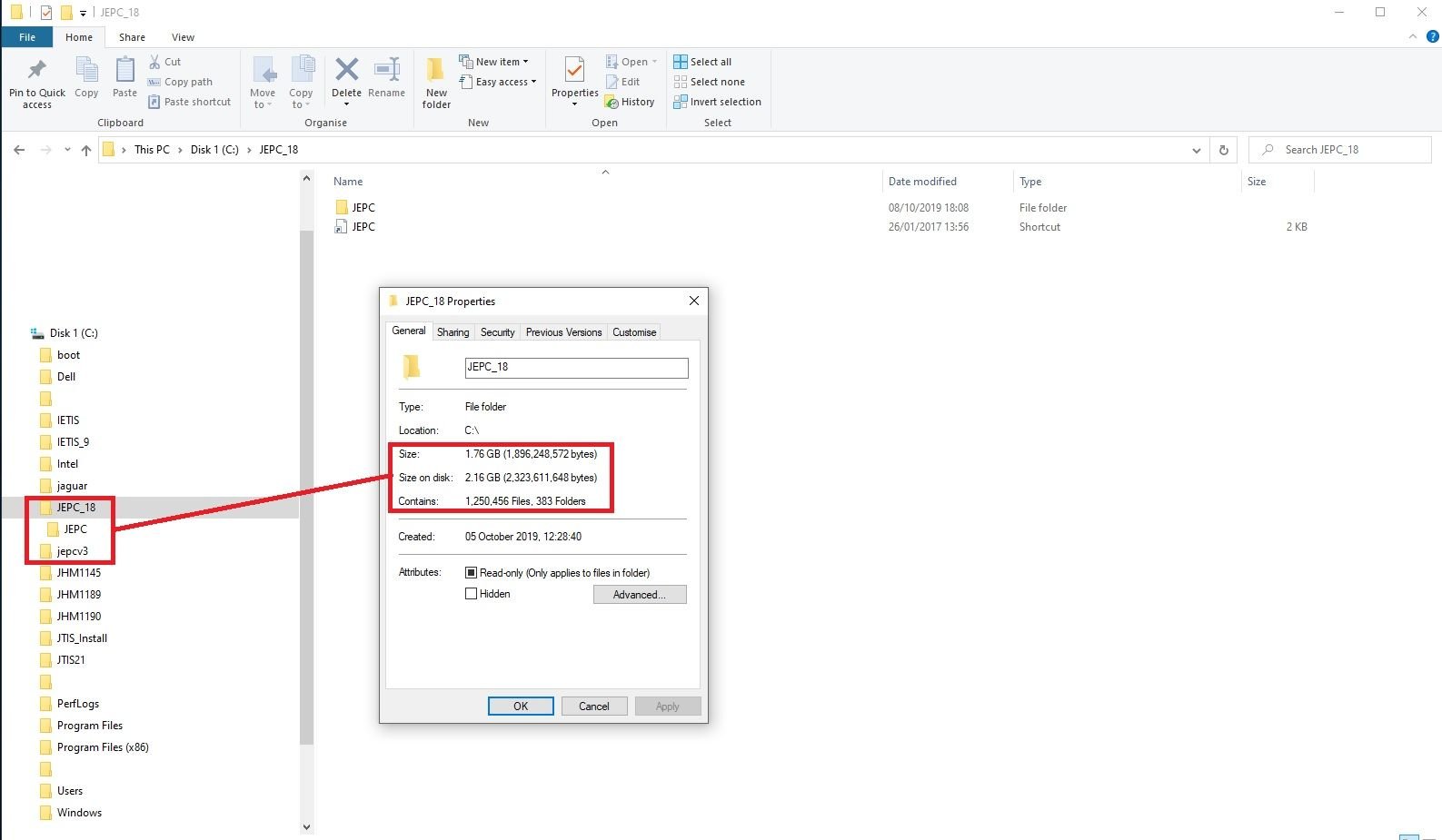

I prefer to install the entire JEPC rather than run it as a virtual disk. Very useful but it takes about ten hours to copy.

Graham



That makes sense then. Dealers must see a lot more through the top button. The button for Independent Operators just gives you access to the technical documents plus diagnostics:




It sounds like we have the same copy of the JEPC. I have been using various versions since around 2003 when it was distributed to the dealers on CD so it was easier to get a copy of it. It used Netscape Navigator which show how old it is!

I used to run the JEPC updater regularly and it would connect to a server and download the latest prices and parts information but that hasn't worked for quite a few years, probably since dealers started using it on line.

Dealers had to pay quite a bit for it in 2003. You would have thought it would be free!

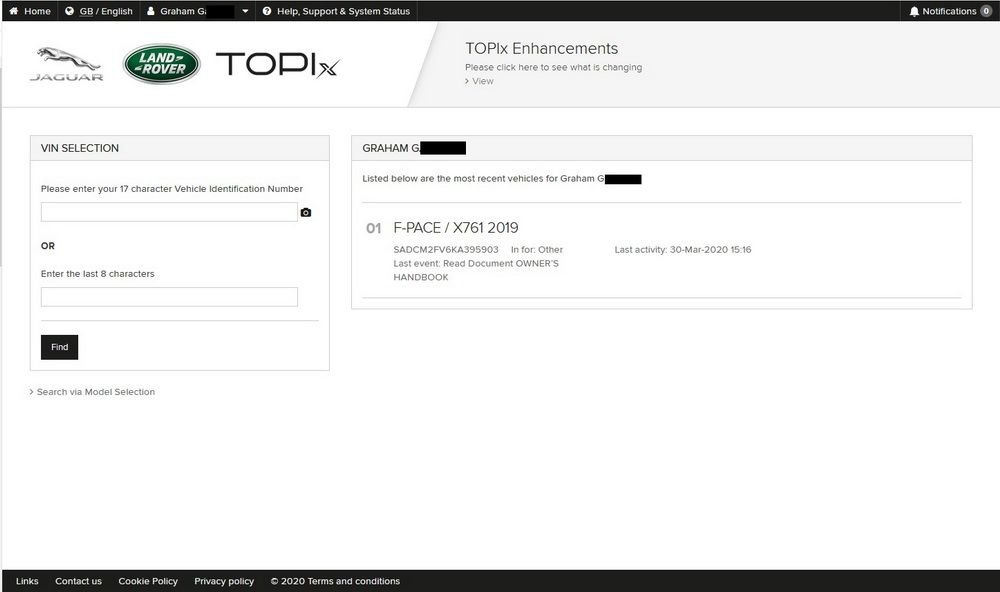

This is my current Independent Operator screen:




I know the Dealer has more options on the top black menu bar but didn't pay sufficient attention to notice what they were.

Graham
