Rotary switch/transmission spline HELP PLZ

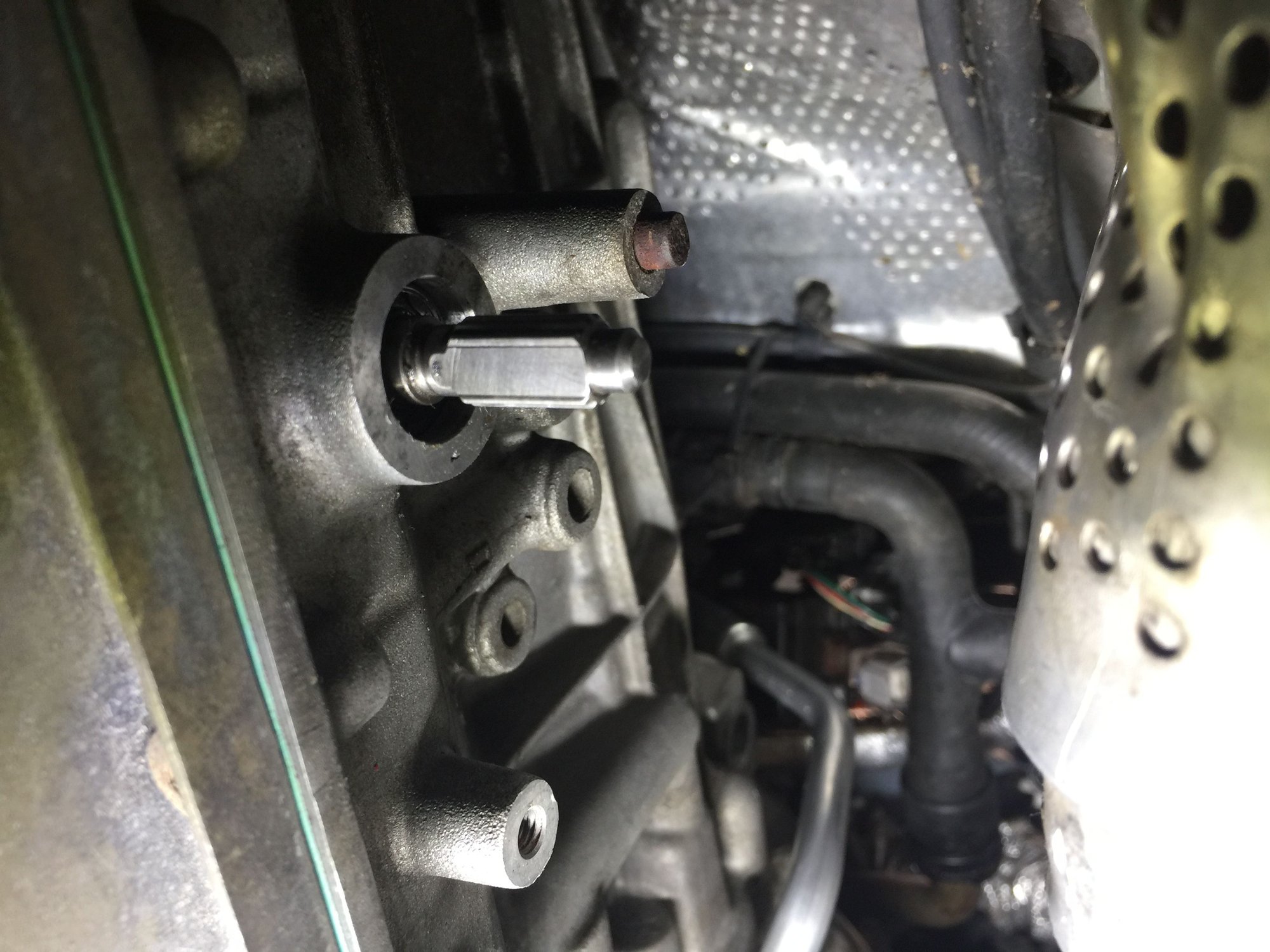

Trying to hook up rotary switch today after installation of transmission and noticed the flat part of the spline shaft is toward the ground. From looking at rotary switch and trying to install it it looks like the flat part of the shaft should be facing up not down. I’m unable to install rotary switch. Please help. Any suggestions? Pic below.

Please see spline in photo

Last edited by MDsjag; Feb 9, 2019 at 09:19 PM.

Feb 9, 2019 | 09:17 PM

MDsjag

Thread Starter

Junior Member

Joined: Aug 2018

Posts: 17

Likes: 0

From: Missouri

Has the spline been installed wrong by the rebuild shop?????

Would someone please give me your opinion as to whether it looks like spline was installed incorrectly from rebuild shop or is there only one way it can be installed? Pic in original post. Please help??????????

Feb 9, 2019 | 09:31 PM

mhminnich

Senior Member

Joined: Oct 2014

Posts: 885

Likes: 700

From: Arlington, Texas

I have to ask the obvious. Do you have it rotated to the correct gear position for installing the switch?

Installing the shaft incorrectly is unlikely due to the way it typically engages the valve body.

Last edited by mhminnich; Feb 9, 2019 at 09:33 PM.

Feb 9, 2019 | 10:02 PM

MDsjag

Thread Starter

Junior Member

Joined: Aug 2018

Posts: 17

Likes: 0

From: Missouri

Yes. I’ve installed rotary switch several times and no issues, but this time the flat part of the shaft is pointing towards the ground and splines at top.
