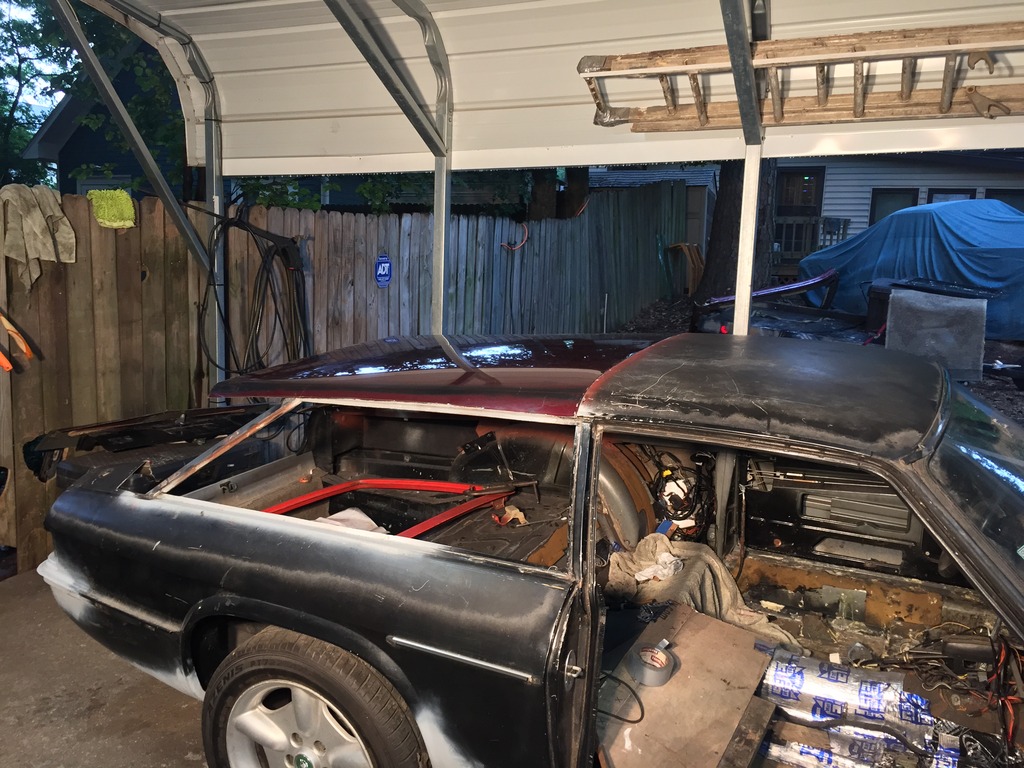

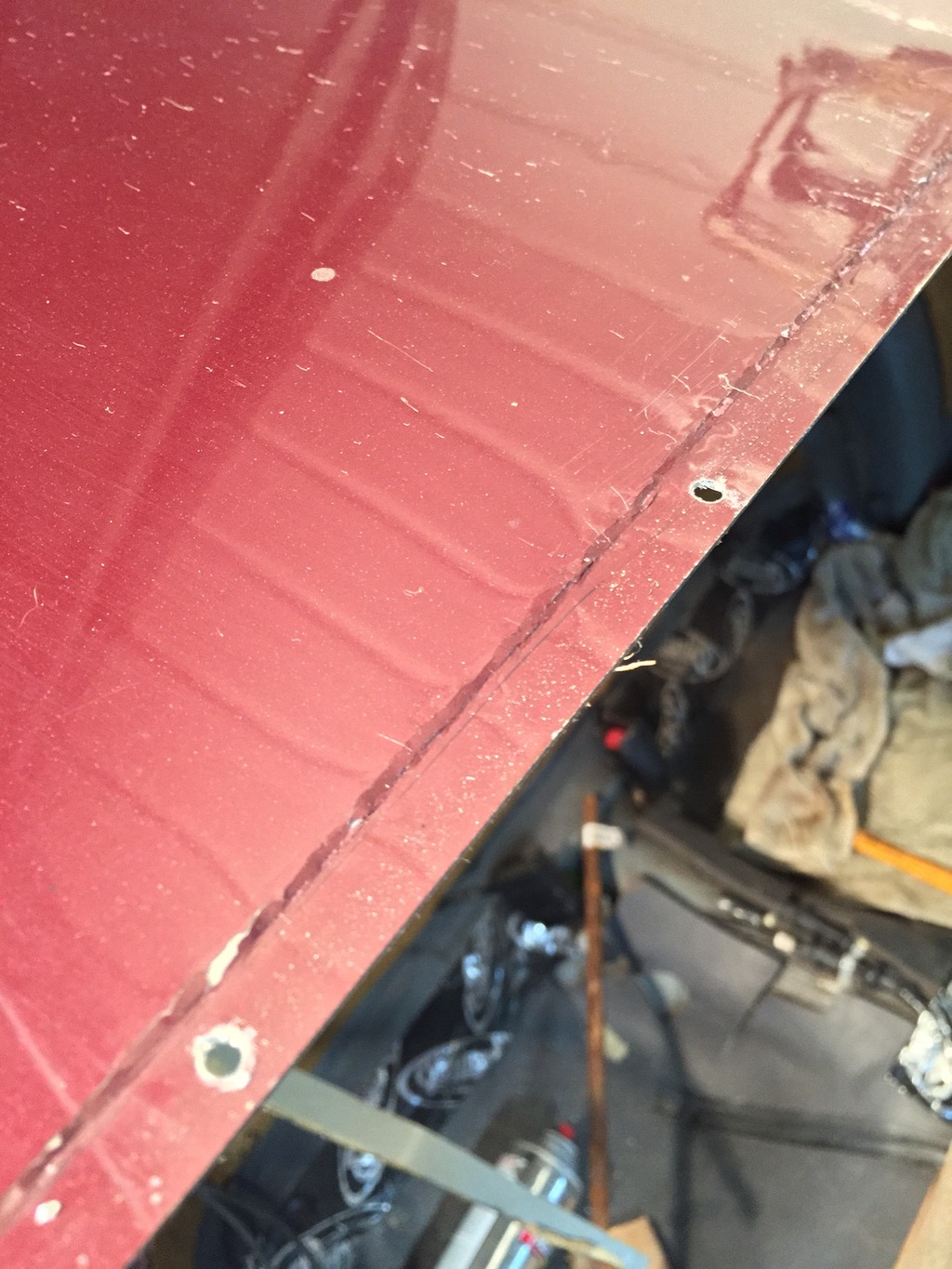

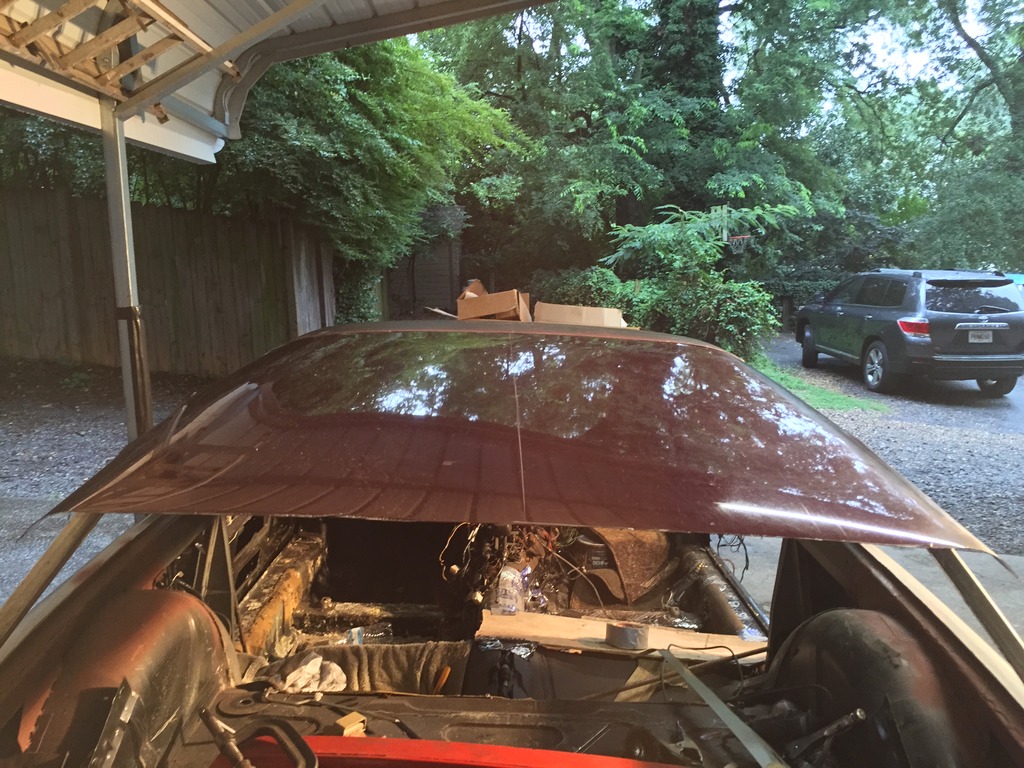

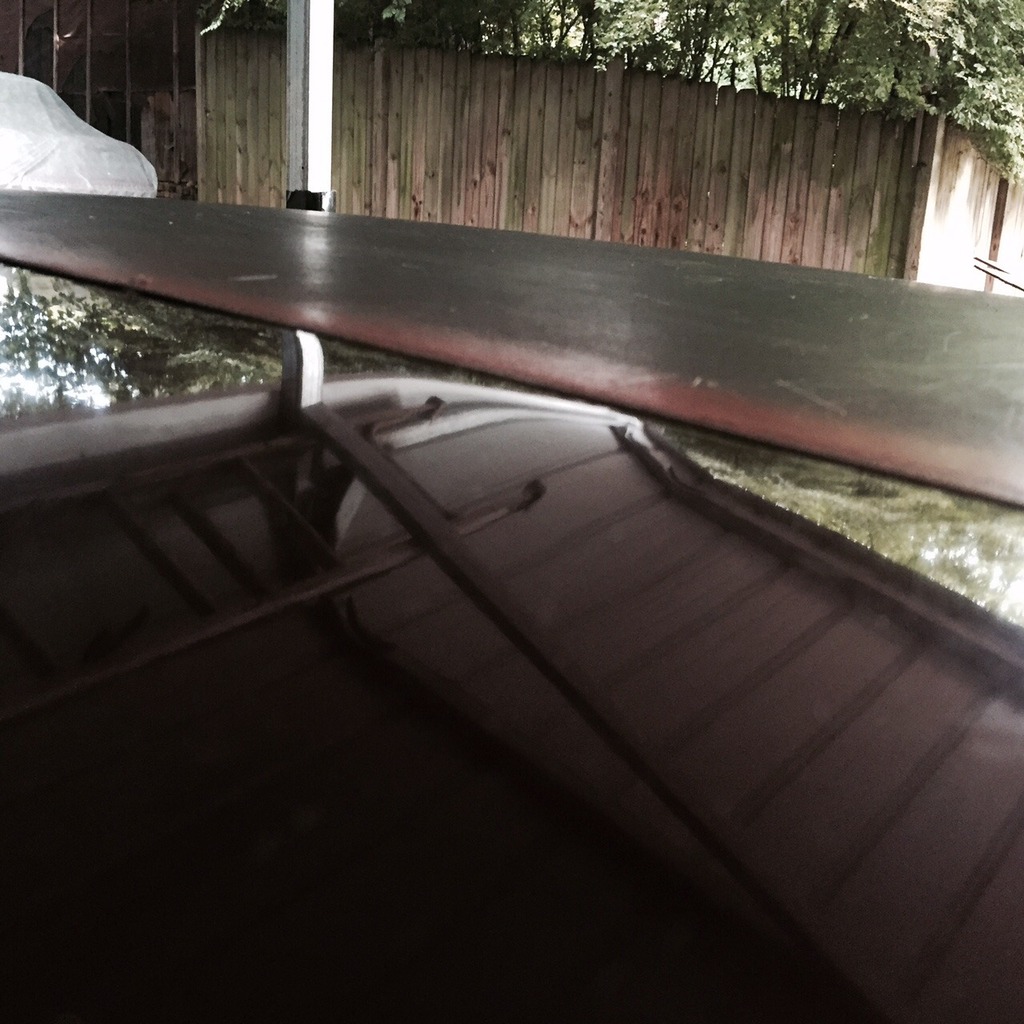

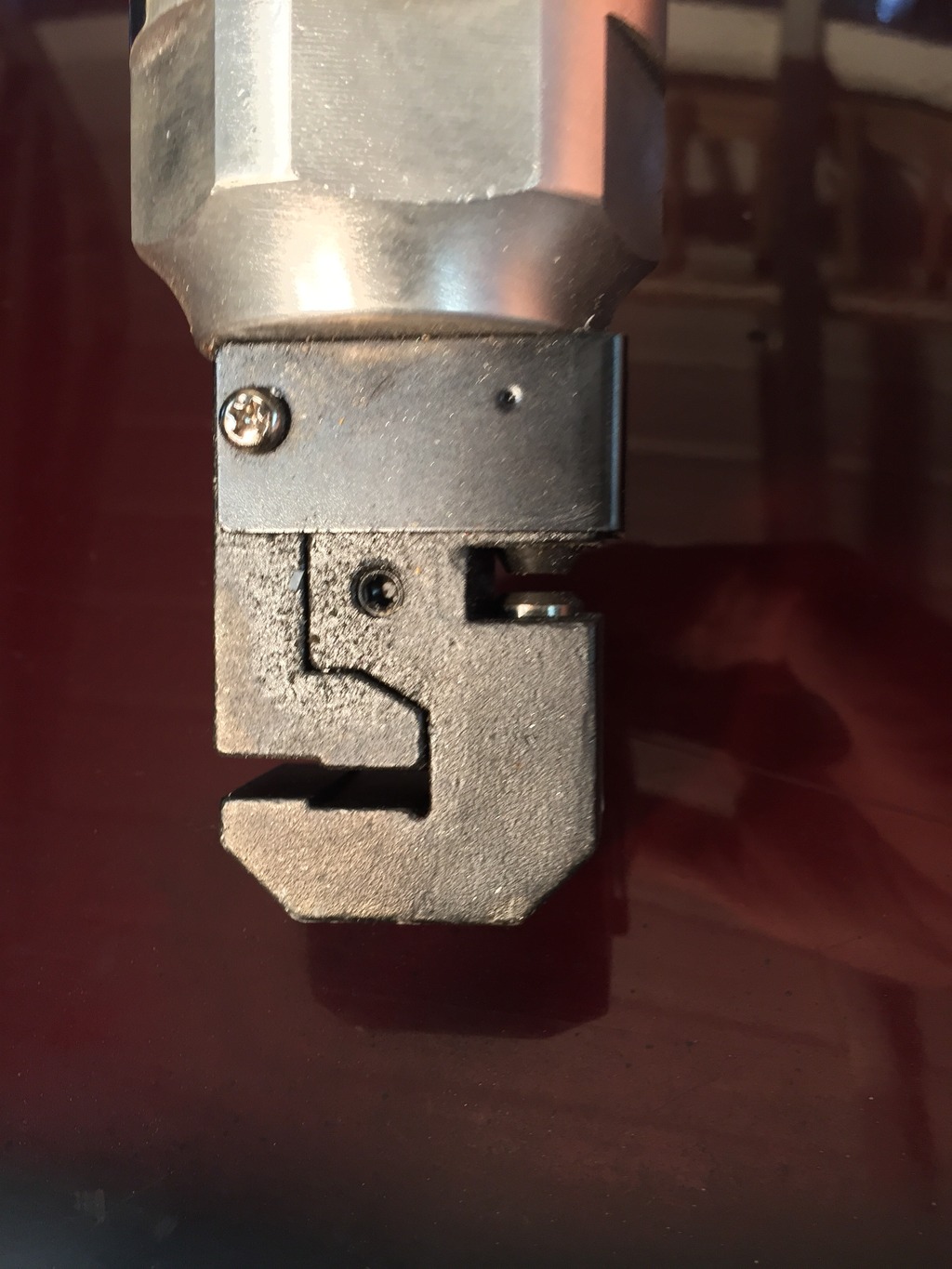

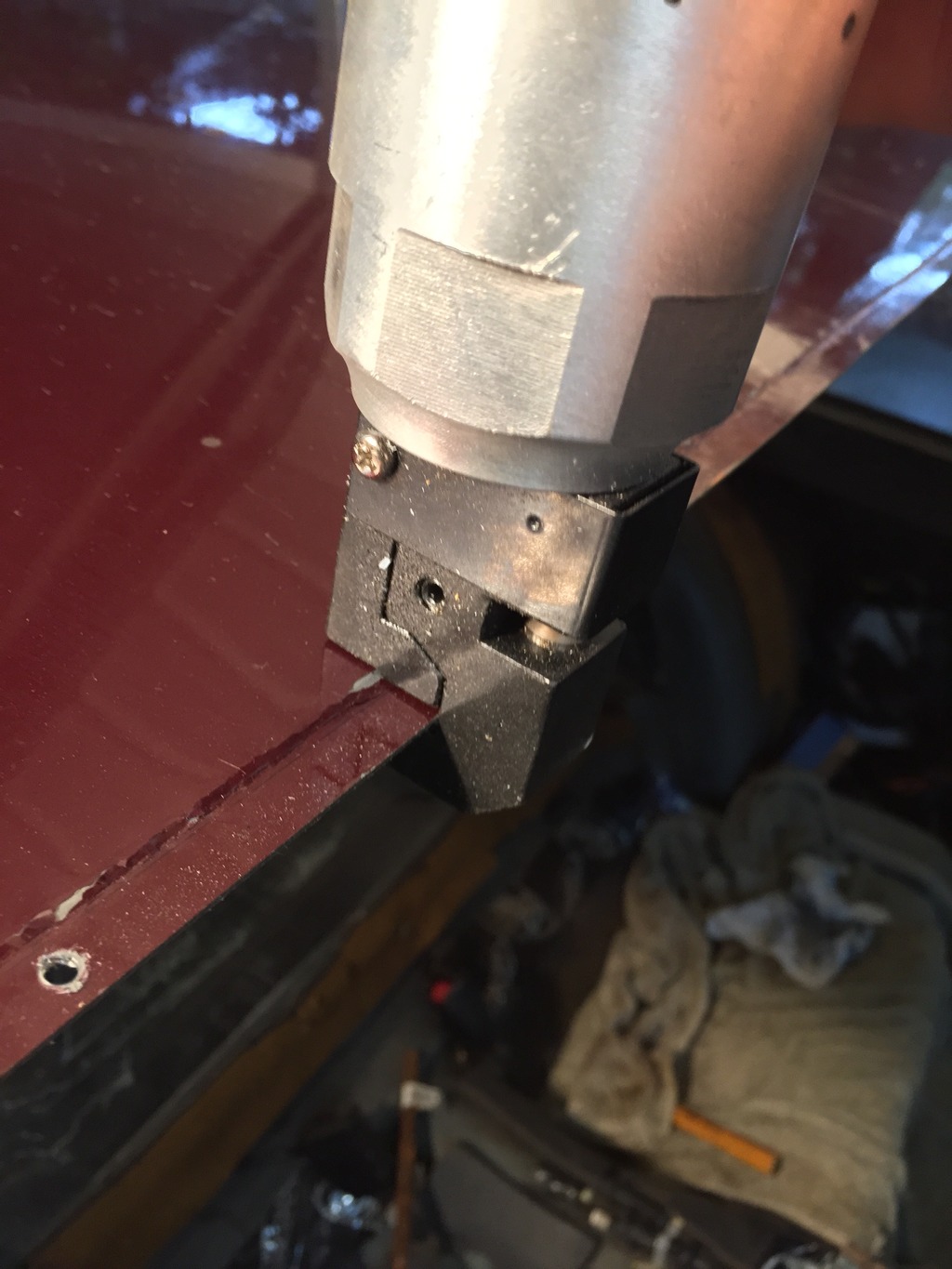

The roof skin is from a late model Chevy pickup. I've flanged the front part of the truck roof skin to slide under the stock roof. My plan is to attach this edge using a panel adhesive, 3M 8115.
I'm using the panel adhesive in order to avoid welding the roof which I'm worried will warp it. I do plan to weld the the roof skin to the side window frame.
I'm using the panel adhesive in order to avoid welding the roof which I'm worried will warp it. I do plan to weld the the roof skin to the side window frame.
#24
#25
#26
#27
But if you look at page one pics (post #9), I welded a c-channel (upside down, or "C" facing down) under the side window edge (top of quarter panel) and this tied into the wheel well. I also added a couple of stitching plates where the c-channel met the wheel well. After this addition I could "pick up" one side of the car without quarter panel bending (but opposite side of car would not move indicating some flex still).

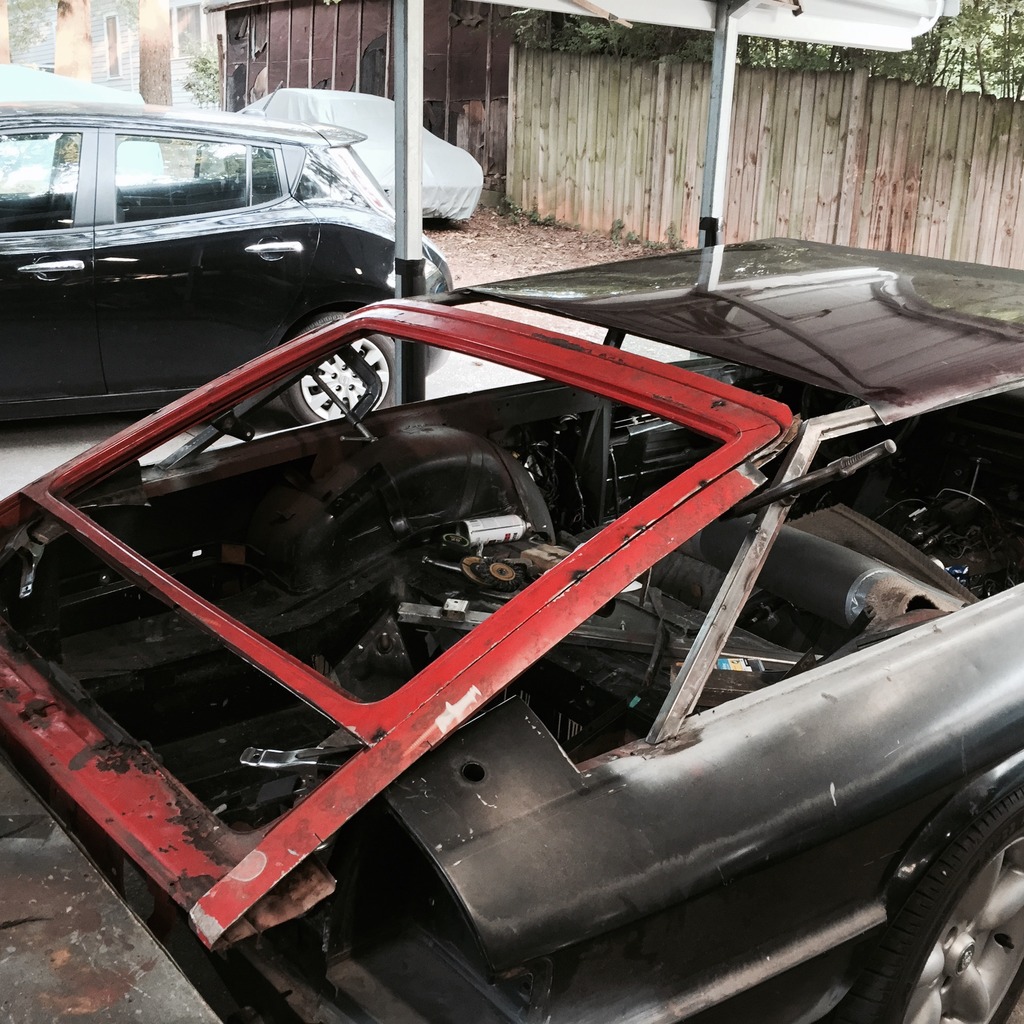

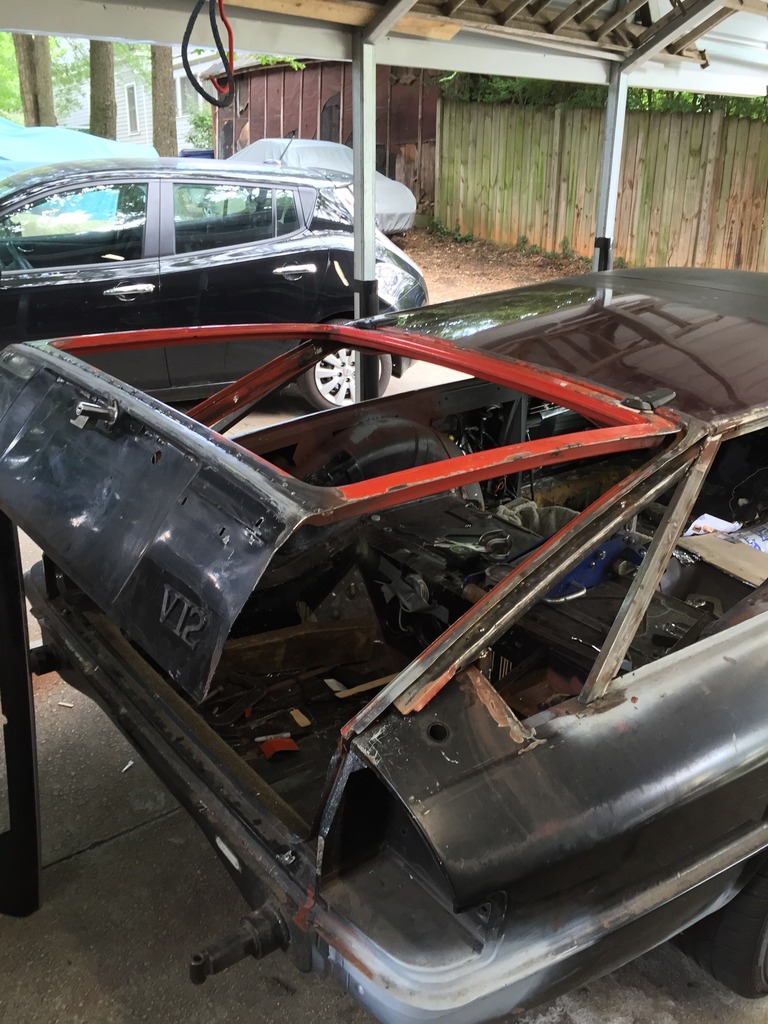

For the roof/side window junction top rail I slid the square tubing into the stock roof reinforcement and welded it several places. Then I cut a section of the stock roof reinforcement into a triangle (gusset maybe?) and welded it to side window top rail to bridge them together (post #14).
Also, but not seen, at the vertical bar that forms the back of the side window, where it meets the quarter panel, there is a "slug" or sleeve of square tubing slid into, and welded into the window frame. This "punctures" through the quarter panel into trunk and will connect to some sort of reinforcement in the floor.
There are also two roof bows welded in, one between B-pillar and one midway down side window.
With all of these modifications thus far (and more to come) I can now "pick up" one side of the car and the entire car moves in unison.
Next plan is to install hatch which will require another cross brace at the top back corners of side windows which will further triangulate the roof structure.
