HKS Camp2 and GVIF install
#21
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts

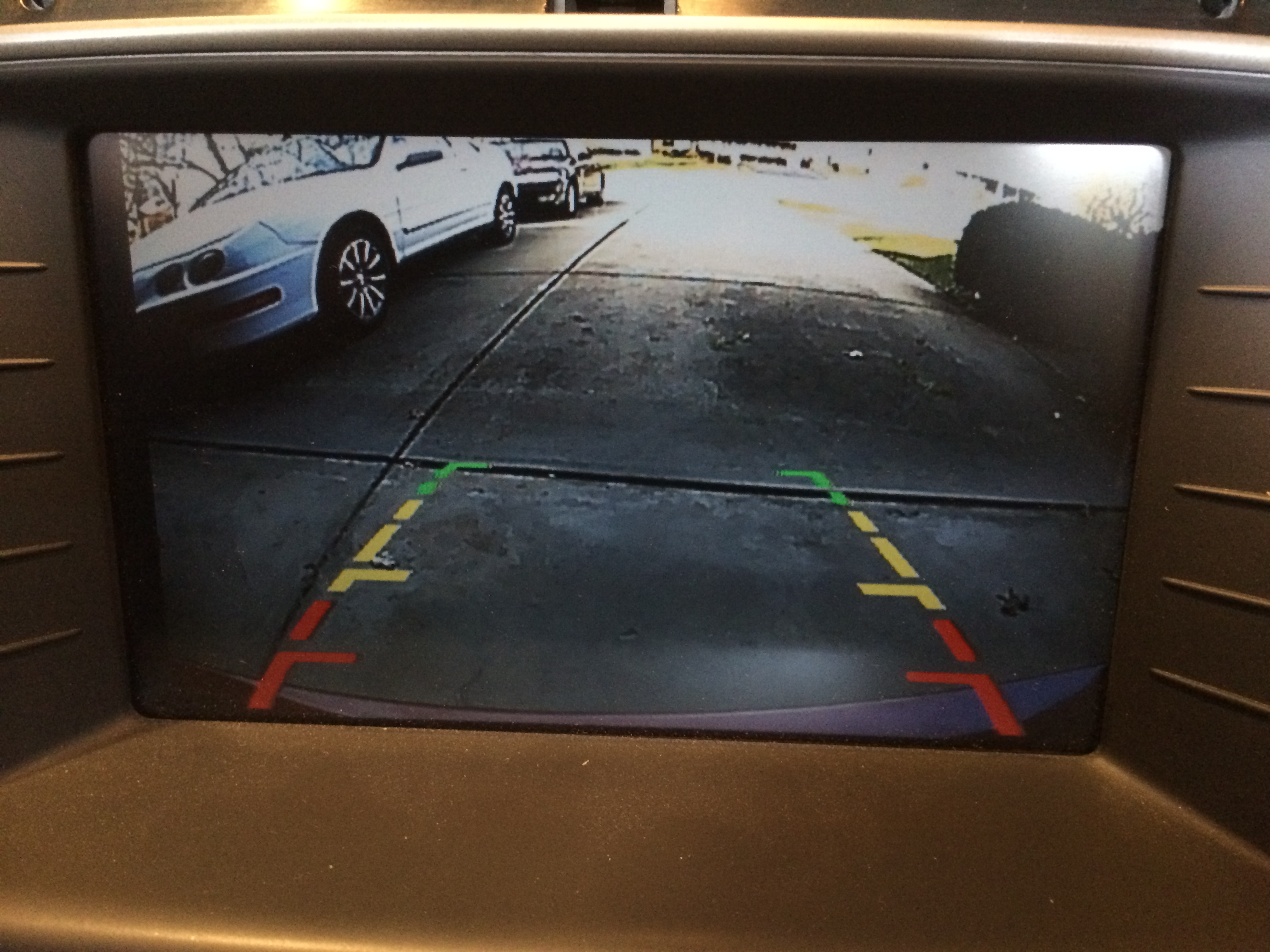

I'll add WhiteXKR's controller when it becomes available, its actually not too bad now, as I'm essentially always on the Nav screen, with the gauges displayed, so I only need to touch the screen once, to remove the backup sensor overlay graphic.
The following users liked this post:
kj07xk (11-24-2015)
#24
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
When I took my back seats out last night, I realized a difference I'll have from your mounting position of the HKS unit, you've got a coupe, with lots of space there, I've got the vert, and a couple of 'rocket launchers' back there for the RPD's (rollover protection devices).
I'll have to see what options I have, given the cable length from the OBD-II port.
I'll have to see what options I have, given the cable length from the OBD-II port.
It sits against 2 bends in the interior body, angled in toward and against the RPD. The seat back does touch it, but I don't think it will be a problem:
I used some 3M 'velcro' like stuff to mount it, so I could easily pull it out if I wanted to.
I routed the cables just like flyc2c's example, with the remote cable being 'just' long enough, but the OBD2 comes up short, so I'm using a 12" OBD2 extension cable right now, but I'll get a slightly longer one when I have time, as the 12" reaches, but it gets in the way of nicely fitting the under tray under the steering wheel.
The cable would have been plenty long, if I had routed it on the other side of the driver's seat, under the molding and carpet, but I was trying to get the car back together, and didn't want to figure out how to take something else apart.
So again, thanks to flyc2c, for his excellent installation pictorial!
#26
This just turned up on ebay. Pretty good deal. They were $750 new.
HKS CAMP2 Multi Control Unit Fcon OBD1 2 Temp Boost Pressure etc I F | eBay
This one has the optional boost pressure sensor AND the I\F control unit you need to make it work.
http://www.ebay.com/itm/Hks-Camp2-Mu...JW0JaQ&vxp=mtr
Update:
I received the HKS I/F interface a month ago and just ordered the boost pressure sensor option. Soon I will have accurate boost readings!!
HKS CAMP2 Multi Control Unit Fcon OBD1 2 Temp Boost Pressure etc I F | eBay
This one has the optional boost pressure sensor AND the I\F control unit you need to make it work.
http://www.ebay.com/itm/Hks-Camp2-Mu...JW0JaQ&vxp=mtr
Update:
I received the HKS I/F interface a month ago and just ordered the boost pressure sensor option. Soon I will have accurate boost readings!!
Last edited by flyc2c; 03-07-2016 at 03:49 PM.
The following users liked this post:
kj07xk (03-07-2016)
#27
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
Thanks for keeping the forum informed.
I actually have a couple of the I/F units, that came with the HKS Camp2's I bought last year.
I bought a pressure sensor (AK020) on ebay last week for $159 (HKS CAMP2 Meter Interface Unit I F Unit Optional Pressure Sensor Harness Set | eBay cheapest seller at the time), thinking maybe I can use it for tracking oil pressure (since I don't have an 'R', boost is meaningless to me (right now anyway, but that would change if I find an 'R' I like)).
So you ordered the boost sensor (AK021) right?
I actually have a couple of the I/F units, that came with the HKS Camp2's I bought last year.
I bought a pressure sensor (AK020) on ebay last week for $159 (HKS CAMP2 Meter Interface Unit I F Unit Optional Pressure Sensor Harness Set | eBay cheapest seller at the time), thinking maybe I can use it for tracking oil pressure (since I don't have an 'R', boost is meaningless to me (right now anyway, but that would change if I find an 'R' I like)).
So you ordered the boost sensor (AK021) right?
#30
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
Whoa! Nice! I rarely get any time to work on my 'toy', as the wife already has more things planned than I have days off (got lucky last fall when she took a trip to visit her friends and relatives, and hopefully that happens again this fall!).
#31
Installed the HKS I/F gauge interface and optional boost pressure sensor today. Works as advertised giving correct and full boost pressure. Surprised to see max boost is around 9-10psi. I was expecting higher. There was a bit of flutter in the gauge so I installed an inline restricter which seemed to smooth it out a little. Need to install an inline filter next but ran out of time. None of the local auto parts stores carry one in stock.
Install notes. On the right side of the "V8" supercharger cover is a manifold port about 1/4 inch diameter that angles 45 degrees rearward. It has a 45 degree connector rubber connector on it that angles forward. From there it connects to a small plastic line that runs in the front of the "V8" cover and splits.
One split goes to the fuel pressure regulator and the other to a check valve which dead ends and is plugged. I simply removed the check valve and connected the hose there.
I installed the HKS pressure sensor in the brake booster area.
Routing...
Carefully pierced the main wire harness bulkhead seal to run the wire into the passenger compartment and sealed it. BTW the "dust' particles you see is pollen. Love the south.
The I/F unit is behind the left side kick panel near the fuse center. I wanted it inside the vehicle and don't plan on adding additional sensors. I ran the harness to the Camp2 along the left side under the carpet to the rear where my Camp2 is. It was truly plug and play.
Install notes. On the right side of the "V8" supercharger cover is a manifold port about 1/4 inch diameter that angles 45 degrees rearward. It has a 45 degree connector rubber connector on it that angles forward. From there it connects to a small plastic line that runs in the front of the "V8" cover and splits.
One split goes to the fuel pressure regulator and the other to a check valve which dead ends and is plugged. I simply removed the check valve and connected the hose there.
I installed the HKS pressure sensor in the brake booster area.
Routing...
Carefully pierced the main wire harness bulkhead seal to run the wire into the passenger compartment and sealed it. BTW the "dust' particles you see is pollen. Love the south.
The I/F unit is behind the left side kick panel near the fuse center. I wanted it inside the vehicle and don't plan on adding additional sensors. I ran the harness to the Camp2 along the left side under the carpet to the rear where my Camp2 is. It was truly plug and play.
Last edited by flyc2c; 03-28-2016 at 05:09 PM.
#32
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
#33
The through bulkhead fitting for the main wire harness was the obvious choice. I wanted to do this on the other side but that wasn't going to happen. No easily accessible holes anywhere else in the firewall. I did drill a hole in the brake booster compartment into the engine bay to run the hose through.
#34
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
The following users liked this post:
ag986 (01-14-2017)
#35
Old threads never die. Thanks again for answering so many questions off line Ken. Question for you flyc2c, Steve and the group who've installed this.
Premise:
I think the common complaint is so you have to manually switch from the Nav system output to the GVIF Video source output when putting the car in reverse, correct?
So you turn on the car, HKS Camp2, GVIF all fire up. You have your screen set to come on when you turn on the ignition.
Then you select the Nav screen soft button on the touchscreen, then push a newly installed button to display from GVIF (either backup camera or gauges).
If I've got that right, I'm guessing the smart guys have already thought this through and determined otherwise but is it possible to default the FCDIM to show the output from GVIF instead of the OEM output?
Then use the newly installed button to toggle back to OEM?
I understand Steve's investigating an automated switch, but I rarely use the soft buttons with the exception of the phone. It would be more beneficial to default the gauges on startup (for me anyway)
Premise:
I think the common complaint is so you have to manually switch from the Nav system output to the GVIF Video source output when putting the car in reverse, correct?
So you turn on the car, HKS Camp2, GVIF all fire up. You have your screen set to come on when you turn on the ignition.
Then you select the Nav screen soft button on the touchscreen, then push a newly installed button to display from GVIF (either backup camera or gauges).
If I've got that right, I'm guessing the smart guys have already thought this through and determined otherwise but is it possible to default the FCDIM to show the output from GVIF instead of the OEM output?
Then use the newly installed button to toggle back to OEM?
I understand Steve's investigating an automated switch, but I rarely use the soft buttons with the exception of the phone. It would be more beneficial to default the gauges on startup (for me anyway)
Last edited by Sean W; 01-13-2017 at 07:24 PM.
The following users liked this post:
ag986 (01-14-2017)
#36
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,572
Received 1,896 Likes
on
1,286 Posts
You're welcome. You've got the sequence right. I just took a look at the manual online for the latest version of the GVIF (http://car-solutions.com/nfs/product...guide_V7.2.pdf , page 16, bottom right corner) and see that there is an OEM skip setting, which seems to say that the OEM input (Nav) is skipped after booting (power up). So that might do what you want. You could post a question on their website and see if that will do it for you.
Last edited by kj07xk; 01-14-2017 at 07:16 AM.
The following users liked this post:
Sean W (01-14-2017)
#37
You're welcome. You've got the sequence right. I just took a look at the manual online for the latest version of the GVIF (http://car-solutions.com/nfs/product...guide_V7.2.pdf , page 16, bottom right corner) and see that there is an OEM skip setting, which seems to say that the OEM input (Nav) is skipped after booting (power up). So that might do what you want. You could post a question on their website and see if that will do it for you.
#38
#39
Installed the HKS I/F gauge interface and optional boost pressure sensor today. Works as advertised giving correct and full boost pressure. Surprised to see max boost is around 9-10psi. I was expecting higher. There was a bit of flutter in the gauge so I installed an inline restricter which seemed to smooth it out a little. Need to install an inline filter next but ran out of time. None of the local auto parts stores carry one in stock.
Also, did you remove the black plastic insulation from around your intercoolers?
#40
Unfortunately this adds a bit of cost. The "IF" is an interface between the boost sensor and the camp2. It's easy to install though.
Here are part numbers:
44008-AK011
I/F Unit Interface Kit
44999-AK021
Optional Boost Pressure Sensor - (Requires I/F Unit)
