1967 420 rebuilt in 1986 and kept at MAN. Just before MOT rear carb float dead. Removed carbs, rebuilt and replaced. But retaining clips for several throttle links were missing/perished and throttle linkage fell apart as carbs removed. Having difficulty reconnecting throttle linkages as I cannot find any diagrams in 420 service manual that are useful. Had to re-tension spring securing throttle pivot (requiring disassembly of throttle linkage) and that is source of problem. Any help will be greatly appreciated. Thanks.
Robert



Try going into the SNG Barratt catalog (Google SNG Barratt USA) and looking at the carburetor picture in there. It seems to show all the linkages, and you can see what you might be missing, and somewhat how it all fits together. Parts catalogs are really good sources for figuring how parts fit together during re-assembly. Much better than a workshop manual.



Thanks for the information. I finally managed to struggle through the throttle set-up. Now finishing carb synch. Thanks again. Take care.
Robert



How ere you able to get around the linkage retaining clips? I am having the same issue, and looking to replace them. What did you do?



Here are pictures from the S Type parts catalogue. Should be the same for a 420

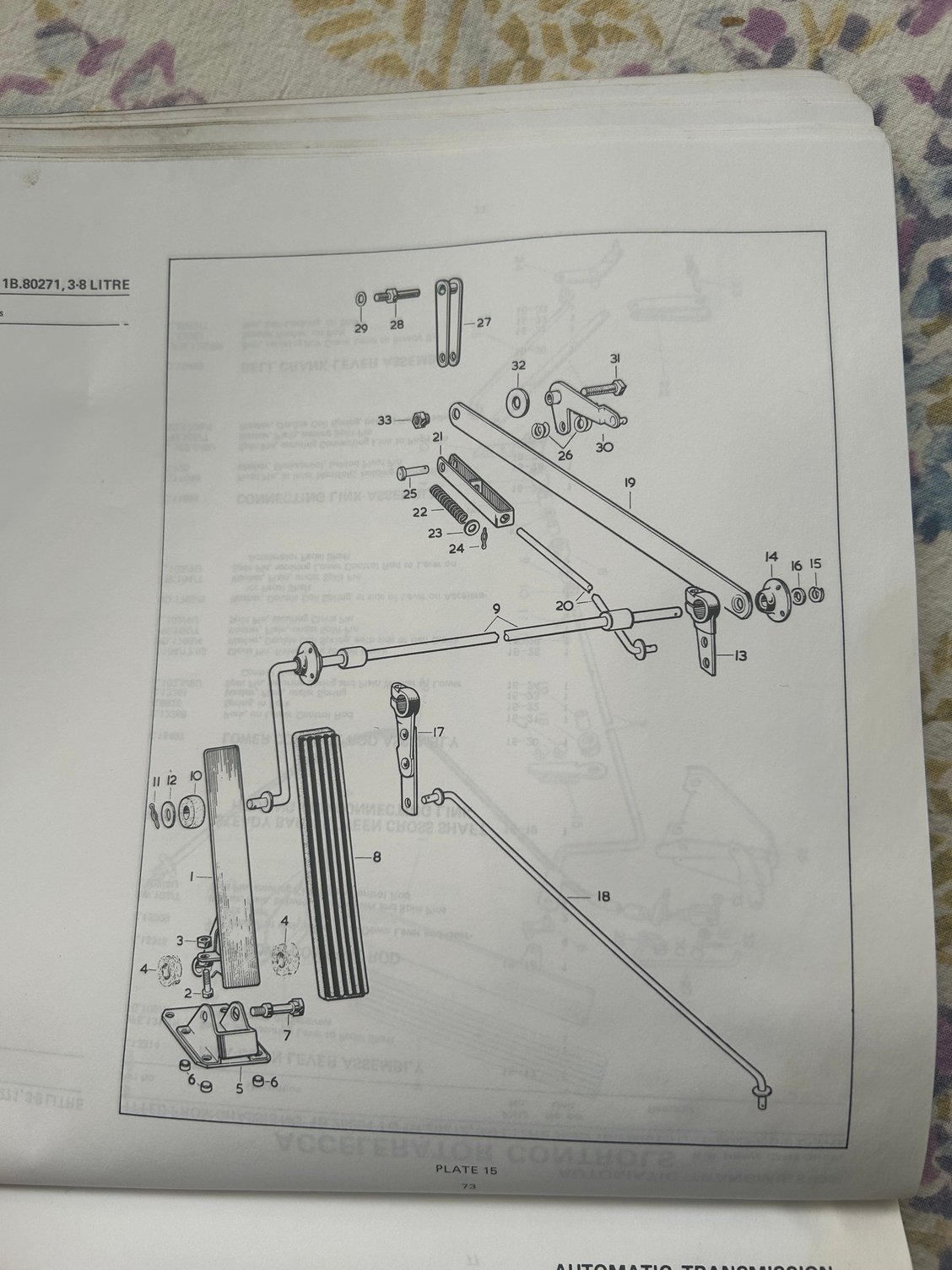

Automatic

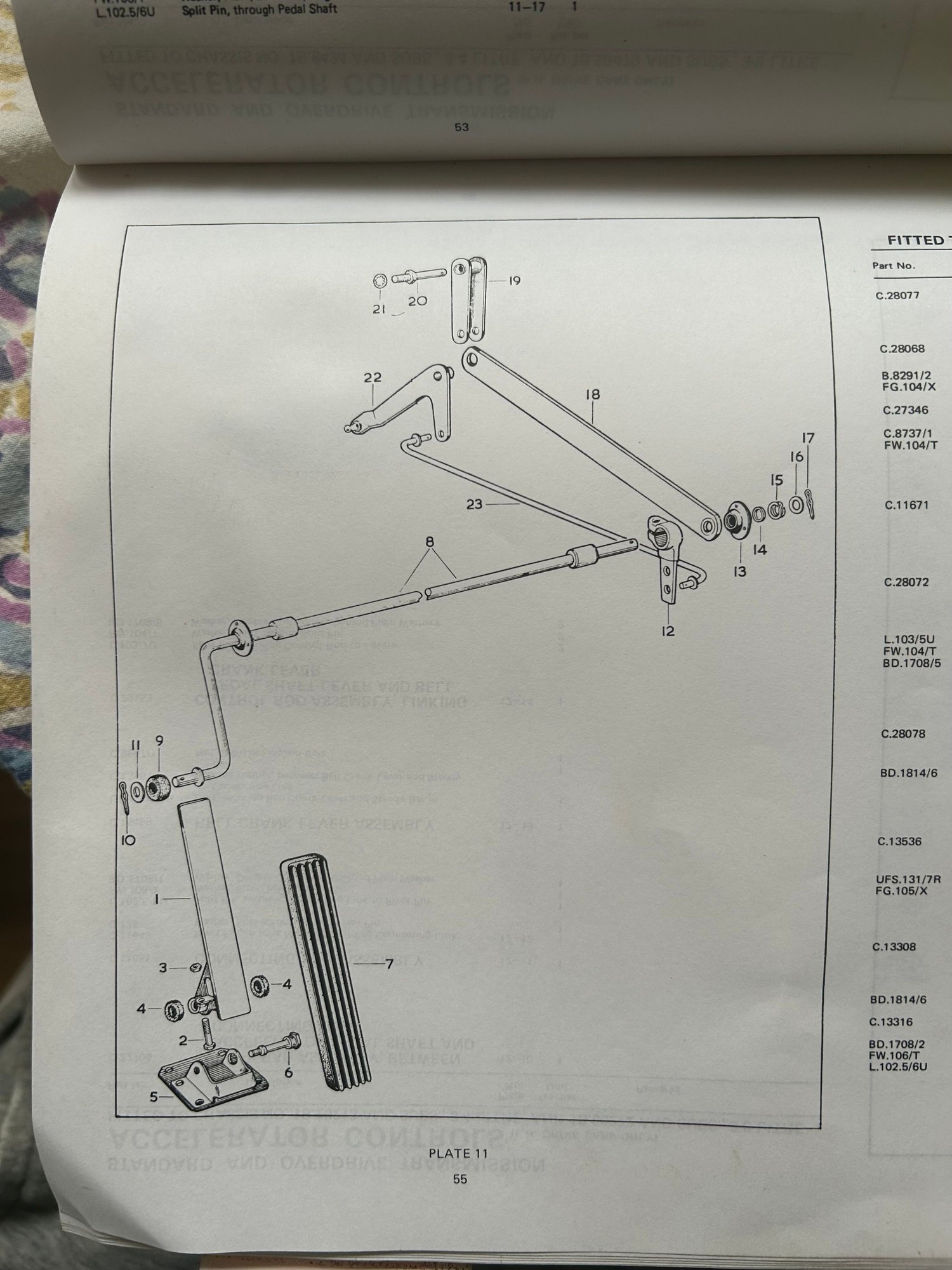

Early model S Type Manual transmission

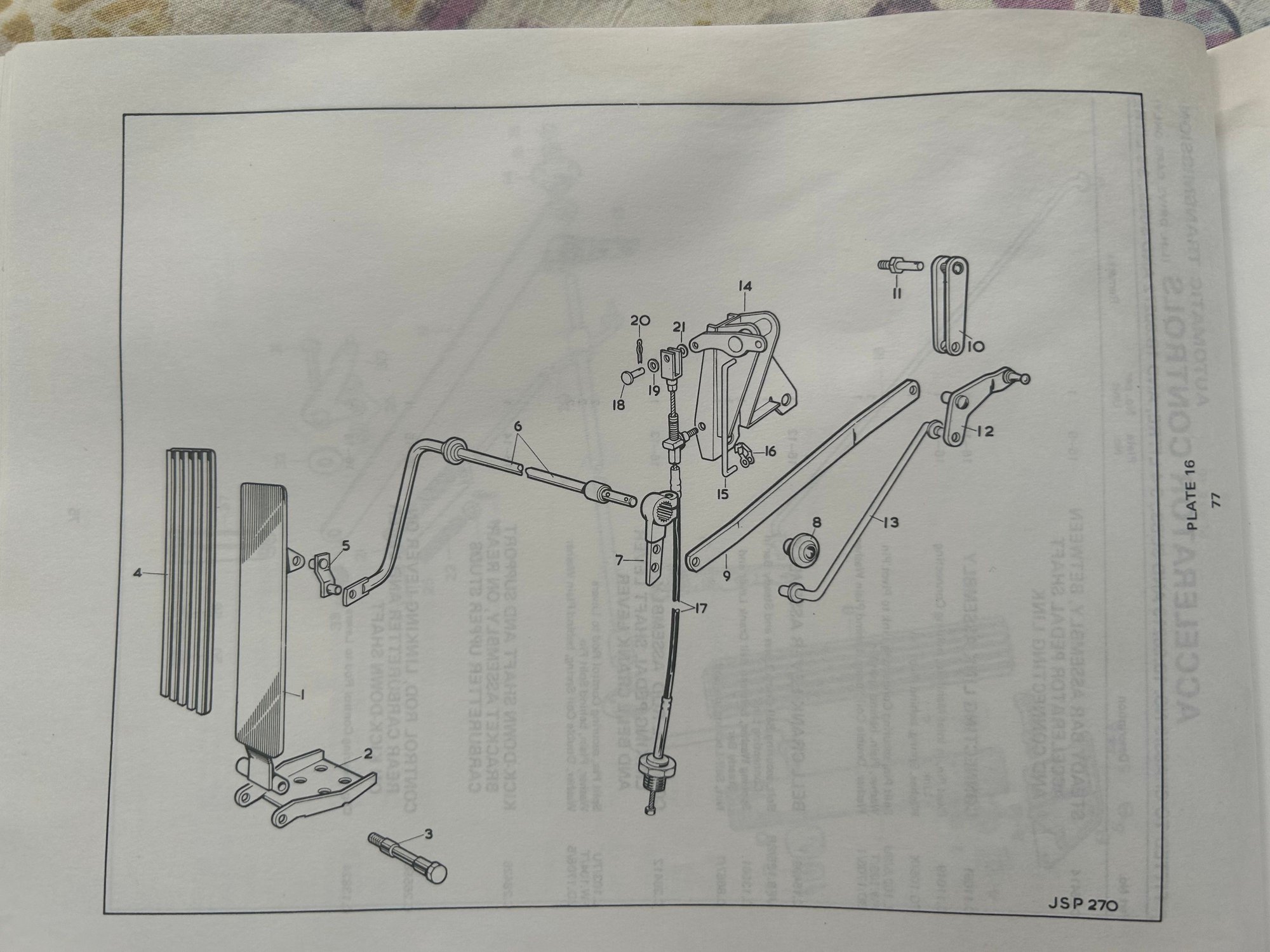

Late model Manual Transmission

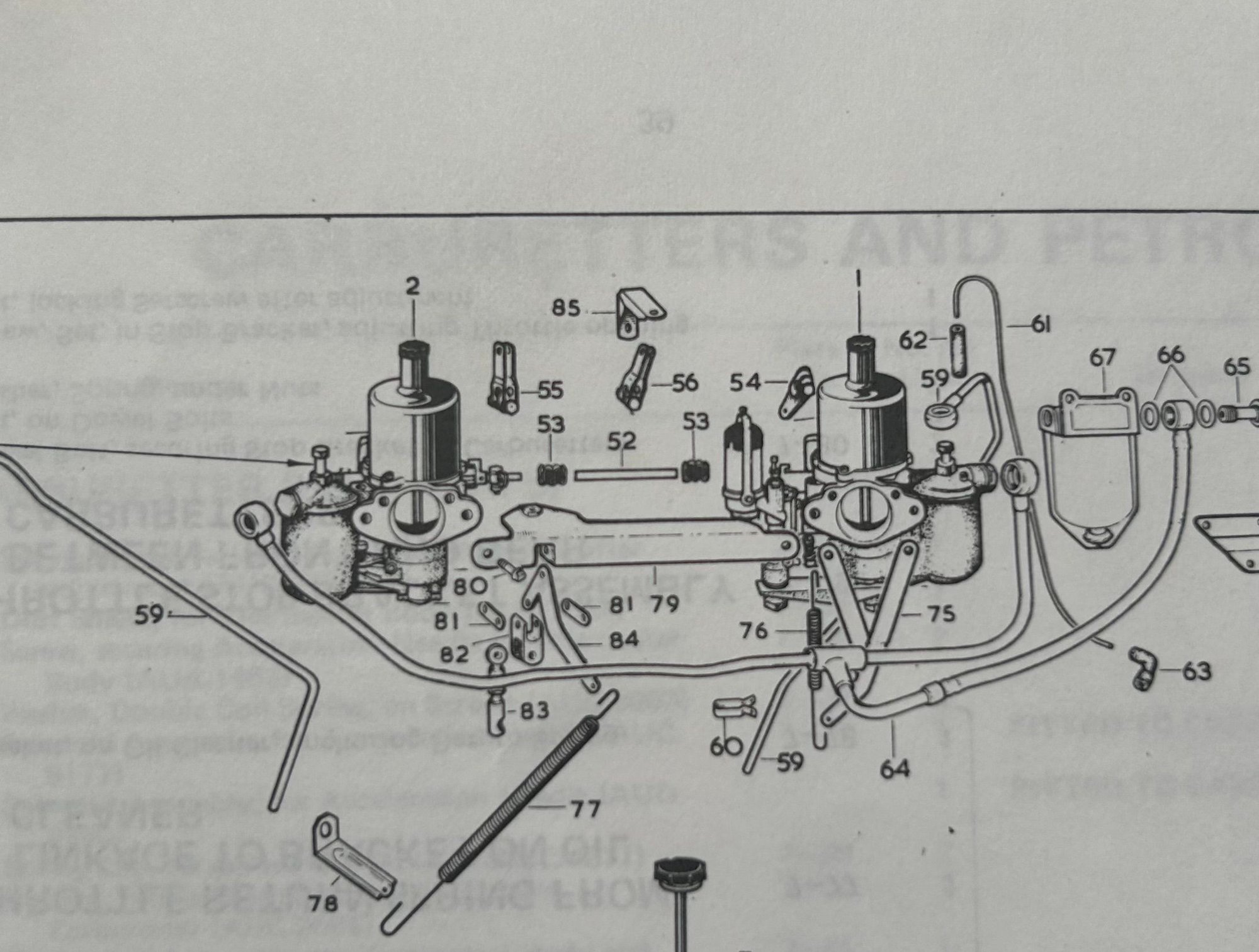

Carburetor linkage



AWESOME! Thank you so much!!! What I need is #83 in the last picture, and the clip that goes around the back of it to keep the ball from popping out. What catalog is this? Everywhere I have search says these joints and clips are no longer made...



I'ts from a reproduction of a Jaguar factory parts catalogue. The part number is BD15543 for the whole thing. No separate part number for the clip you need. I would try Jaguar Club of North America. I have been able to get some used parts from them. try these guys as well

https://www.ebay.com/sch/i.html?_trk...i_and_caligirl

They've got a couple of yards here in Southern California and have a lot of MK ll's and one S Type which when I saw it this spring still had the whole engine with carburetors



Here's one without the clip

https://www.ebay.com/itm/15741127063...oAAeSwBxJp6837



Also try Joe Curto He will have the part

https://www.britishsuperior.com/?fbc...rG3FdAxn5P_w_g
