Hello from oliver b.c. Canada
i have just bought a 1934 ford cabriolet with a jag rear end, which needs a pinion seal. I'm trying to find out what year and model this unit would be,so i can get the right parts. It has a parking brake on the driveline just back of the driveshaft. There was only two years of this model. Does anyone know of this rear end?
Thanks bill carter



A picture speaks a thousand words my friend.



I do have pictures, but i don't know how to include them here



I can't help you with your IRS problem, but I can welcome you to the forums.
ElinorB.
(';')



welcome to the forum,


to add pictures, you will see a Go Advanced button next to the Post Quick Reply (when responding) or Submit New thread.


Click this button and you will see some options - one being a paper clip - click on that and a new window will pop up.


Click the Browse button, find the picture you want , then click the upload button.


Once all pics have been uploaded, scroll to the bottom of this window and click ok.


If you are done adding the text for the post, then hit Submit Reply



Thanks for the info, i'm a computer dummy. I hope these pics com through

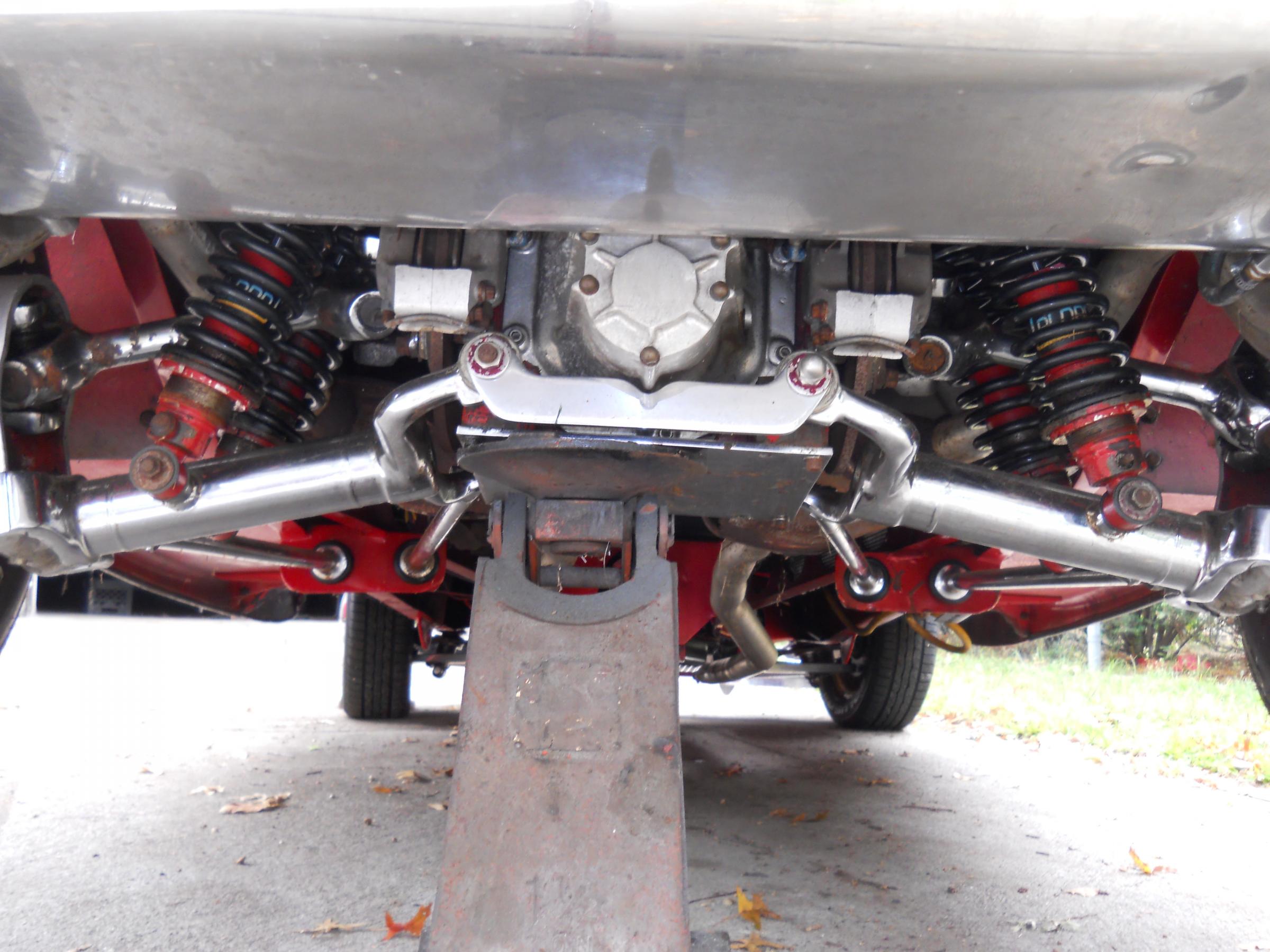

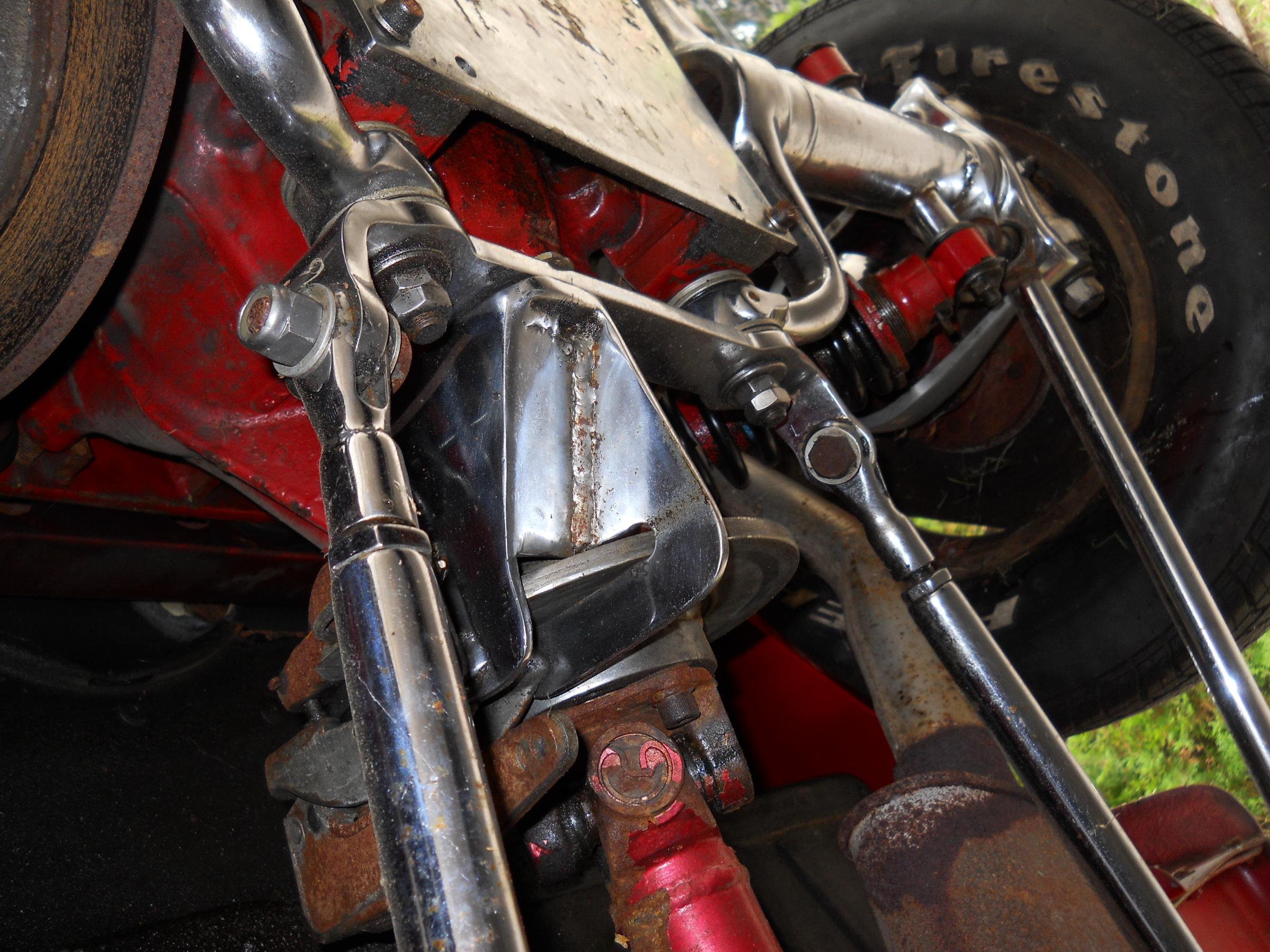

Here's another pic of the parking brake



I'm getting these pics, one at a time, here's a picture of the car .

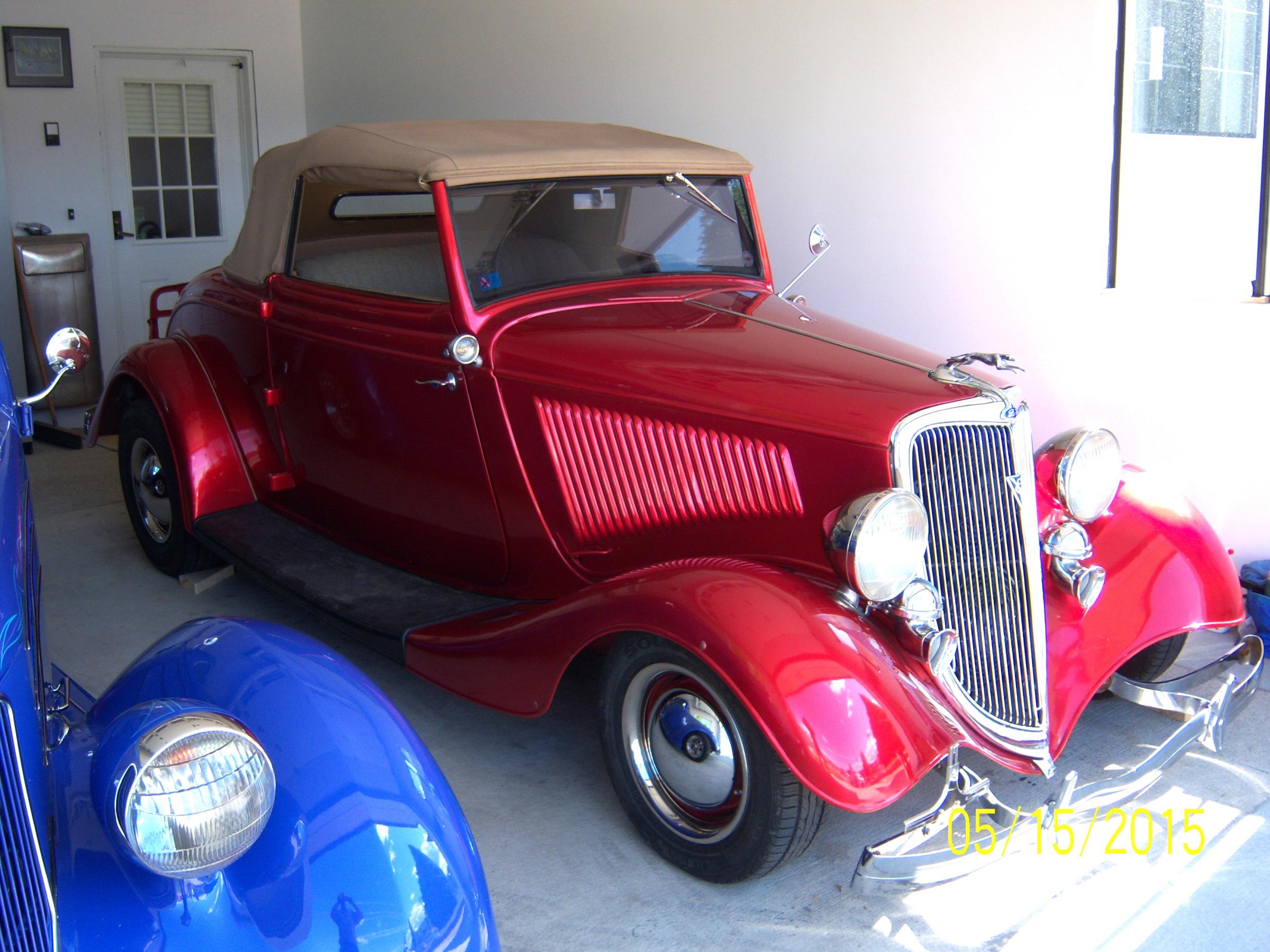

Here's a picture of the 1934 ford cabriolet



That's a very strange parking brake arrangement. The std Jag IRS had a similar park brake caliper on each disc. The back of the diff doesn't look like a Jaguar one.


Never seen one with a plate like that on it. I might be wrong. The rest of the set up looks like a Jaguar. wishbones brakes etc. I am fairly sure all the pinion seals were the same.


Differential Assembly-2.88:1 Powr-Lok - Parts For XJS from (V)139052 to (V)179736 | Jaguar Heritage Parts UK


SNG Barratt - The Ultimate Jaguar Parts Specialist


SNG Barratt - The Ultimate Jaguar Parts Specialist


have a look at those Dave. All cars had the Jag IRS and 3 different seals.
Sorry I cant help more. You need a jag man to poke his head under the car and confirm its a jag diff. Then you need to work out which diff. Failing that phone your local jag specialist. He might tell you that all diff seals supersede to one part number. I know early cars had rope seals.
Later cars had rubber seals. maybe the early e type part number is a rope seal and a rubber one could replace it.


Hope that helps you a bit.



A normal jag diff has the brake calipers bolted on the front. not on the back like this set up.



Thanks, i found some numbers stamped on dif casing, i'll see were that takes me. It looks like the filler plug is in line with the bottom of the seal.hopefully i wont run dry of oil. Thanks again for your input, it all helps.
