Help with DDM HID kit install for 03' STR fog lamps.
#1
Help with DDM HID kit install for 03' STR fog lamps.

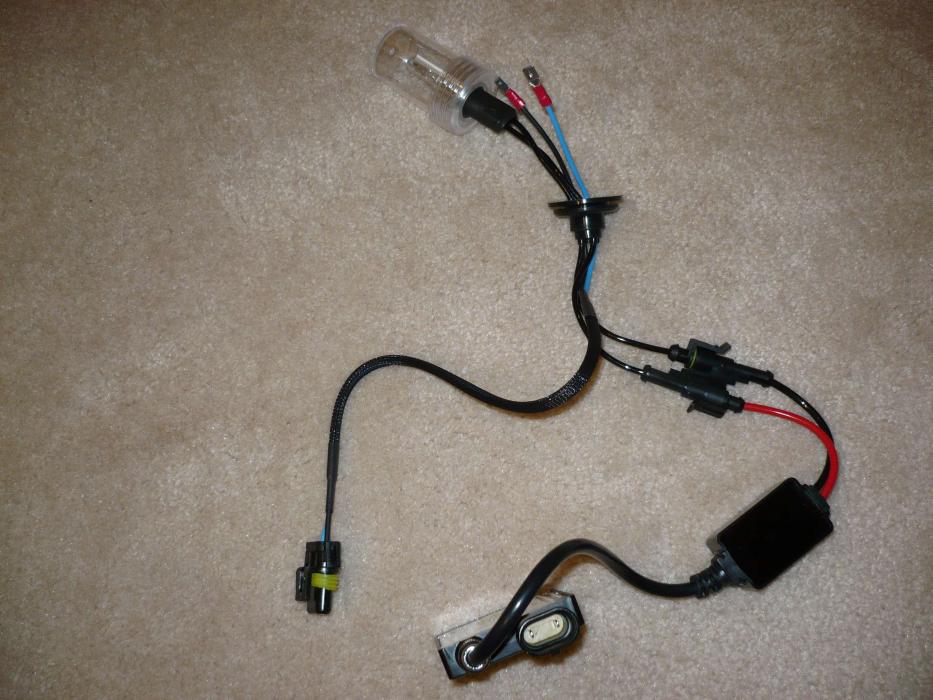

Has anyone installed a HID kit for their fog lamps on their STR from DDM? Since my fog lamps were originally H1 type, I ordered the H1 type compatible HID Kit. I'm confused on how to connect the HID kit neg and pos connection wires to my original fog lamp wires. I attached a pic of the HID kit, if anyone can chime in and explain this to me, I would greatly appreciate it.
Thanks in advance.
*if you look at the pic, I'm confused where the black(neg) wire and blue(pos) wires attach to? My H1 fog lamp bulb only has a male(bulb end) and female(socket) connector to it.
Thanks in advance.
*if you look at the pic, I'm confused where the black(neg) wire and blue(pos) wires attach to? My H1 fog lamp bulb only has a male(bulb end) and female(socket) connector to it.
Last edited by jag79; 11-09-2010 at 08:57 AM.
#2
#3
#4
I'll attach the instruction manual so everyone can see it and make something out of it.
Thanks.
#6
#7
Has anyone installed a HID kit for their fog lamps on their STR from DDM? Since my fog lamps were originally H1 type, I ordered the H1 type compatible HID Kit. I'm confused on how to connect the HID kit neg and pos connection wires to my original fog lamp wires. I attached a pic of the HID kit, if anyone can chime in and explain this to me, I would greatly appreciate it.
Thanks in advance.
*if you look at the pic, I'm confused where the black(neg) wire and blue(pos) wires attach to? My H1 fog lamp bulb only has a male(bulb end) and female(socket) connector to it.
Thanks in advance.
*if you look at the pic, I'm confused where the black(neg) wire and blue(pos) wires attach to? My H1 fog lamp bulb only has a male(bulb end) and female(socket) connector to it.
Basically you have two choices here. First choice. Connect the female that plugged into the bulb to the blue wire, and then get a female tab spade connector and run a wire to chassis ground. (Hint - anywhere you see a bunch of brown wires attached to a bolt).
This is what I did: The other option is to unplug the connector going to the external fog light housing, and then cut it off. Then cut the 9006 connector out of the HID harness, and wire it directly to the inputs of the HID harness.
You can put a couple female spade connectors on the original wires, and then plug them into the 9006 harness, or you can solder and heatshrink. That's what I did. Also, when you cut the connector off, make sure u leave enough wire so that you can reattach it in case you ever want to convert back to halogen.
George
Trending Topics
#8
That is almost the exact kit I got for my 99 Camaro SS. I had to flip the black clip at the top of the first pic around so that the "lock" was on the other side of the plug. Worked perfectly after that. Still does. Everything else was pretty intuitive.
#9
You Need to do some custom wiring. It's NOT plug and play. But, it IS really simple.
Basically you have two choices here. First choice. Connect the female that plugged into the bulb to the blue wire, and then get a female tab spade connector and run a wire to chassis ground. (Hint - anywhere you see a bunch of brown wires attached to a bolt).
This is what I did: The other option is to unplug the connector going to the external fog light housing, and then cut it off. Then cut the 9006 connector out of the HID harness, and wire it directly to the inputs of the HID harness.
You can put a couple female spade connectors on the original wires, and then plug them into the 9006 harness, or you can solder and heatshrink. That's what I did. Also, when you cut the connector off, make sure u leave enough wire so that you can reattach it in case you ever want to convert back to halogen.
George
Basically you have two choices here. First choice. Connect the female that plugged into the bulb to the blue wire, and then get a female tab spade connector and run a wire to chassis ground. (Hint - anywhere you see a bunch of brown wires attached to a bolt).
This is what I did: The other option is to unplug the connector going to the external fog light housing, and then cut it off. Then cut the 9006 connector out of the HID harness, and wire it directly to the inputs of the HID harness.
You can put a couple female spade connectors on the original wires, and then plug them into the 9006 harness, or you can solder and heatshrink. That's what I did. Also, when you cut the connector off, make sure u leave enough wire so that you can reattach it in case you ever want to convert back to halogen.
George
#10
I've been thinking about doing the HID conversion to my fogs on the same car as the OP. MY question is: IS there a plug and play kit out there for an H1 equipped car? I really don't like the options of hacking on my car's wiring OR on the wires of a brand new lighting kit.
IF you just add a ground wire, and use a female spade to connect it to the ground side of the HID harness, you don't need to hack or cut into anything.
George
#11
Not really, because the H1 uses the housing the bulb itself fits into as a ground, and has only one conductor for +12v
IF you just add a ground wire, and use a female spade to connect it to the ground side of the HID harness, you don't need to hack or cut into anything.
George
IF you just add a ground wire, and use a female spade to connect it to the ground side of the HID harness, you don't need to hack or cut into anything.
George
#12
You Need to do some custom wiring. It's NOT plug and play. But, it IS really simple.
Basically you have two choices here. First choice. Connect the female that plugged into the bulb to the blue wire, and then get a female tab spade connector and run a wire to chassis ground. (Hint - anywhere you see a bunch of brown wires attached to a bolt).
This is what I did: The other option is to unplug the connector going to the external fog light housing, and then cut it off. Then cut the 9006 connector out of the HID harness, and wire it directly to the inputs of the HID harness.
You can put a couple female spade connectors on the original wires, and then plug them into the 9006 harness, or you can solder and heatshrink. That's what I did. Also, when you cut the connector off, make sure u leave enough wire so that you can reattach it in case you ever want to convert back to halogen.
George
Basically you have two choices here. First choice. Connect the female that plugged into the bulb to the blue wire, and then get a female tab spade connector and run a wire to chassis ground. (Hint - anywhere you see a bunch of brown wires attached to a bolt).
This is what I did: The other option is to unplug the connector going to the external fog light housing, and then cut it off. Then cut the 9006 connector out of the HID harness, and wire it directly to the inputs of the HID harness.
You can put a couple female spade connectors on the original wires, and then plug them into the 9006 harness, or you can solder and heatshrink. That's what I did. Also, when you cut the connector off, make sure u leave enough wire so that you can reattach it in case you ever want to convert back to halogen.
George
Thanks again..
