Hello,
I've sprung a leak in a hose, and I'm having difficulty identifying which one it is in order to get a replacement.

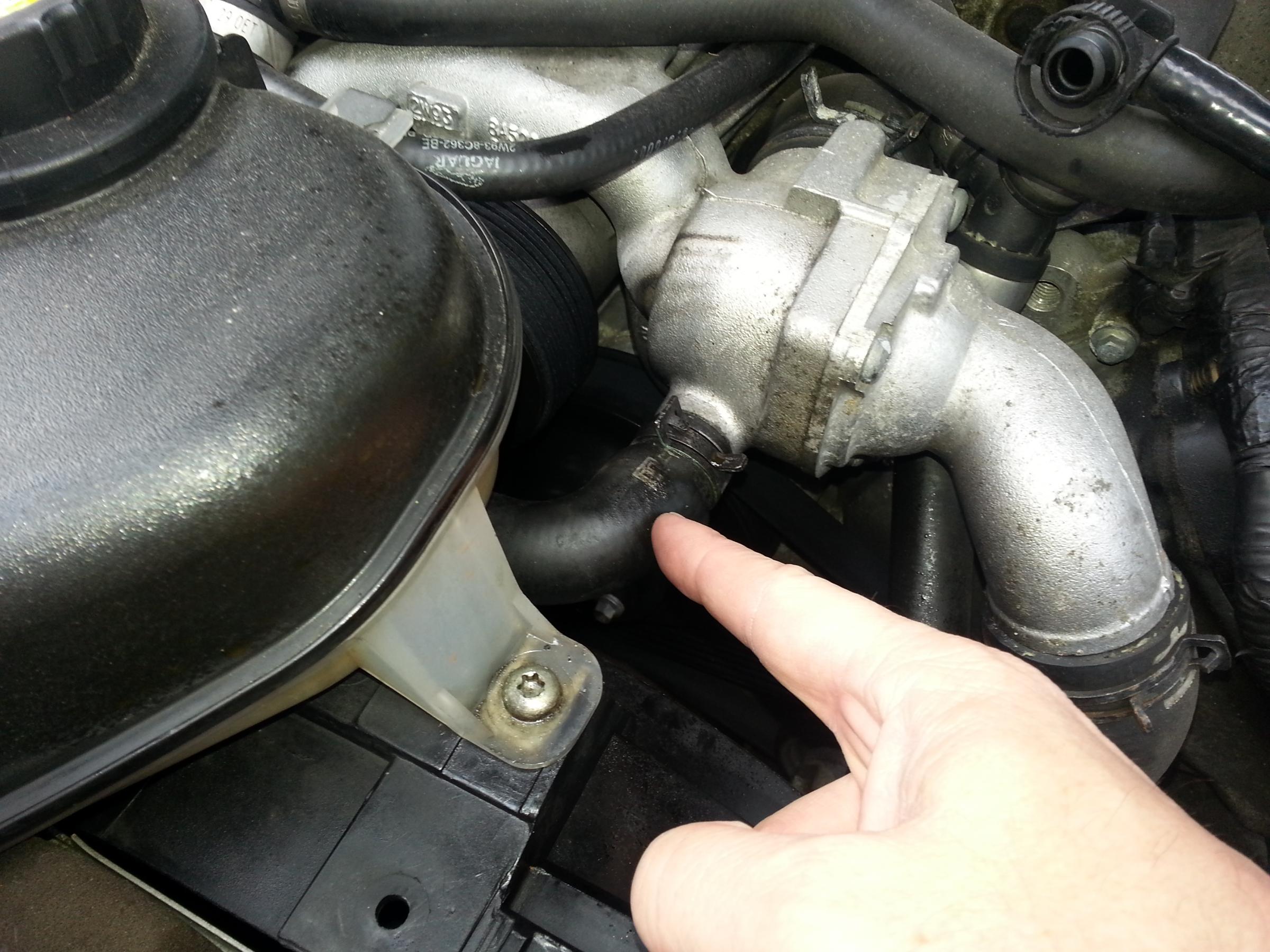

I'm pointing at it in the attached picture.

I've checked all of the diagrams I can find on the JEPC but I can't determine which one it is.

Any suggestions?



Sorry, this is a 2005 S-Type R.
Thanks.



/www.jaguarforums.com/forum/s-type-s-type-r-supercharged-v8-15/plz-help-identifying-intercooler-hose-part-128845/

everything your wanted to know about S type R hoses......... apparently........



I appreciate that...but it actually doesn't help me.

I've looked through that thread, and the other STR hoses thread.

Both threads contain lists of hoses with part numbers...but I don't know which hose in those lists corresponds to the hose that I'm pointing to in the pictures.

None of the diagrams of the hoses really looks right either.
Frustrating.

Does anyone know which hose is the one I'm pointing to?

Thanks.
