Jag 1X43 electric seats

Thread Tools

Search this Thread

Old May 3, 2017 | 04:50 PM
  #1
Russell Powell's Avatar
Thread Starter
|
Junior Member
Joined: May 2017
Posts: 3
Likes: 0
From: letchworth
Default Jag 1X43 electric seats

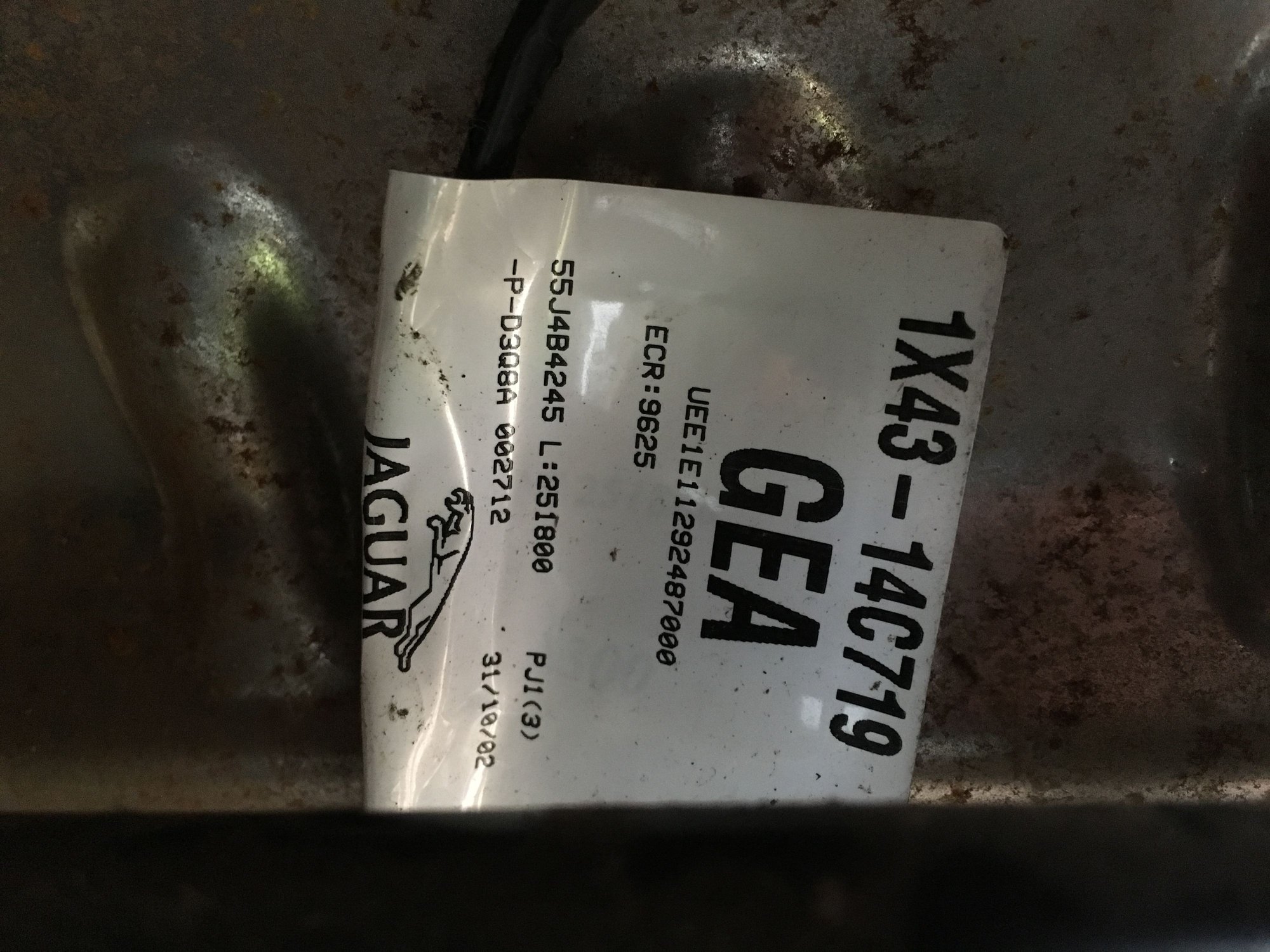

Hi, hope someone can help me out. I've brought a set of front jag x type seats that I want to fit in a camper conversion but I can't find a wiring diagrams that matches the cable colours I have. The seats have the controls and the connector block with the wires cut. I have attached pictures but could do with some advise please.







Reply
Old May 3, 2017 | 06:27 PM
  #2
Rchiv's Avatar
Senior Member
Joined: May 2016
Posts: 212
Likes: 39
From: Orpington, Kent,UK
Default

Hi you can downloa the schematics from here https://www.google.co.uk/url?sa=t&rc...VJOFG7u44fCQ0Q

Roger

Reply
Old May 8, 2017 | 02:12 PM
  #3
Russell Powell's Avatar
Thread Starter
|
Junior Member
Joined: May 2017
Posts: 3
Likes: 0
From: letchworth
Default

Hi Roger, Thanks for you reply. I can't seem to find the cable colours that correspond to the cables on the connector block. Ive been checking the 2001 layouts? is that the correct year?

Your help is much appreciated.

Reply
Old May 8, 2017 | 02:15 PM
  #4
jimbov8's Avatar
Veteran Member
Joined: Jul 2012
Posts: 2,069
Likes: 666
From: Uk
Default

What year car did the seats come from.

Reply
Old May 8, 2017 | 06:11 PM
  #5
Rchiv's Avatar
Senior Member
Joined: May 2016
Posts: 212
Likes: 39
From: Orpington, Kent,UK
Default

The socket you have is to the 8 Way seat module. Fig 11.1 in the diagrams.

Roger

Reply
