My 05 XJR front suspension drops about 1.5 inches overnight, particularly in cold weather (50F degrees or lower). On start up it rises and everything is jake.
I figure there is an air leak someplace and would like to check it out. Does anybody have an air line diagram? JTIS says to check for leaks but gives no info except for major component location. No info on air line routing or junctions.
Any help out there on how to approach the problem and how to get an air line chart would be welcome.
I figure there is an air leak someplace and would like to check it out. Does anybody have an air line diagram? JTIS says to check for leaks but gives no info except for major component location. No info on air line routing or junctions.
Any help out there on how to approach the problem and how to get an air line chart would be welcome.
#4
#5
So OK. I've done the soapy water leak test on all available air connections. All good. Did not do the air compressor as it's too hard to get to and logic says thats not the problem anyway.
I'm thinking as follows: Sense it's only the front end that drops, it's not the compressor or the tank. Sense the Rt side drops a little lower than the Lft side there may be 2 issues.i.e. the 2 front air shocks leak separately.
Therefore, sense the drop any occurs only over a 36 hr period with 60 F degree or lower temps , quickly corrects on start up and air shocks are $1K+ each------ maybe I should just forget about it. I have to admit that this conclusion is based on a sketchy understanding of the air suspension system.
ANY THOUGHTS OUT THERE.
I'm thinking as follows: Sense it's only the front end that drops, it's not the compressor or the tank. Sense the Rt side drops a little lower than the Lft side there may be 2 issues.i.e. the 2 front air shocks leak separately.
Therefore, sense the drop any occurs only over a 36 hr period with 60 F degree or lower temps , quickly corrects on start up and air shocks are $1K+ each------ maybe I should just forget about it. I have to admit that this conclusion is based on a sketchy understanding of the air suspension system.
ANY THOUGHTS OUT THERE.
#7
Lincolns suffer this same issue all the time it's usually the air dryer that starts to leak or solenoid valve on the front air bags that are not closing properly. Have you checked the air springs for dry rot and or cracking?
Personally I removed the air suspension from my mark viii and built brackets and installed a custom air ride setup
Personally I removed the air suspension from my mark viii and built brackets and installed a custom air ride setup
Trending Topics
#8
#10
Likely places to check.
So OK. I've done the soapy water leak test on all available air connections. All good. Did not do the air compressor as it's too hard to get to and logic says thats not the problem anyway.
I'm thinking as follows: Sense it's only the front end that drops, it's not the compressor or the tank. Sense the Rt side drops a little lower than the Lft side there may be 2 issues.i.e. the 2 front air shocks leak separately.
Therefore, sense the drop any occurs only over a 36 hr period with 60 F degree or lower temps , quickly corrects on start up and air shocks are $1K+ each------ maybe I should just forget about it. I have to admit that this conclusion is based on a sketchy understanding of the air suspension system.
ANY THOUGHTS OUT THERE.
I'm thinking as follows: Sense it's only the front end that drops, it's not the compressor or the tank. Sense the Rt side drops a little lower than the Lft side there may be 2 issues.i.e. the 2 front air shocks leak separately.
Therefore, sense the drop any occurs only over a 36 hr period with 60 F degree or lower temps , quickly corrects on start up and air shocks are $1K+ each------ maybe I should just forget about it. I have to admit that this conclusion is based on a sketchy understanding of the air suspension system.
ANY THOUGHTS OUT THERE.
Check for leaks at the top of the front air suspension units. Look under the hood/bonnet where the air springs mount and you will see an open square where the top of the spring is mounted to the chassis proper and the air line is connected. Spray this entire area with very soapy water and look for bubbles coming from what appears to be the mating surface between the air spring and the chassis. If bubbles are coming out where the spring top contacts the chassis the spring is leaking and needs to be replaced.
The air lines just run along the side of the car to the reservoir in the trunk and should be easily traced without any type of diagram necessary. Just remove the various undertrays and the lines will be very apparent. The only line leaks I have ever seen have been accident victims. I've seen a few leaks at the connection between line and spring but those are just o-rings and compression fittings and should be easy to find with soapy water and easily repaired. I've never seen a leak at the reservoir in the trunk. There are no joints in any of the lines between reservoir and spring unless a previous repair has been made so there is nothing to check except physical damage to the lines. I have seen a couple of leaks at the main compressor line connection but this will not cause just the front to drop, it usually shows no symptoms except the air suspension fault message due to compressor overload flagging the 2308 code.
Good Luck.
#11
Wow!!!
[QUOTE=h20boy;180760]from BuckMR2's image hosting...
I have never seen this disc before anywhere. It pictures a 2007 XK left hand drive cockpit and has copyright of 2008 Jaguar Cars and says it is 2005 edition in english.
Are there other forum members using this disc? Does it load and display like say a 2002 authentic JTIS disc? Does anybody have some screen shots they could post?
Maybe I should move this to a new thread???
I have never seen this disc before anywhere. It pictures a 2007 XK left hand drive cockpit and has copyright of 2008 Jaguar Cars and says it is 2005 edition in english.
Are there other forum members using this disc? Does it load and display like say a 2002 authentic JTIS disc? Does anybody have some screen shots they could post?
Maybe I should move this to a new thread???
#12
I've only see BuckMR2's postings with it...his diagrams, and layout instructions look updated and fresh, compared to my version. It's coming from the UK, so you never know...mine won't be here for several days, maybe another week. I'll find out then, for sure.
I'll send a PM to BuckMR2, and see if he can answer your question.
I'll send a PM to BuckMR2, and see if he can answer your question.
#13
Yes the 2005 JTIS works the same as previous versions

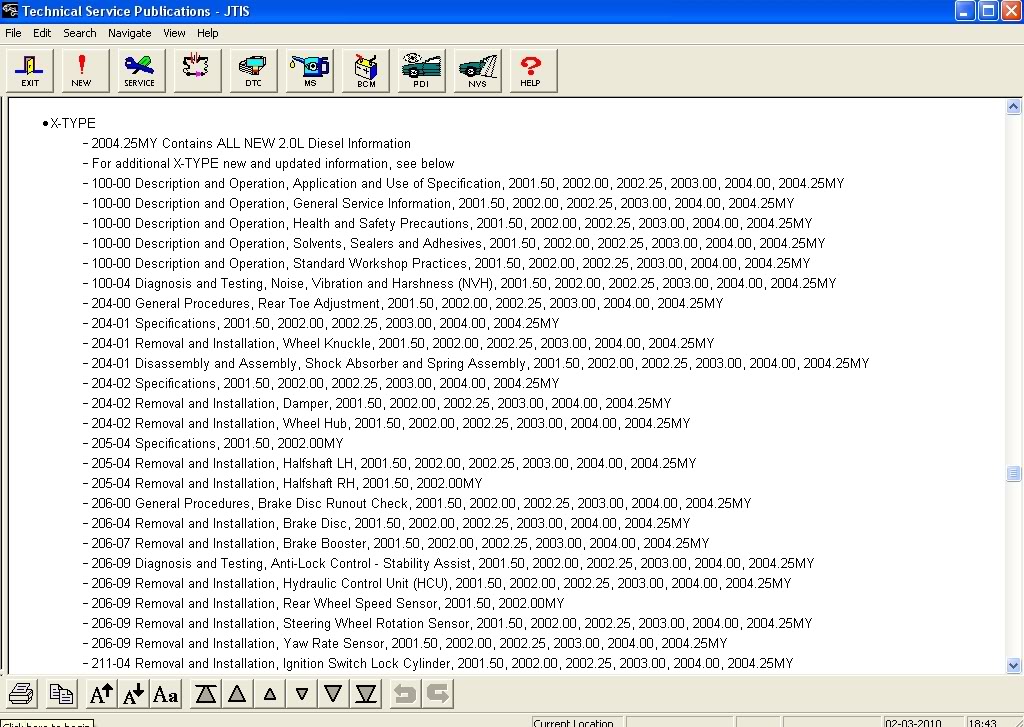

There is a lot of new info/update info (a fraction listed in one of the pics)
