Correct routing for throttle cables?
#1
Correct routing for throttle cables?

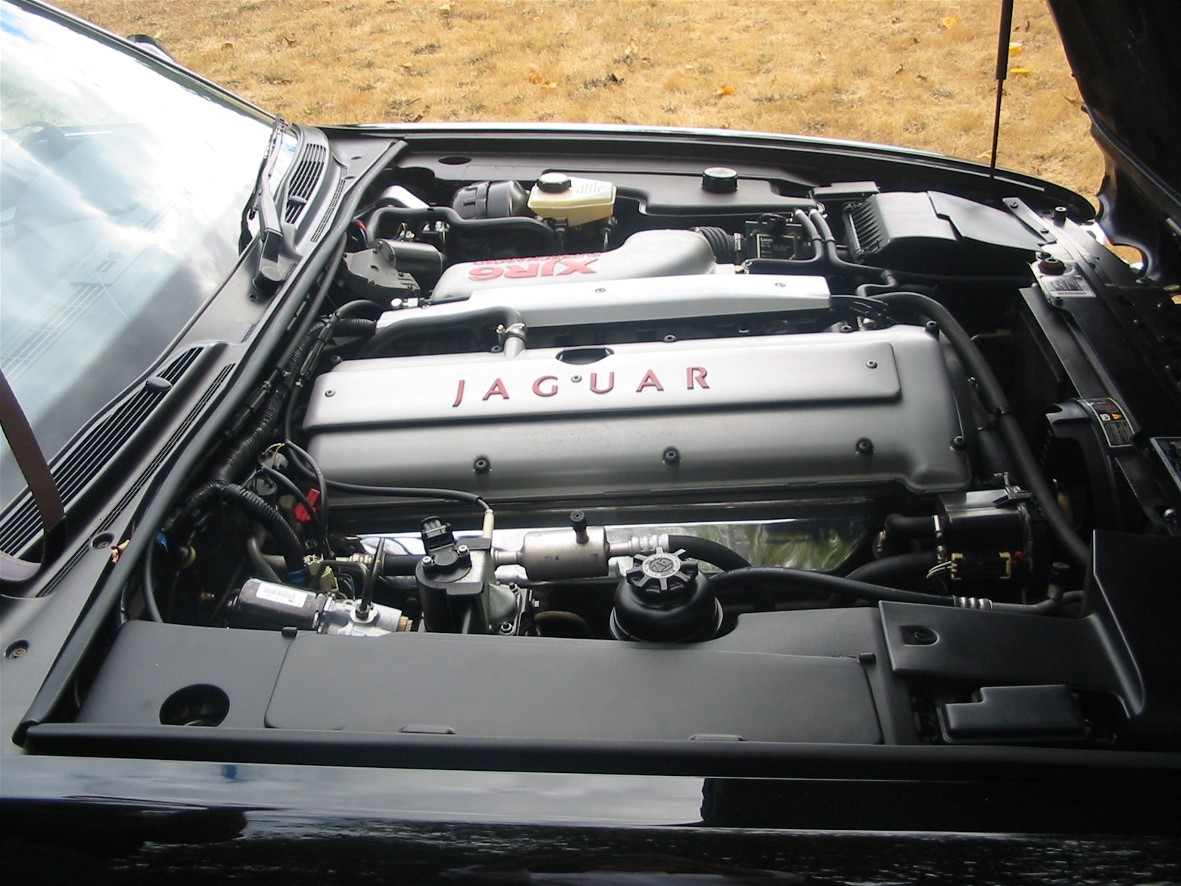

I've attached a photo of how my throttle cables are currently routed.
One is routed along the firewall, and one is lying pretty casually across the S/C intercooler intake and valve cover.
Somehow I don't think the latter is likely correct as it seems too haphazard and isn't secured in any way as the cable lays across the valve cover?
The one along the firewall is also mostly unsecured and is wedged behind some other harnesses/hoses.
I can see there are/were some clips meant to hold one or both of these cables in place along the firewall and wiring harness, but those clips are all broken.
Question: Can someone provide some high resolution photos of the correct routing of both throttle cables so I can secure them properly before I get into adjusting them?
.
One is routed along the firewall, and one is lying pretty casually across the S/C intercooler intake and valve cover.
Somehow I don't think the latter is likely correct as it seems too haphazard and isn't secured in any way as the cable lays across the valve cover?
The one along the firewall is also mostly unsecured and is wedged behind some other harnesses/hoses.
I can see there are/were some clips meant to hold one or both of these cables in place along the firewall and wiring harness, but those clips are all broken.
Question: Can someone provide some high resolution photos of the correct routing of both throttle cables so I can secure them properly before I get into adjusting them?
.
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
The following users liked this post:
al_roethlisberger (05-27-2014)
#3
#4
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
The following users liked this post:
al_roethlisberger (05-28-2014)
#5
Thanks Doug, funny you mention that.... as I thought the same thing when I saw that plastic fitting. That "white plastic" (whatever type of plastic it is) is notorious about becoming brittle over time and easily shattering in any application I have seen it used.
The clips that held my throttle cable are broken and brittle, so I'll just use some velcro straps for now and see if I can source the actual factory clips from a wrecking yard over time.

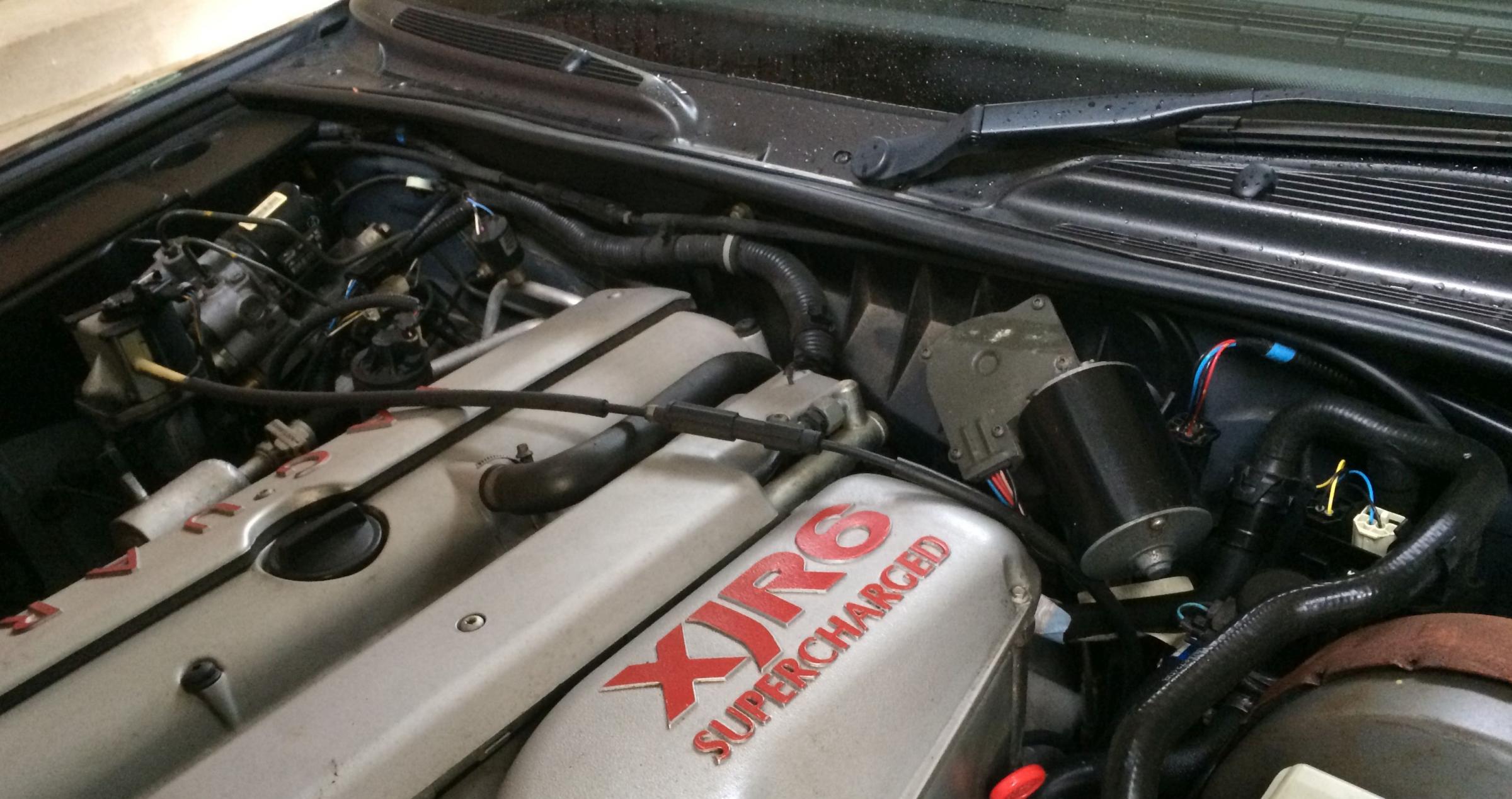

Appreciate the quick response and photo!
.
The clips that held my throttle cable are broken and brittle, so I'll just use some velcro straps for now and see if I can source the actual factory clips from a wrecking yard over time.
Appreciate the quick response and photo!
.
