Throttle Body Plug

Thread Tools

Search this Thread

  #1
Old 09-02-2015, 04:25 PM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default Throttle Body Plug
I am in need of a throttle body plug for my 99 XK8. The plug is the one on the left side facing out of the car and it is the 4 pin plug under the accelerator cable.

Reply Like
  #2
Old 09-02-2015, 05:03 PM
jimforrest (uk)'s Avatar
Senior Member
Join Date: Feb 2015
Location: Hampshire
Posts: 292
Received 125 Likes on 91 Posts
Default
The plug on the loom, or the one fitted to the throttle body?

Reply Like
  #3
Old 09-02-2015, 05:38 PM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default
The one that plugs into the TB from the loom. It is on the left facing out 4 pin blue, red, black and lavender leads.

Reply Like
  #4
Old 09-03-2015, 04:43 PM
jimforrest (uk)'s Avatar
Senior Member
Join Date: Feb 2015
Location: Hampshire
Posts: 292
Received 125 Likes on 91 Posts
Default

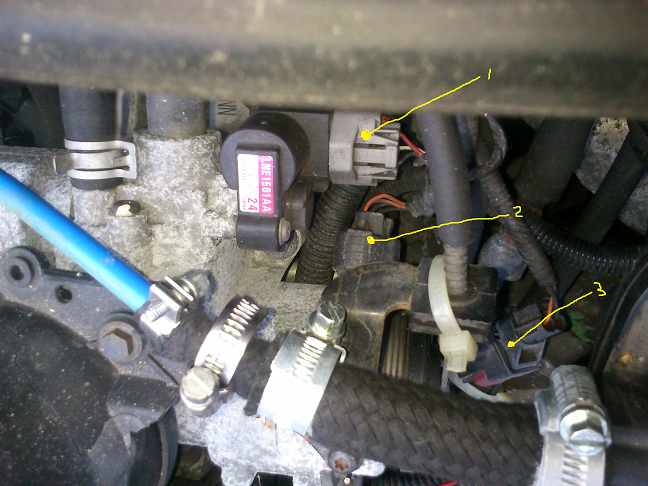

Gus - I suspect that the pic below is from a later TB - it has 3 connectors under the throttle cable. The one nearest the top of the pic has 3 wires, and the others have 4. Is one of them what you are looking for?

Name: DSC_0034a_zpsbfphqfll.png Views: 21209 Size: 707.7 KB

Reply Like
The following users liked this post:
Orthodixie (04-18-2018)
  #5
Old 09-03-2015, 05:05 PM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,981 Likes on 2,123 Posts
Default
Is it just the plastic housing that you need (ie; Are the terminals still intact?).

Reply Like
  #6
Old 09-03-2015, 05:18 PM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default
Looks like #2 4 wire

Originally Posted by jimforrest (uk)
Gus - I suspect that the pic below is from a later TB - it has 3 connectors under the throttle cable. The one nearest the top of the pic has 3 wires, and the others have 4. Is one of them what you are looking for?


Reply Like
  #7
Old 09-03-2015, 05:20 PM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default
Just the plastic housing Steve. The housing just fell apart.

Originally Posted by WhiteXKR
Is it just the plastic housing that you need (ie; Are the terminals still intact?).

Reply Like

Trending Topics

  #8
Old 09-03-2015, 05:30 PM
jimforrest (uk)'s Avatar
Senior Member
Join Date: Feb 2015
Location: Hampshire
Posts: 292
Received 125 Likes on 91 Posts
Default
Gus - the pic is from a 2002 XJ8 SE that my son is breaking (it's done 240,000 miles so I retired it). If you're really stuck over the plug I can snip it off and pop it in a Jiffy Bag - but I'm in the UK so it might take a few days to reach you.

Reply Like
  #9
Old 09-03-2015, 05:51 PM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default
Hold it for the moment I think I got one. I will get back with you....

Originally Posted by jimforrest (uk)
Gus - the pic is from a 2002 XJ8 SE that my son is breaking (it's done 240,000 miles so I retired it). If you're really stuck over the plug I can snip it off and pop it in a Jiffy Bag - but I'm in the UK so it might take a few days to reach you.

Reply Like
  #10
Old 10-27-2015, 09:31 AM
XKR Brian's Avatar
Senior Member
Join Date: Feb 2009
Location: lakewood cal.
Posts: 262
Likes: 0
Received 21 Likes on 19 Posts
Default
did you ever find the connector, mine fell apart as well. I need one in a hurry.

Reply Like
  #11
Old 10-27-2015, 09:25 PM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,981 Likes on 2,123 Posts
Default
You can get it from Toyota: Toyota - HOUSING, CONNECTOR, FEMALE Part Number: 90980-11150

Reply Like
The following 2 users liked this post by WhiteXKR:
Fla Steve (01-17-2018), Orthodixie (04-18-2018)
  #12
Old 10-28-2015, 09:29 PM
XKR Brian's Avatar
Senior Member
Join Date: Feb 2009
Location: lakewood cal.
Posts: 262
Likes: 0
Received 21 Likes on 19 Posts
Default
I believe that one is for the TPS sensor. I am in need of the throttle motor connector on the driver side. Both 4 pin connectors but the one on the driver side is different.

Reply Like
  #13
Old 10-28-2015, 09:41 PM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,981 Likes on 2,123 Posts
Default
Can you find a number embossed on the back of the throttle motor connector? You may need a magnifier to read it. I do not have access to my own car at the moment.

Reply Like
  #14
Old 10-29-2015, 08:53 AM
Gus's Avatar
Gus
Gus is offline
Veteran Member
Thread Starter
Join Date: Jul 2008
Location: Berlin Md.
Posts: 11,341
Received 2,207 Likes on 1,700 Posts
Default
Brian,

That plug is for the PPS that is on the left side of the throttle body I am still looking for the plug for the TPS on the right myself. Check your PM.

Reply Like
  #15
Old 04-17-2018, 03:55 PM
Arthur DeRoss's Avatar
Junior Member
Join Date: Apr 2018
Location: Calif, Riverside county, anza
Posts: 2
Likes: 0
Received 1 Like on 1 Post
Default
Originally Posted by WhiteXKR
Can you find a number embossed on the back of the throttle motor connector? You may need a magnifier to read it. I do not have access to my own car at the moment.
Did anyone ever answer the question? I need the connecter a 4 pin on the driver's side.

Reply Like
  #16
Old 10-15-2019, 12:25 PM
Ktmscott's Avatar
Member
Join Date: Apr 2019
Location: San antonio
Posts: 43
Received 24 Likes on 8 Posts
Default
I have same problem . Got the tps plug but not the l/h pedal tps plug , female on the loom.

Reply Like
  #17
Old 10-15-2019, 12:29 PM
Ktmscott's Avatar
Member
Join Date: Apr 2019
Location: San antonio
Posts: 43
Received 24 Likes on 8 Posts
Default
Just looked at 90980-11150. Looks to be correct for the driver side pedal tps plug. I’m going to try it and see will confirm when I receive.

Reply Like
