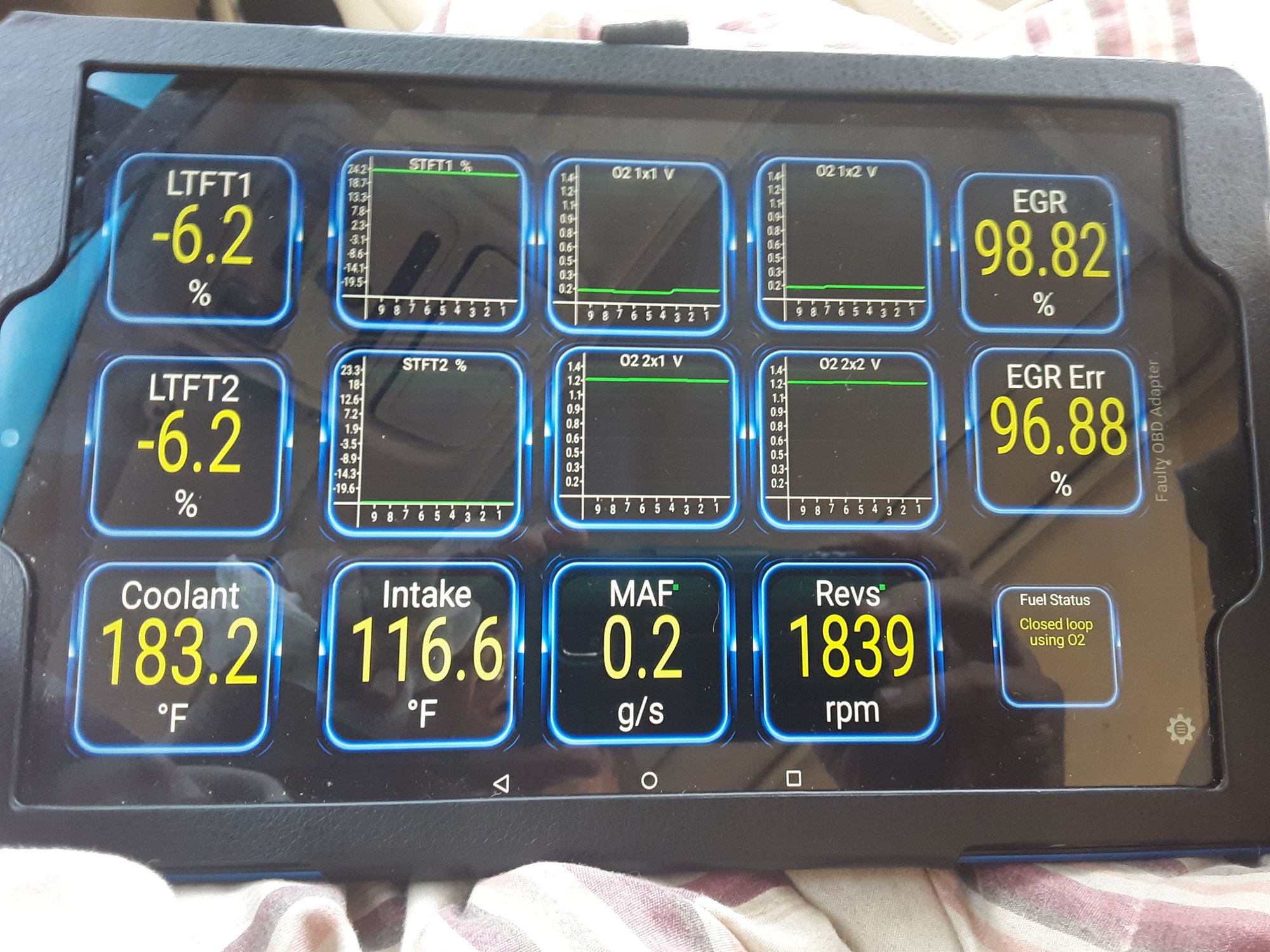

That's all the pics for now. I'm not sure which display on torque is for the tps. I'll investigate. I'm at work right now any have to go pretend to do something appreciate any hints, tip and opinions to get this sorted out. The errors did not pop up during this. I had cleared them. But they would have hit soon.
OK. EGR 95217 does pull up replacements. I'll start there. Gosh I hate to have to buy a new MAFS (I guess everybody does). Wish I could try it before I buy it.
I can see where the MAFS and EGR would effect the system overall. Any ideas regarding the different readings on the O2 sensors? We're planning on checking/replacing the intake gasket asap. Could it be anything else besides an air leak? We've changed the coils. Injectors?

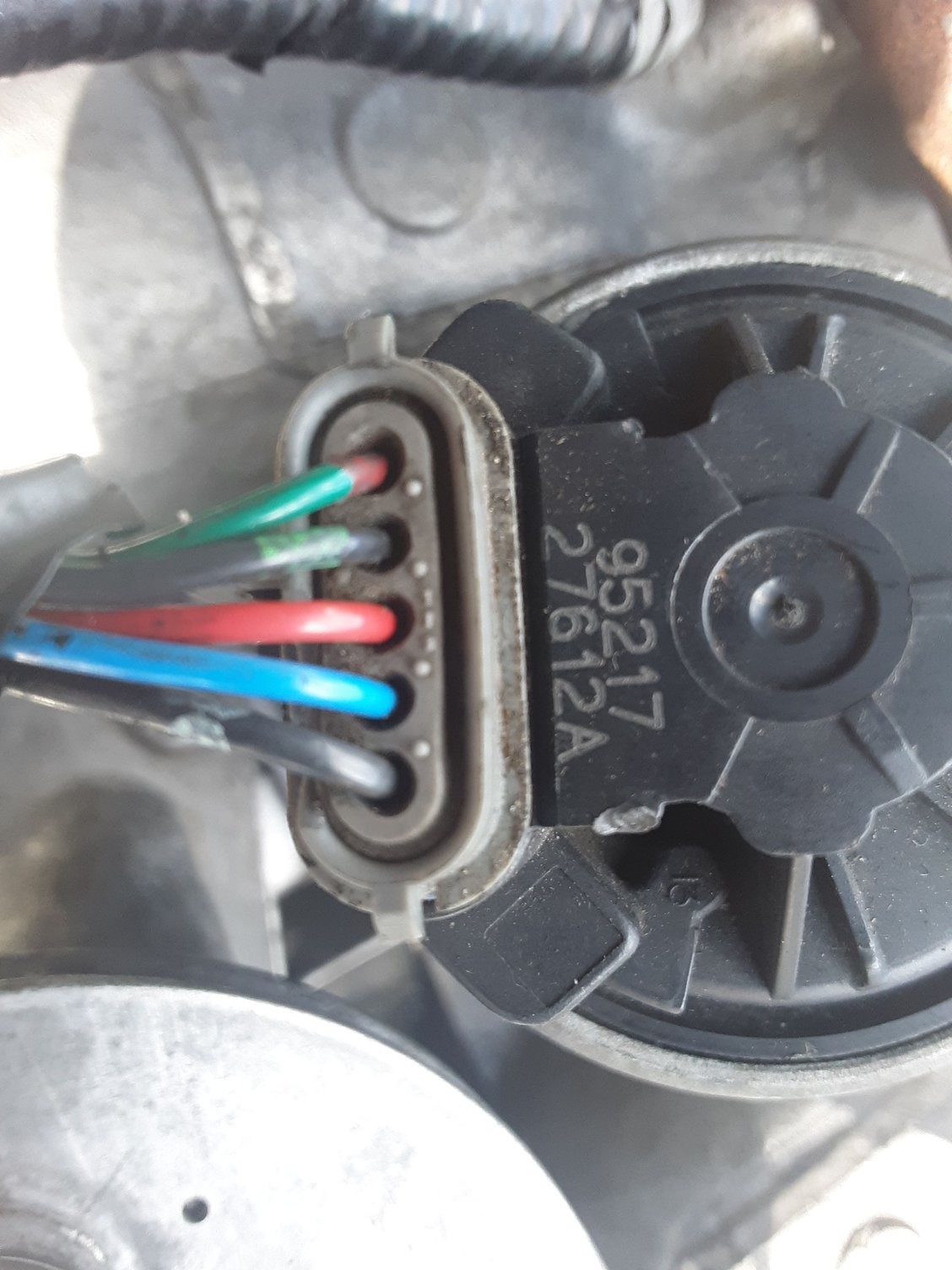

The EGR does have a position sensor built in , you can read this position with a simple meter before removing it
The MAF should be 4.3 grams / second at idle
The middle wire on the MAF sensor with the connector still installed should read 1.2 volts DC at idle , it will rise in voltage with higher throttle ranges
The ELM - 327 is a Canadian company patent that is stolen by Chiness copy cats
There is a question on whether the software is even tested before putting their product out so the confidence it is correctly giving you correct information
The MAF can bbe multiplyed by 10 or 100 to make sence
The EGR error can be backwards and 100 % could be 0 %
0.7 volts DC for a closed EGR at idle is what the position sensor will read with engine running at idle
Red / Pink wire
Middle wire of the 5
The MAF for the X300 normally aspirated X300 is different then the supercharged X300 and does not work between the 2 X300s
It is labeled as a Lucas , I'll have to look at my extra one in the garage
When a sensor is missing a signal or the signal is out of expected range the ECU will ignore that signal and use a less then optimal set of data maps
The idle range is the most critical area to get combustion correct
The TPS can have a good signal on 90 % of its range but a bad spot on 10 % and maybe your idle stop , once the ECU revert to the different data maps it takes X amount of time to revert to the optimum data maps when a good signal is recovered
The TPS does not read below 11 or 13 % as a good sensor
A valid test of the TPS is to very very slowly read the middle wire and look for a bad spot by the meter and not seeing 0 volts ,so you would see a sweep between 0.6 to 4.5 volts
There have been cases where the sweep does not get to the high range and this effects the engine high end output
This also applies to the MAF as you run the engine
There is a TSB to not run the engine up if sitting in the driveway
So much great information. I've decided I need to go back and re read much of what was given me here. I can see places where you gents answered my questions here before I asked them.
This weekend I'll be checking the sensor voltage levels with a fluke meter. First thing I have to do is add a good ground point on the engine to attach the meter to. When checking the TPS voltage it was infuriating trying to hold both probes, one on the engine and one on the nicked wire. I'd like to make it an aligator clip so it'll lock onto the ground probe.
We're hoping the new intake manifold gasket will arrive soon. When we installed it last time we installed it dry. No sealants. Should we be using anything on top of the gasket? Gasket seatant or even a thin coat of oil on both sides? What is the standard practice for this? And is there a torque pattern for the bolts? I think last time once we got them finger tight we torqued them front to back.
Before Re installing the manifold we'll eyeball it for cracks.
I’m away from my service manual, you really should buy one. They’re on eBay all the time. Green soft covered book.
The exhaust manifold has a pattern and a torque requirement, pretty high, if I recall correctly. Basically you start in the middle and go cross-cross back and forth towards the outer bolts/nuts.
Not sure if any kind of product will be needed for the seal as these areas get very hot. I would assume it does go on dry.
This set of data is a classic symptom of O2 sensors being connected the wrong way around. It would be worth swapping the connections and see what happens - it's free!
My question about bolt pattern and sealant was for the intake manifold to cyclinder head gasket, not exhaust. I realize now I wasn't clear. Apologies all around. The exhaust manifolds have not been removed (yet), and I hope not to have to .
Should I be using any type of sealant? When I installed one a couple months ago on this car I installed it dry. Don't know if that could be part of my vacuum leak issue. I have another one coming soon, so I want to be sure it seals. We'll be looking for cracks in the intake manifold while it's apart.
We did check the exhaust manifolds for cracks. Found none, though the donuts were shot. So we installed new donuts. Very quiet now, which is why I don't think it's an exhaust leak causing our issue.
Yes, I need to buy a service manual. I'll check ebay.
