Pic or Diag of Brake Cooling Ducts? RESOLVED

Reply Subscribe

Thread Tools

Search this Thread

May 8, 2014 | 08:10 AM

#21

jimlombardi

Veteran Member

Joined: Aug 2010

Posts: 2,636

Likes: 1,636

From: Southington CT

It is part# BEC19939 and it is called "undertray" in the JEPC parts catalog, also JTIS calls it "Radiator Splash Guard", Amazon.com calls it "Skid Plate".

Here is a diagram of it on jaguar classic parts (item# 26):

Part no. BEC19939 | Undertray parts from Jaguar Classic Parts UK

Jim Lombardi

Last edited by jimlombardi; May 8, 2014 at 08:13 AM.

May 8, 2014 | 02:06 PM

#22

Palmyra

Junior Member

Joined: Mar 2014

Posts: 14

Likes: 1

Quote:

Originally Posted by xjay8

We refer to it as the 'Belly Pan' and yes, it's the wide plastic shield that attaches to the bottom leadsing edge of the front bumper.
I use stainless self tappers to mount mine.....far more secure than those useless factory rivett things called 'scrivetts' ;o]

The bumper holes where they would insert are cracked, would that method suffice?

I have seen nut and bolt rigged up under there when I got it.

May 8, 2014 | 03:16 PM

#23

jimlombardi

Veteran Member

Joined: Aug 2010

Posts: 2,636

Likes: 1,636

From: Southington CT

You can buy a new one on Amazon.com for $71.23 free shipping:

Robot Check

Read the 3 customer reviews on the amazon website.

Jim Lombardi

May 9, 2014 | 08:40 AM

#24

vincent661983

Veteran Member

Joined: Oct 2010

Posts: 1,438

Likes: 169

From: New York

here is what I did
https://www.jaguarforums.com/forum/x...cement-114778/

May 9, 2014 | 11:05 AM

#25

jimlombardi

Veteran Member

Joined: Aug 2010

Posts: 2,636

Likes: 1,636

From: Southington CT

The 3M Automix™ EZ Sand Flexible Parts Repair Kit, 05896 is $67.52 for 2) 13 oz tubes on amazon website. They also have it in a kit of 2) 5 oz tubes for $37.98.

I would probably buy the new undertray that is on Amazon for $71.23.

Jim Lombardi

May 9, 2014 | 01:43 PM

#26

vincent661983

Veteran Member

Joined: Oct 2010

Posts: 1,438

Likes: 169

From: New York

Jim, I wished you had found me this good deal before,LOL

I would definitely get one at this price, the best I found before was at least 100 dollars.

otherwise I would not think of this alternative

we all appreciate Jim' participation on this forum

May 14, 2014 | 03:19 PM

#27

Palmyra

Junior Member

Joined: Mar 2014

Posts: 14

Likes: 1

Quote:

Originally Posted by grandell

From what I can remember, the front of the duct fits over, or inside, part of the bumper. The tabs don't really do much.
You should only have to secure the back end, inside the wheel well, and that will stop it moving.

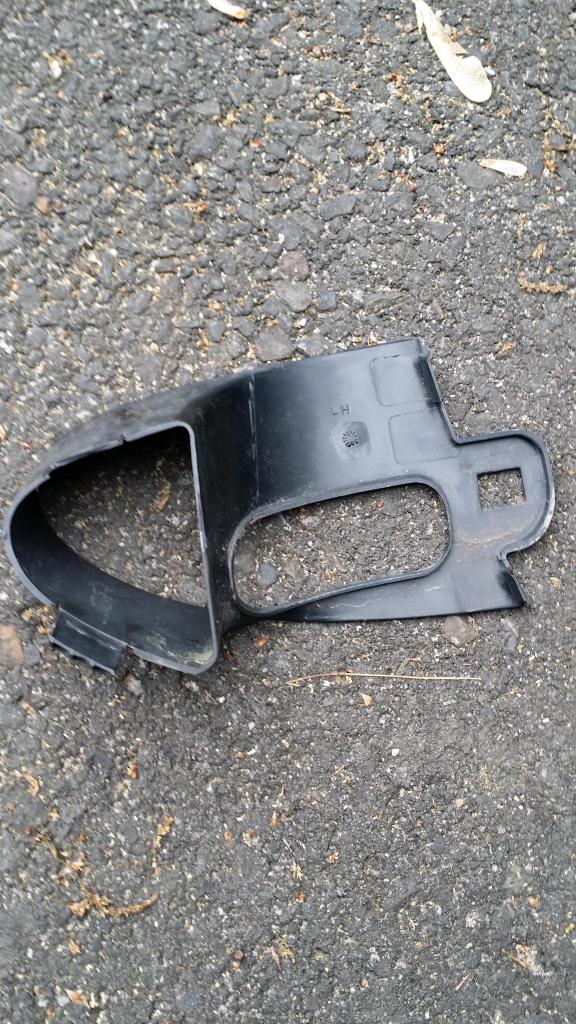

Jim,,, do you have a part number for this piece that clips in at the bumper and holds the pipe?
