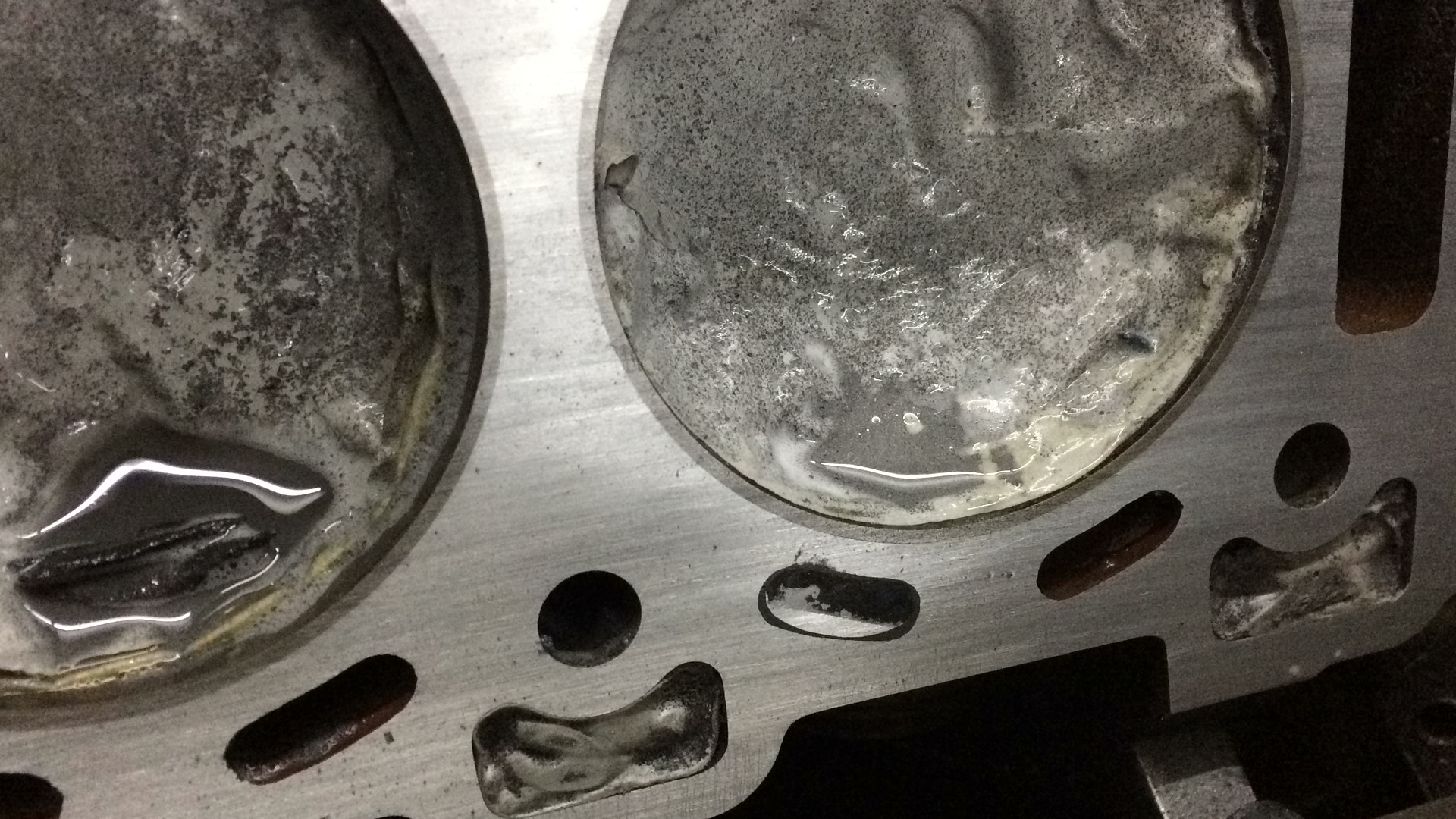

my 2001 xjr had recently the head gasket changed. water has found a way into 8th cylinder. unfortunately water also has oxidised a small route into the 8th cylinder of the engine block. I thought blocking the water inlet beneath the oxidised area would keep the water away. the head gasket has no outlet on that spot anyhow. (why not?) I crafted a 2mm piece of alloy that fitted exactly into the water inlet and glued it in. i used a special high temperature epoxid fluid. After driving for about 2 weeks I have the same problem again, hight water consumption 1 liter on 30km, and sometimes missfire on the 8th cylinder (error code P1316, P0308) Actually I´m pretty clueless.
What, if the hole would be finaly closed by welding or soldering ?! Not sure if this is possible without dismantling the engine block.
thank you
frank
What, if the hole would be finaly closed by welding or soldering ?! Not sure if this is possible without dismantling the engine block.
thank you
frank
#2
Join Date: Feb 2013
Location: Trying to escape Central Florida
Posts: 4,636
Received 1,769 Likes
on
1,303 Posts
Have you done a compression check? It sounds like you may have more of an issue as you may fear. Its difficult to tell from the pics, thus I would ask a local indy to give it a look and opinion.
You can tell you had moisture in that cylinder as clean as the piston top is. I have seen a sleeve that didn't show any breaks until it heated up and weeped fluid. Just saying, so as to be sure you check that.
You can tell you had moisture in that cylinder as clean as the piston top is. I have seen a sleeve that didn't show any breaks until it heated up and weeped fluid. Just saying, so as to be sure you check that.
#3
The following users liked this post:
lelledge (12-04-2016)
#4
There's a significant amount of corrosion in the water passages. Look at the thermostat pipe sticking up. I don't know if you'll be able to save that engine even with MLS gaskets. At minimum you'd have to have the deck milled at the machine shop. I just don't know if that's possible with the corrosion around the sleeves. You'd be better off getting another engine though.
#5
I have the same problem with my head gasket. I was only going to change the tensioners, until i notice the valve seat rings are off...*^&$#%^ .... that was my first reaction. Anyway, when I took the cylinder head on the right side off, the gasket had less ports than the block and head had....
left side of engine... as you all may see the ports ARE rusting.....I'm scared that this thing will be to corrode. and useless engine is something I can not afford. And there is no way i can get rid of my black beauty
left side cylinder head, see all the ports. and yes those are valve seat rings hanging out.
this is the head gasket that was on the left side. This sucks if this thing is blocking all coolant passages
left side of engine... as you all may see the ports ARE rusting.....I'm scared that this thing will be to corrode. and useless engine is something I can not afford. And there is no way i can get rid of my black beauty
left side cylinder head, see all the ports. and yes those are valve seat rings hanging out.
this is the head gasket that was on the left side. This sucks if this thing is blocking all coolant passages
#6

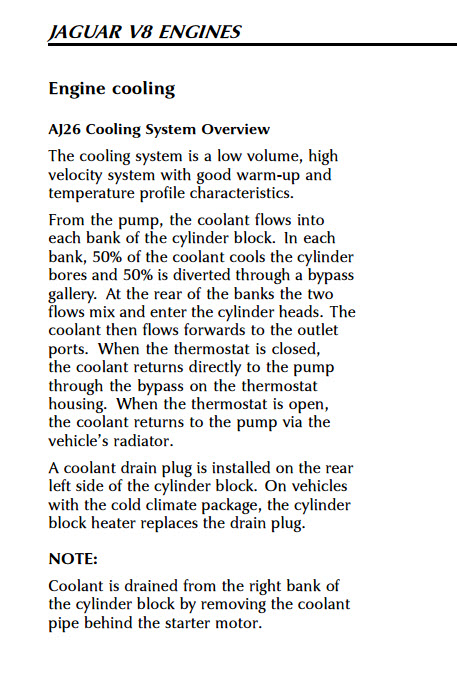

I think these "blockages" are intended and the additional holes are for casting. Looking at the cooling flow diagrams I recall that the cooling system is a high flow/low volume where the water goes down the length of the block, up and back along the heads, or the otherway round, there is a description here in one of the training guides.
http://www.jagrepair.com/images/Trai...des/168_sg.pdf
http://www.jagrepair.com/images/Trai...des/168_sg.pdf
Last edited by dsetter; 12-05-2016 at 12:47 PM. Reason: Updated
The following users liked this post:
lelledge (12-12-2016)
#7
+1dsetter on the ports being covered intentionally. I'm not sure but my best guess would be they are part of the casting.
It looks to me like this engine was overheated and it caused the valve seats to drop. You will need some machine work to replace the seats and replace the those valves. Your other option would be to find used heads or a used engine.
It looks to me like this engine was overheated and it caused the valve seats to drop. You will need some machine work to replace the seats and replace the those valves. Your other option would be to find used heads or a used engine.
Trending Topics
#8
Resurfacing Engine Block by hand
Hi,
It is the second time that I have to remove the cylinder head, because after 500miles he was eating water again and some firering issues on the
8th cylinder.
I have been inspired by someone on youtube to do the head resurfacing by hand. I didn´t want to go the long way so I tried this option.

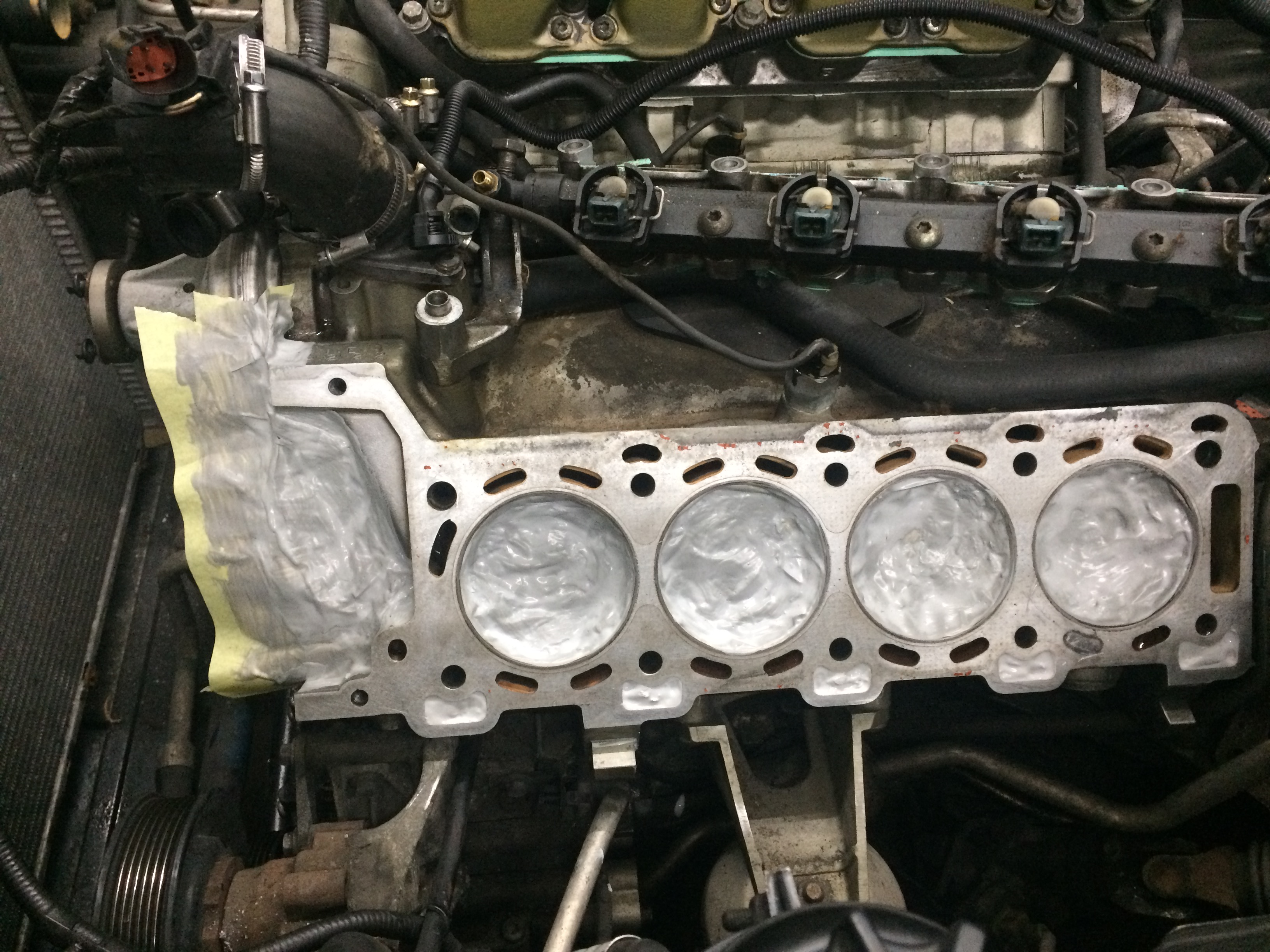

I have used a straightedge to measure the engine block and I have realized, it was warped between 7/8 cylinder. Just check the pictures.
