Default 1987 jaguar xj6 wiper motor location

Hello everyone. I've got another foolish question for you all. Where is the wiper motor on my xj6 and how would I go about testing it's function. Mine don't work and I figure that is the easiest area to start in.
Thanks. Evan

  #2
Old 11-16-2014, 02:29 PM
Darrenmb's Avatar
Veteran Member
Join Date: Oct 2010
Location: Orlando Florida
Posts: 1,715
Received 278 Likes on 182 Posts
Default

if you remove the battery you will see it sitting inside the fender... of course hard to test with battery out, but if you unplug it and then reinstall battery you can probe for voltage with a test light

  #3
Old 11-16-2014, 02:37 PM
Member
Thread Starter
Join Date: Sep 2014
Location: Muncie Indiana
Posts: 37
Received 2 Likes on 2 Posts
Default

Well thats a start. Which wire is generally the hot wire to make them work on these cars? Coming into the motor of course

  #4
Old 11-16-2014, 02:52 PM
Senior Member
Join Date: Mar 2013
Location: Aalborg, Denmark
Posts: 129
Received 35 Likes on 27 Posts
Default

Hi Evan


Link to the complet wiring guide for your Jag :-)
http://www.mediafire.com/view/?n8w2quhzgbv66uu


Stig

Attached Thumbnails 1987 jaguar xj6 wiper motor location-wipers.jpg
  #5
Old 11-16-2014, 06:27 PM
Senior Member
Join Date: Jan 2007
Location: North Carolina, USA
Posts: 641
Received 183 Likes on 99 Posts
Default

When I test those in the shop, I use one of the old harness that was cut off the fire wall..
Green/Black and Black both have to be grounded..
Green/White are the fast speed
Green/Pink are the slow speed
Green/Orange are intermittent

There is a ground to the body behind the wiper... A lot of times that is where the issue is..
Very poor connection, a nut and bolt through a thin body panel..

Cheers
David
EverydayXJ.com

  #6
Old 11-16-2014, 06:33 PM
Senior Member
Join Date: Jan 2007
Location: North Carolina, USA
Posts: 641
Received 183 Likes on 99 Posts
Default

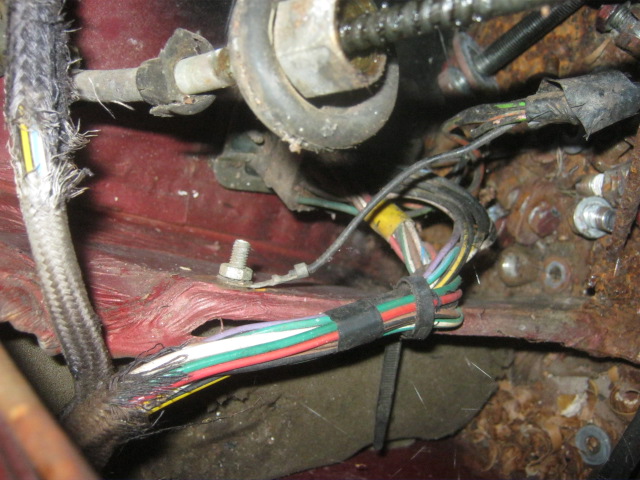

Here's the ground that you have to be aware of...

David
EverydayXJ.com

Attached Thumbnails 1987 jaguar xj6 wiper motor location-img_8907.jpg
The following 2 users liked this post by davidboger:
Jag7651 (11-17-2014), LnrB (11-16-2014)
  #7
Old 11-17-2014, 10:47 AM
Veteran Member
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 5,735
Received 1,945 Likes on 1,569 Posts
Default

Mr. Hotrod:


My detailed post got shot down by IE8!! I finked out in mid composition.


Short version. Extend that ground out to the same place that the battery ground cable attaches to the wing wall.


Carl
