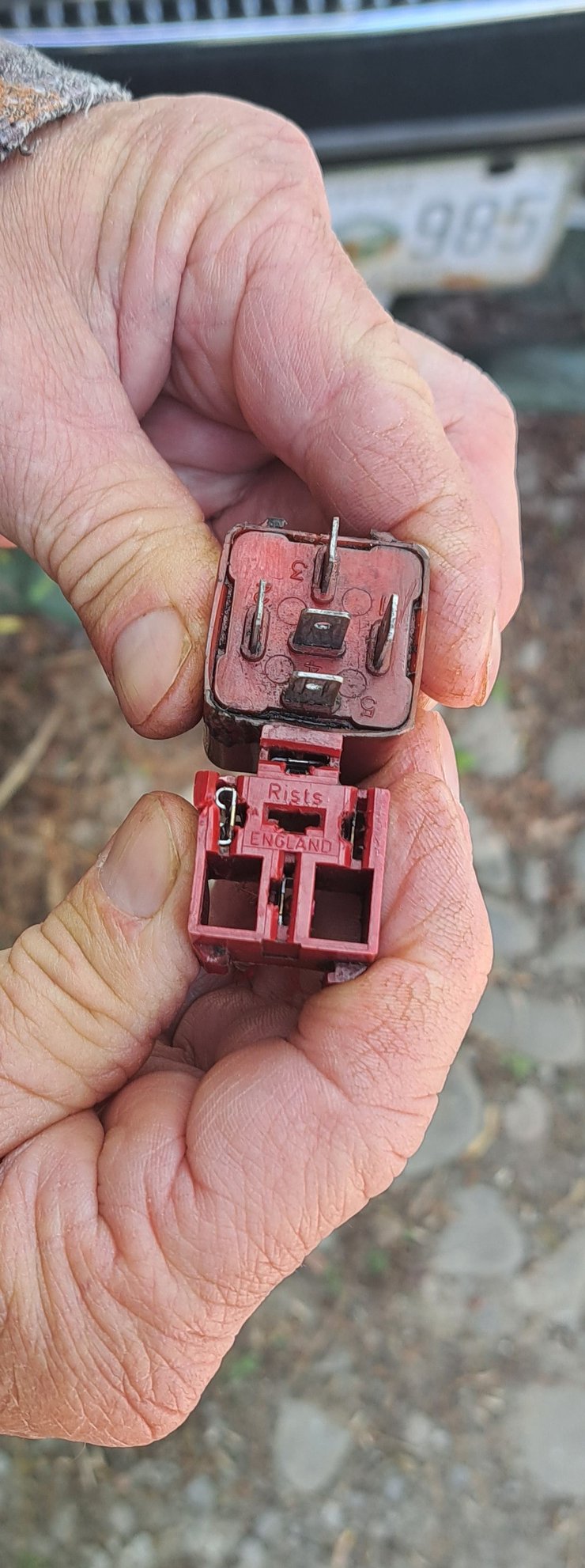

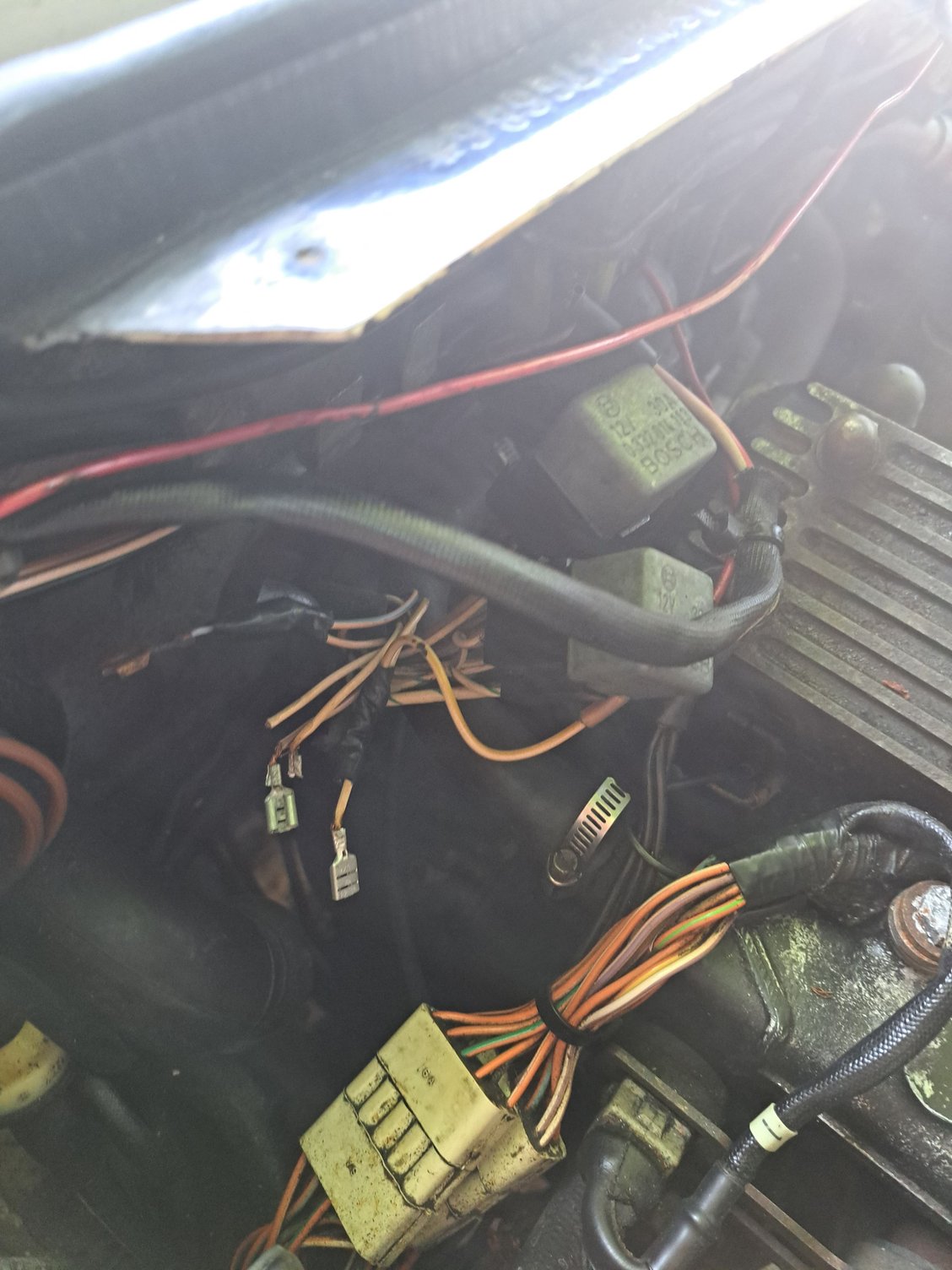

Made a silly mistake with my 1987 series 3 6 cylinder 4.2l when working on the cold start relay and hoping someone can help me out. Attached is a photo of the diode unit relay, only problem is I didn't note which wire came from which slot when i removed them. The wires are brown, white, white yellow, white purple, and white blue and holes are labeled 1-5. Just don't know what goes where and can't find the answer anywhere. Thanks in advance!

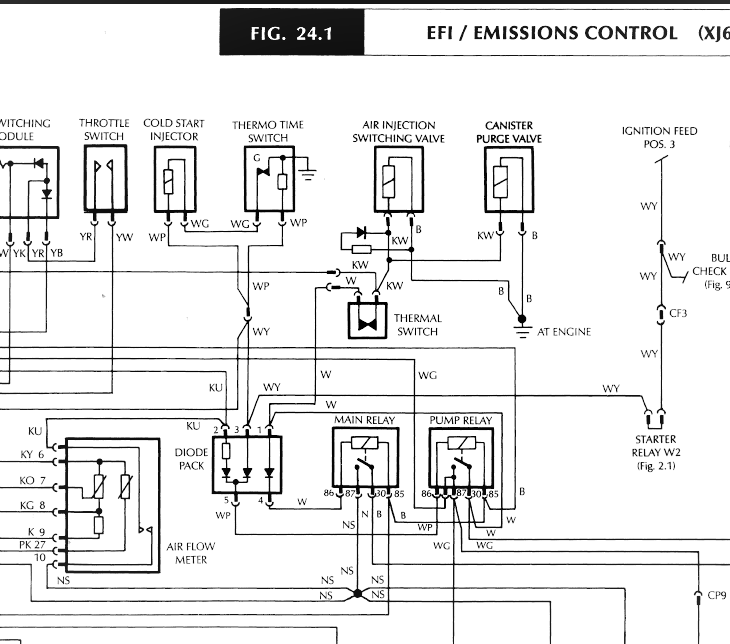

Jaguar22 (and others new to these cars), be sure and download the free S-57 wiring guide. It is an indispensable tool. Note that the front page has the guide to wire color. This document can be downloaded from Jose's website: Link to S-57
