Hi all, can anyone help with the fuse and relay locations. I have no power to the switches. Any help would be appreciated.



Welcome to the forums nudge61,

I've moved your question from General Tech Help to XJS forum. Members here with the same model will be able to help.

Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.

Graham



There is a relay and some kind of fuse above the RH footwell, On my 1977 the issue was a broken hair wire in the relay.



Thanks for that, I'll check it out.



Hello Nudge

Being an Australian - it is on the left hand side - tucked in behind the glove box.

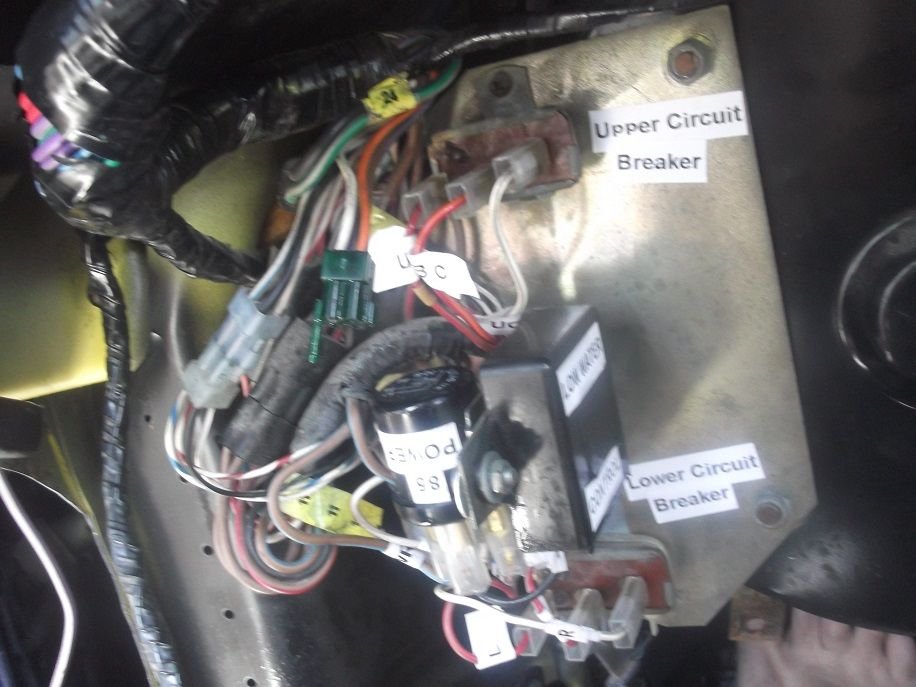

In regards to the picture below - please note that what I have labelled as circuit breakers are in fact bulb failure units

Mine was easy to get to because I have the dash fascia out to get the cracks fixed up and the air con repaired while it is out

No fuses in the system

Cheers
Steve


Panel removed



Thanks for that Steve, that's a huge help. I really appreciate it.



Hi Steve, thanks for your info, I had a fried relay so I replaced it and all's good.

Cheers

Nigel
