Convertible hood hose diagram
Working on my 93 XJS and of course I undid the hoses to the convertible hood pump. I’m looking through my manuals, and did a search, but can’t find anything! Does anyone have a pic of how they go? I took pics before, but I can’t tell smh
Thread Starter
|
Senior Member
Joined: Sep 2018
Posts: 792
Likes: 287
From: Pennsylvania
FOUND SOMETHING!

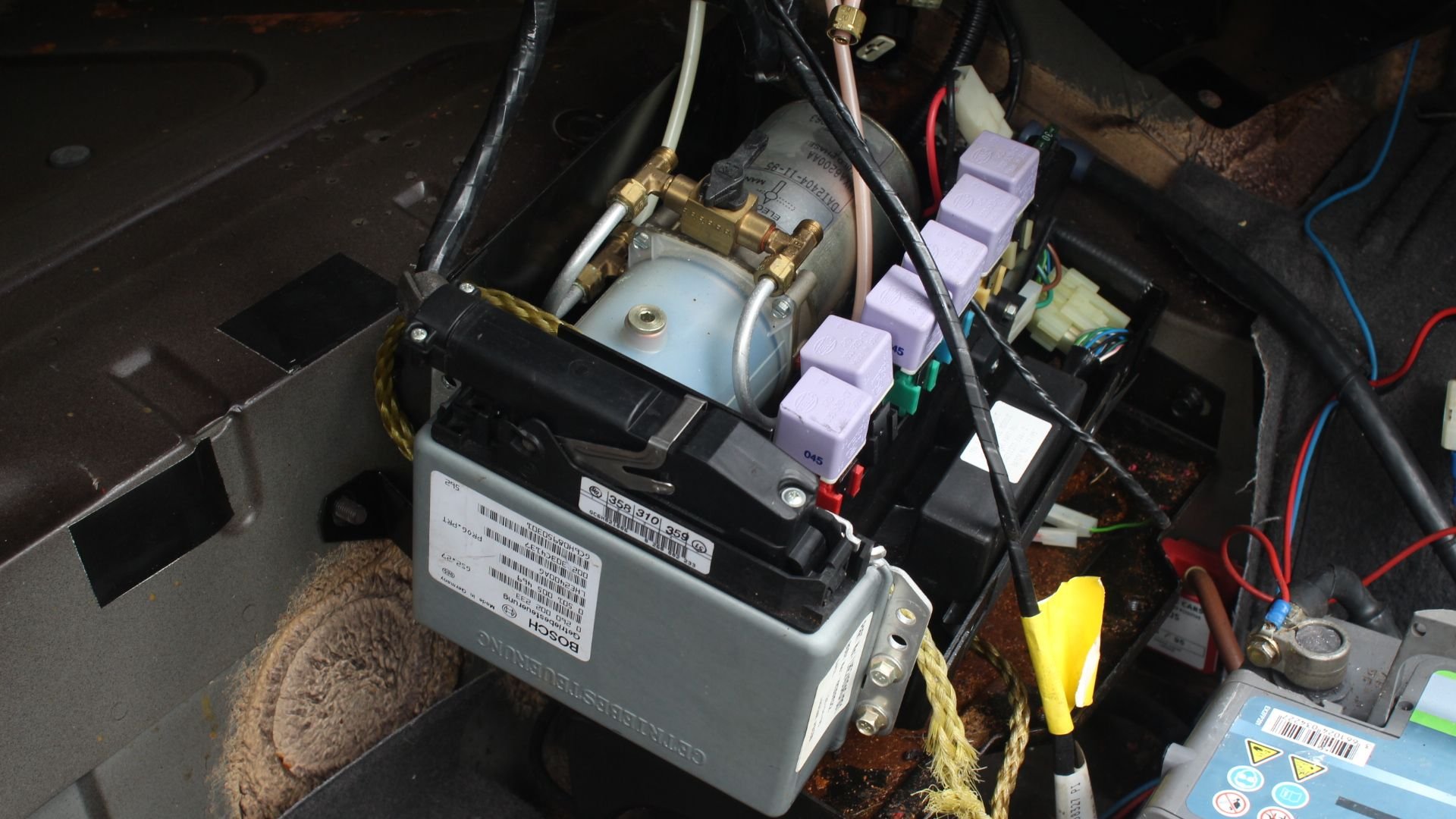

On the cylinders, Lines 1 (lower line) and 2 (upper line) are the driver side cylinder. Lines 3 (lower line) and 4 (upper line) are the passenger side cylinder. Top of the pump on the passenger side is #1 and #2 is on the drivers side, you cannot see 3 and 4, Three is below 1 and 4 is below 2. This is the original position.
On the cylinders, Lines 1 (lower line) and 2 (upper line) are the driver side cylinder. Lines 3 (lower line) and 4 (upper line) are the passenger side cylinder. Top of the pump on the passenger side is #1 and #2 is on the drivers side, you cannot see 3 and 4, Three is below 1 and 4 is below 2. This is the original position.
