Looking for photo of wires going to marelli ignition modules
Thread Starter
|
Senior Member
Joined: Sep 2013
Posts: 534
Likes: 180
From: NE Ohio, USA
Looking for photo of wires going to marelli ignition modules
I would like to know if anyone here can provide me with a photo of the wires leading into either of the two ignition modules that control the firing of the coils on a V12 XJS with a Marelli ignition system. In particular the actual color of the wires and the position of each wire going into the black plastic connector that actually plugs onto the module.

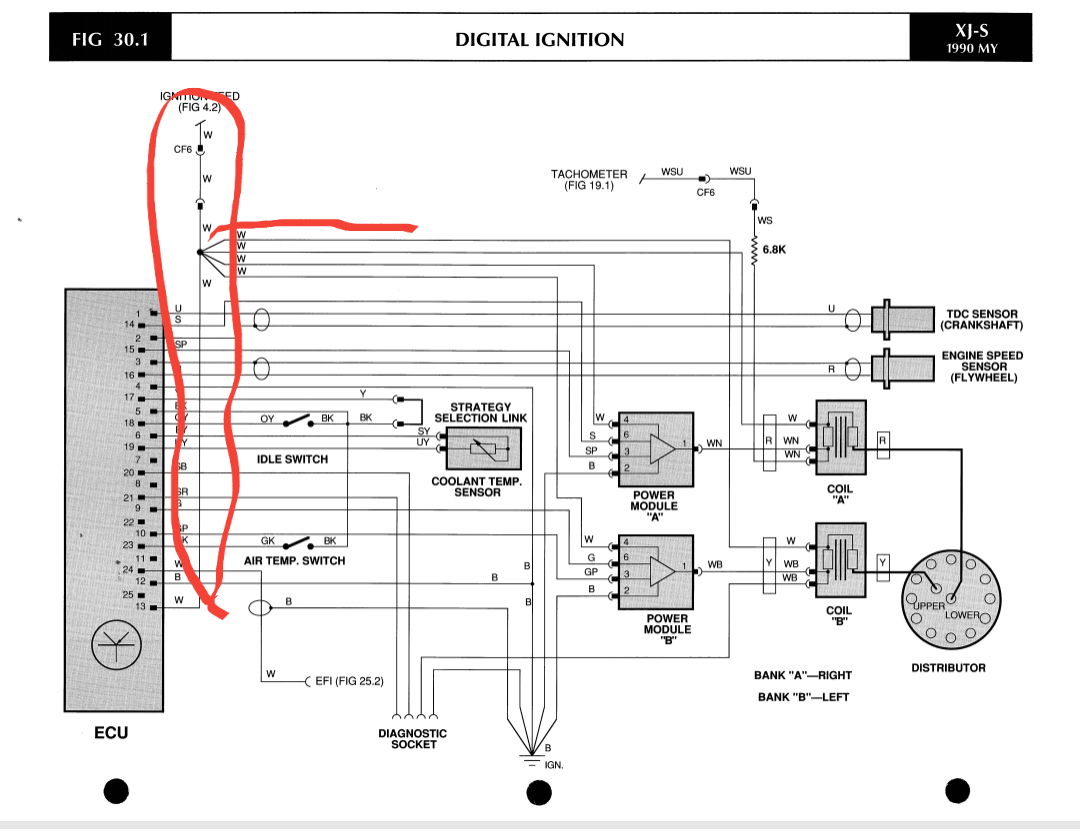

In the factory wiring diagram these are called power module A and power module B
Thanks
In the factory wiring diagram these are called power module A and power module B
Thanks
Last edited by JensenHealey; Aug 22, 2021 at 04:45 PM.
Veteran Member
Joined: Sep 2016
Posts: 4,277
Likes: 1,314
From: New York New York
I would like to know if anyone here can provide me with a photo of the wires leading into either of the two ignition modules that control the firing of the coils on a V12 XJS with a Marelli ignition system. In particular the actual color of the wires and the position of each wire going into the black plastic connector that actually plugs onto the module.
In the factory wiring diagram these are called power module A and power module B
Thanks
In the factory wiring diagram these are called power module A and power module B
Thanks

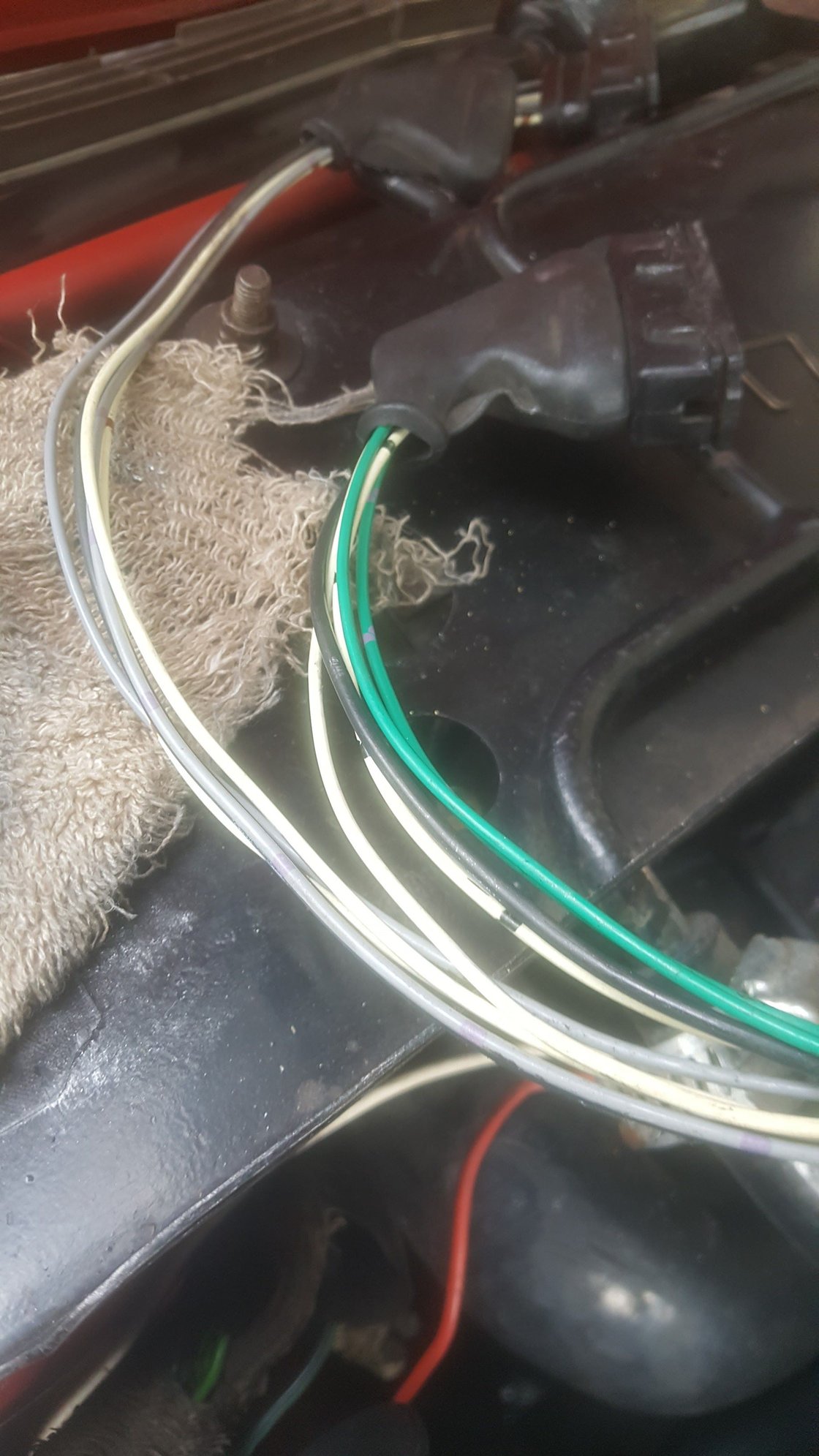

I have one photo which may or may not help.
I'd be interested to know what you are working on
Last edited by JayJagJay; Aug 26, 2021 at 11:10 AM.
