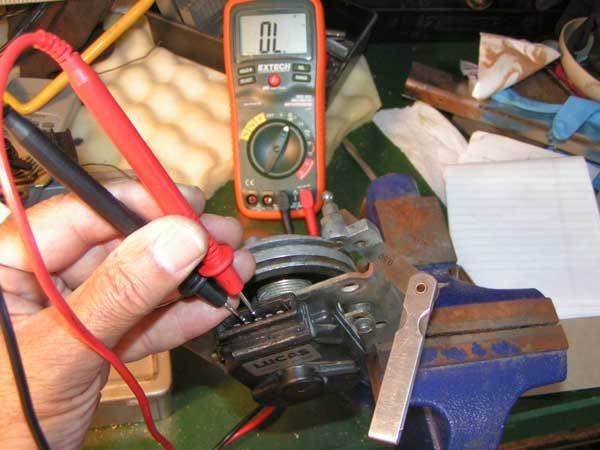

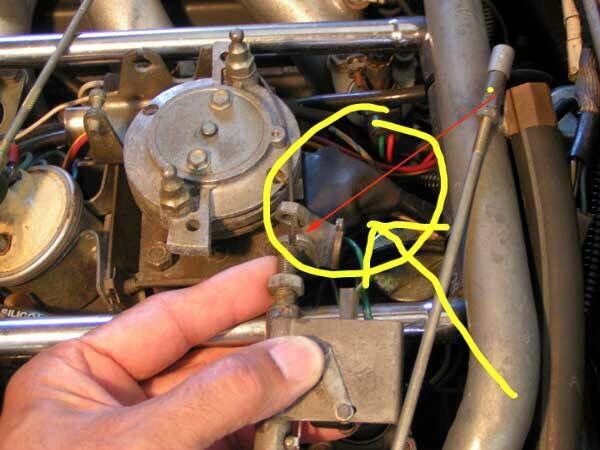

Throttle Switch connector
#2
When time permits please do an Intro in the New Members Area, including what part of the world you are in. It looks LHD from the snaps????.
The actual car details would also be a tad helpful.
These scribbles I have from a very long time ago may help you a tad. If there is more you need, ask, I will find it somewhere.
Your system is known as a D Jetronic EFI, and the thread you have added to is for a P Digital EFI, not the same in any way.
D Jetronic 1.pdf
D Jetronic 2.pdf
D Jetronic wiring diag 1.pdf
D Jetronic wiring 2.pdf
D Jetronic Jaguar info.doc
D Jetronic Injector wiring from the amp.doc
The following users liked this post:
GGG (07-16-2017)
#3
I've moved your question from the end of v1rok's thread to a new thread to avoid confusion and have also moved Grant's reply to you.
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
The following users liked this post:
Grant Francis (07-16-2017)
