XJS v12 ventilation problem
#1
06-09-2018, 08:55 AM
Join Date: Jun 2018
Location: Britanny France
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
#2
06-10-2018, 06:12 AM
Welcome to the forum Simon,

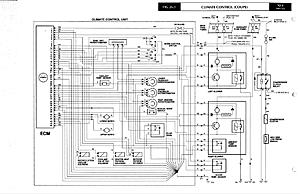

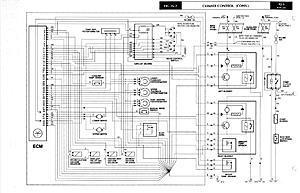

As a new member, you can not download PDF's from the forum which is how I normally attached electrical schematics so I hope these can be viewed:
The wiring harness colour codes are:
B = Black G = Green
K = Pink
N = Brown
O = Orange
P = Purple
R = Red
S = Slate (Grey)
U = Blue
W = White
Y = Yellow
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
As a new member, you can not download PDF's from the forum which is how I normally attached electrical schematics so I hope these can be viewed:
The wiring harness colour codes are:
B = Black G = Green
K = Pink
N = Brown
O = Orange
P = Purple
R = Red
S = Slate (Grey)
U = Blue
W = White
Y = Yellow
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
The following 2 users liked this post by GGG:
Grant Francis (06-10-2018),
kjopen (06-10-2018)
