I started at 9:30 this morning and will finish by 5:30 or so. These pics show the use of balsa wood and isophthalic polyester resin with fiberglass to extend the spoiler to actually grab some air. Though it's still too small for real racing purposes, I wanted to have a unique rear spoiler but couldn't find one that was quite right for me. I'm a sculptor/designer/moldmaker, so I went ahead and made my own. =) It didn't turn out too bad for a little bit of work on a Sunday.

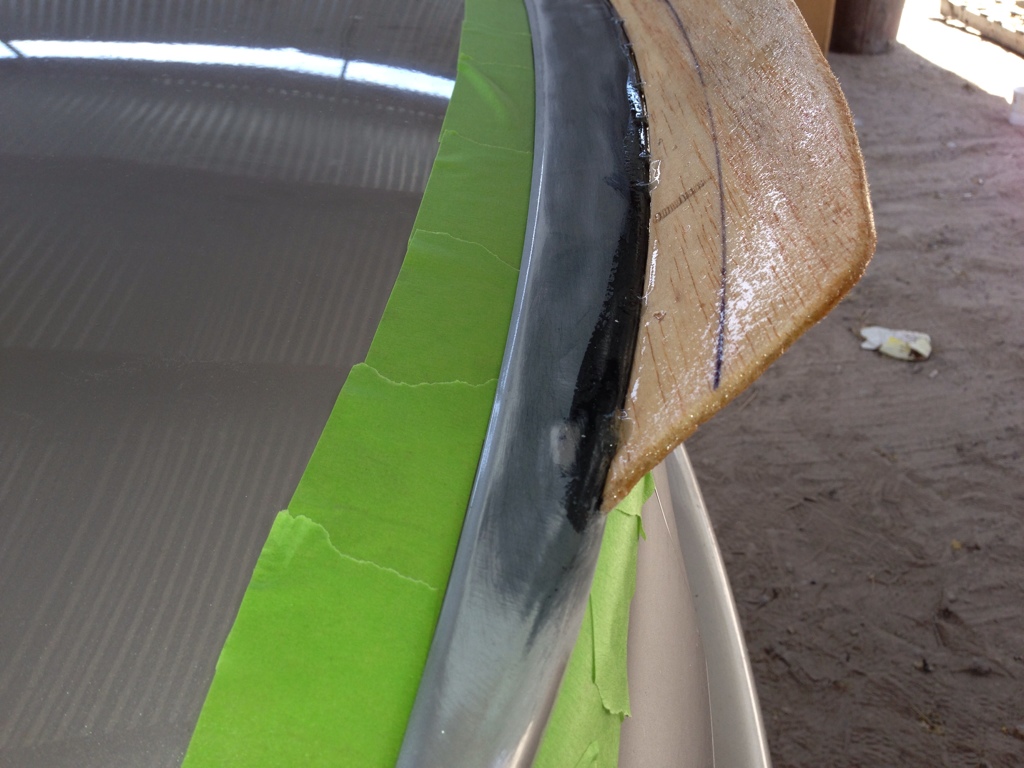

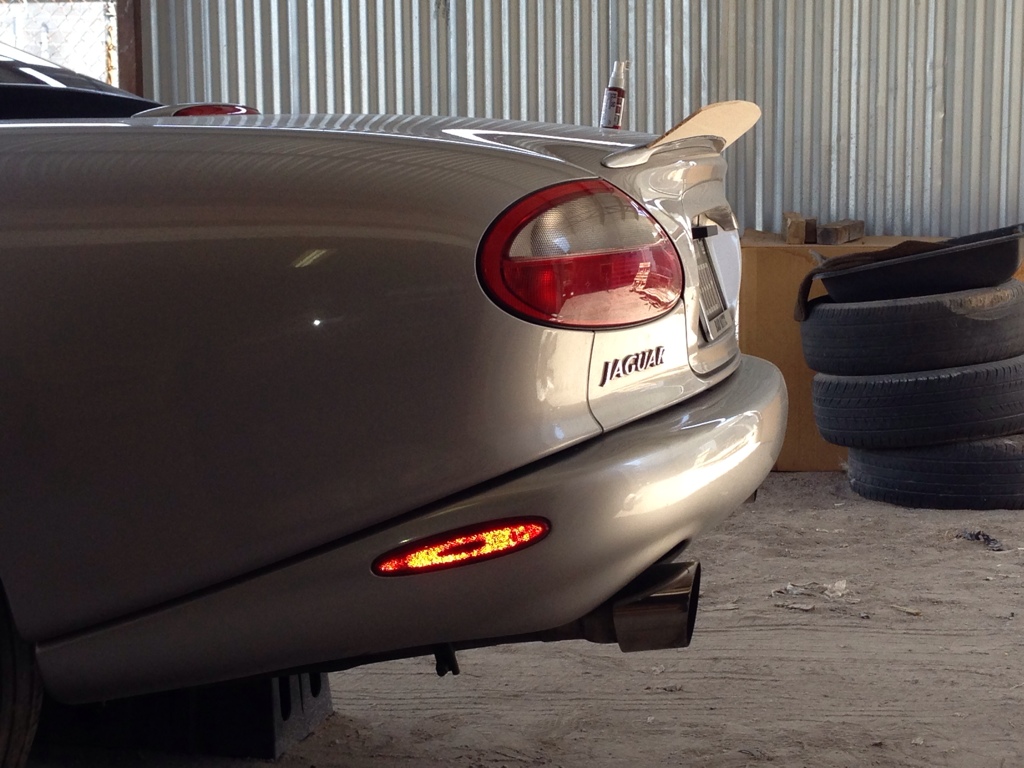

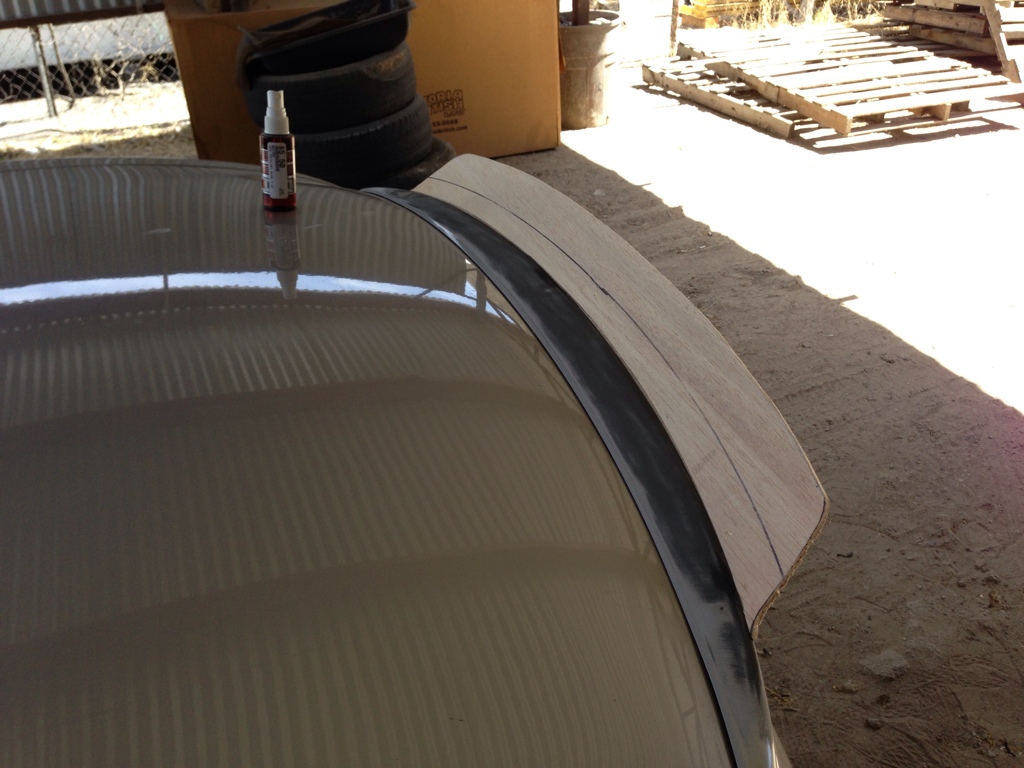

First look at design in wood, superglued to OEM spoiler for mounting:

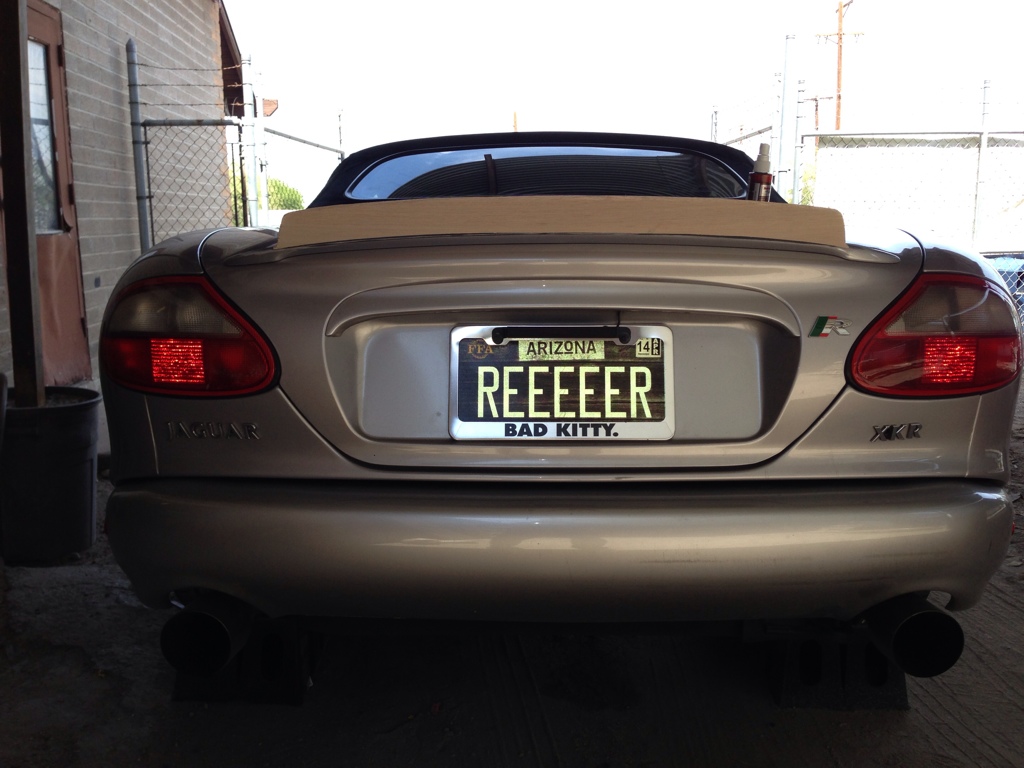

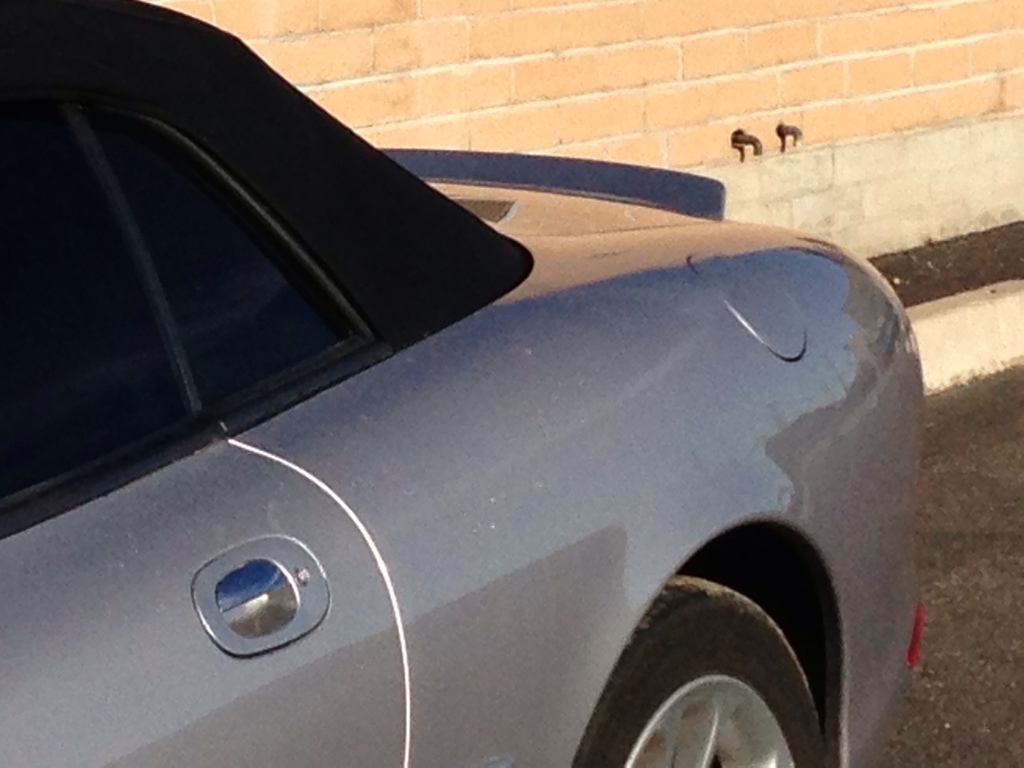

Rear:


It's time to fiberglass it on for strength. I always put resin onto wood first to get the fibers to stick better:

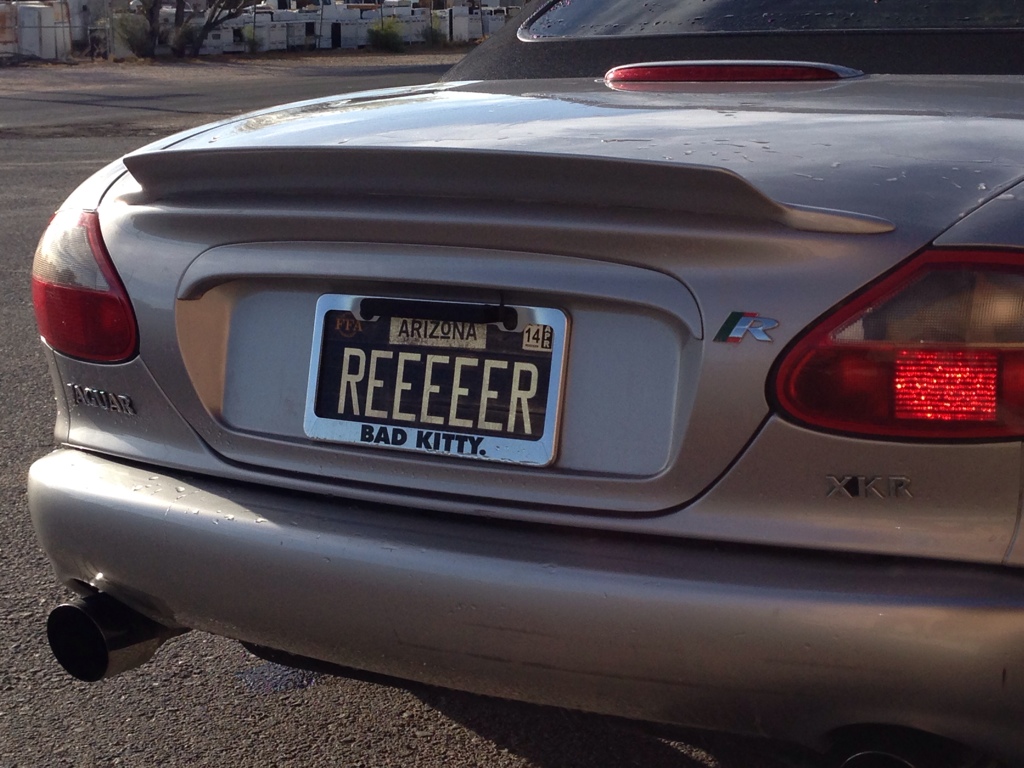

Yep, this will grab some air:


Tape it off because it's going to get messy:

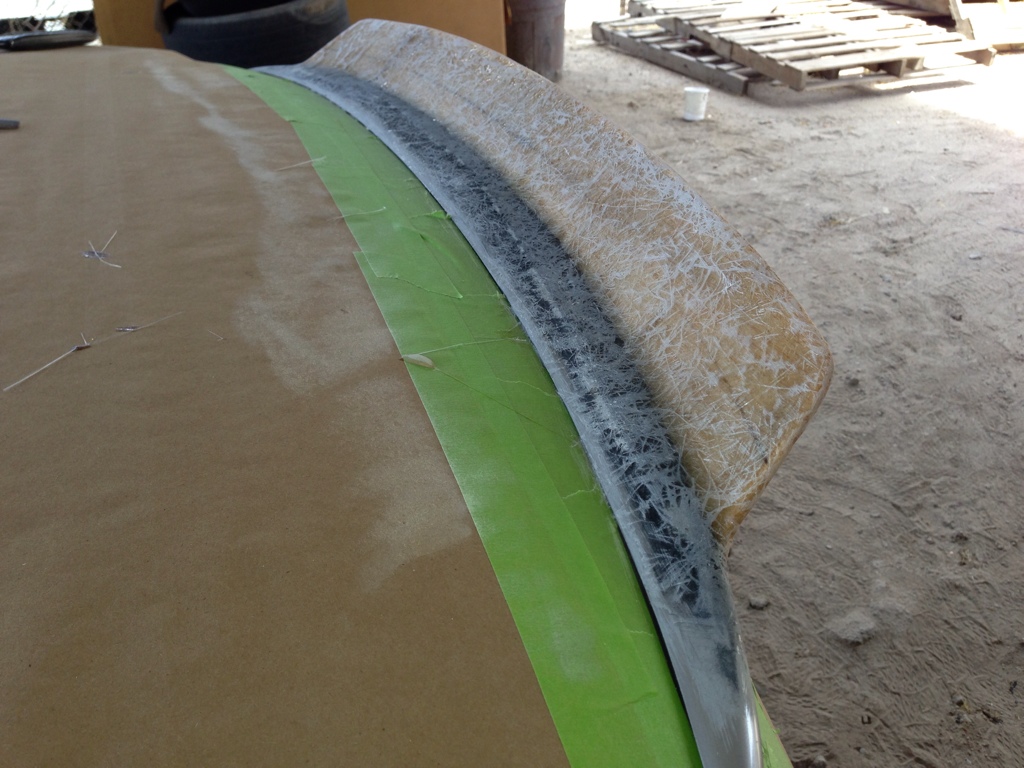

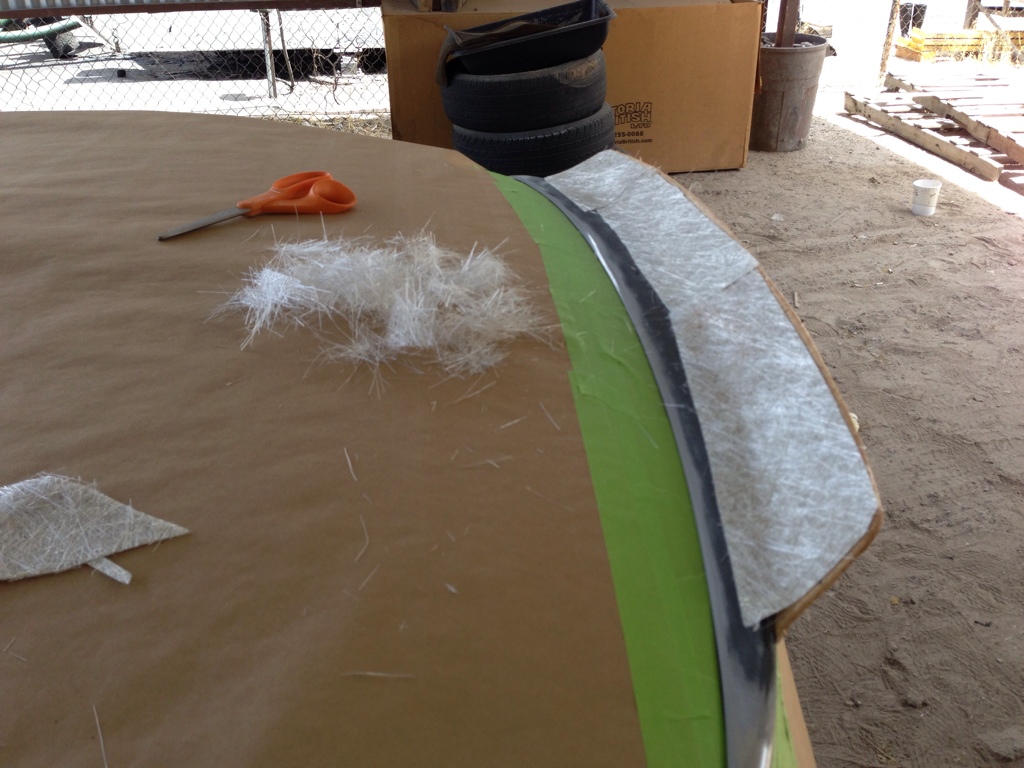

Laying up the fiberglass:


Using loose fibers on the edges so that they are strong as well:


Rough sand (40 grit) so that the bodywork will stick:


Standard bodywork from here:

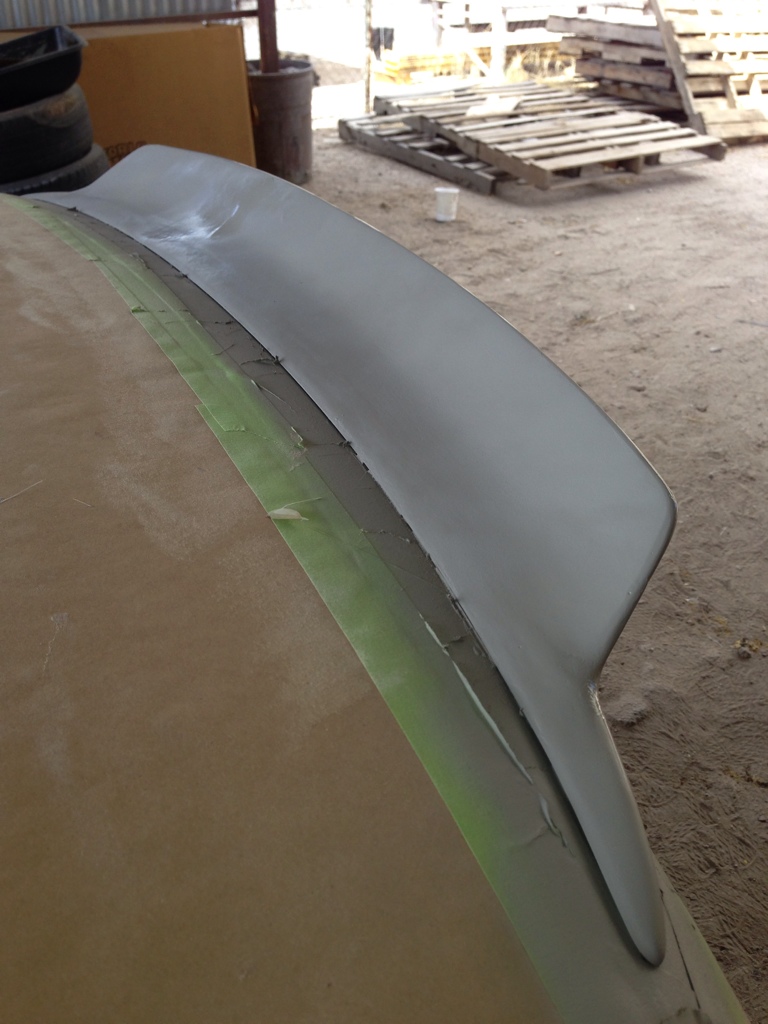

Several coats of Bondo then primer:

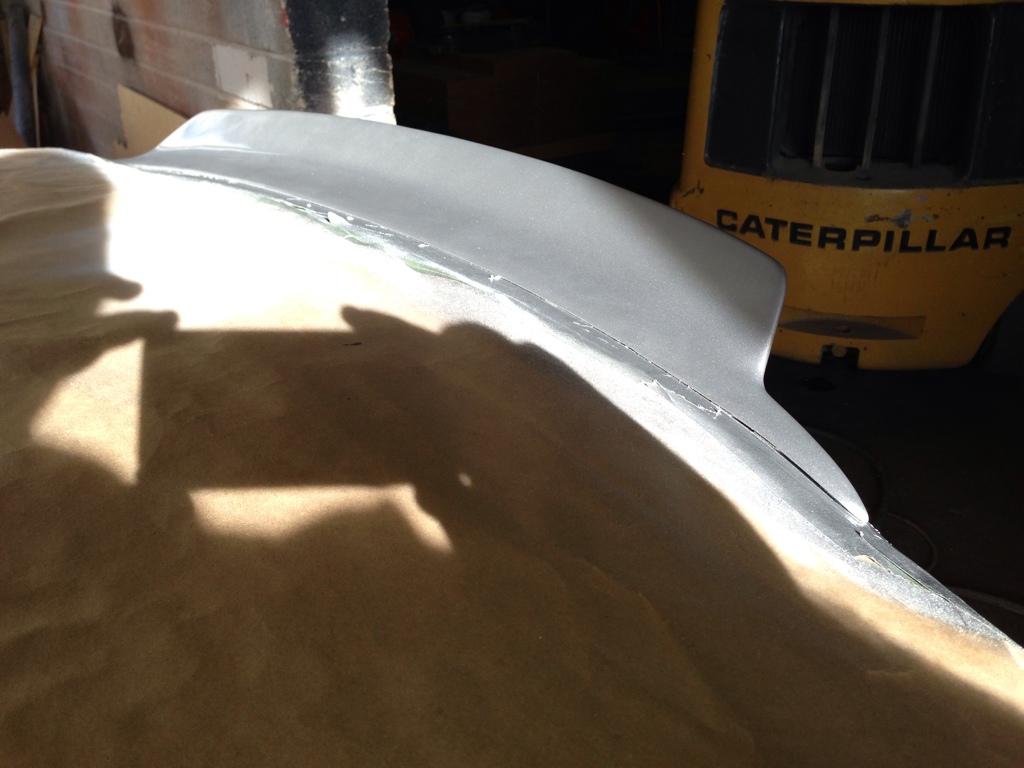

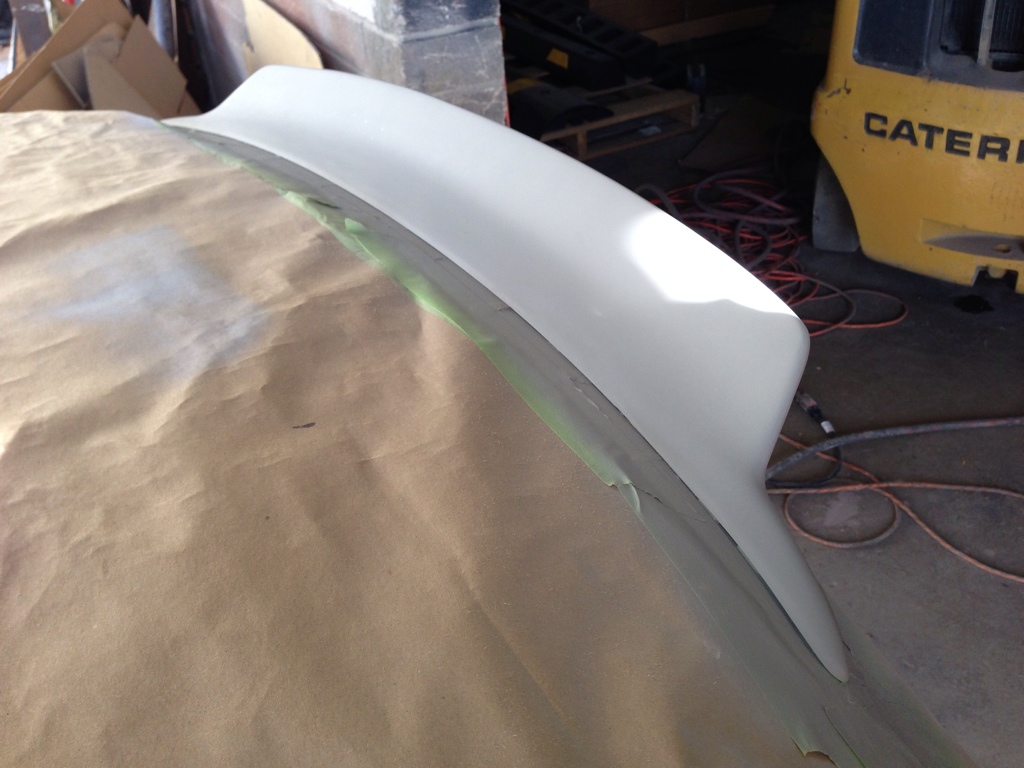

Hours of sanding, sculpting, re-application of small amounts of Bondo, then more priming and red spot putty:


Ready to paint... that's what I'm doing right now!


It's now painted. I'll peel the masking off in about 10 minutes then take some pictures showing the spoiler from different angles:

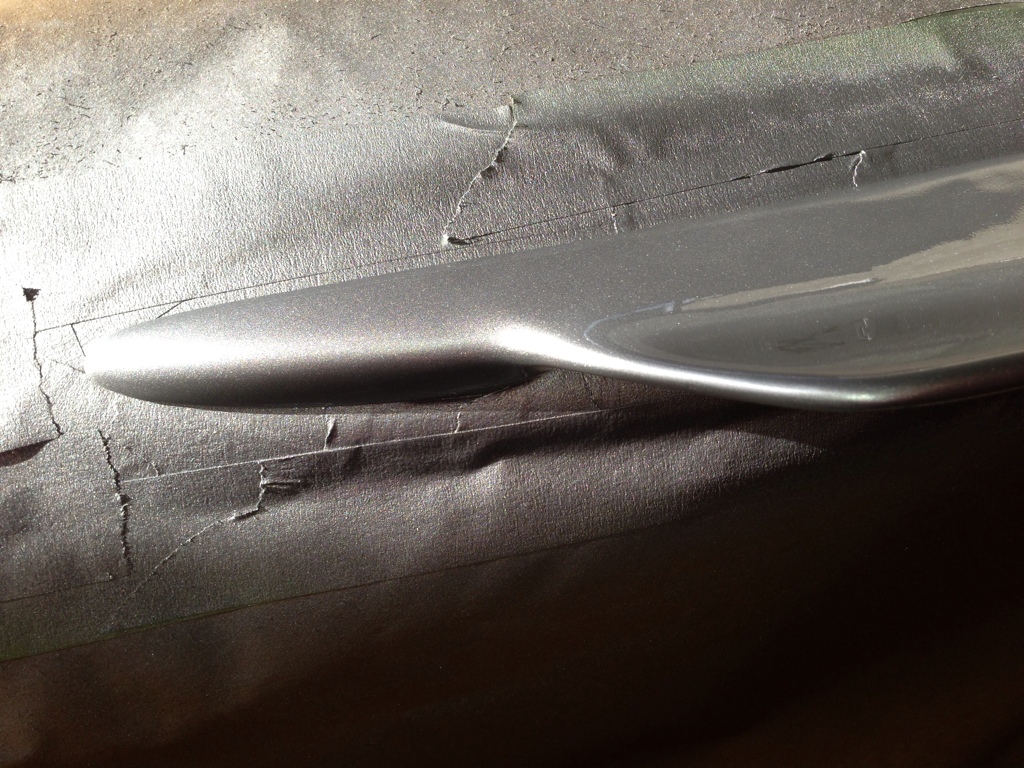

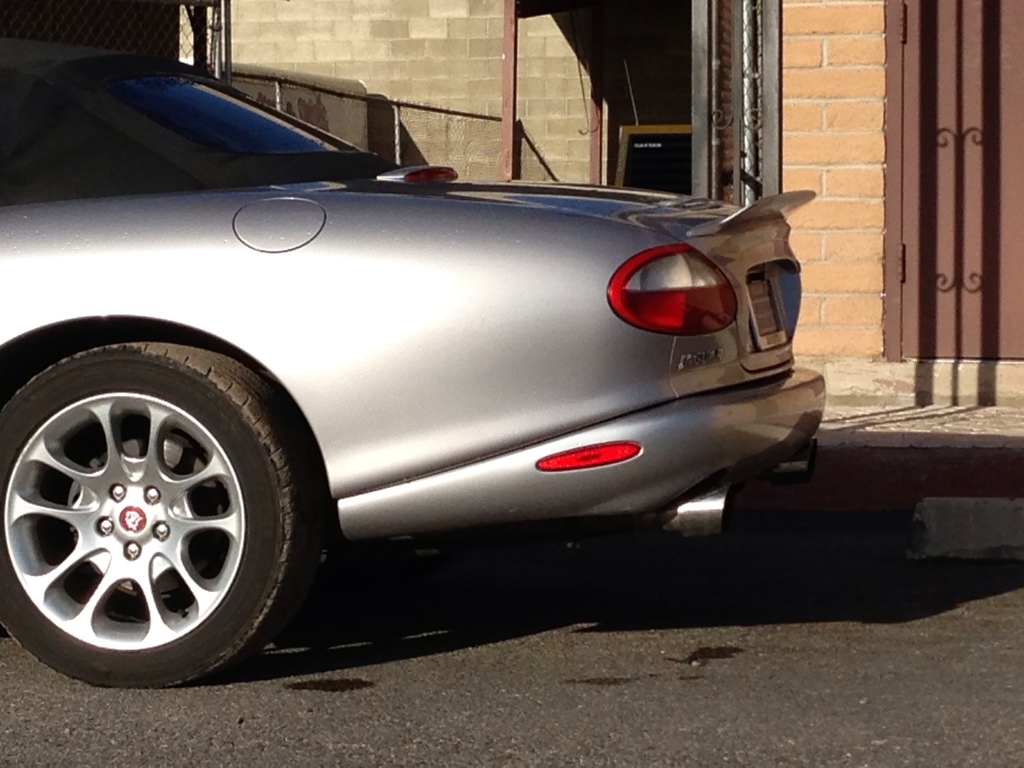

Close up:

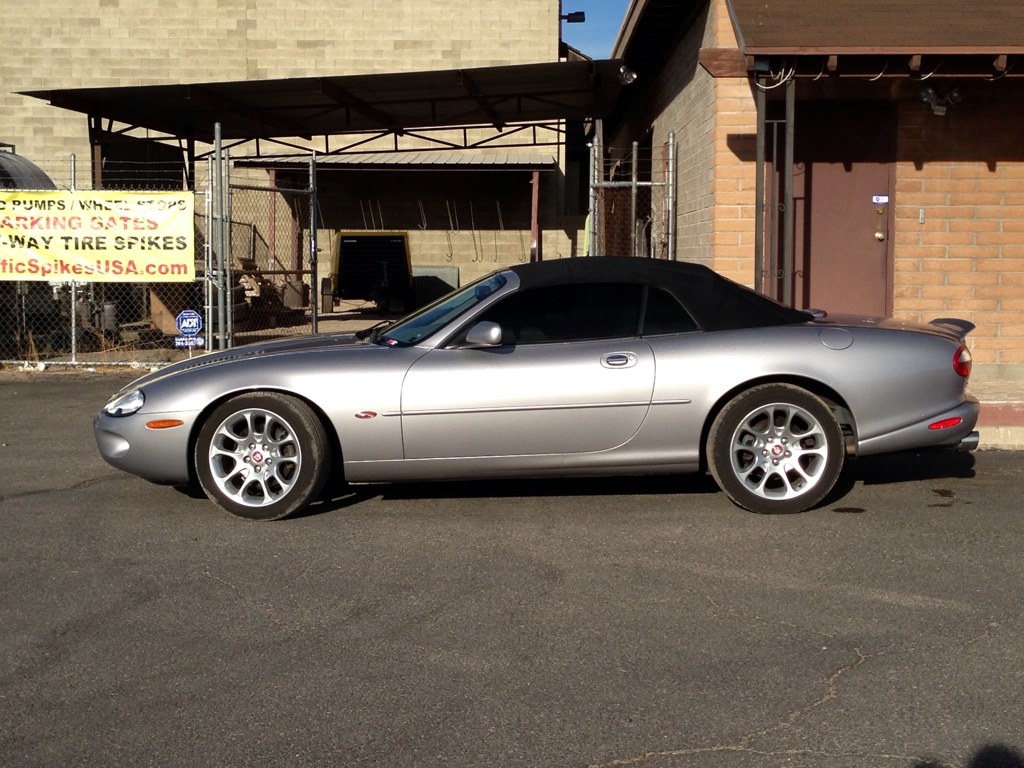

All done! Now, it needs a bath. That will wait for tomorrow:
