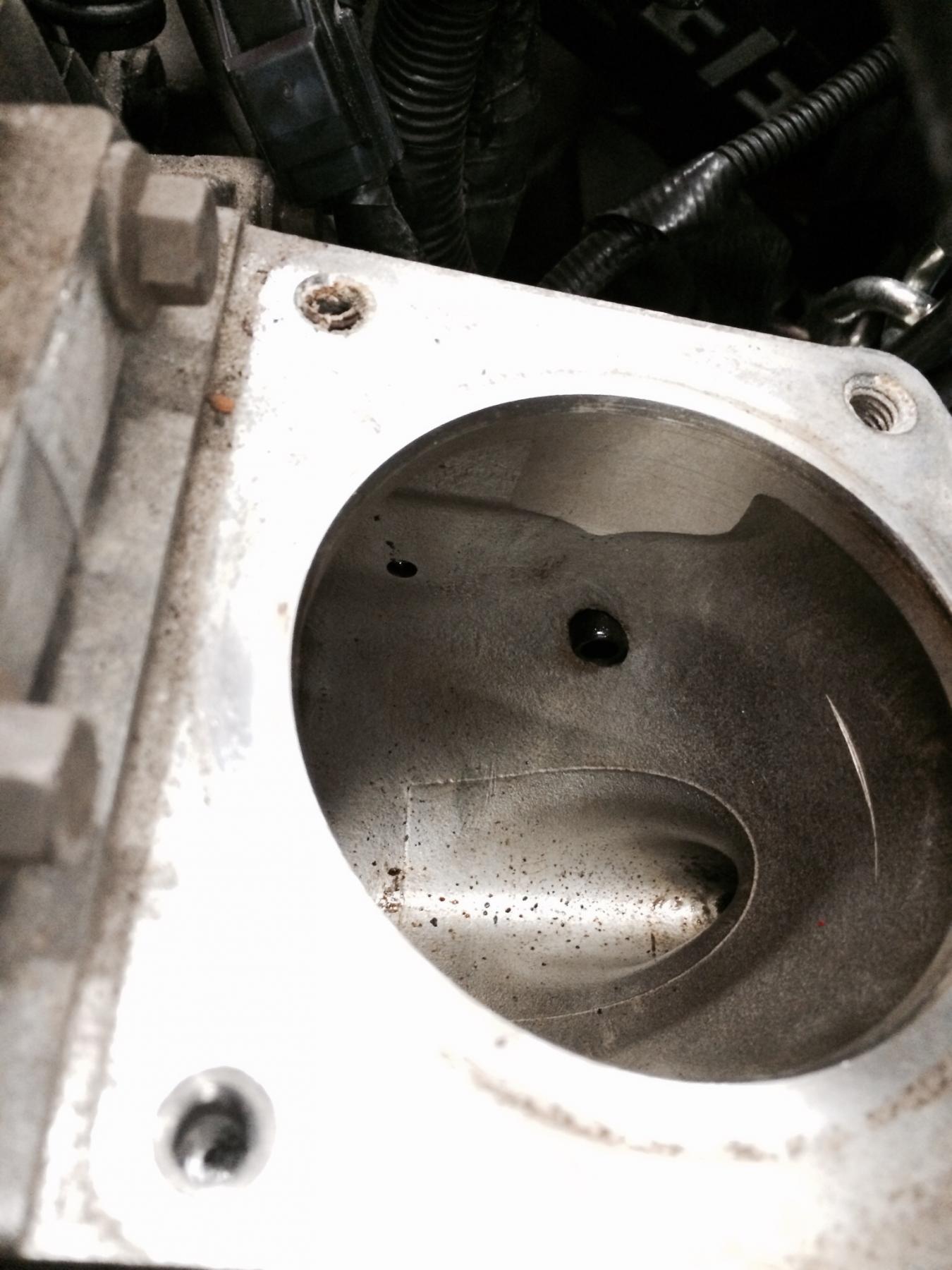

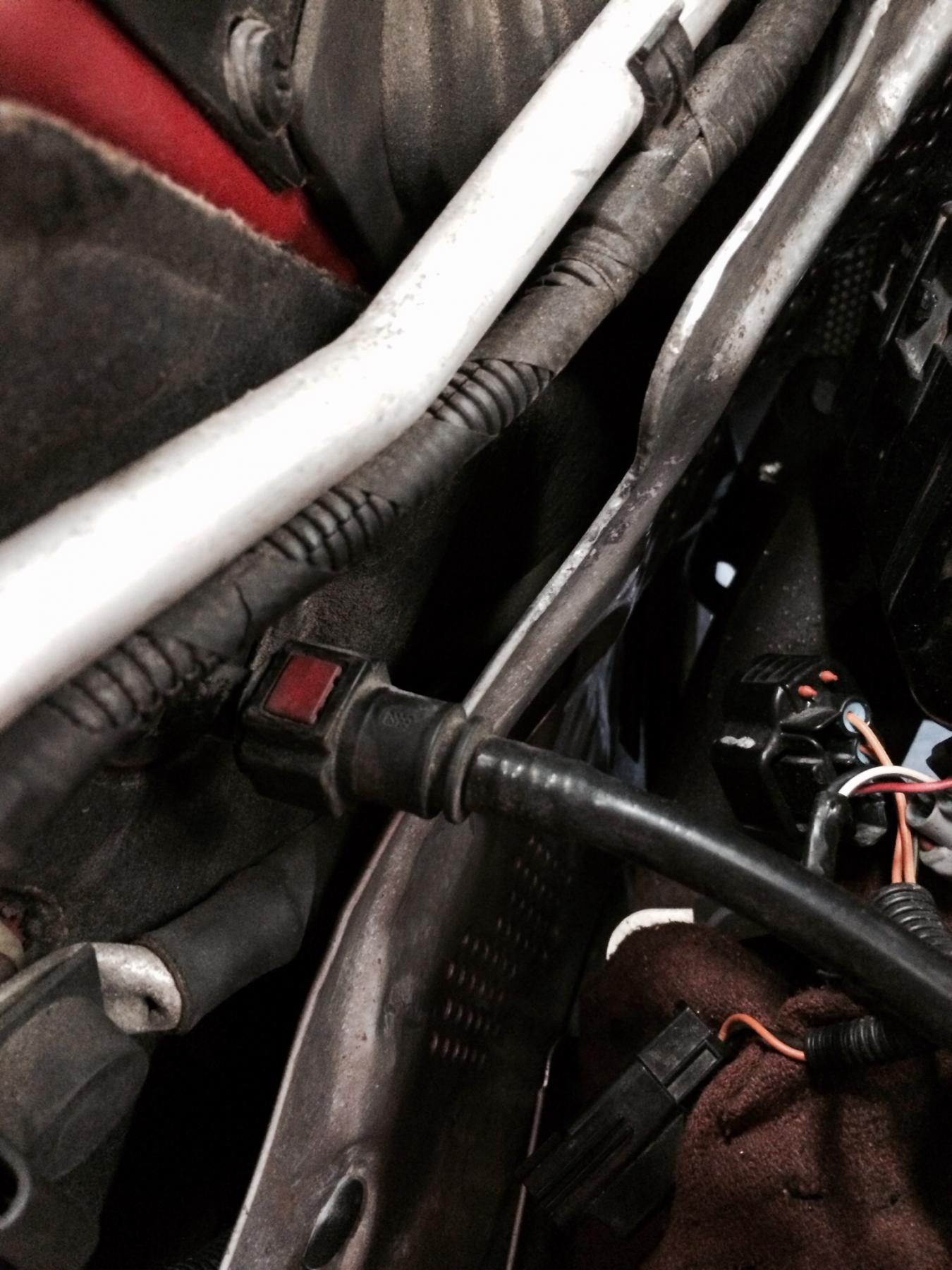

1999 XK8 - Help please, have looked through the SNG parts catalogue and the parts list manual but can not identify a hose that broke when I was removing the throttle body.This hose was attached to the throttle body induction elbow, at the side and its end extends into the elbow, it is covered by a heat shield material and passes into the passenger bulkhead cover area and connects to mating hose.I broke it at the induction elbow. Anyone know the part number?



It is probably the vacuum line for the brake booster.

bob gauff



Some pictures may help



Upload issues

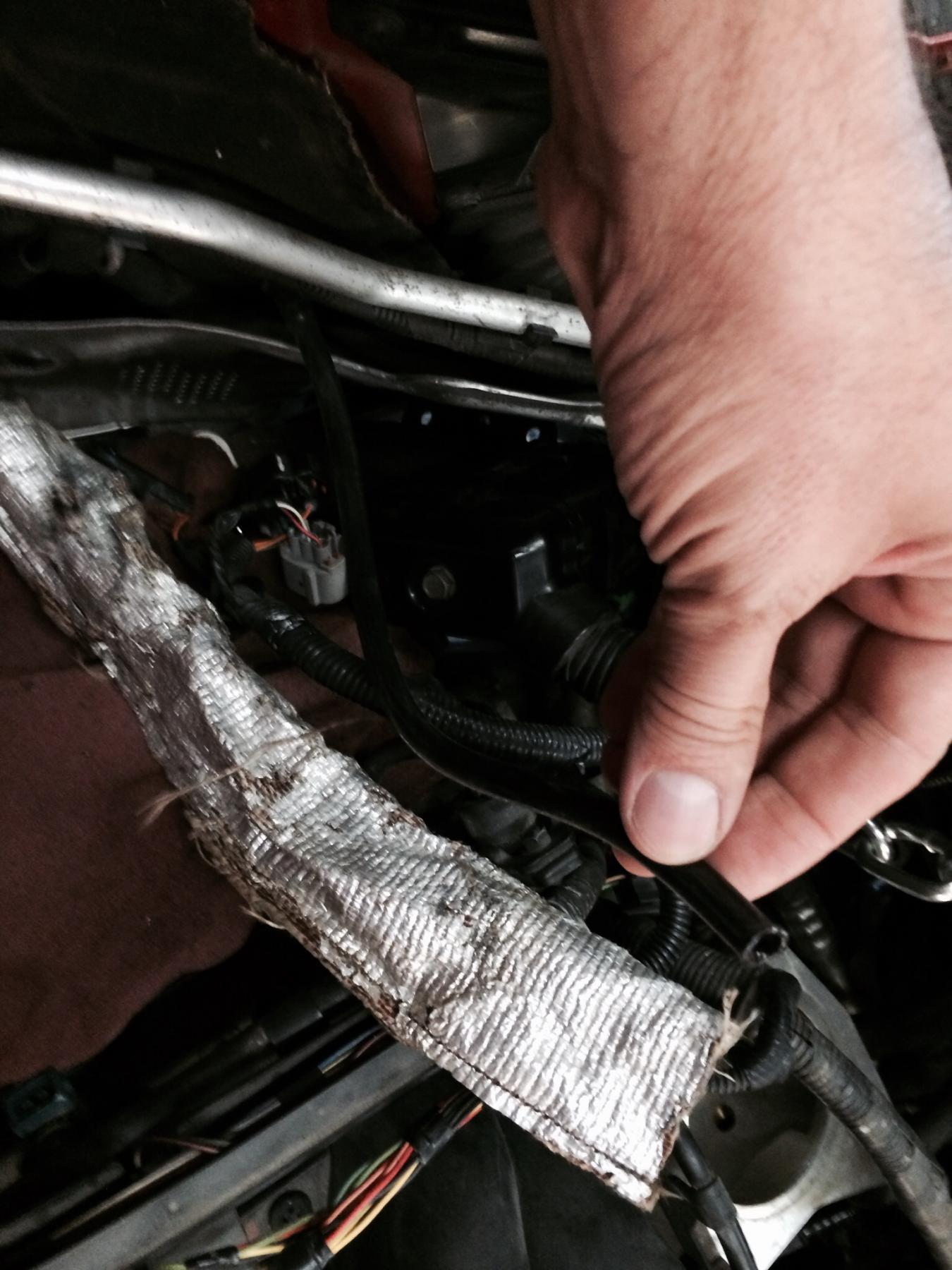

Tube with shield removed

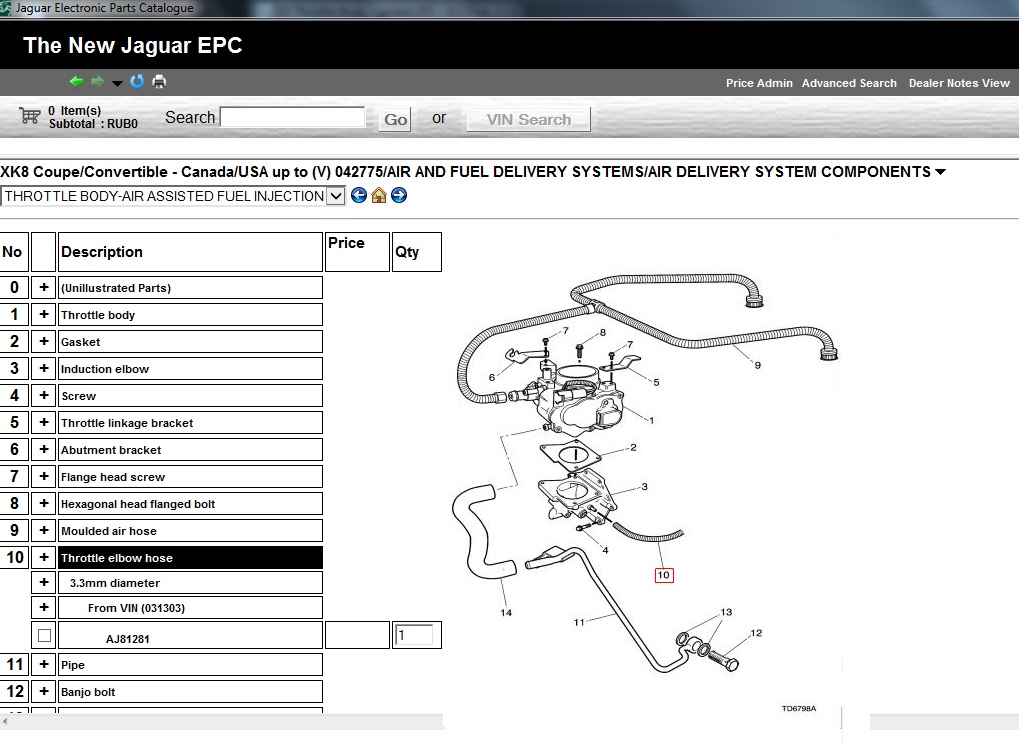

Could it be the Throttle Elbow Hose (item 10 - P/N AJ81281)?


(click on the image to enlarge it)


Fits onto the Induction Elbow.

Graham



Bob nailed it...its the brake booster. If you broke the line right at the TB, you can still save it by cleaning up the end, getting the old piece out of that chinese-finger trap at the TB, and reinserting it. There is just enough slack in the line to allow you to do that...trust me, I broke mine once.
