need help finding connector EM2
#1
need help finding connector EM2
It is a yellow multilock 20 pin connector supposed to be in engine compartment adjacent to RH enclosure. I have looked in RH enclosure and all around it and do not see it. There is also supposed to be EM1 20 pin white and EM3 14 pin grey in same area.
Anyone ever found these?
Anyone ever found these?
Last edited by stevepaa; 10-15-2016 at 05:35 PM.
#2
Join Date: Apr 2014
Location: Jersey, Channel Islands
Posts: 4,077
Received 2,291 Likes
on
1,503 Posts
Yes but not under the hood, which is where you'd be forgiven for looking.
RHS footwell, next to EM1:
https://www.jaguarforums.com/forum/x...2/#post1299006
Mike
RHS footwell, next to EM1:
https://www.jaguarforums.com/forum/x...2/#post1299006
Mike
Last edited by michaelh; 10-15-2016 at 06:44 PM.
The following users liked this post:
stevepaa (10-17-2016)
#3
Thanks for the tip.
But Jaguar changed the connectors and locations in 2001. My year
Here are pics of my setup

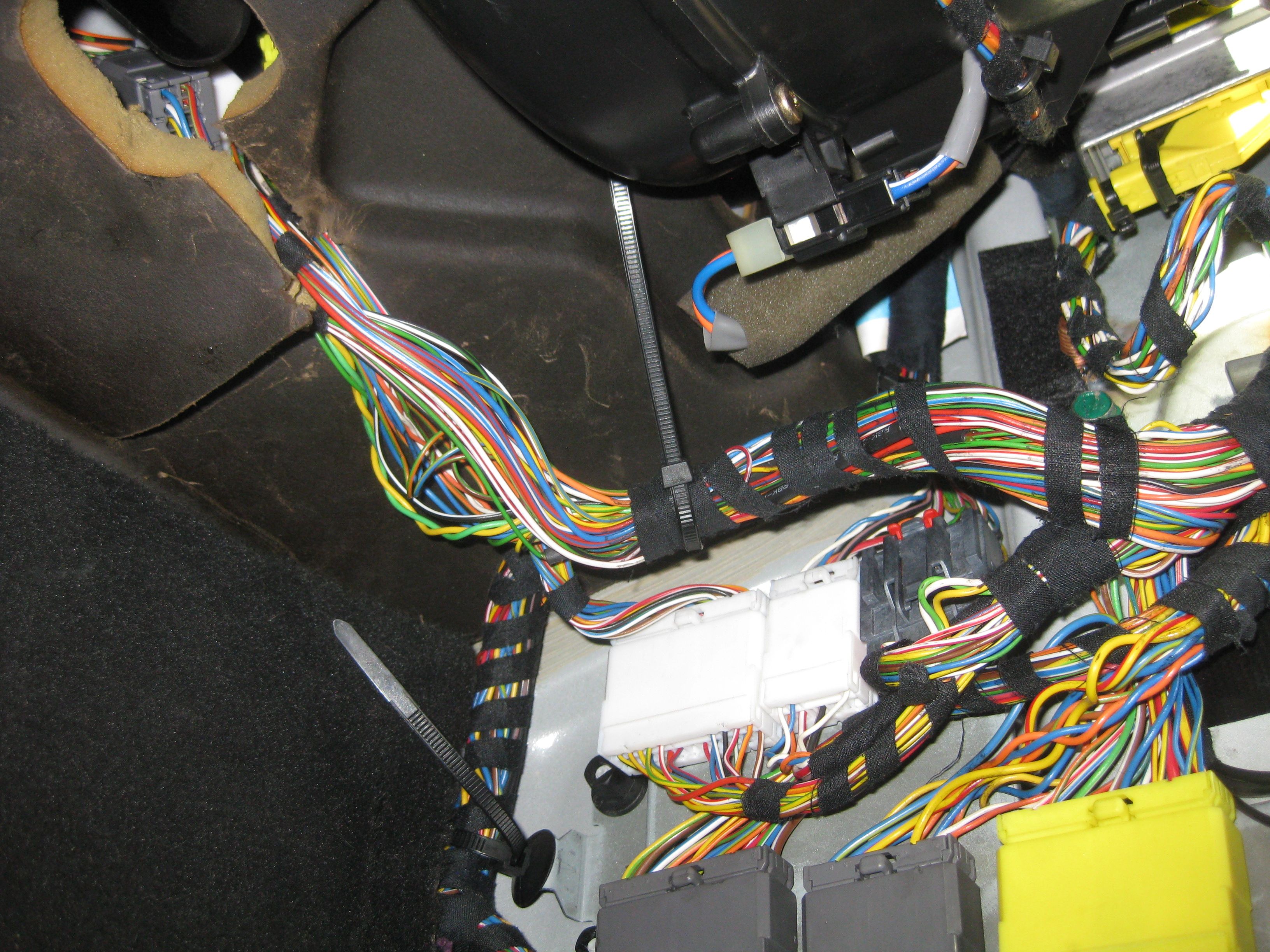

upper left white is AC12, upper middle is RF5 (new for 2001), lower left is AC15, lower middle is AC14, lower right is AC13
So after I traced all those wires to determine those connectors I noticed a bunch of wires going up into a little hideaway hole.

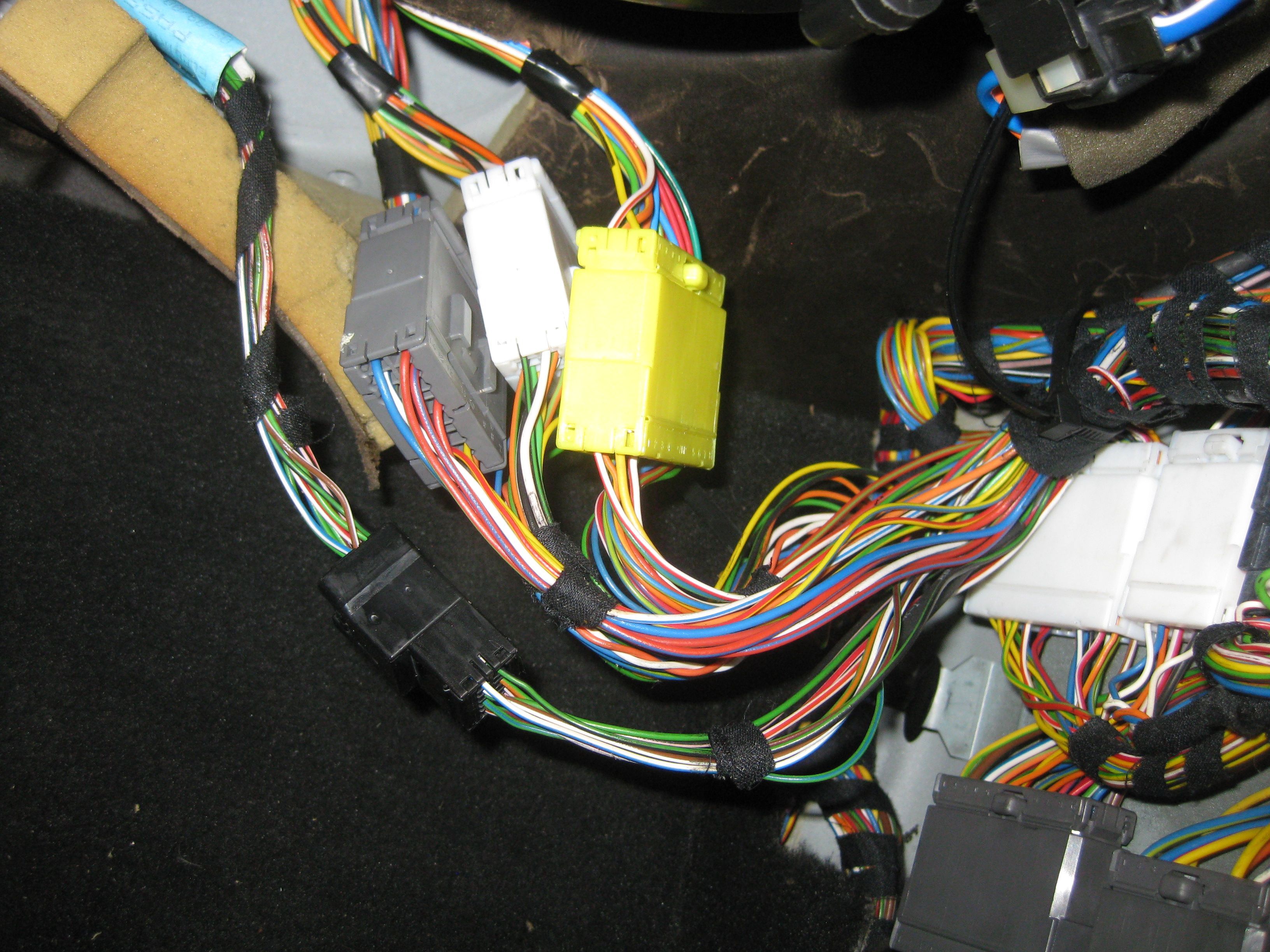

Pulled them down and surprise, EM1, EM2, EM3 and another yet to be identified. And in 2001 EM2 is only 18 wire not 20.
But Jaguar changed the connectors and locations in 2001. My year
Here are pics of my setup
upper left white is AC12, upper middle is RF5 (new for 2001), lower left is AC15, lower middle is AC14, lower right is AC13
So after I traced all those wires to determine those connectors I noticed a bunch of wires going up into a little hideaway hole.
Pulled them down and surprise, EM1, EM2, EM3 and another yet to be identified. And in 2001 EM2 is only 18 wire not 20.
The following users liked this post:
michaelh (10-18-2016)
#4
Join Date: Apr 2014
Location: Jersey, Channel Islands
Posts: 4,077
Received 2,291 Likes
on
1,503 Posts
The following users liked this post:
toaster (10-19-2016)
