Rear shock bush update
Just de-clunked the XKR.
On this car it cannot be done withouot a spring compressor and a mighty compact one too. Perhaps the XKR suspension is stiffer?
Took off the wheel, lowered the wishbone onto wooden blocks
Removed bush bolt
Not enough room to get at the bush so I compressed the spring another two/three centimetres (if I'd had some sacks of cement I reckon 3 in the boot would have done instead l).
Used a home made tool similar to H2O's but using a 14mm HT bolt and the bush came out quite easily with an air impact wrench.
Used the same system to pull the new bush in.
I removed the rubber boot on the side the pusher was on. Easy to get the boot on but hard to replace the back retaining clip.
Incidentally it is worth taking the boot off - there was the most token amount of grease in quite the wrong place.
If anyone wants engineering drawings of the tool email me.
I can do SW or Autocad.
On this car it cannot be done withouot a spring compressor and a mighty compact one too. Perhaps the XKR suspension is stiffer?
Took off the wheel, lowered the wishbone onto wooden blocks
Removed bush bolt
Not enough room to get at the bush so I compressed the spring another two/three centimetres (if I'd had some sacks of cement I reckon 3 in the boot would have done instead l).
Used a home made tool similar to H2O's but using a 14mm HT bolt and the bush came out quite easily with an air impact wrench.
Used the same system to pull the new bush in.
I removed the rubber boot on the side the pusher was on. Easy to get the boot on but hard to replace the back retaining clip.
Incidentally it is worth taking the boot off - there was the most token amount of grease in quite the wrong place.
If anyone wants engineering drawings of the tool email me.
I can do SW or Autocad.
The following users liked this post:
wcnesta (08-08-2012)
#2
#3
#4

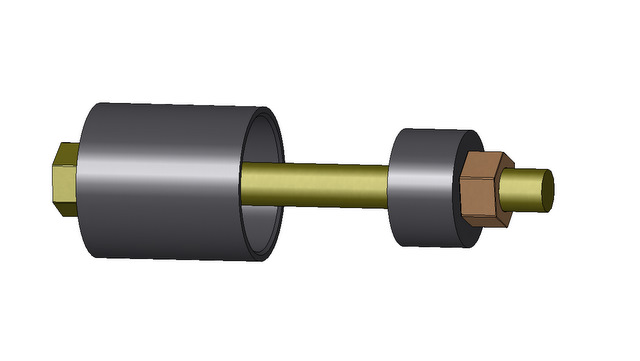

Here you go.
Mild steel is OK
In addition you'll need an M14 high tensile nut + bolt, 150 mm long plus two or three washers and 14mm nuts with the threads bored out (or larger nuts) to act as spacers when you run out of thread.
I didn't use all-thread because it will strip with the forces involved when using an impact wrench.

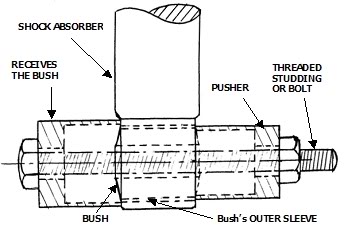

This is similar to H2O's tool and,as he says, can be used both to push out the old bush and press in the new one.
