Reverse Light Wiring Loom and Backup Camera


Old Feb 14, 2025 | 02:09 PM
Share
  #1
KC XK8's Avatar
Thread Starter
|
Member
Joined: May 2024
Posts: 82
Likes: 35
From: Overland Park, Kansas
Default Reverse Light Wiring Loom and Backup Camera

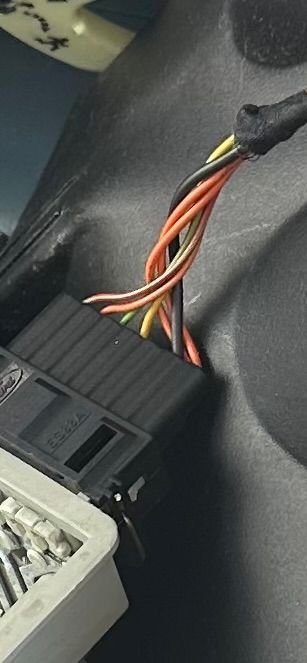

Curious for those in later model years if you were able to determine which of these cables to tie into for a wired reverse camera?


Reply
0
Old Feb 14, 2025 | 02:22 PM
Share
  #2
giandanielxk8's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2012
Posts: 3,760
Likes: 1,628
From: Puerto Rico
Default
Tap into to the yellow wire with the camera's positive, and then route the camera's negative to a chassis ground.

Reply
