Default P 7 Bumper-less Grille Installed

I looked for previous post dealing with this but couldn't find it.

I finally got my grille and surround installed. I gave rocspo's directions to the installer which were great and he made some changes.

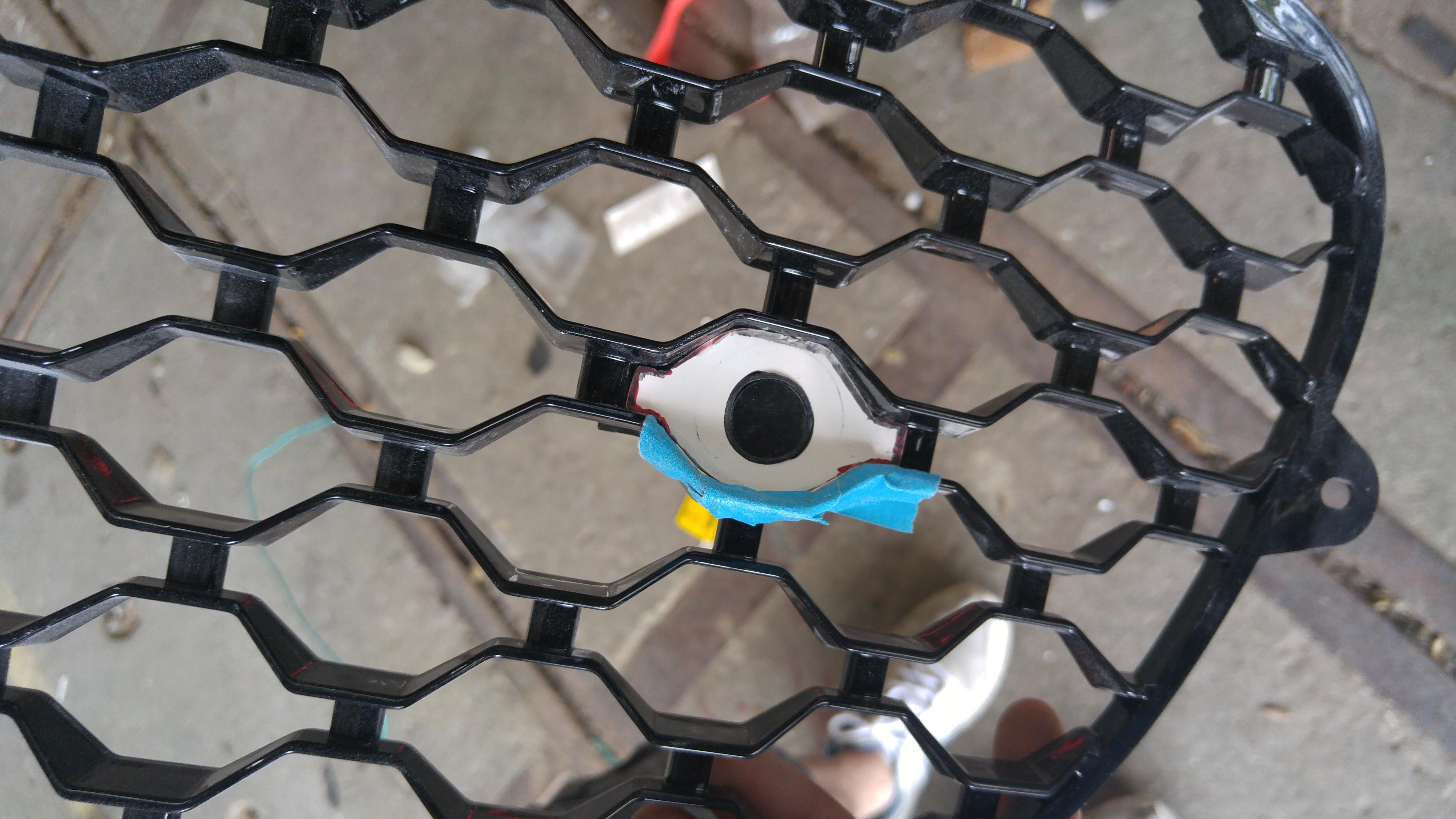

1 Instead of cutting out old sensor mounts he made new ones. I measured the trapazoid opening and little wings and made a template on an index card which he used to cut grille mounts out of 3mm ABS sheet (found at local plastic supply) and drilled an 18mm hole in center. I would have rather used sensor mount brackets, but since I couldn't find them for that oblong sensor, he glued sensors directly to ABS. (Since then I found a BMW sensor mount that I think would have would have fit).

2 Instead of mounting sensors with connectors pointing inward, he pointed them outward in order to avoid having wiring exposed behind grille. He glued wires from sensors directly around trapezoids so they can not be seen, and they exit to the side of grille.

3 He then mounted wiring harness to run below grille, and then extended sensor wires to go below and around surround. Since sensor wires are not color coded, he colored them with different colored nail polish before he cut them. I thought the sensor wires looked to be about 24 gauge but couldn't find it locally and didn't have time to order it online (a company called NTE has it) so I found a couple old power supplys from a radio and an old router which I think is 24 gauge and he cut it up and spliced them in. They work!

As rocspo did, he removed styrofoam from behind original bumper, painted bumper behind grill and mounts flat black. He didn't glue mounts permanently until he calibrated them after reassembly.

Thanks to unhinged, rocspo, and ryan for all you help.

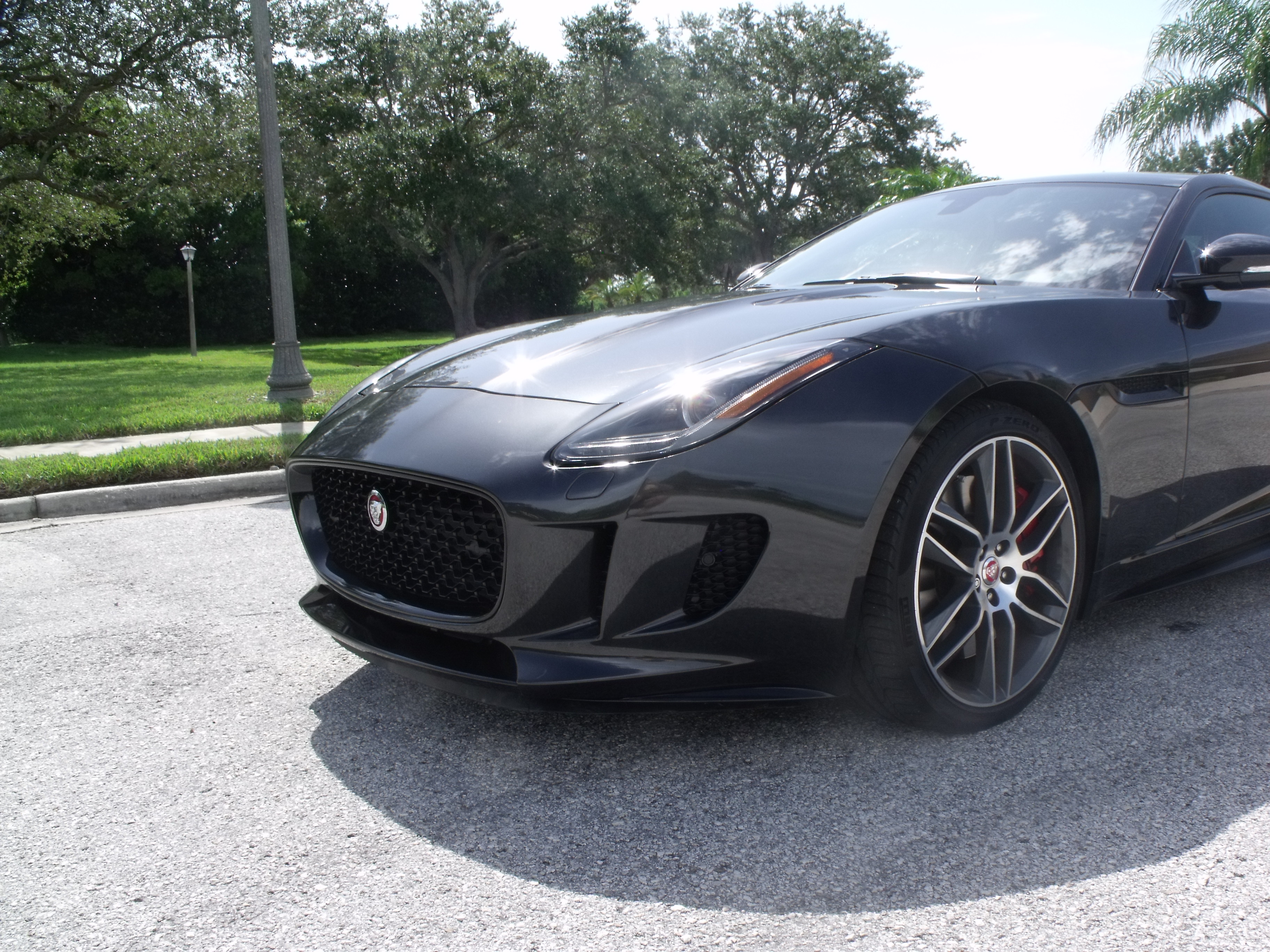

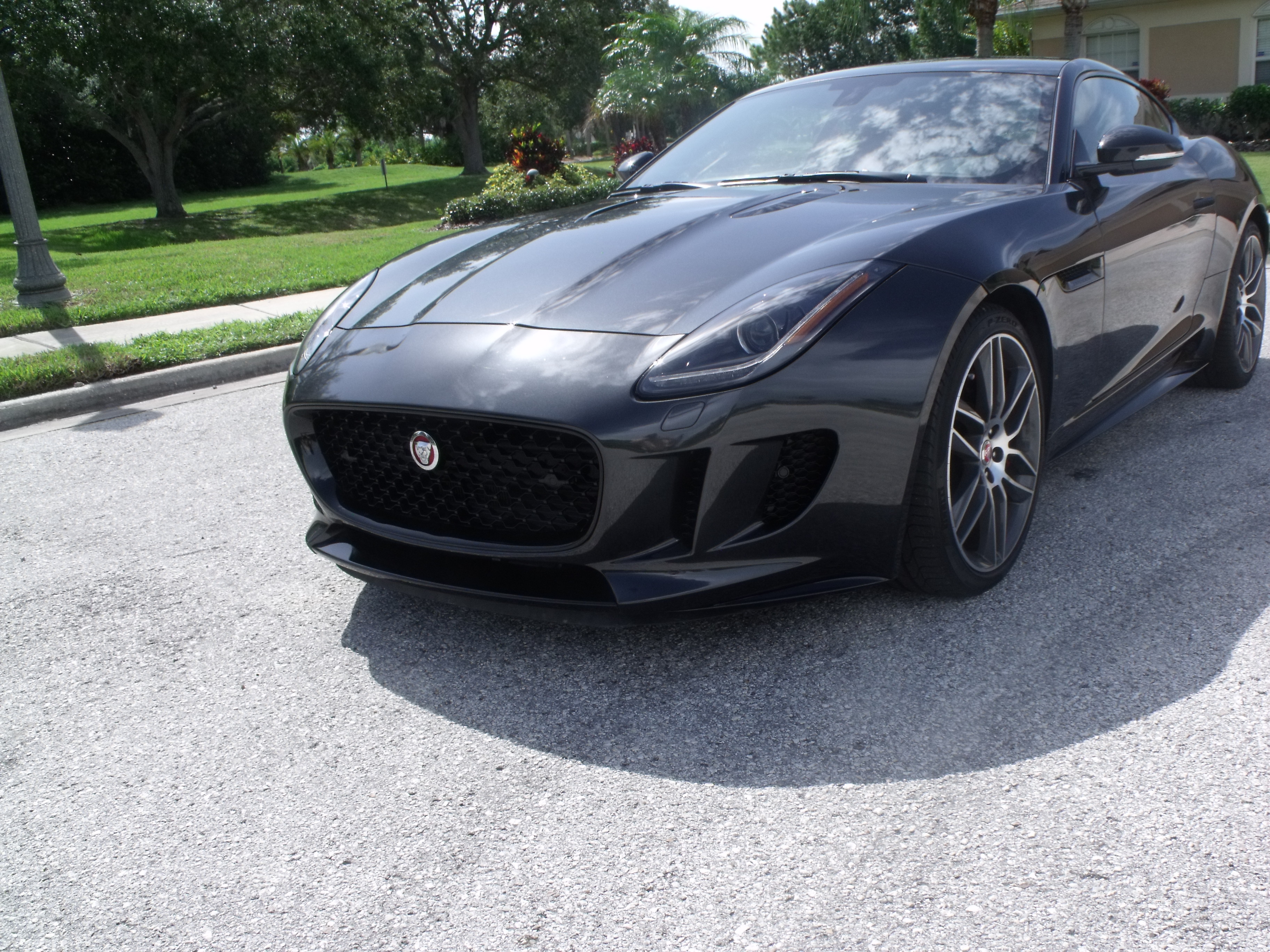

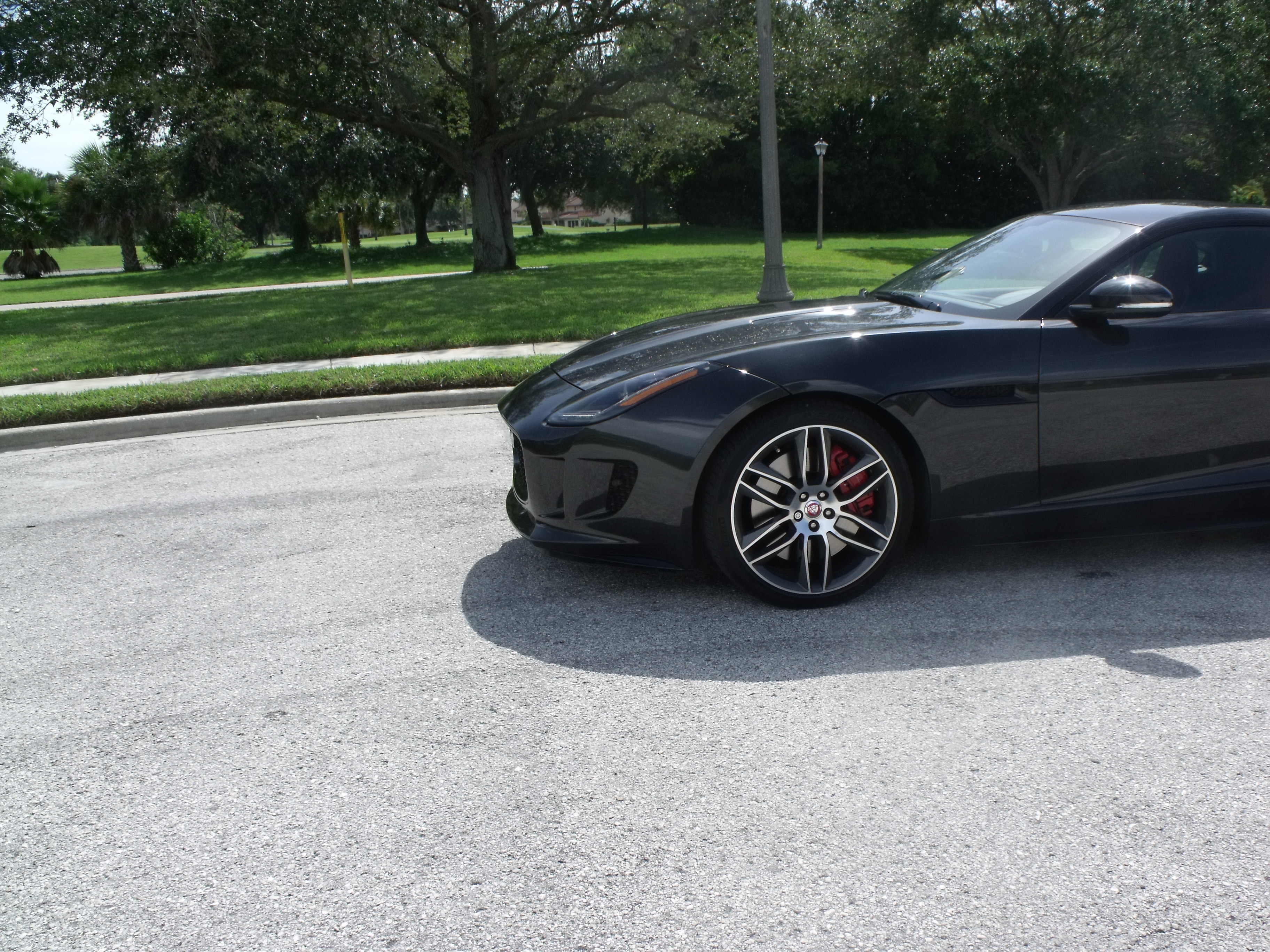

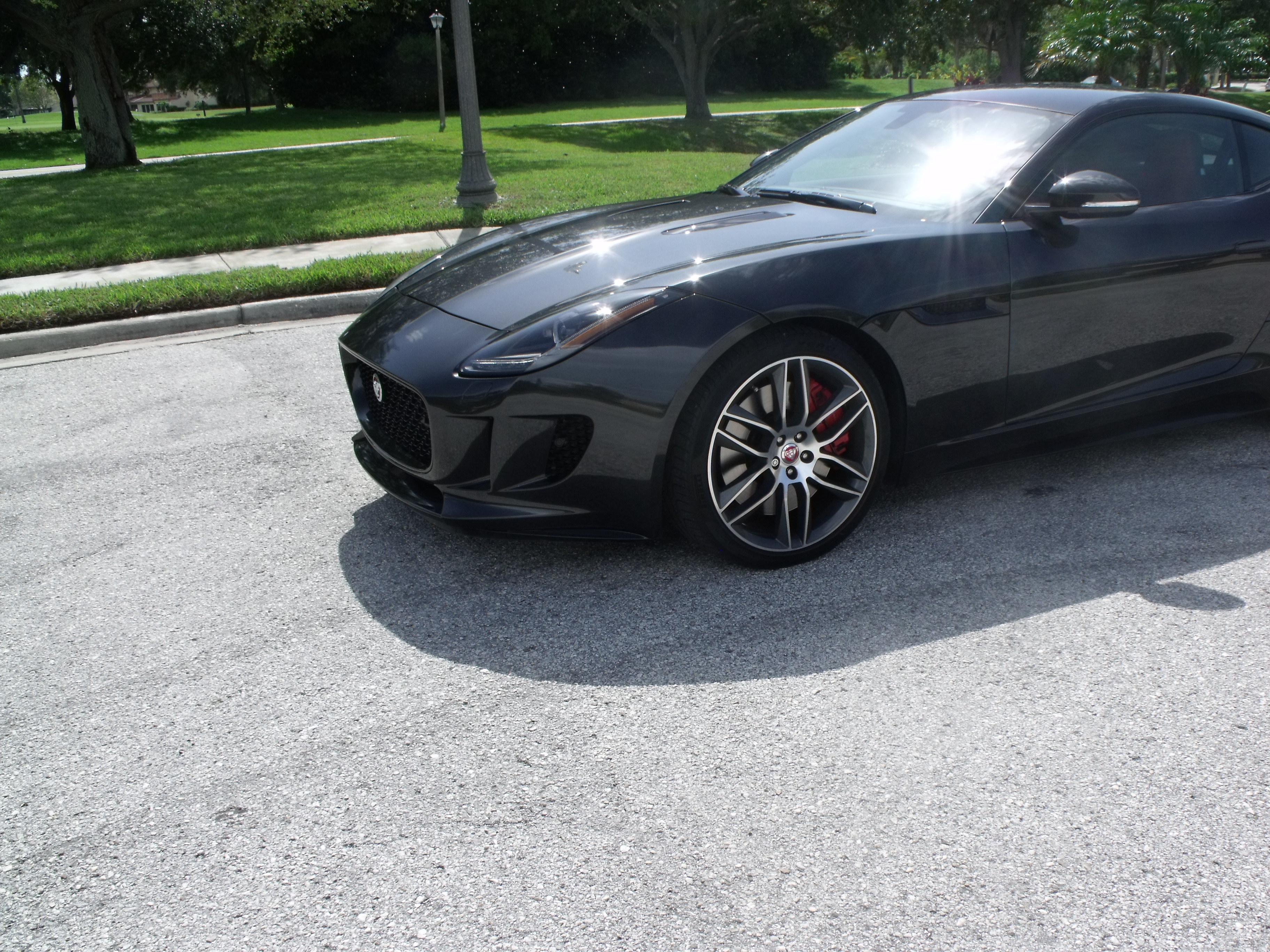

I have attached pictures which were taken in direct sunlight so the sensors look more noticeable. In regular light they are hardly noticeable.

Attached Thumbnails P 7 Bumper-less Grille Installed-2050_12310005.jpg   P 7 Bumper-less Grille Installed-2050_12310006.jpg   P 7 Bumper-less Grille Installed-2050_12310007.jpg   P 7 Bumper-less Grille Installed-2050_12310008.jpg   P 7 Bumper-less Grille Installed-2050_12310009.jpg

P 7 Bumper-less Grille Installed-2050_12310010.jpg   P 7 Bumper-less Grille Installed-2050_12310011.jpg
Reply With Quote
The Following 22 Users Say Thank You to jleuz1 For This Useful Post:
amr42 (08-13-2016), Buckingham (10-10-2016), CaptainHam (10-15-2016), death1ord (05-10-2018), De_Jag (08-08-2016), FtypeRRR (02-03-2017), IRRBrogue (08-05-2016), Itismejoshy (01-04-2018), Jagged Wire (06-25-2017), jaguny (08-05-2016), JgaXkr (08-05-2016), MaximA (09-02-2016), NeverQuit (08-30-2016), Orkney (08-05-2016), Panthro (08-31-2016), pistol (08-10-2016), schraderade (08-05-2016), Schwabe (08-09-2016), SNG Barratt USA (10-12-2016), Sonoman (11-29-2017), TR64ever (10-20-2016), Unhingd (08-10-2016)
  #2
Old 08-05-2016, 02:56 PM
Orkney's Avatar
Senior Member
Join Date: Mar 2015
Location: Dallas, Tx
Posts: 260
Thanked 70 Times in 40 Posts
Default

In my opinion, that is how the front end is supposed to look. Nice, clean install. You must be thrilled.

Orkney

Reply With Quote
The Following 2 Users Say Thank You to Orkney For This Useful Post:
jleuz1 (08-06-2016), NeverQuit (08-30-2016)
  #3
Old 08-05-2016, 03:33 PM
Unhingd's Avatar
Veteran Member
Join Date: Dec 2014
Location: Maryland, US
Posts: 12,134
Thanked 2,768 Times in 2,087 Posts
Default

Perfect. I need to get launched on that project.

Reply With Quote
The Following User Says Thank You to Unhingd For This Useful Post:
jleuz1 (08-06-2016)
  #4
Old 08-05-2016, 03:56 PM
jaguny's Avatar
Veteran Member
Join Date: Dec 2011
Location: upstate new york
Posts: 4,459
Thanked 407 Times in 369 Posts
Default

Great looking mod, nice work!

Reply With Quote
The Following User Says Thank You to jaguny For This Useful Post:
jleuz1 (08-06-2016)
  #5
Old 08-05-2016, 04:34 PM
klrgoten's Avatar
Member
Join Date: Jul 2016
Location: Orange County, CA
Posts: 70
Thanked 24 Times in 16 Posts
Default

amazing... I need to get this done as well. Well done!

Reply With Quote
The Following User Says Thank You to klrgoten For This Useful Post:
jleuz1 (08-06-2016)
  #6
Old 08-05-2016, 05:39 PM
Senior Member
Join Date: Jan 2013
Location: Sydney Australia
Posts: 924
Thanked 146 Times in 110 Posts
Default

Looks good, but surprising not as dramatically better as I thought it would.

Reply With Quote
The Following User Says Thank You to AnD3rew For This Useful Post:
jleuz1 (08-06-2016)
  #7
Old 08-05-2016, 07:28 PM
Mbourne's Avatar
Veteran Member
Join Date: Sep 2015
Location: Pennsylvania
Posts: 2,377
Thanked 383 Times in 284 Posts
Default

Really looks good. Your sensor install is clever.

Reply With Quote
The Following User Says Thank You to Mbourne For This Useful Post:
jleuz1 (08-06-2016)
  #8
Old 08-05-2016, 07:37 PM
IcanDance2's Avatar
Junior Member
Join Date: Mar 2016
Location: Portland, OR
Posts: 29
Thanked 18 Times in 11 Posts
Default

Very nice!!!

Reply With Quote
The Following User Says Thank You to IcanDance2 For This Useful Post:
jleuz1 (08-06-2016)
  #9
Old 08-05-2016, 07:47 PM
jf1
jf1 is offline
Member
Join Date: Nov 2015
Location: Boston, MA
Posts: 99
Thanked 13 Times in 13 Posts
Default

Looks great, nice job!

Reply With Quote
The Following User Says Thank You to jf1 For This Useful Post:
jleuz1 (08-06-2016)
  #10
Old 08-05-2016, 08:33 PM
lizzardo's Avatar
Veteran Member
Join Date: May 2015
Location: Northern California
Posts: 1,520
Thanked 284 Times in 239 Posts
Default

Originally Posted by Orkney View Post
In my opinion, that is how the front end is supposed to look. Nice, clean install.
I concur. I wish mine looked this way. Maybe someday ...

Reply With Quote
The Following User Says Thank You to lizzardo For This Useful Post:
jleuz1 (08-06-2016)
  #11
Old 08-05-2016, 10:51 PM
tberg's Avatar
Veteran Member
Join Date: Apr 2011
Location: Los Angeles
Posts: 3,949
Thanked 1,274 Times in 876 Posts
Default

Great job! Great look.

Reply With Quote
The Following User Says Thank You to tberg For This Useful Post:
jleuz1 (08-06-2016)
  #12
Old 08-05-2016, 11:34 PM
polarisnavyxj's Avatar
Veteran Member
Join Date: Jan 2015
Location: SF Bay Area
Posts: 1,198
Thanked 198 Times in 151 Posts
Default I'm taking my car in monday to have my grill installed

Can you be a bit more specific as it relates to the sensor install portion of the project.

Maybe some close up pics of the templates you refer to with measurements.

A pic or drawing of uninstalled template.

Perhaps a list of materials needed

Some sketches of how they mount and the wires so I can print out your answer to hand to the mechanic.

I'm sure he can figure it out but why reinvent the wheel if you've got the blueprint.

Also curious as to the sensor aim test procedure. Did he mount in like a rubbery cement and reposition while the glue was still malleable? How did he accurately figure out the correct sensor trigger point?

It would be so helpful if you could compile a paragraph or two of a detailed project list to do this from start to finish so all the members that plan to do this mod can simply print it out and hand it to someone. Basically a how-to sticky with a pic or two.

Thanks in advance.


Last edited by polarisnavyxj; 08-05-2016 at 11:45 PM.
Reply With Quote
The Following User Says Thank You to polarisnavyxj For This Useful Post:
jleuz1 (08-06-2016)
  #13
Old 08-06-2016, 07:23 AM
Senior Member
Join Date: Feb 2015
Location: Philadelphia
Posts: 680
Thanks: 0
Thanked 121 Times in 97 Posts
Default

Fantastic! where did you buy the grill from?

Reply With Quote
The Following User Says Thank You to ShaunPA For This Useful Post:
jleuz1 (08-06-2016)
  #14
Old 08-06-2016, 07:47 AM
Unhingd's Avatar
Veteran Member
Join Date: Dec 2014
Location: Maryland, US
Posts: 12,134
Thanked 2,768 Times in 2,087 Posts
Default

Originally Posted by ShaunPA View Post
Fantastic! where did you buy the grill from?
I'll pm you with the secret decoder ring.

Reply With Quote
The Following User Says Thank You to Unhingd For This Useful Post:
Itismejoshy (01-04-2018)
  #15
Old 08-06-2016, 07:53 AM
Member
Join Date: Jul 2016
Location: pa
Posts: 65
Thanked 21 Times in 10 Posts
Default

I like it, looks very clean nice job.

Reply With Quote
The Following User Says Thank You to carnut1 For This Useful Post:
jleuz1 (08-06-2016)
  #16
Old 08-06-2016, 10:37 AM
jleuz1's Avatar
Senior Member
Thread Starter
Join Date: Jan 2009
Location: Largo, FL
Posts: 752
Thanked 126 Times in 84 Posts
Default

Shaun,Unhinged will hook you up.

Reply With Quote
  #17
Old 08-06-2016, 10:53 AM
jleuz1's Avatar
Senior Member
Thread Starter
Join Date: Jan 2009
Location: Largo, FL
Posts: 752
Thanked 126 Times in 84 Posts
Default

Polarisnavyxj

I wish I could be more specific as to how everything was done but I only spoke to the manager and not the actual installer so I did not get specific details, just a general description.

I gave him the options of cutting out grille mounts and sensor mount bracket from old bumper as rocspo did, removing sensor mount bracket from old bumper (my mechanic said they can be removed with a heat gun) and attaching to fabricated grille mount, or glue sensors directly to fabricated grille mount.

He chose to glue them directly to the fabricated ABS mount and face connectors outward toward fender. He mounted wiring harness under grille (there is a lip below the grill that he tucked it into)and extended sensor wires to run around grille and up fender to sensors. From sensor he glued wires on back rim of trapazoids running to fender so no wires are showing anywhere.

As for materials:
He had ABS sheet- white to cut out grille mounts with template I provided. I think the thickness is 3mm (0.11811) He had glue for mounting and connectors for wire splicing.

I provide him with:
Template for grille mount.
8” and 4” black cable ties from OReilly Auto and cable tie adhesive mounts Shop Utilitech 10-Pack 1-in Nylon Cable Ties at Lowes.com
24 AWG (I think) double wire from 2 old power supplies (1 telephone, 1 router) The wire is about 1mm OD.
5pks of Raychem Heat shrink tubing from lowes to seal wires when spliced. I gave him 2 (1/8 to 1/16) and 2 (3/8 to 3/32) but I don't know which he used.
1 bottle red and I bottle white nail polish to code sensor wires before cutting. (Dollar Store)

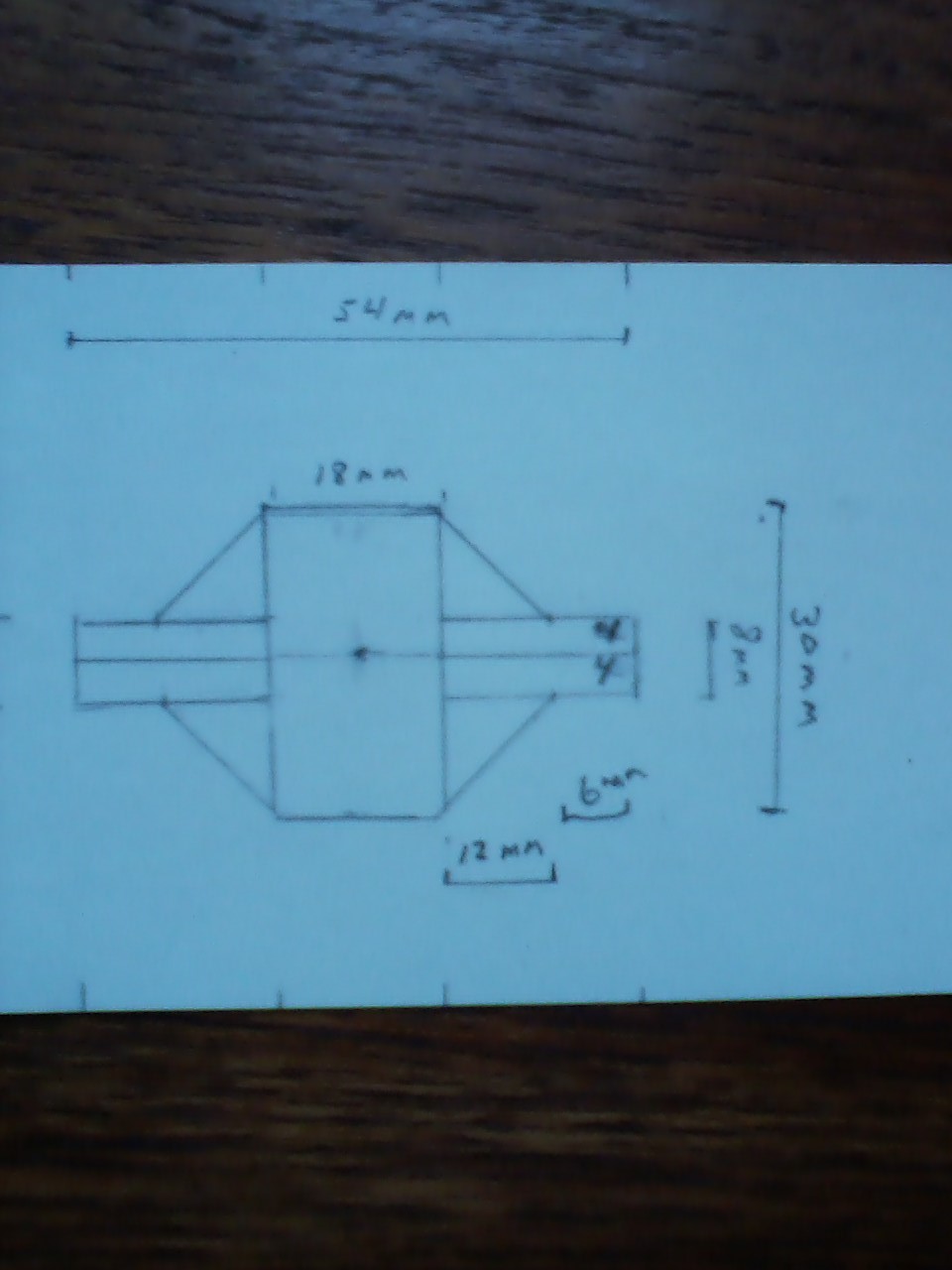

I am attaching a picture of a template I just made on an index card. I didn’t cut it out so you can see measurements. I am also attaching the instructions I gave to installer (plagiarized from rocspo) which describes calibration process (see attached file below pictures).

Good Luck

Attached Thumbnails P 7 Bumper-less Grille Installed-picture0806160824_1.jpg   P 7 Bumper-less Grille Installed-0720161408.jpg
Attached Files
File Type: docx
P 7 Grille instructions.docx (14.4 KB, 194 views)

Last edited by jleuz1; 08-06-2016 at 11:45 AM.
Reply With Quote
The Following 2 Users Say Thank You to jleuz1 For This Useful Post:
CaptainDavid (05-25-2017), Mbourne (08-06-2016)
  #18
Old 08-06-2016, 11:36 AM
polarisnavyxj's Avatar
Veteran Member
Join Date: Jan 2015
Location: SF Bay Area
Posts: 1,198
Thanked 198 Times in 151 Posts
Default

Originally Posted by jleuz1 View Post
Polarisnavyxj

I wish I could be more specific as to how everything was done but I only spoke to the manager and not the actual installer so I did not get specific details, just a general description.

I gave him the options of cutting out grille mounts and sensor mount bracket from old bumper as rocspo did, removing sensor mount bracket from old bumper (my mechanic said they can be removed with a heat gun) and attaching to fabricated grille mount, or glue sensors directly to fabricated grille mount.

He chose to glue them directly to the fabricated ABS mount and face connectors outward toward fender. He mounted wiring harness under grille (there is a lip below the grill that he tucked it into)and extended sensor wires to run around grille and up fender to sensors. From sensor he glued wires on back rim of trapazoids running to fender so no wires are showing anywhere.

As for materials:
He had ABS sheet- white to cut out grille mounts with template I provided. I think the thickness is 3mm (0.11811) He had glue for mounting and connectors for wire splicing.

I provide him with:
Template for grille mount.
8” and 4” black cable ties from OReilly Auto and cable tie adhesive mounts Shop Utilitech 10-Pack 1-in Nylon Cable Ties at Lowes.com
24 AWG (I think) double wire from 2 old power supplies (1 telephone, 1 router) The wire is about 1mm OD.
Heat shrink tubing from lowes to seal wires when spliced.
1 bottle red and I bottle white nail polish to code sensor wires before cutting. (Dollar Store)

I am attaching a picture of a template I just made on an index card. I didn’t cut it out so you can see measurements. I am also attaching the instructions I gave to installer (plagiarized from rocspo) which describes calibration process (see attached file below pictures).

Good Luck
much abliged!

Reply With Quote
The Following User Says Thank You to polarisnavyxj For This Useful Post:
jleuz1 (08-06-2016)
  #19
Old 08-06-2016, 12:53 PM
Unhingd's Avatar
Veteran Member
Join Date: Dec 2014
Location: Maryland, US
Posts: 12,134
Thanked 2,768 Times in 2,087 Posts
Default

Originally Posted by jleuz1 View Post
I am attaching a picture of a template I just made on an index card. I didn’t cut it out so you can see measurements. I am also attaching the instructions I gave to installer (plagiarized from rocspo) which describes calibration process (see attached file below pictures).

Good Luck
All very helpful. THANK YOU!!!

Reply With Quote
The Following User Says Thank You to Unhingd For This Useful Post:
jleuz1 (08-06-2016)
  #20
Old 08-07-2016, 09:24 AM
Nati's Avatar
Veteran Member
Join Date: Jun 2015
Location: Cincinnati
Posts: 1,127
Thanked 254 Times in 185 Posts
Default

Sometimes I feel like the only one who doesn't hate the bumper bar. It has never bothered me.
