Engine number
#2
Taken from the Jag-lovers website:
"The number of the XK engine block for earlier models is stamped on the horizontal shelf above the oil filter, or for later models on the left on the bell housing flange; on the earlier cylinder heads it is on the vertical face in front of the front spark plug. If there is no number on an earlier head it is probably a replacement head obtained through the Jaguar Spares Department. The practice of numbering heads was discontinued at some point in the late 1960's. Following the initial letter(s) there are generally four numbers followed by /7 or /8 or /9, which indicates the compression ratio".
Hope this helps.
Stu
"The number of the XK engine block for earlier models is stamped on the horizontal shelf above the oil filter, or for later models on the left on the bell housing flange; on the earlier cylinder heads it is on the vertical face in front of the front spark plug. If there is no number on an earlier head it is probably a replacement head obtained through the Jaguar Spares Department. The practice of numbering heads was discontinued at some point in the late 1960's. Following the initial letter(s) there are generally four numbers followed by /7 or /8 or /9, which indicates the compression ratio".
Hope this helps.
Stu
#3
#4

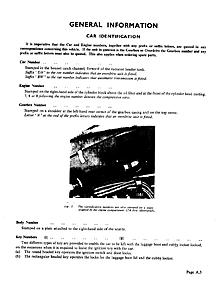

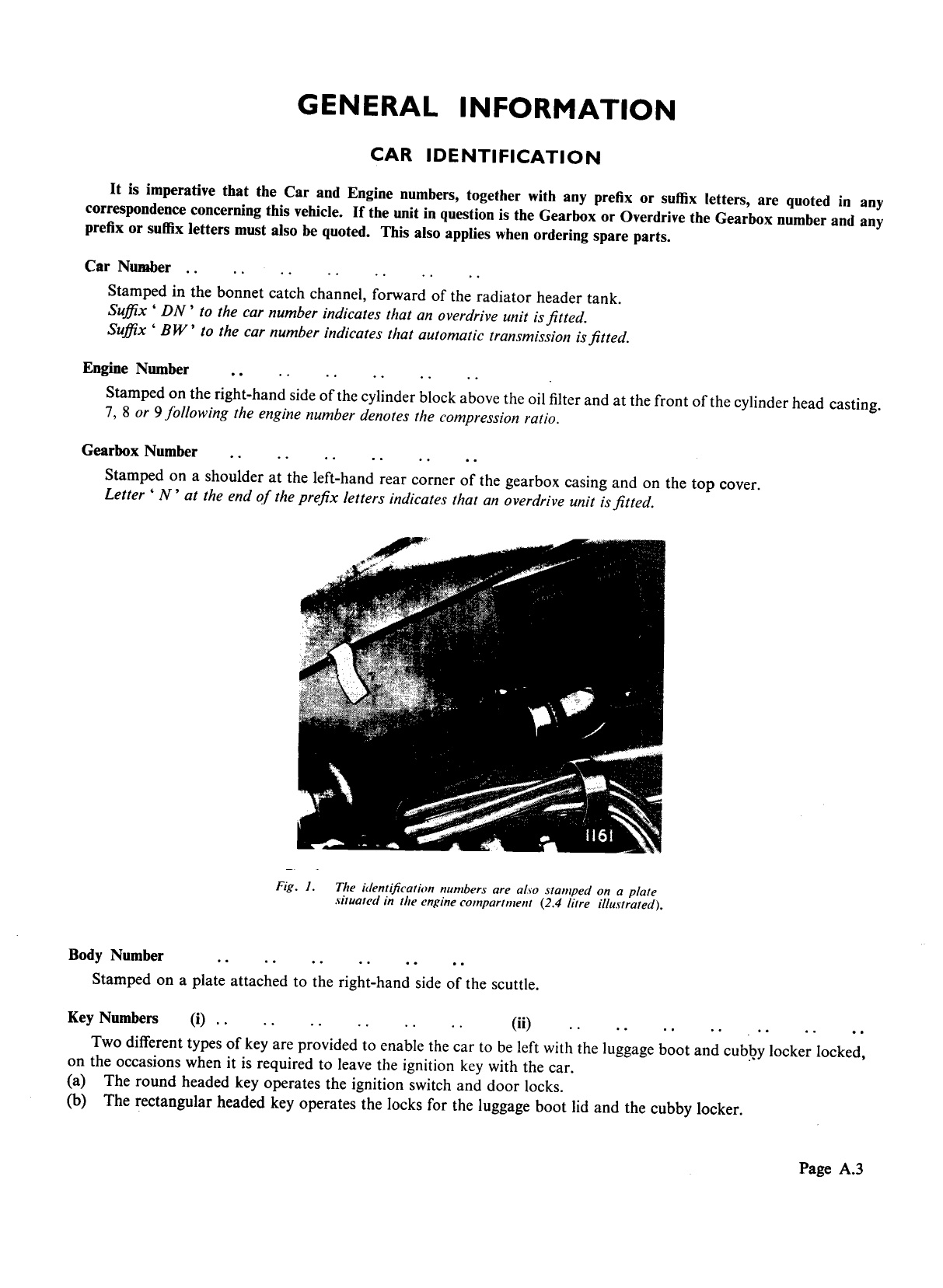

From the Workshop Manual introduction:
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
